Buyers Products U-Joint has a quality needle bearing construction in a variety of sizes and styles to fit your driveshaft assembly needs. Use it to put together a new PTO drive shaft, replace a worn-out driveline cross, or reconfigure your current system. The U-joint is built with needle bearings, which helps keep torque transfer smooth. All Buyers Products U-joints are built of high quality materials for a durable driveline construction.
Specifications
| Bearing Cap Diameter | 1.063 |
|---|---|
| Finish | Plain |
| Greasable (y/n) | Yes |
| Material | Carbon Steel |
| Type of Bearing | Needle |

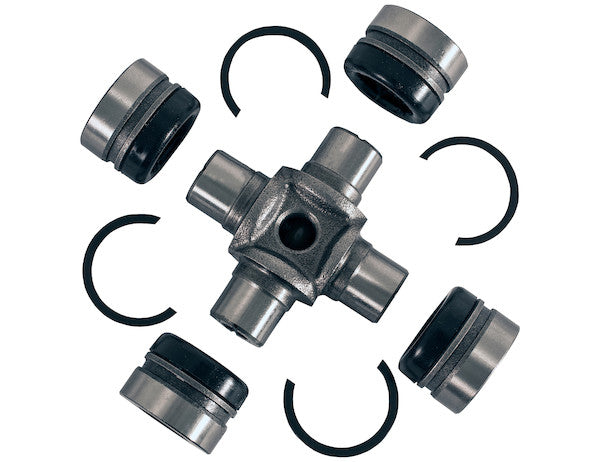

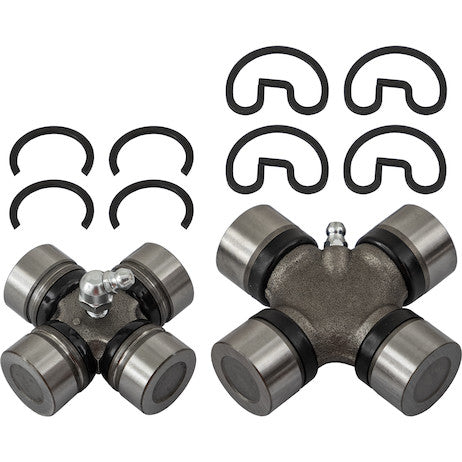

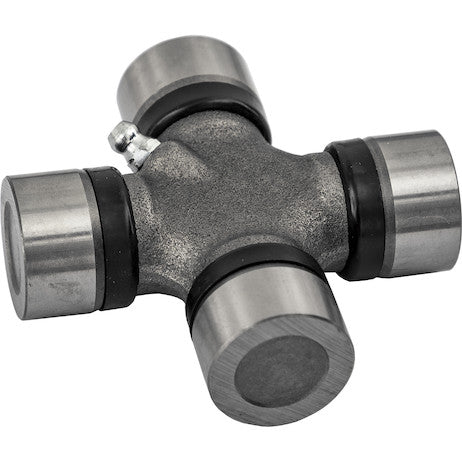

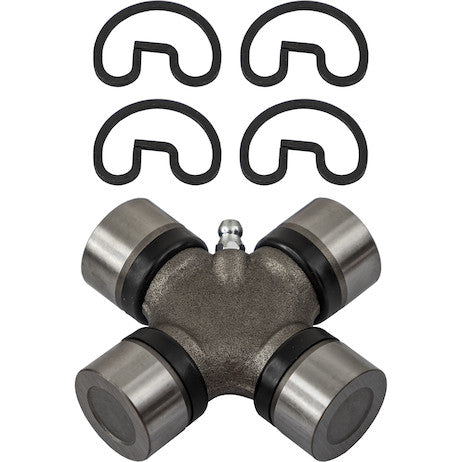

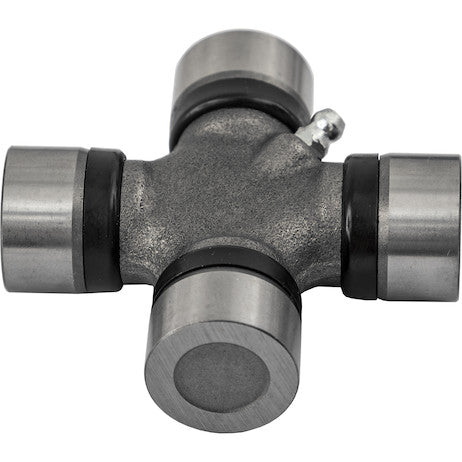

B1310 Series Journal Assembly: Advanced Engineering for Driveline Performance
The B1310 Series Journal Assembly from Buyers Products represents a cornerstone component in the transmission of mechanical power across angular displacements, integral to a multitude of industrial, commercial, and agricultural driveline systems. Engineered with precision and manufactured from high-grade materials, this universal joint (U-joint) assembly is designed to provide robust, reliable, and efficient torque transfer under demanding operational conditions. Its designation within the B1310 series signifies adherence to specific dimensional standards and load capacities, ensuring compatibility and interchangeability within established driveline architectures.
Universal joints are fundamental mechanical linkages that transmit rotational motion and power between two shafts that are intentionally misaligned or whose relative angular position changes during operation. This necessity arises in applications where a direct, rigid coupling is impractical or impossible, such as between an engine/transmission output and a differential input, or within Power Take-Off (PTO) systems where implement articulation is required. The B1310 Series Journal Assembly, also commonly referred to as a cross and bearing kit, is the articulating heart of such a connection, facilitating smooth power flow while accommodating dynamic angular variations without inducing harmful stresses or binding.
Fundamentals of Universal Joint Mechanics

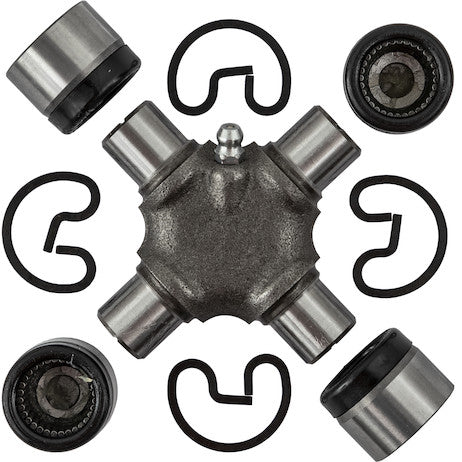

A universal joint operates on the principle of a Cardan joint, comprising two yokes connected by a central cross (or spider) with four trunnions (or journals). Each trunnion is paired with a bearing cup, housing needle bearings, which allow for pivotal motion. As one shaft rotates, the cross pivots within its bearings, enabling the other shaft to rotate even when misaligned. While a single U-joint introduces velocity fluctuations between input and output shafts at angles greater than zero, a well-designed driveline system typically employs two U-joints in phase, effectively canceling out these fluctuations and ensuring constant velocity output, a critical factor for preventing vibration and premature wear in connected machinery.
The B1310 series is specifically optimized for applications demanding strength and longevity. Its design meticulous attention to geometric precision ensures minimal backlash and optimal load distribution across the bearing surfaces, which are paramount for maintaining efficiency and reducing wear in high-torque environments. The precise 1.063-inch bearing cap diameter is a critical specification, dictating compatibility with mating yokes and ensuring a secure, concentric fit that prevents excessive play and subsequent vibrational resonance.
Material Science and Structural Integrity
The selection of materials for the B1310 Series Journal Assembly is a decisive factor in its performance and durability. Manufactured from carbon steel, the central cross and bearing caps benefit from the material's inherent strength, ductility, and machinability. Carbon steel, typically chosen from specific grades like AISI 1045 or similar medium-carbon alloys, provides an excellent balance of properties essential for highly stressed mechanical components. This material selection ensures high tensile and yield strengths, enabling the journal assembly to withstand substantial torsional loads and cyclic fatigue associated with continuous operation in driveline systems.
Further enhancing the structural integrity and wear resistance, the carbon steel components undergo specialized heat treatment processes. These processes, which may include case hardening (such as carburizing or induction hardening) for the trunnion surfaces, create a hard, wear-resistant outer layer while maintaining a tough, ductile core. This differential hardness profile is critical: the hardened surface resists abrasive wear and pitting from the needle rollers, while the resilient core prevents brittle fracture under shock loads, significantly extending the operational life of the journal assembly. The plain finish on the components indicates a standard industrial surface treatment, suitable for internal applications where protection against elements is often provided by the surrounding driveline components and consistent lubrication.
The Pivotal Role of Needle Bearings
The employment of needle bearings within the B1310 Series Journal Assembly is a key engineering decision that underpins its superior performance characteristics. Needle roller bearings are a type of radial roller bearing with rollers that are longer than their diameter, resembling needles. Their primary advantages in this application include:
- High Load Capacity: Due to their large number of rollers and the corresponding increased contact area, needle bearings can carry substantial radial loads within a compact cross-sectional envelope, making them ideal for the constrained spaces within a U-joint.
- Reduced Friction and Smooth Torque Transfer: The rolling contact of needle bearings significantly minimizes frictional losses compared to plain bearings. This characteristic is vital for efficient power transmission, translating into less wasted energy, reduced heat generation, and smoother operation, which directly contributes to the prevention of driveline vibrations and noise.
- Compact Design: The relatively small diameter of needle rollers allows for a slender bearing design, which is advantageous for U-joint applications where space is often at a premium.
- Durability and Longevity: When properly lubricated, needle bearings offer exceptional wear resistance and extended service life, critical for components subjected to continuous motion and load.
Each of the four bearing caps precisely houses these needle bearings, ensuring their proper alignment and containment. The internal design of these caps and the trunnions of the cross is optimized to distribute loads evenly across the needle rollers, mitigating stress concentrations and promoting uniform wear. High-quality seals, typically integrated into the bearing caps, play a crucial role in protecting the needle bearings. These seals prevent the ingress of contaminants such such as dirt, dust, and moisture, which can rapidly degrade bearing surfaces and accelerate wear. Concurrently, they are designed to retain the lubricating grease within the bearing cavity, ensuring a consistent and clean lubricating film is maintained around the rollers.
The Significance of Greasability
A standout feature of the B1310 Series Journal Assembly is its greasable design. The inclusion of a grease fitting (typically a Zerk fitting) allows for periodic lubrication, a critical maintenance procedure that profoundly impacts the U-joint's service life and operational integrity. Proper lubrication achieves several vital functions:
- Friction Reduction: Grease provides a hydrodynamic film that separates the rolling elements from their raceways, minimizing metal-on-metal contact and reducing frictional heat and wear.
- Corrosion Protection: The grease film coats internal components, offering a protective barrier against moisture and corrosive agents.
- Contaminant Purge: When fresh grease is introduced, it flushes out old, contaminated grease and any abrasive particles that may have bypassed the seals, ensuring the bearing cavity remains clean.
- Heat Dissipation: While reducing friction, grease also aids in dissipating the minimal heat generated during operation, preventing thermal degradation of components and the lubricant itself.
For the B1310 series, regular greasing with an appropriate multi-purpose, extreme-pressure (EP) lithium-based grease is highly recommended. The frequency of lubrication depends on operating conditions, including load, speed, angle, and environmental factors. In heavy-duty or off-road applications, more frequent lubrication schedules are necessary to counteract the effects of dust, water ingress, and high operational stresses. This proactive maintenance capability underscores the commitment of Buyers Products to engineer components that are not only robust but also maintainable, allowing users to maximize their investment through extended operational uptime.
Technical Specifications and Application Compatibility
The stated specifications for the B1310 Series Journal Assembly are not merely descriptive but are engineering parameters that define its functional envelope and interchangeability:
- Bearing Cap Diameter (1.063 inches): This precise dimension is crucial for direct compatibility with yokes designed for the B1310 series. Any deviation can lead to improper fitment, resulting in either excessive looseness (leading to premature wear and vibration) or binding (resulting in catastrophic failure). Buyers Products ensures strict adherence to these tolerances during manufacturing.
- Material (Carbon Steel): As elaborated, this choice provides the necessary strength and durability for arduous driveline tasks.
- Greasable (Yes): This feature is a testament to its heavy-duty design and emphasizes its suitability for long-term, maintainable operation.
- Finish (Plain): While indicating no specialized external coating, the internal working surfaces are highly finished and often surface-hardened to achieve optimal bearing performance and longevity. External protection is largely handled by the grease and the U-joint's operational environment.
- Type of Bearing (Needle): This confirms the high-efficiency, high-load-capacity design, ensuring smooth and reliable power transmission.
The B1310 Series Journal Assembly finds extensive utility across a broad spectrum of applications. In Power Take-Off (PTO) drive shafts, which often operate at varying angles and speeds, its robust design ensures consistent power delivery to implements like pumps, generators, and agricultural machinery. For heavy-duty vehicle drivelines, including commercial trucks, buses, and construction equipment, this U-joint is critical for connecting the transmission to drive axles, accommodating suspension travel and frame flex while transmitting immense torque loads. Its suitability for replacing worn-out driveline crosses or reconfiguring existing systems is a testament to its standardized dimensions and the universal need for reliable, high-performance universal joints.
Buyers Products Engineering and Quality Assurance
Buyers Products maintains a steadfast commitment to engineering excellence and stringent quality control throughout the manufacturing process of the B1310 Series Journal Assembly. Each component is subjected to rigorous inspection to ensure dimensional accuracy, material integrity, and adherence to performance specifications. This dedication to quality ensures that every U-joint assembly leaving the facility meets the demanding standards required for industrial and commercial applications.
The design philosophy extends beyond individual component strength to consider the U-joint's role within an entire driveline system. Understanding that the failure of a single U-joint can lead to significant downtime and costly repairs, Buyers Products engineers these assemblies to provide exceptional service life, thereby reducing overall operational costs and enhancing the reliability of the machinery they serve. The B1310 series is not merely a replacement part; it is an engineered solution designed to restore or enhance the performance of critical power transmission systems.
Conclusion
The B1310 Series Journal Assembly from Buyers Products represents a high-caliber component for power transmission applications requiring robust, efficient, and reliable universal joints. With its precision-engineered carbon steel cross, high-capacity needle bearings, and critical greasable design, it is ideally suited for demanding operational environments, from heavy-duty commercial vehicles to agricultural equipment and industrial machinery. The exacting specifications, including the 1.063-inch bearing cap diameter, reinforce its compatibility and performance standards. By choosing the B1310 Series Journal Assembly, operators and maintenance professionals are investing in a product that epitomizes durability, minimizes downtime through superior engineering, and ensures the smooth, efficient transfer of power across angular variations. This journal assembly stands as a testament to Buyers Products' commitment to delivering components that not only meet but exceed the rigorous demands of modern driveline systems.
