Buyers Products Steel Weld-On Bullet Hinge (also known as a lift-hinge) is ideal for trailer doors/gates and tool cabinets. The hinge is constructed from steel with a steel pin and brass bushing. They are available in multiple sizes to fit your application. Please contact Customer Service for further information.

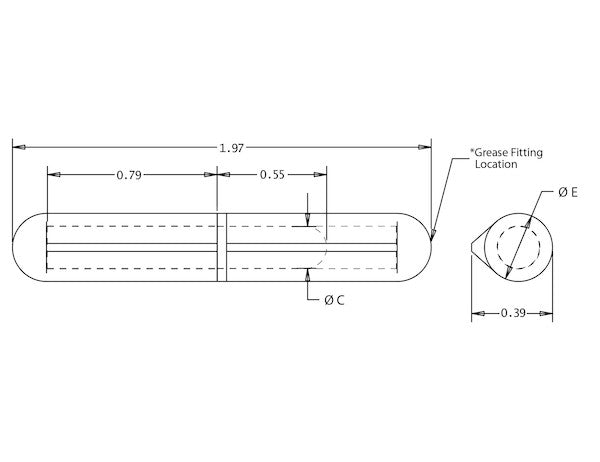

Specifications
| Bushing Material | Brass |
|---|---|
| Diameter (in.) | 0.32 |
| Hinge Length (in.) | 1.97 |
| Pin Diameter (in.) | 0.20 |
| Pin Length A (in.) | 0.79 |
| Pin Length B (in.) | 0.55 |
| Pin Material | Carbon Steel |
| Thickness (in.) | 0.39 |
| With Grease Fitting (y/n) | No |
The Steel Weld-On Bullet Hinge with Steel Pin and Brass Bushing, specifically dimensioned at 0.39 x 1.97 inches, represents a meticulously engineered component designed for robust and enduring articulation in demanding industrial and heavy-duty applications. This product is a testament to precision manufacturing, combining superior material science with practical design principles to deliver exceptional performance where reliability and strength are paramount.
At its core, this hinge leverages the inherent mechanical advantages of its constituent materials: high-grade steel for structural integrity and weldability, a hardened carbon steel pin for wear resistance and shear strength, and a high-performance brass bushing for friction reduction and enhanced operational longevity. This synergistic material selection ensures that the hinge can withstand significant loads, repetitive cycles, and harsh environmental conditions, making it an indispensable choice for critical pivot points.
Material Science and Engineering Principles
Steel Hinge Body: The Foundation of Strength
The primary construction of the hinge body from steel underscores its suitability for heavy-duty applications. Steel, particularly low to medium carbon steel, is chosen for its excellent balance of strength, ductility, and most importantly for this product, superior weldability. The ability to weld this hinge directly onto structural components ensures a permanent, high-strength bond that often surpasses the sheer and tensile strength of bolted connections. This integration creates a monolithic joint, distributing stress efficiently across a larger surface area and minimizing points of failure.
The steel utilized in the hinge body provides exceptional resistance to impact, bending, and torsional stresses, which are common forces encountered in applications like trailer doors, heavy gates, and industrial machinery access panels. The 0.39-inch thickness, referring to a critical dimension of the hinge's profile, contributes directly to its moment of inertia and overall rigidity, allowing it to support substantial loads without deformation or fatigue over time. The inherent toughness of steel ensures that the hinge maintains its structural integrity even under dynamic loading conditions and temperature fluctuations typical of outdoor or industrial environments.
Carbon Steel Pin: The Critical Pivot
The choice of carbon steel for the hinge pin is a deliberate engineering decision aimed at optimizing the hinge's operational performance and lifespan. Carbon steel pins are renowned for their high tensile strength and excellent resistance to shear forces, which are the primary stresses exerted on a hinge pin during opening and closing movements, especially under load. With a pin diameter of 0.20 inches, the design balances the need for robust load bearing with a compact footprint, ensuring efficient force transmission within the hinge mechanism.
Furthermore, carbon steel can be heat-treated to achieve specific hardness levels, which significantly enhances its wear resistance. This is crucial as the pin is the central rotating element, constantly interacting with the bushing. A harder pin surface minimizes material loss due to abrasive wear, thereby maintaining the hinge's tight tolerances and smooth operation over extended periods. The specified Pin Length A (0.79 inches) and Pin Length B (0.55 inches) likely denote different engagement lengths within the male and female hinge components or total length versus effective bearing length, each dimension critical for ensuring adequate support and proper articulation without excessive play.
Brass Bushing: The Epitome of Low Friction and Longevity
The inclusion of a brass bushing is a distinguishing feature that elevates the performance and durability of this weld-on bullet hinge. Brass, an alloy primarily of copper and zinc, is celebrated in mechanical engineering for its exceptional tribological properties. Specifically, it offers low coefficient of friction against steel, inherent self-lubricating characteristics (due to its relatively soft matrix and ability to form a transfer layer), and excellent wear resistance. These properties are critical for reducing frictional drag, minimizing heat generation, and preventing galling or seizing between the steel pin and the hinge barrel.
The brass bushing acts as a sacrificial wear component, protecting the more critical and expensive steel pin and hinge body from direct metal-on-metal contact. This not only extends the operational life of the entire hinge assembly but also ensures consistently smooth and quiet articulation. Brass is also inherently corrosion-resistant, particularly to oxidation and certain chemical exposures, which adds another layer of protection in diverse operating environments, contrasting with steel which is more prone to rust without specific coatings. Although this specific hinge does not feature a grease fitting, the intrinsic self-lubricating nature of brass substantially reduces the need for frequent external lubrication, thereby lowering maintenance requirements and overall total cost of ownership.
Design and Installation Advantages: The Bullet Hinge Form Factor
The "bullet hinge" nomenclature derives from its distinctive cylindrical, bullet-like shape. This design offers several significant advantages over traditional leaf hinges, particularly for weld-on applications:
- Compact and Low Profile: Their streamlined cylindrical form makes them ideal for applications where space is limited or a clean, unobtrusive aesthetic is desired. They protrude minimally, reducing snag hazards and improving visual appeal.
- 360-Degree Rotation: Unlike many traditional hinges, bullet hinges typically allow for full 360-degree rotation, offering greater flexibility in design and application, especially for doors or panels that need to swing completely open and fold back.
- High Load Capacity for Size: The concentric loading of the bullet hinge design, with forces distributed radially around the pin, allows these hinges to manage significant radial and axial loads relative to their compact dimensions. The 1.97-inch hinge length, combined with the 0.32-inch nominal diameter (likely the outer diameter of the hinge barrel), indicates a robust component capable of handling considerable stress.
- Ease of Weld-On Installation: The cylindrical body is perfectly suited for welding, creating a very strong and permanent attachment. This method eliminates the need for drilling and bolting, simplifying fabrication and providing a superior mechanical bond. Weld-on hinges are also more resistant to tampering than bolted alternatives, enhancing security.
- Shear Strength: The weld-on nature creates a bond that is exceptionally resistant to shear forces, which is critical for doors and gates that might be subject to lateral impacts or heavy loads.
Application Versatility and Performance Metrics
While the current description highlights trailer doors/gates and tool cabinets, the robust specifications of this Steel Weld-On Bullet Hinge extend its applicability across a much broader spectrum of industrial, commercial, and heavy-duty sectors:
- Agricultural Equipment: Ideal for access panels, hood hinges, or gate mechanisms on tractors, harvesters, and other farm machinery where durability against dirt, moisture, and vibration is essential.
- Industrial Enclosures and Machinery Guards: For heavy access doors on electrical cabinets, machinery guards, or protective housings requiring secure and reliable opening mechanisms.
- Commercial Vehicle and Truck Body Fabrication: Beyond trailers, these hinges are perfect for heavy-duty truck bodies, utility vehicles, emergency service vehicles, and other custom fabrications where robust door and panel articulation is needed.
- Heavy Duty Gates and Fences: For large residential, commercial, or security gates that demand strong, reliable, and smooth-operating hinges capable of supporting significant weight and resisting environmental factors.
- Marine Applications: While steel is generally susceptible to corrosion in saltwater, with appropriate surface treatments (e.g., painting, galvanizing post-welding) and the inherent corrosion resistance of the brass bushing, these hinges can be adapted for specific marine uses where high strength is prioritized.
- Custom Fabrication Projects: Their weld-on nature makes them a favorite for custom builders and fabricators creating bespoke solutions for various heavy-duty applications.
The 0.39-inch thickness and 1.97-inch length indicate a hinge designed for substantial load capacity. While specific load ratings are not provided, these dimensions, combined with the material choices, suggest suitability for applications supporting tens to hundreds of pounds, depending on the number of hinges used and their spacing. The precise interaction between the carbon steel pin and the brass bushing ensures a consistently low operating torque, making heavy doors or panels easier to open and close, thereby enhancing user ergonomics and safety.
The absence of a grease fitting, as indicated by "With Grease Fitting (y/n): No," reinforces the design's reliance on the brass bushing's inherent self-lubricating properties. This simplifies maintenance protocols, as there is no need for regular grease replenishment. However, in extremely dusty, corrosive, or high-temperature environments, periodic inspection and potentially external lubrication with a suitable dry lubricant or grease may still be beneficial to maximize lifespan, depending on the specific application demands.
Quality Assurance and Performance Reliability
Buyers Products is committed to delivering components that meet stringent quality and performance criteria. This Steel Weld-On Bullet Hinge undergoes rigorous manufacturing processes to ensure dimensional accuracy, material integrity, and consistent performance characteristics. From the selection of high-grade steel and brass alloys to precision machining of the pin and bushing components, every aspect of production is meticulously controlled. This dedication to quality results in a hinge that provides predictable operation, exceptional durability, and a prolonged service life, even under the most challenging conditions.
The specifications provided, such as Pin Length A and B, Hinge Length, and Diameter, are not merely arbitrary numbers but critical engineering dimensions that dictate the hinge's fit, function, and load-bearing capabilities. Understanding these dimensions allows engineers and fabricators to accurately integrate the hinge into their designs, ensuring proper alignment, clearance, and structural support. The overall reliability of this hinge stems from the synergistic interplay of these precise dimensions, robust material choices, and the proven design of the bullet hinge form factor.
Conclusion
The Steel Weld-On Bullet Hinge with Steel Pin and Brass Bushing, sized at 0.39 x 1.97 inches, is a meticulously engineered solution for a wide array of heavy-duty applications requiring dependable articulation. Its construction from high-quality steel for the body and a carbon steel pin ensures exceptional strength and shear resistance, while the brass bushing guarantees smooth, low-friction operation and extended durability. Designed for secure and permanent weld-on installation, this hinge offers superior structural integrity, enhanced security, and a clean aesthetic compared to bolted alternatives.
Whether for trailer doors, heavy gates, industrial equipment, or custom fabrication projects, this hinge provides a robust, reliable, and low-maintenance pivot point. Its carefully selected materials and precise dimensions make it an optimal choice for engineers, fabricators, and manufacturers who prioritize performance, longevity, and ease of integration in their designs. For specific application requirements or inquiries regarding other available sizes and technical specifications, Buyers Products’ Customer Service team remains readily available to provide comprehensive support and expert guidance.
