Buyers Products U-Joint has a quality needle bearing construction in a variety of sizes and styles to fit your driveshaft assembly needs. Use it to put together a new PTO drive shaft, replace a worn-out driveline cross, or reconfigure your current system. The U-joint is built with needle bearings, which helps keep torque transfer smooth. All Buyers Products U-joints are built of high quality materials for a durable driveline construction.
Specifications
| Bearing Cap Diameter | 0.938 |
|---|---|
| Finish | Plain |
| Greasable (y/n) | Yes |
| Material | Carbon Steel |
| Type of Bearing | Needle |

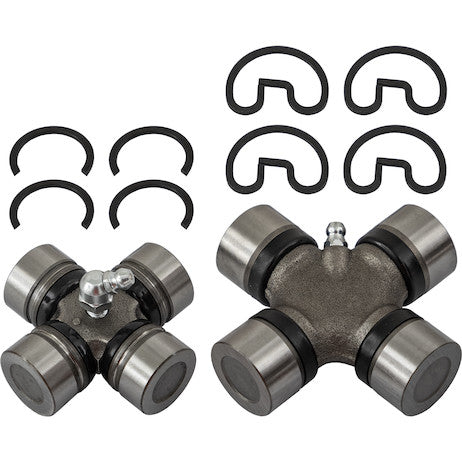

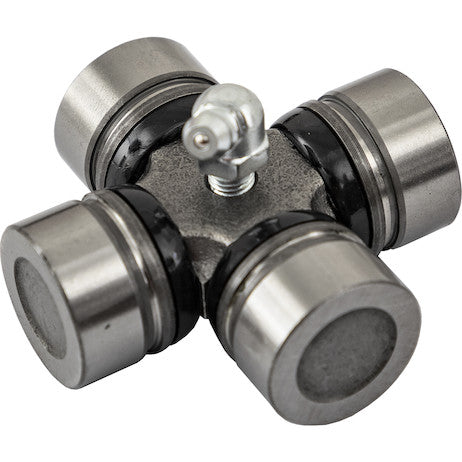

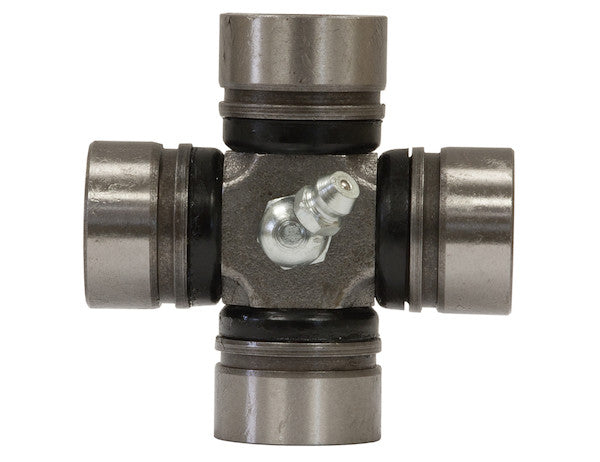

The Buyers Products Journal Assembly, specifically engineered with a 15/16 Inch Cap and an Inside Lock mechanism, represents a critical component in the reliable and efficient transmission of rotational power between two shafts that operate at an angle to each other. This detailed product description aims to delve into the technical intricacies, material science, performance advantages, and application considerations of this robust universal joint, providing a comprehensive understanding for engineers, technicians, and system integrators.
At its core, a universal joint, or U-joint, serves to accommodate angular misalignment and axial motion between driving and driven shafts, a common requirement in driveline systems across various industries, including agricultural, construction, automotive, and industrial machinery. The "Journal Assembly" refers to the central cross-shaped component, often called the spider or cross, along with its four integrated bearing caps. This assembly is designed to transmit torque smoothly, even when subjected to varying angles and dynamic loads. The specific dimension of "15/16 Inch Cap" indicates a precise bearing cap diameter of 0.9375 inches (which rounds to 0.938 inches as specified), a critical parameter for ensuring proper fitment within the mating yokes and for achieving optimal performance and longevity.

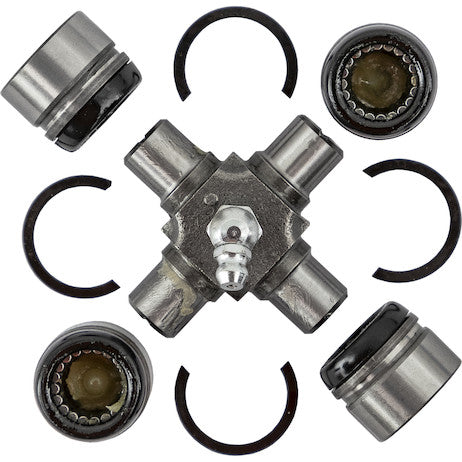

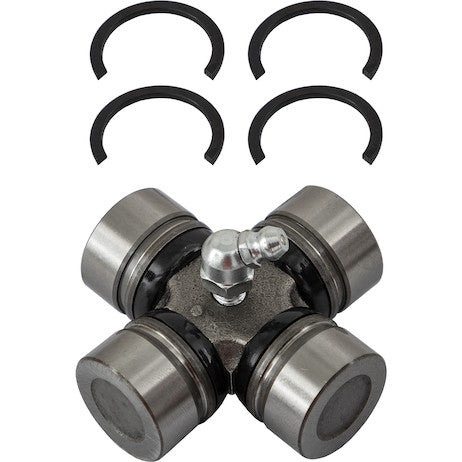

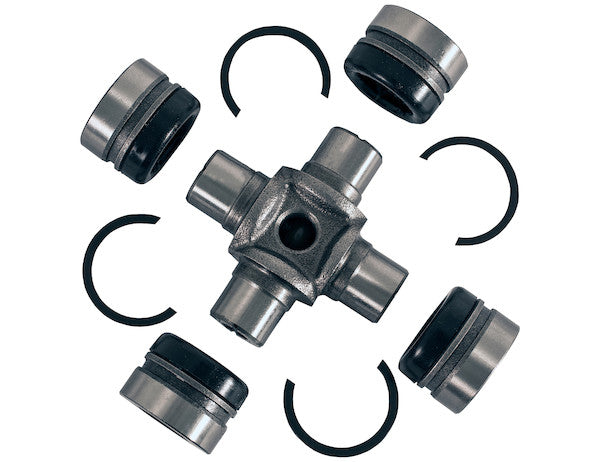

The "Inside Lock" designation is a crucial mechanical detail, signifying the method by which the bearing caps are retained within the yokes of the driveshaft. In an inside lock design, snap rings or circlips are installed into grooves machined on the *inner* side of the yoke ears, pressing against the ends of the bearing caps. This retention method ensures secure seating of the bearing caps, preventing axial movement and maintaining the integrity of the universal joint under operational stresses. This approach offers certain advantages, such as a potentially cleaner exterior profile and protection of the retaining rings from external impacts, though precise installation and proper snap ring selection are paramount for its effectiveness. The engineering of these grooves and the precision of the snap rings are vital to prevent premature wear or failure due to cap displacement.
A fundamental feature highlighted in this Journal Assembly is its "quality needle bearing construction." Needle roller bearings are exceptionally well-suited for universal joint applications due to several inherent characteristics. They consist of small-diameter cylindrical rollers, which provide a significantly larger contact area compared to traditional ball bearings. This increased contact area enables needle bearings to handle very high radial loads within a compact cross-section. In a U-joint, these bearings facilitate the smooth rotational movement of the trunnions (the four projecting arms of the cross) within the bearing caps, minimizing friction and optimizing torque transfer efficiency. The use of needle bearings directly contributes to the U-joint's ability to operate with reduced vibration, lower heat generation, and enhanced durability, particularly under high-speed or heavy-load conditions. Each bearing cap houses a set of precisely manufactured needle rollers, often retained by a cage, ensuring optimal spacing and alignment. High-quality seals, integrated into the bearing caps, are critical for retaining the lubricant (grease) and preventing the ingress of contaminants such as dirt, dust, and moisture, which can severely compromise bearing life.
The choice of "Carbon Steel" as the primary material for this Journal Assembly is indicative of its intended application in demanding environments. Carbon steel offers a superior balance of strength, toughness, and wear resistance, properties essential for components subjected to high torsional, bending, and shear stresses. The cross, or spider, is typically forged from high-quality carbon steel, a process that refines the material's grain structure, enhancing its overall strength and fatigue resistance. Following forging, critical surfaces such as the trunnions are precision-machined to tight tolerances. These surfaces undergo heat treatment processes, such as case hardening or induction hardening, to create an extremely hard, wear-resistant outer layer while maintaining a tougher, more ductile core. This differential hardness is crucial for resisting surface wear from the needle rollers and preventing brittle fracture under shock loads. The bearing caps are also manufactured from robust carbon steel, often similarly treated to provide a durable race for the needle rollers, ensuring consistent performance throughout the U-joint's service life.
The "Plain Finish" specified for this Journal Assembly typically implies that the component is supplied with a basic protective coating, often an oil or light rust preventative, rather than a specialized paint or plating. This finish is entirely suitable for internal components or those that will be further protected within a driveline assembly. For some applications, users may choose to apply their own protective coatings or paints to match specific aesthetic or corrosion resistance requirements, but the plain finish confirms that the material integrity is uncompromised and ready for immediate integration into an assembly.

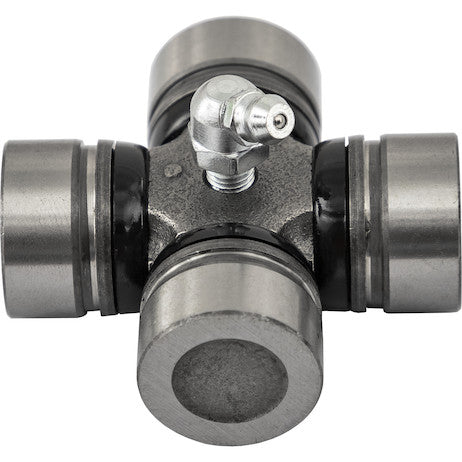

A particularly valuable feature of this Buyers Products Journal Assembly is its "Greasable (Yes)" design. This capability is paramount for extending the service life and maintaining the optimal performance of the universal joint. A grease fitting (often a Zerk fitting) is strategically located on the cross, allowing for periodic replenishment of lubricant to the needle bearings. Regular greasing flushes out old, contaminated grease, introduces fresh lubricant, and ensures that the needle rollers operate within a protective film, thereby minimizing friction and wear. Proper lubrication is vital for dissipating heat, preventing corrosion, and extending the operational lifespan of the bearings, especially in applications with varying loads, speeds, and environmental conditions. The ability to grease the U-joint significantly contributes to its overall maintainability and reduces the total cost of ownership over its service life, making it a preferred choice for applications where regular maintenance is feasible and beneficial.
Beyond the individual specifications, the overarching design philosophy of this Buyers Products Journal Assembly focuses on delivering reliable torque transfer. The precise interaction between the hardened trunnions, the compact needle bearings, and the robust bearing caps, all securely retained by the inside lock mechanism, ensures that rotational power is transmitted efficiently and smoothly. This smooth transfer minimizes driveline vibrations, reduces noise, and protects other powertrain components from undue stress, contributing to the overall longevity and performance of the entire system. The U-joint's ability to accommodate angularity prevents binding and excessive stress on the shafts and associated components, which is critical in dynamic applications where relative shaft positions may change during operation.
Applications for a universal joint of this configuration are extensive. In Power Take-Off (PTO) drivelines, common in agricultural machinery (tractors, tillers, balers) and industrial equipment, the U-joint allows implements to be driven at various angles relative to the tractor or power unit. The 15/16 inch cap diameter is suitable for specific power requirements and torque loads encountered in medium-duty PTO shafts. Similarly, in automotive and heavy-duty vehicle drivelines, these U-joints form crucial links, transmitting power from the transmission to the differential, accommodating suspension travel and frame flex. Industrial applications range from conveyor systems and mixing equipment to pumps and heavy machinery, where angular power transmission is frequently required. The robust carbon steel construction and greasable needle bearings make this assembly an ideal candidate for environments where reliability and long-term performance under demanding conditions are non-negotiable.
The installation process for an inside lock journal assembly requires precision and attention to detail. After disassembling the worn U-joint or preparing new yokes, the bearing caps are carefully pressed into the yoke bores, ensuring the needle bearings remain intact and properly aligned. The cross is then positioned, and the remaining bearing caps are pressed in. Crucially, the inside lock snap rings must be correctly seated into their grooves within the yoke ears, pressing firmly against the ends of the bearing caps. Incorrect installation of these rings can lead to premature failure due to bearing cap walk-out. Proper tools, such as U-joint presses and snap ring pliers, are recommended to facilitate a secure and correct installation. Following installation, the U-joint should be thoroughly greased to ensure initial lubrication and purge any air pockets. Regular maintenance, specifically periodic greasing according to OEM recommendations or application demands, is essential to maximize the lifespan of the U-joint. Factors such as operating speed, load, angularity, and environmental conditions will influence the optimal greasing interval. Inspection for signs of wear, such as excessive play, corrosion, or damaged seals, should also be part of routine maintenance checks.
In summary, the Buyers Products Journal Assembly with its 15/16 Inch Cap and Inside Lock design is a meticulously engineered component built for durability, efficiency, and adaptability. Its foundation in high-quality carbon steel, coupled with precision needle bearing construction, guarantees smooth torque transfer and superior load-carrying capabilities. The inside lock mechanism provides secure retention of the bearing caps, while the greasable design underscores a commitment to extended service life and ease of maintenance. This universal joint is an exemplary solution for anyone requiring a robust, reliable, and technically sound component for new driveline construction, critical replacements, or system reconfigurations across a broad spectrum of industrial, agricultural, and mobile equipment applications. Choosing this Journal Assembly means investing in a component designed to meet the rigorous demands of power transmission, offering peace of mind through its proven design principles and quality materials.
