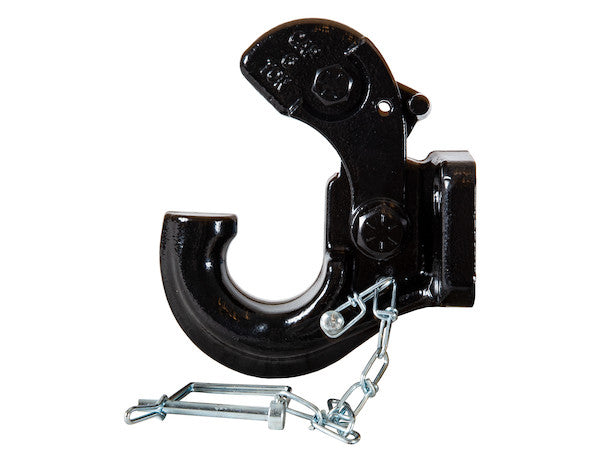

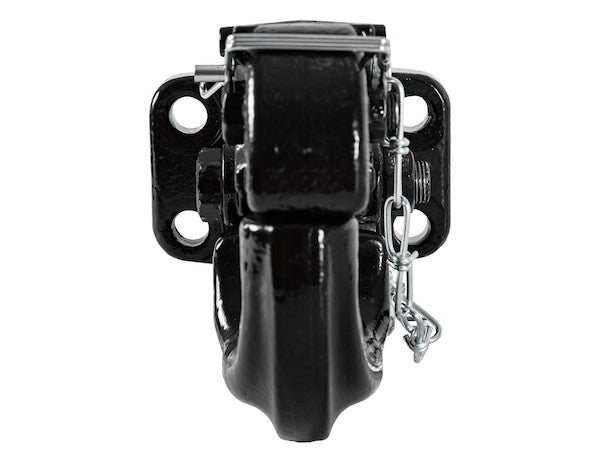

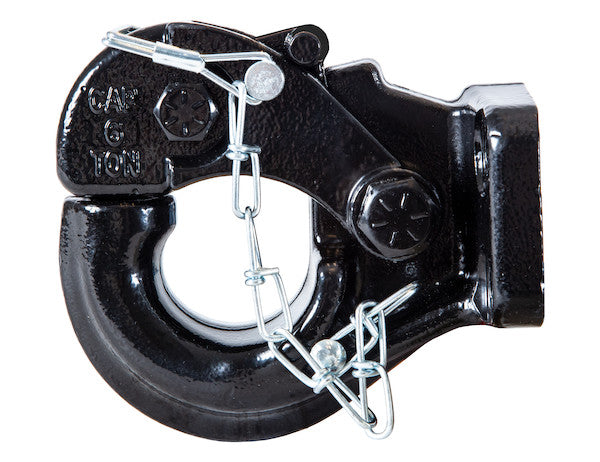

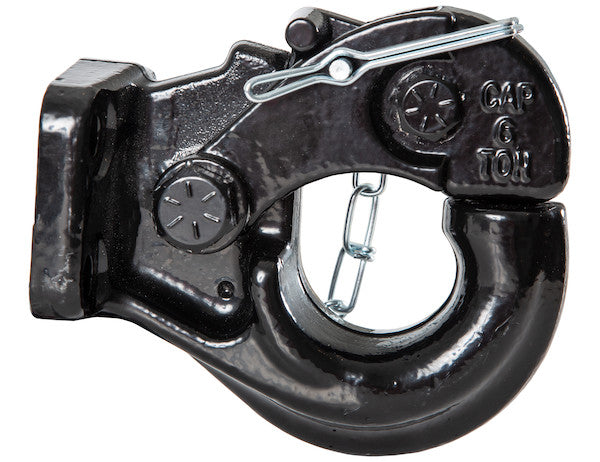

The bolt-on 6 Ton Pintle Hook from Buyers Products features drop-forged construction and a black powder-coated finish for maximum durability and corrosion resistance. The pintle hook is ideal for towing loads up to 12,000 lb. Each pintle hook includes mounting information, specs sheet, drilling template, and vehicle capacity decal. It is sold both individually and with a mounting kit.
Specifications
| Ball Diameter (in.) | - |
|---|---|
| Color | Black |
| Drawbar Eye Inner Dia. (in.) | 2.0-3.0 |
| Finish | Powder-Coat |
| Horizontal Hole Spacing (in.) | 3.375 |
| M.G.T.W. (lbs) | 12,000 |
| M.V.L. (lbs) | 2,400 |
| Material | Forged Steel |
| Mounting Hole Diameter (in.) | 0.531 |
| Pintle Hook Type | Standard |
| Vertical Hole Spacing (in.) | 1.75 |
Advanced Engineering and Performance Analysis: The 6 Ton Pintle Hook
The 6 Ton Pintle Hook, offered by Buyers Products, represents a pinnacle in heavy-duty towing solutions, meticulously engineered for demanding applications. This product is not merely a component but a critical link in the operational chain, designed to provide unparalleled reliability and safety when towing substantial loads up to 12,000 lb (6 tons). Its robust construction, featuring drop-forged steel and a durable powder-coated finish, ensures longevity and consistent performance across a diverse range of challenging environmental and operational conditions.
Superior Material Science: Drop-Forged Steel Construction
The foundation of this pintle hook's exceptional strength lies in its drop-forged steel construction. Forging is a manufacturing process that involves shaping metal using localized compressive forces. Specifically, drop forging utilizes a drop hammer to deform metal workpieces, forcing the material into a die cavity. This process is inherently superior to casting or machining for applications requiring high structural integrity and fatigue resistance. During forging, the internal grain structure of the steel is refined and aligned along the lines of maximum stress, thereby enhancing the material's strength, ductility, and resistance to impact and abrasion. Unlike cast components, which can harbor internal voids, porosity, or inconsistent grain structures that act as stress concentrators, drop-forged steel boasts a uniform, dense microstructure. This eliminates weak points, making the component significantly more resistant to cracking and catastrophic failure under dynamic loads, vibrations, and sudden impacts commonly encountered in heavy-duty towing. The use of forged steel, as specified in the product's material data, guarantees that this pintle hook will maintain its structural integrity and performance over an extended operational lifespan, far exceeding the capabilities of components manufactured through less rigorous processes. This meticulous attention to material selection underscores Buyers Products' commitment to delivering components that meet and exceed industry standards for safety and durability.Advanced Corrosion Protection: The Powder-Coat Finish
The longevity and aesthetic preservation of the 6 Ton Pintle Hook are further enhanced by its black powder-coated finish. Powder coating is an advanced dry finishing process where finely ground particles of pigment and resin are electrostatically charged and sprayed onto the electrically grounded component. The charged powder particles adhere to the component's surface, after which it is cured under heat. This curing process causes the powder to melt, flow, and polymerize, forming a durable, uniform, and high-quality finish. The advantages of powder coating over conventional liquid painting are manifold:- Superior Corrosion Resistance: The dense, non-porous nature of the powder coat creates an exceptional barrier against moisture, road salts, chemicals, and other corrosive agents. This is paramount for towing equipment constantly exposed to harsh outdoor environments. The black finish, specified for this product, is not merely aesthetic but serves as a highly protective layer.
- Enhanced Abrasion and Impact Resistance: The cured powder coat forms a thicker and more resilient layer than typical liquid paint, providing superior resistance to chips, scratches, and abrasions that can occur from road debris, coupling/uncoupling actions, and general operational wear.
- UV Stability: The finish is formulated to resist fading and degradation from ultraviolet (UV) radiation exposure, maintaining its protective properties and visual appeal even after prolonged exposure to sunlight.
- Environmental Benefits: Powder coating is an environmentally responsible choice, emitting zero or near-zero volatile organic compounds (VOCs) during application, aligning with modern ecological standards.
Precision Engineering for Optimal Load Management
The design parameters of the 6 Ton Pintle Hook are precisely calibrated to accommodate a Maximum Gross Trailer Weight (M.G.T.W.) of 12,000 lbs and a Maximum Vertical Load (M.V.L.), often referred to as tongue weight, of 2,400 lbs. These specifications are critical for safe and compliant towing operations.- M.G.T.W. (Maximum Gross Trailer Weight): The M.G.T.W. rating of 12,000 lbs signifies the maximum permissible total weight of the fully loaded trailer that the pintle hook can safely pull. This rating is a direct testament to the material strength and engineering design, ensuring that the hook can withstand the longitudinal stresses of pulling and braking a heavy trailer.
- M.V.L. (Maximum Vertical Load): The M.V.L. of 2,400 lbs indicates the maximum downward force that the trailer's tongue can exert on the pintle hook. Proper tongue weight is crucial for trailer stability and safe handling. An M.V.L. of 2,400 lbs allows for a wide range of heavy-duty trailers to be safely connected, providing the necessary downward force without overstressing the hitch or the towing vehicle's rear suspension.
Functional Mechanics and Articulation
The standard pintle hook mechanism, as featured in this product, comprises a fixed jaw and a hinged latch. This design is specifically engineered to securely engage a lunette ring, a robust, circular coupling device typically found on heavy-duty trailers. The operational advantages of a pintle hook over conventional ball hitches in certain applications are significant:- Superior Articulation: The large diameter of the pintle hook and its engagement with the lunette ring allow for a greater degree of rotational movement and angular articulation between the tow vehicle and the trailer. This is particularly advantageous for off-road towing, construction sites, agricultural fields, or any uneven terrain where substantial vertical and lateral displacement between the tow vehicle and trailer is common. This articulation minimizes binding and stress on the hitch system, enhancing maneuverability and reducing the risk of component damage.
- Robust Connection: The pintle hook provides a highly secure mechanical connection that is less susceptible to accidental decoupling under severe loads or dynamic movements compared to some ball hitch designs. The solid steel construction of both the pintle hook and the lunette ring ensures a reliable link, even under significant shock loads.
- Reduced Wear on Components: While ball hitches can experience wear on the ball and coupler socket, the pintle-lunette system distributes forces over a larger surface area, and the relative movement typically allows for a more forgiving connection, especially with proper lubrication.
Precision Installation and Mounting Specifications
The bolt-on design of this 6 Ton Pintle Hook offers significant advantages in terms of installation flexibility, maintenance, and replacement. Unlike weld-on counterparts, a bolt-on pintle hook allows for easier installation and replacement, does not require specialized welding equipment, and typically adheres to standardized mounting patterns, simplifying vehicle integration. The precise mounting specifications are critical for secure attachment and optimal load distribution:- Horizontal Hole Spacing (in.): 3.375 inches
- Vertical Hole Spacing (in.): 1.75 inches
- Mounting Hole Diameter (in.): 0.531 inches
Comprehensive Support Documentation for Safe Operation
Buyers Products enhances the user experience and promotes safe operation by including a comprehensive suite of documentation with each pintle hook:- Mounting Information: Provides detailed instructions and best practices for securely attaching the pintle hook to the tow vehicle, covering aspects like fastener selection, torque specifications, and structural requirements for the mounting surface.
- Specs Sheet: A concise technical document outlining all critical dimensions, load ratings (M.G.T.W., M.V.L.), material specifications, and finish details, enabling users to verify compatibility and compliance.
- Drilling Template: A crucial aid for precise installation, ensuring that mounting holes are drilled accurately and consistently, which is fundamental for achieving proper fastener alignment and structural integrity.
- Vehicle Capacity Decal: An essential safety component that can be affixed to the tow vehicle, clearly displaying the maximum towing capacities of the pintle hook. This decal serves as a constant reminder to operators and aids in compliance with regulatory requirements, preventing accidental overloading.
Operational Performance in Diverse Applications
The 6 Ton Pintle Hook is engineered for high performance in a wide array of demanding sectors. Its robust nature makes it an indispensable tool for:- Construction and Demolition: Towing heavy equipment trailers, dump trailers, and machinery across rough construction sites.
- Agriculture: Transporting large agricultural implements, utility trailers, and livestock trailers.
- Municipalities and Utilities: Hauling service trailers, generators, chippers, and other specialized equipment.
- Landscaping: Moving robust equipment trailers with heavy machinery and materials.
- Military and Government: Valued for its reliability and robustness in tactical and logistical operations.
Maintenance and Longevity
While pintle hooks are renowned for their low maintenance requirements, periodic inspection is vital to ensure continued safe operation. Operators should regularly check the pintle hook for signs of wear, deformation, or cracks, particularly around the jaw and latch mechanism. The latch mechanism should operate smoothly and securely, engaging fully with the lunette ring to prevent accidental disengagement. Proper lubrication of pivot points, if applicable, and ensuring the absence of excessive corrosion can extend the component's service life. Any component showing significant wear, damage, or compromise should be promptly replaced to maintain towing safety and performance.Conclusion
The 6 Ton Pintle Hook from Buyers Products represents a fusion of advanced material science, precision engineering, and practical functionality. From its drop-forged steel core, meticulously protected by a durable powder-coat finish, to its precise load ratings and comprehensive support documentation, every aspect of this product is designed for uncompromising reliability and safety. Whether sold individually or as part of a complete mounting kit, it offers a robust, high-performance towing solution for professionals across various heavy-duty industries. Choosing this pintle hook signifies an investment in a component that will consistently perform under extreme conditions, ensuring secure and efficient transport for years to come.
