10040 - 15 Ton Pintle Hook with Mounting Kit

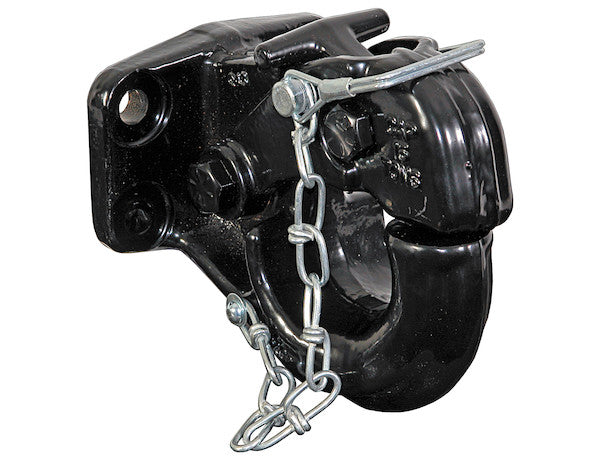

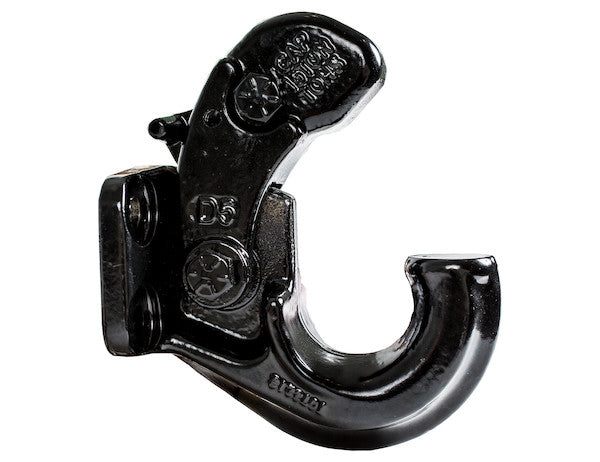

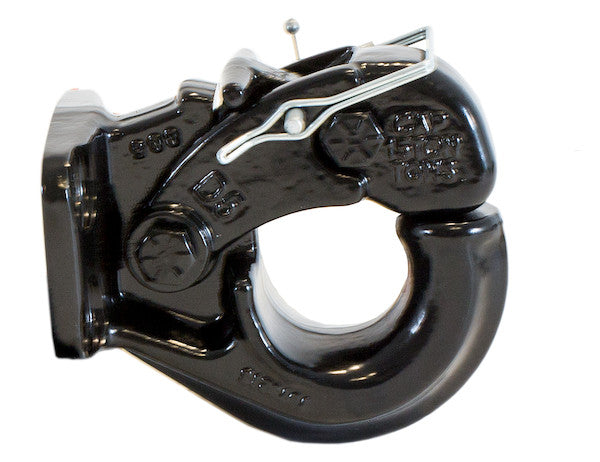

The bolt-on 15 Ton Pintle Hook from Buyers Products features tough drop-forged construction and a black powder-coated finish for maximum durability and resistance to corrosion. This versatile pintle hook can handle towing up to 30,000 lb. Each pintle hook includes mounting information, specs sheet, drilling template, and vehicle capacity decal. It is available with just the pintle hook or sold with a mounting kit. ***Mounting Kit only included with item 10040.

Specifications

The 15 Ton Pintle Hook with Mounting Kit represents a pinnacle of engineering excellence in heavy-duty towing applications. Designed for uncompromising performance and durability, this product is meticulously crafted to meet the rigorous demands of industrial, commercial, and agricultural operations. With a robust design focused on safety and longevity, it provides a reliable connection for trailers and equipment up to a formidable 30,000 lb Gross Trailer Weight (M.G.T.W.) and a 6,000 lb Maximum Vertical Load (M.V.L.). This comprehensive overview will delve into the technical specifications, material science, design advantages, and practical applications that position this pintle hook as an indispensable component for professional towing fleets.

Superior Construction and Material Science: The Advantage of Drop-Forged Steel

At the core of this pintle hook's exceptional strength and resilience is its "tough drop-forged construction." Forging is a manufacturing process that involves shaping metal by localized compressive forces using hammers or dies. Unlike casting, which pours molten metal into a mold, or fabrication, which involves welding multiple pieces, forging enhances the material's structural integrity. Specifically, drop forging aligns the grain structure of the steel along the contours of the hook, resulting in a continuous grain flow. This refined grain structure significantly increases the material's strength-to-weight ratio, impact resistance, and fatigue life. The "Forged Steel" material specification denotes a high-grade alloy, typically engineered to withstand extreme tensile, shear, and compressive stresses without deformation or catastrophic failure. The benefits of this manufacturing process are manifold:

• Enhanced Strength: Forged parts are inherently stronger than cast or machined parts because the forging process eliminates internal voids, porosity, and shrinks that can weaken material.
• Improved Impact Resistance: The refined grain structure allows the material to absorb and distribute shock loads more effectively, crucial for dynamic towing environments.
• Superior Fatigue Life: Components subjected to repetitive stress cycles, common in towing, benefit greatly from the increased fatigue resistance of forged steel, ensuring prolonged operational life.
• Reliability: The integrity of forged components is highly predictable, reducing the risk of unexpected failure under heavy loads.

This commitment to high-quality material and manufacturing processes ensures that the 15 Ton Pintle Hook maintains its structural integrity and performance even under the most challenging towing conditions, making it a reliable choice for professional use.

Advanced Corrosion Protection: The Black Powder-Coated Finish

Beyond its inherent strength, the longevity of any towing component is heavily reliant on its ability to resist environmental degradation. This pintle hook features a "black powder-coated finish," a technologically advanced coating system offering superior protection against corrosion, abrasion, and chemical exposure. Powder coating involves applying a dry, free-flowing powder, typically a thermoplastic or thermoset polymer, electrostatically to the metal surface. The charged powder particles adhere to the electrically grounded surface until heated and fused into a smooth, durable coating in a curing oven. The advantages of this finish are substantial:

• Exceptional Durability: Powder coatings are significantly tougher and more chip-resistant than conventional liquid paints, offering excellent protection against physical damage.
• Superior Corrosion Resistance: The seamless, continuous layer of powder coat provides an effective barrier against moisture, salt, road chemicals, and other corrosive agents, preventing rust and extending the lifespan of the steel.
• UV and Fade Resistance: The finish maintains its aesthetic and protective properties even with prolonged exposure to sunlight, crucial for equipment used outdoors.
• Environmental Benefits: Powder coating processes are more environmentally friendly, as they typically produce fewer volatile organic compounds (VOCs) compared to solvent-based paints.
• Aesthetic Appeal: The deep black, uniform finish not only protects but also contributes to the professional appearance of the towing assembly.

The combination of drop-forged steel and a high-performance powder coat ensures that this pintle hook is not just strong, but also exceptionally resilient to the harsh operating conditions encountered in heavy-duty towing.

Rated Capacity and Performance Metrics: M.G.T.W. and M.V.L.

The operational capabilities of this pintle hook are clearly defined by its impressive load ratings: a Maximum Gross Trailer Weight (M.G.T.W.) of 30,000 lbs (15 tons) and a Maximum Vertical Load (M.V.L.) of 6,000 lbs. These specifications are critical for safe and efficient towing operations:

• M.G.T.W. (30,000 lbs): This rating indicates the maximum combined weight of the trailer and its cargo that the pintle hook is designed to safely tow. A 15-ton capacity places this hook squarely in the heavy-duty category, suitable for substantial equipment trailers, multi-axle dump trailers, large agricultural implements, and commercial utility trailers. Adhering to this limit is paramount for preventing overstressing the hitch, which could lead to structural fatigue or catastrophic failure.
• M.V.L. (6,000 lbs): Also known as tongue weight, the M.V.L. specifies the maximum downward force that can be exerted on the pintle hook by the trailer's lunette eye. Proper tongue weight is crucial for stable towing; too little can cause sway, while too much can overload the tow vehicle's rear axle and chassis. A 6,000 lb M.V.L. accommodates the significant vertical loads associated with heavy trailers, ensuring stability and control during transit.

These ratings are not arbitrary figures but are determined through rigorous testing and engineering analysis, often exceeding industry standards to ensure a substantial safety factor. Users are advised to always ensure that the pintle hook's M.G.T.W. and M.V.L. ratings meet or exceed the requirements of their specific towing application and that the towing vehicle's capabilities are also appropriately matched.

Versatile Compatibility: Drawbar Eye Inner Diameter (2.0-3.0 in.)

The specified "Drawbar Eye Inner Dia. (in.) 2.0-3.0" highlights the pintle hook's versatility in coupling with a wide range of trailer lunette eyes. A pintle hook operates by coupling with a circular drawbar eye (also known as a lunette ring) on the trailer. This design allows for articulation across various terrains, making pintle hitches ideal for off-road and heavy-duty applications where a traditional ball hitch might be prone to disengagement or excessive wear. The 2.0-3.0 inch range encompasses common sizes for heavy-duty trailers, ensuring broad compatibility without the need for multiple specialized hooks. This flexibility simplifies fleet management and reduces the need for adapter plates or custom couplings, streamlining operations for users with diverse trailer inventories.

Precision Engineering for Secure Installation: Mounting Specifications

The "bolt-on" nature of this pintle hook, coupled with its precise mounting specifications, ensures a secure and straightforward installation process. The detailed dimensions provided are crucial for proper integration with existing mounting plates or vehicle chassis components:

• Horizontal Hole Spacing (in.) 3.375: This measurement refers to the center-to-center distance between the mounting holes horizontally.
• Vertical Hole Spacing (in.) 1.75: This measurement indicates the center-to-center distance between the mounting holes vertically.
• Mounting Hole Diameter (in.) 0.531: This specifies the exact diameter of the holes required for mounting fasteners, typically accommodating standard ½-inch diameter bolts.

These precise dimensions are engineered to align with industry-standard mounting patterns, facilitating installation onto a wide array of tow vehicles or mounting brackets. Accurate hole alignment minimizes stress concentrations on the mounting hardware and the vehicle's frame, ensuring a robust and durable connection. The inclusion of a "drilling template" further simplifies installation by providing a precise guide, mitigating errors and ensuring that the hook is mounted correctly and safely to the vehicle's structural components.

The Advantage of the Mounting Kit (Item 10040)

While the pintle hook is available separately, the option to purchase it with a "Mounting Kit (only included with item 10040)" provides significant added value for many users. While specific components of the kit are not detailed, typical mounting kits for heavy-duty pintle hooks include:

• High-Grade Fasteners: Bolts, nuts, and washers of appropriate strength and size (e.g., Grade 8) designed to withstand the shear and tensile forces associated with heavy towing.
• Reinforcement Plates: These may be included to distribute loads more evenly across the vehicle's frame or mounting structure, preventing localized stress and potential deformation.
• Detailed Instructions: Beyond general mounting information, a kit often provides specific, step-by-step instructions tailored to the included hardware.

The inclusion of a complete mounting kit streamlines the installation process, ensuring that users have all the necessary components for a safe and compliant setup. It eliminates the guesswork and potential delays associated with sourcing appropriate hardware independently, guaranteeing that the entire assembly meets the required performance and safety standards.

Comprehensive Documentation for Safe Operation

Buyers Products emphasizes user safety and proper application by providing comprehensive documentation with each pintle hook:

• Mounting Information: Detailed instructions guiding the user through the installation process, including torque specifications for fasteners and recommended mounting locations.
• Specs Sheet: A technical document outlining all critical dimensions, material specifications, and load ratings, essential for engineering and compliance verification.
• Drilling Template: A physical or printable guide for accurately marking and drilling mounting holes, ensuring proper alignment and fitment.
• Vehicle Capacity Decal: A crucial safety component that displays the maximum towing capacities, serving as a constant reminder for operators to stay within safe limits and adhere to regulatory requirements.

This commitment to comprehensive documentation underscores the manufacturer's dedication to promoting safe and effective use of their product, providing users with the necessary resources to maximize performance and minimize risk.

Industry Benchmarking: Compares To Holland PH-T-60-AOL-8

The specification "Compares To Holland PH-T-60-AOL-8" provides a significant benchmark for understanding the quality, performance, and interchangeability of this 15 Ton Pintle Hook. Holland, a brand renowned for its robust and reliable heavy-duty truck and trailer components, sets a high industry standard. This comparison indicates that the Buyers Products pintle hook is designed and manufactured to meet or exceed the operational performance, durability, and dimensional compatibility of a widely recognized and respected industry leader. For operators and fleet managers, this means:

• Assured Quality: The product aligns with the quality expectations set by premium brands in the heavy-duty sector.
• Performance Parity: Users can expect similar towing capabilities, reliability, and longevity as offered by comparable top-tier products.
• Interchangeability: The dimensional and functional similarity suggests ease of replacement or integration within existing fleets that may utilize Holland components.

This comparison reinforces the technical credibility and market positioning of the Buyers Products 15 Ton Pintle Hook, assuring customers of its high-caliber design and manufacturing.

Applications Across Diverse Sectors

The robust design and high capacity of this 15 Ton Pintle Hook make it suitable for a wide array of demanding applications:

• Construction: Towing heavy equipment trailers, dump trailers, concrete mixers, and portable generators on rough construction sites.
• Agriculture: Hauling large farming implements, grain wagons, livestock trailers, and irrigation equipment across varied terrains.
• Commercial Hauling: Ideal for flatbed trailers, utility service trailers, and specialized equipment transport for road maintenance, landscaping, and public works.
• Government and Military: Supporting logistical operations with utility vehicles, tactical support equipment, and various heavy-duty trailers in challenging environments.
• Mining and Forestry: Providing reliable connections for specialized trailers in resource extraction industries, often involving extremely heavy loads and abrasive conditions.

Its "Standard" pintle hook type signifies a straightforward, dependable coupling mechanism preferred in many of these rugged environments for its simplicity and robustness.

Installation, Operation, and Maintenance Best Practices

Ensuring optimal performance and longevity of the 15 Ton Pintle Hook requires adherence to proper installation, operational, and maintenance protocols:

• Installation: Always use the provided drilling template and mounting information. Utilize high-strength fasteners (e.g., Grade 8) and torque them to the manufacturer's specified values. The mounting surface on the tow vehicle must be structurally sound and capable of supporting the specified M.G.T.W. and M.V.L. Ensure no interference with other vehicle components.
• Pre-Operational Checks: Before each tow, verify that the pintle hook mechanism operates smoothly, the latch is fully engaged, and the safety pin or retainer is securely in place. Inspect the lunette eye for wear or damage. Confirm that the pintle hook and lunette eye capacities are not exceeded by the trailer's Gross Trailer Weight and tongue weight.
• Operation: When connecting, ensure the lunette eye fully seats around the pintle horn before closing and securing the latch. Avoid abrupt starts, stops, or turns, which can induce excessive shock loads on the hitch system. For safety, always connect safety chains or cables between the tow vehicle and trailer.
• Maintenance: Regularly inspect the pintle hook for signs of wear, cracks, deformation, or corrosion, especially in high-stress areas. Lubricate moving parts of the latch mechanism as per manufacturer recommendations to ensure smooth operation. Re-torque mounting fasteners periodically, especially after initial heavy use, as vibrations can sometimes loosen bolts. Promptly address any signs of damage or excessive wear by replacing the component.

By following these best practices, operators can ensure the long-term reliability and safety of their towing operations.

Conclusion: A Technically Superior Towing Solution

The 15 Ton Pintle Hook with Mounting Kit from Buyers Products stands out as a technically superior solution for heavy-duty towing. Its foundation in "tough drop-forged construction" from "Forged Steel" provides unparalleled strength and fatigue resistance. The "black powder-coated finish" delivers robust protection against the elements, ensuring durability in harsh operating conditions. With a substantial "M.G.T.W. of 30,000 lbs" and "M.V.L. of 6,000 lbs," coupled with a versatile "Drawbar Eye Inner Dia. (in.) 2.0-3.0," it offers broad compatibility and high-capacity performance. Precision "bolt-on" mounting specifications, supported by comprehensive "mounting information, specs sheet, drilling template, and vehicle capacity decal," facilitate secure and compliant installation. Furthermore, its favorable comparison to the "Holland PH-T-60-AOL-8" underscores its position as a reliable, industry-standard component. This pintle hook is not merely a piece of hardware; it is an engineered towing system designed for safety, longevity, and peak performance in the most demanding commercial and industrial applications. Choosing this product means investing in a robust, reliable, and compliant towing solution that will deliver exceptional service life and operational efficiency for years to come.
