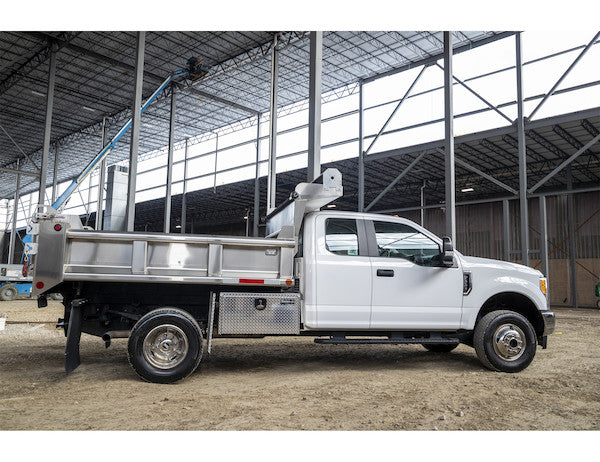

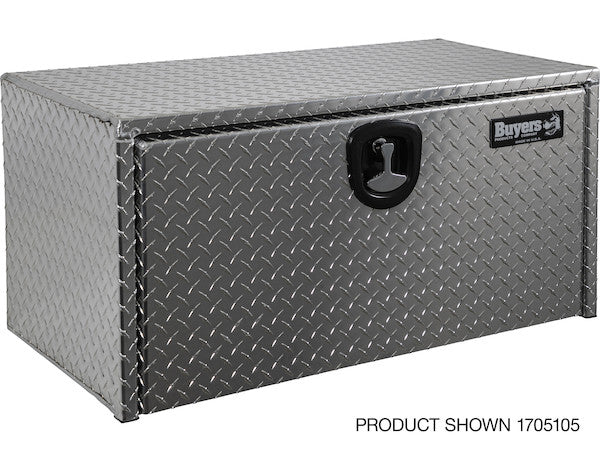

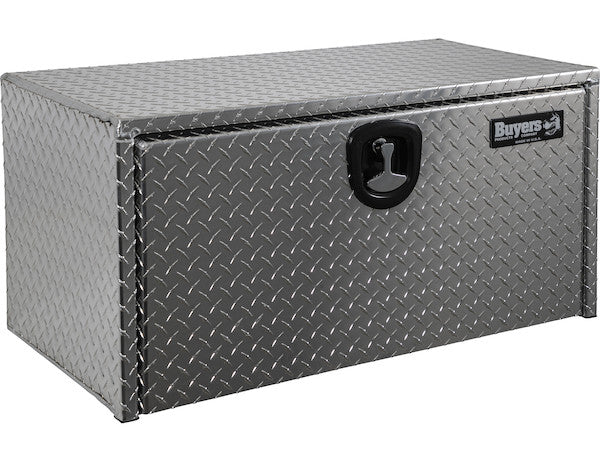

1705102 - 18x18x14 Inch Diamond Tread Aluminum Underbody Truck Box

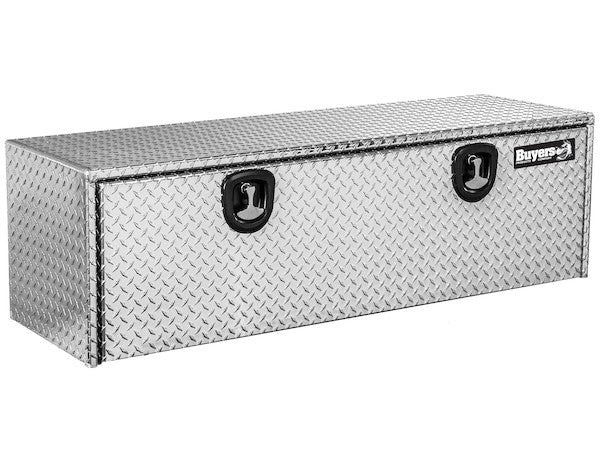

Protect and easily access your equipment with the Buyers Products Diamond Tread Aluminum Underbody Truck Box. Available in a variety of sizes, each box is made of strong, corrosion-resistant .100 in. thick aluminum. The recessed drop door combined with the continuous hidden hinge and replaceable gasket system keep weather and grime away from your tools. Aircraft grade cables help prevent damage. The locking, die-cast compression latch provides a tight seal and deters theft. Mount the box on any flat surface or under your truck using Buyers Products Mounting Brackets (sold separately, see "Accessories" below).

Specifications

Advanced Technical Overview: The 18x18x14 Inch Diamond Tread Aluminum Underbody Truck Box

The Buyers Products 18x18x14 Inch Diamond Tread Aluminum Underbody Truck Box represents a pinnacle of mobile storage solutions, meticulously engineered to provide superior protection, accessibility, and security for professional equipment. Designed for integration beneath commercial and fleet vehicles, this specific model, with its dimensions of 18 inches in height, 18 inches in depth, and 14 inches in width, optimizes cargo space utilization without compromising ground clearance or operational efficiency. This technical description will delve into the material science, structural engineering, and functional design elements that establish this product as an indispensable asset for a diverse range of industries.

Material Science and Structural Integrity: 0.100-Inch Diamond Tread Aluminum

The foundation of this underbody truck box's robust performance lies in its selection of high-grade aluminum alloy, specifically a 0.100-inch (approximately 2.54 mm or 10 gauge) thick material. Aluminum is an inherently superior material for vehicle-mounted storage due to a confluence of advantageous properties:

• Exceptional Strength-to-Weight Ratio: Compared to steel, aluminum offers significant weight savings without a substantial compromise in structural integrity. This reduction in tare weight contributes directly to improved fuel economy, increased payload capacity, and reduced wear and tear on vehicle suspension components. For fleet operators, these benefits translate into tangible operational cost efficiencies.
• Superior Corrosion Resistance: Aluminum naturally forms a passive oxide layer when exposed to air, which provides an outstanding barrier against rust and corrosion. This characteristic is particularly crucial for underbody applications where exposure to road salts, moisture, grime, and various chemicals is constant and severe. Unlike steel, which requires extensive surface preparation and coating systems to prevent corrosion, aluminum maintains its structural and aesthetic integrity over extended periods with minimal maintenance.
• Durability and Impact Resistance: The 0.100-inch thickness provides ample rigidity and impact resistance, safeguarding contents from road debris, minor collisions, and the inherent stresses of vehicle operation. The material's inherent ductility also allows it to absorb impact energy more effectively than brittle materials, reducing the likelihood of catastrophic failure.
• Thermal Conductivity: While not a primary design driver, aluminum's excellent thermal conductivity can help dissipate heat, preventing excessive temperature buildup within the storage compartment, which can be beneficial for certain types of equipment or supplies.
• Recyclability: Aluminum is 100% recyclable without loss of quality, making this product an environmentally conscious choice with a sustainable lifecycle.

The exterior surface features a Diamond Tread finish, also known as checker plate or tread plate. This pattern is not merely aesthetic; it serves several critical functional purposes:

• Enhanced Durability: The raised pattern adds rigidity to the sheet metal, increasing its resistance to dents and punctures. This surface hardness helps mitigate damage from incidental contact during loading, unloading, or general operation.
• Scratch and Abrasion Concealment: The patterned surface is highly effective at camouflaging minor scratches, scuffs, and abrasions that are inevitable in demanding work environments, maintaining a professional appearance over time.
• Improved Traction: While primarily an underbody box, the diamond tread pattern offers enhanced grip, which can be beneficial during installation or when accessing the box in adverse weather conditions, reducing the risk of slips.

Advanced Sealing and Security Systems

The design of the Buyers Products underbody truck box integrates multiple layers of protection against environmental ingress and unauthorized access, setting a high standard for equipment security and longevity.

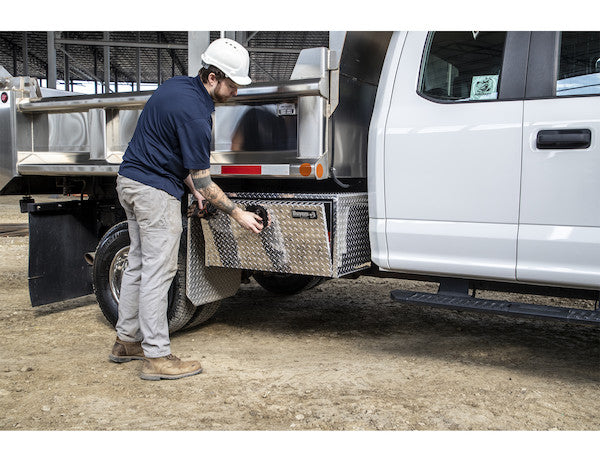

Recessed Drop Door with Continuous Hidden Hinge

The door mechanism is a meticulously engineered system designed for robust performance and secure sealing:

• Recessed Drop Door Design: The door is strategically recessed within the main body of the box. This design creates an inherent overhang and provides a protected channel for the gasket, significantly reducing the direct exposure of the sealing elements to precipitation, road spray, and airborne particulates. This design virtually eliminates direct water impingement on the seal, enhancing its long-term integrity and effectiveness. The door's drop-down action provides a wide, unobstructed opening, facilitating easy loading and retrieval of tools and equipment.

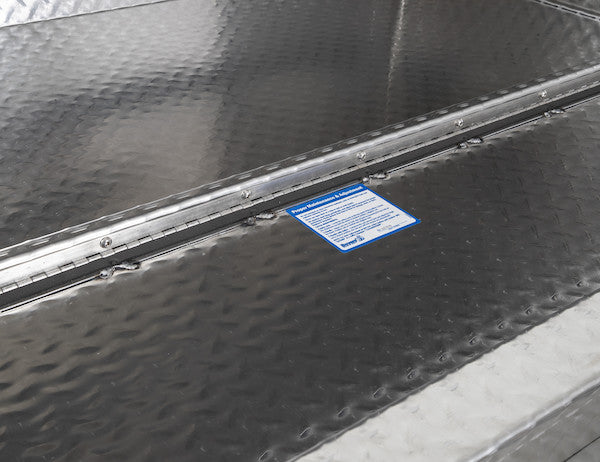

• Continuous Hidden Hinge: The use of a full-length, continuous aluminum hinge offers superior structural integrity and security compared to multiple discrete hinges.
  • Load Distribution: A continuous hinge distributes the load of the door evenly across its entire length, minimizing stress concentrations and preventing deformation or misalignment over time, even with repeated heavy use.
  • Enhanced Security: Being a "hidden" hinge means its mounting pins and fasteners are not externally accessible when the door is closed, providing a significant deterrent against forced entry through hinge tampering. This design integrates seamlessly into the box's profile, contributing to its streamlined aesthetic and resistance to snagging.
  • Corrosion Resistance: Crafted from aluminum, the hinge shares the excellent corrosion resistance of the box body, ensuring smooth operation and durability in harsh environments without the risk of seizing due to rust.

Replaceable D-Bulb Gasket System

Environmental sealing is critical for protecting sensitive tools and equipment from moisture, dust, and corrosive elements. This box employs a high-performance D-Bulb gasket system:

• D-Bulb Profile: The "D-Bulb" cross-section is specifically engineered for optimal compression and sealing characteristics. When the door is closed and latched, the bulb compresses against the mating surface, creating a tight, hermetic seal. The specific shape allows for a greater compression range, accommodating minor variations in door closure or material expansion/contraction due to temperature fluctuations.
• Material Composition: While not explicitly stated, such industrial-grade gaskets are typically manufactured from high-performance elastomers such as EPDM (Ethylene Propylene Diene Monomer) rubber. EPDM is chosen for its outstanding resistance to weathering, UV radiation, ozone, extreme temperatures, and a wide array of chemicals commonly encountered on roadsides. This ensures the gasket maintains its sealing efficacy and elastic properties over many years of service.
• Replaceability: The designation as a "replaceable" gasket system is a key feature for long-term maintenance. In the event of wear, damage, or degradation after prolonged exposure to harsh conditions, the gasket can be easily replaced without needing to replace the entire door or box. This modularity reduces maintenance costs and extends the operational lifespan of the unit.

Locking Die-Cast Compression Latch

Security and positive closure are paramount, achieved through a sophisticated locking die-cast compression latch:

• Die-Cast Construction: The latch mechanism is manufactured using a die-casting process. Die-casting is a metal-forming process that yields components with high dimensional accuracy, excellent surface finish, and superior mechanical properties. This ensures the latch is robust, precise, and highly resistant to mechanical stresses and fatigue. Common materials for die-cast latches include zinc alloys (e.g., Zamak) or stainless steel, chosen for their balance of strength, corrosion resistance, and workability.
• Compression Mechanism: Unlike standard rotary or spring-loaded latches, a compression latch actively pulls the door tightly against the frame and gasket. This action ensures consistent compression of the D-Bulb seal around the entire perimeter, providing an impermeable barrier against environmental contaminants and significantly reducing vibration-induced wear on the door and frame. The compression action also minimizes door rattle during vehicle operation, contributing to a quieter ride and reduced component fatigue.
• Integrated Locking Function: The latch incorporates an integral locking cylinder, operated by a key. This provides a robust security measure against theft and unauthorized access to valuable tools and equipment. The hardened steel components within the lock cylinder are designed to resist common tampering methods, offering peace of mind to operators.

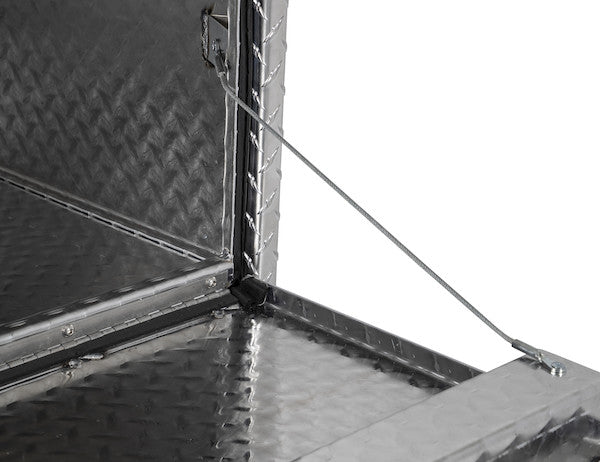

Aircraft-Grade Cables

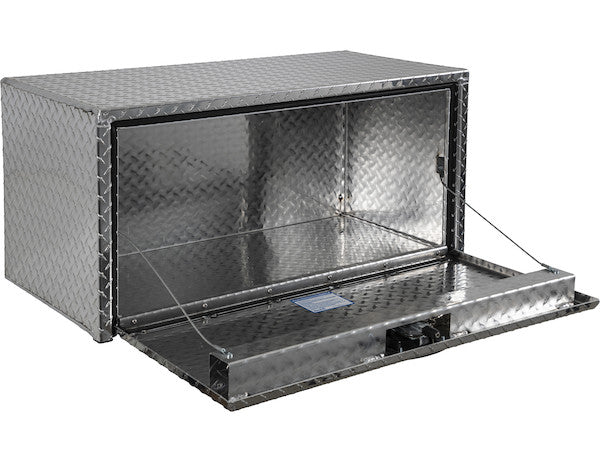

The structural support for the drop door is provided by a pair of "aircraft-grade" cables. This designation signifies a commitment to high-performance, durable components:

• High Tensile Strength: Aircraft-grade cables are engineered to meet stringent specifications for strength and reliability. Typically constructed from high-strength stainless steel (e.g., AISI 304 or 316) in a multi-strand configuration, these cables exhibit exceptional tensile strength relative to their diameter.
• Corrosion Resistance: Stainless steel cables offer excellent resistance to rust and corrosion, ensuring their longevity and reliable performance in the demanding underbody environment.
• Flexibility and Durability: The specific braiding and construction of these cables provide optimal flexibility without compromising strength, allowing the door to open smoothly while resisting kinking or fatigue from repeated cycles. They are designed to support the full weight of the door, even under dynamic vehicle conditions, preventing over-extension damage to the hinges and potential impact with the ground.

Optimized Dimensions and Practical Utility

With external dimensions of 18 inches (45.7 cm) in height, 18 inches (45.7 cm) in depth, and 14 inches (35.6 cm) in width, this underbody truck box offers a substantial, yet compact, storage volume. The internal access dimensions are equally critical for practical utility:

• Door Opening Height: 15.3 inches (38.9 cm)
• Door Opening Width: 10.75 inches (27.3 cm)

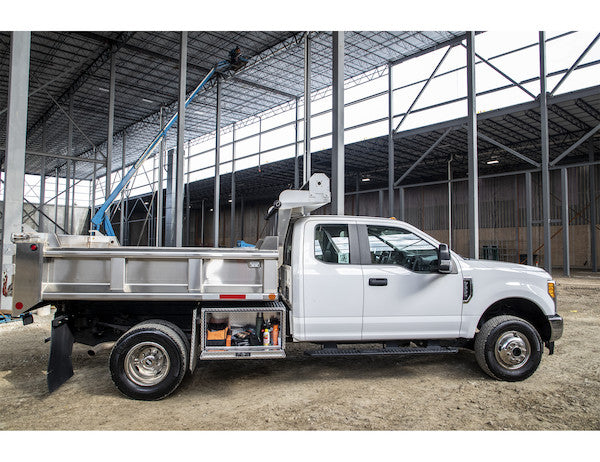

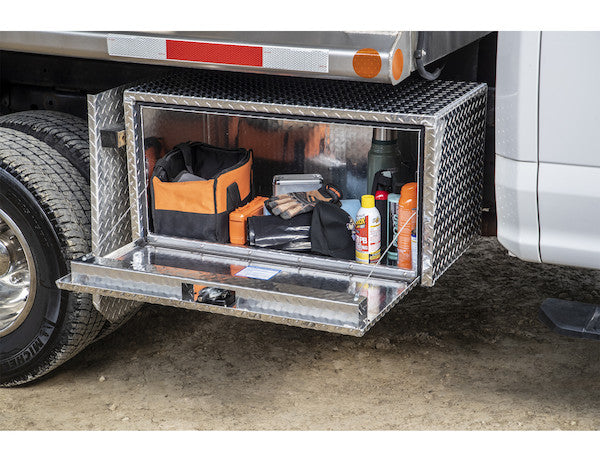

These opening dimensions ensure that even bulkier hand tools, smaller power tools, recovery gear, safety equipment, or essential vehicle maintenance items can be easily loaded and retrieved. The carefully considered dimensions allow for efficient organization of contents, making it suitable for:

• Field Service Technicians: Ideal for storing diagnostic equipment, specialized tools, and spare parts.
• Construction Crews: Perfect for securing impact drivers, drills, hammers, and safety gear.
• Fleet Maintenance Teams: Essential for carrying lubricants, filters, and repair kits.
• Emergency Responders: Suitable for medical kits, rescue tools, or communication devices.
• Off-Road Enthusiasts: Provides secure storage for recovery straps, air compressors, and camping supplies.

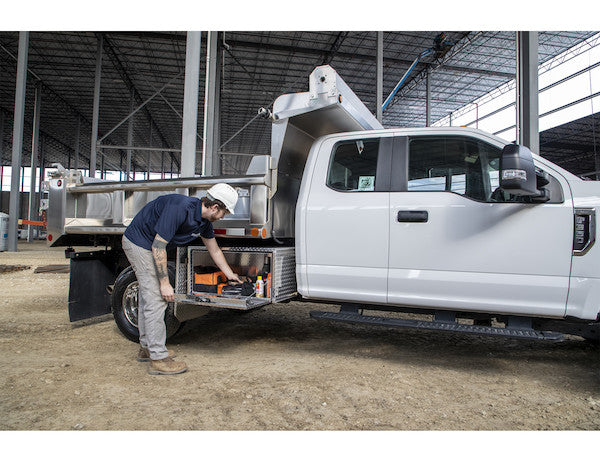

Installation Flexibility and Considerations

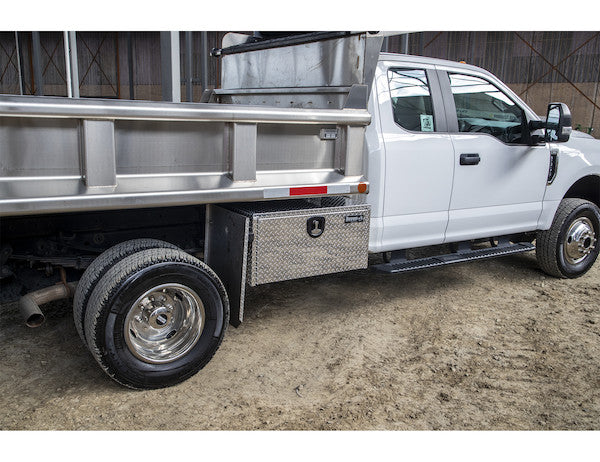

The design of the 18x18x14 Inch Diamond Tread Aluminum Underbody Truck Box provides versatility in mounting. While primarily engineered for underbody truck applications, its robust construction and flat mounting surfaces allow for installation on various flat platforms, such as trailers, utility beds, or stationary workstations.

For underbody installation, the use of purpose-designed mounting brackets from Buyers Products (sold separately) is highly recommended. These brackets are engineered to integrate seamlessly with the box and provide secure attachment points to the vehicle's frame. Proper installation is critical to ensure:

• Structural Integrity: Correctly rated and installed brackets distribute the weight of the box and its contents evenly, preventing stress concentrations on the vehicle frame and the box itself.
• Vibration Resistance: Secure mounting minimizes vibration, which can lead to fastener loosening, material fatigue, and premature wear of the box and its components.
• Safety: A properly mounted box remains securely attached under all driving conditions, including braking, acceleration, and cornering, preventing potential hazards.

Installers should adhere to industry best practices for vehicle accessory mounting, including using appropriate grade fasteners, ensuring adequate clearance from moving parts, and periodically inspecting all mounting hardware for tightness and integrity.

Quality Assurance and Lifecycle Management

Buyers Products is renowned for its commitment to engineering and manufacturing excellence. This underbody truck box is a testament to rigorous quality control processes, from raw material selection to final assembly. Each component is chosen for its durability and performance in demanding environments. The design considers not only initial functionality but also long-term serviceability, evident in features like the replaceable gasket system.

The product is designed to withstand the harsh realities of commercial and industrial applications, providing a reliable and secure storage solution that contributes to operational efficiency and asset protection over an extended service life.

Conclusion

The 18x18x14 Inch Diamond Tread Aluminum Underbody Truck Box from Buyers Products is more than just a storage container; it is a meticulously engineered, high-performance solution for mobile equipment management. Its construction from 0.100-inch diamond tread aluminum provides an unparalleled combination of strength, lightweight design, and exceptional corrosion resistance. The integrated recessed drop door, continuous hidden hinge, replaceable D-Bulb gasket, aircraft-grade support cables, and locking die-cast compression latch collectively establish an impenetrable barrier against environmental elements and unauthorized access. This product is a strategic investment for any professional requiring durable, secure, and accessible storage for tools and equipment on their fleet or commercial vehicles, ensuring operational readiness and safeguarding valuable assets in the most challenging conditions.
