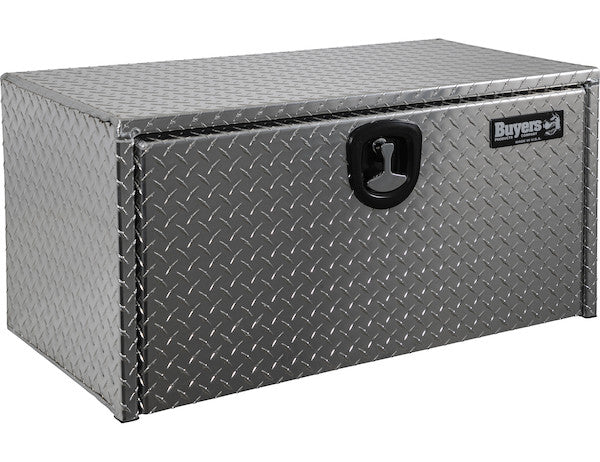

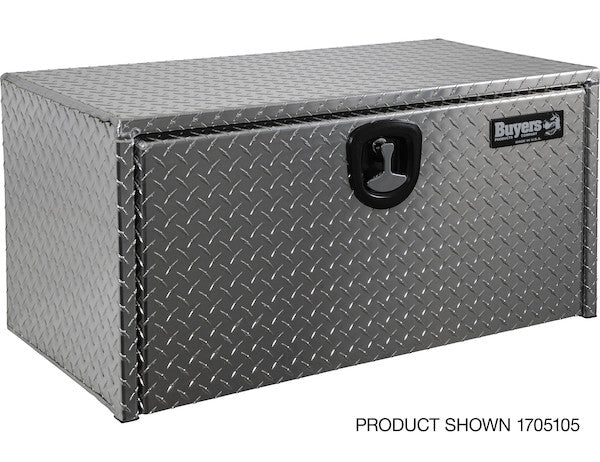

Protect and easily access your equipment with the Buyers Products Diamond Tread Aluminum Underbody Truck Box. Available in a variety of sizes, each box is made of strong, corrosion-resistant .100 in. thick aluminum. The recessed drop door combined with the continuous hidden hinge and replaceable gasket system keep weather and grime away from your tools. Aircraft grade cables help prevent damage. The locking, die-cast compression latch provides a tight seal and deters theft. Mount the box on any flat surface or under your truck using Buyers Products Mounting Brackets (sold separately, see "Accessories" below).
Specifications
| Box Finish | Diamond Tread |
|---|---|
| Box Gauge | 0.100" |
| Box Material | Aluminum |
| Box Thickness | Aluminum - 0.100" |
| Depth | 20.0 |
| Door Finish | Diamond Tread |
| Door Gauge | .100 |
| Door Material | Aluminum |
| Door Opening Height | 17.30 |
| Door Opening Width | 32.75 |
| Door Style | Drop Door |
| Gasket Type | D-Bulb Seal |
| Height | 20.0 |
| Hinge Style | Aluminum Continuous Hinge |
| Latch Style | Die Cast Compression Latch |
| Lock Included (y/n) | Yes |
| Number of Doors | 1 |
| Number of Latches | 1 |
| Pro Series | False |
| Rain Gutter | False |
| Shelf | False |
| Width | 36.0 |
Advanced Engineering and Robust Protection: The 20x20x36 Inch Diamond Tread Aluminum Underbody Truck Box
The Buyers Products 20x20x36 Inch Diamond Tread Aluminum Underbody Truck Box represents a pinnacle of utility, durability, and secure storage solutions for professional and commercial applications. Engineered to meet the rigorous demands of various industries, this underbody truck box is meticulously designed to protect valuable equipment and tools from environmental factors, theft, and operational wear and tear, while simultaneously providing convenient access. This detailed technical overview will delve into the specific design features, material science, and functional benefits that make this product an indispensable asset for a wide array of vehicles and operational contexts.
Precision Dimensions and Strategic Placement
Measuring a substantial 20 inches in depth, 20 inches in height, and 36 inches in width, this underbody truck box is optimized for efficient space utilization. The dimensions (20.0 D x 20.0 H x 36.0 W) are carefully chosen to allow for significant storage capacity without compromising ground clearance or vehicle aerodynamics when mounted in an underbody configuration. This strategic placement frees up valuable cargo bed space, improving vehicle versatility and enabling operators to transport larger equipment or materials within the primary cargo area. The underbody design inherently offers a lower center of gravity, contributing to enhanced vehicle stability, especially when traversing uneven terrain or performing maneuvers with heavy loads.
Superior Material Selection: .100" Thick Diamond Tread Aluminum
At the core of this truck box's exceptional performance is its construction from high-grade, .100 inch (or 1/10th of an inch, equivalent to approximately 2.54 mm) thick aluminum. This specific gauge of aluminum provides an optimal balance between strength and weight. Aluminum is inherently lightweight, contributing minimally to the vehicle's overall tare weight, which can result in improved fuel efficiency and increased payload capacity. More critically, aluminum is renowned for its outstanding corrosion resistance, a vital attribute for equipment exposed to harsh external conditions, including road salts, moisture, chemicals, and extreme temperatures. Unlike steel, aluminum forms a passive oxide layer when exposed to air, which acts as a self-healing barrier against rust and further degradation, significantly extending the product's lifespan and maintaining its aesthetic integrity over time.
The exterior of both the box and its door features a Diamond Tread finish. This distinctive pattern is not merely aesthetic; it serves a crucial functional purpose. The raised diamond pattern dramatically increases the surface rigidity of the aluminum panels, enhancing resistance to dents, scratches, and abrasions from impacts and daily operational abuse. Furthermore, the textured surface provides an improved grip, which can be beneficial during installation or when handling the box, while also effectively concealing minor scuffs and marks that may occur during use, thus preserving a professional appearance.
Advanced Access and Environmental Sealing Mechanisms

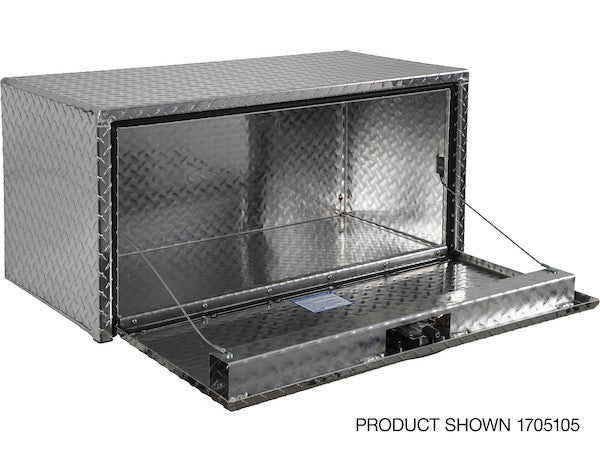

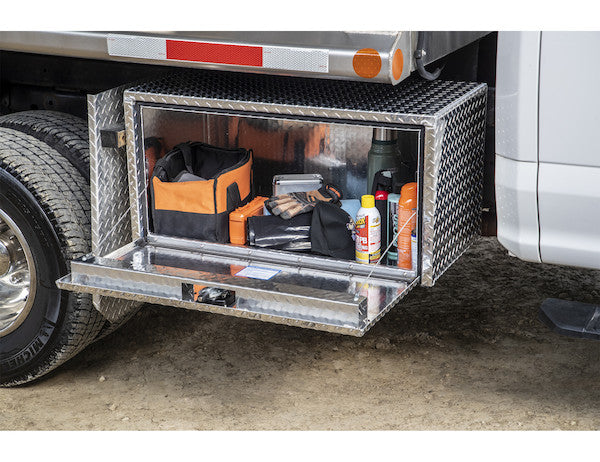

The design incorporates a sophisticated access system centered around a recessed drop door. The "drop door" style provides a large, unobstructed opening (17.30 inches high x 32.75 inches wide), facilitating easy loading and retrieval of even bulky tools and equipment. The recessed nature of the door is a critical engineering detail; it positions the door panel slightly inward relative to the main body of the box. This design creates an inherent protective lip or overhang around the door's perimeter, which acts as a preliminary barrier against direct impingement of water, dust, and debris, significantly reducing the ingress of environmental contaminants into the storage compartment. This thoughtful design minimizes the exposure of the sealing system to direct forces, thereby enhancing its efficacy and longevity.

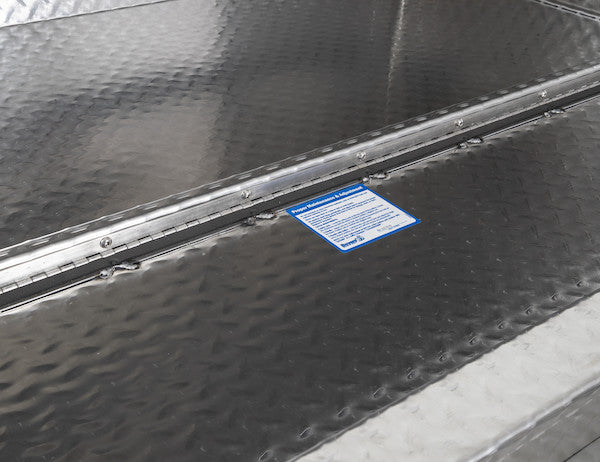

Complementing the recessed door is a continuous hidden hinge system. The "continuous hinge," also known as a piano hinge, extends along the entire length of the door, distributing stress evenly across the entire attachment point. This design provides superior structural integrity and smooth, stable operation compared to discrete hinges, minimizing sag and misalignment over prolonged use. Being "hidden," the hinge is protected from external impacts and weather exposure, further contributing to its durability and clean aesthetic. The hinge material itself is aluminum, ensuring material compatibility with the box and consistent corrosion resistance throughout the assembly.
The integral replaceable gasket system, specifically a D-Bulb Seal, forms the primary environmental barrier. The D-Bulb profile is engineered to provide an optimal compression seal. When the door is closed, the flexible D-shaped bulb compresses against the box frame, creating a tight, impermeable barrier against moisture, dust, and other airborne particulates. The use of a replaceable gasket system is a key advantage, allowing for straightforward maintenance and renewal of the seal's integrity over the life of the product. Should the gasket experience wear or damage after years of service, it can be easily replaced, ensuring continued superior protection without requiring replacement of the entire box.
Reinforced Durability and Security Features

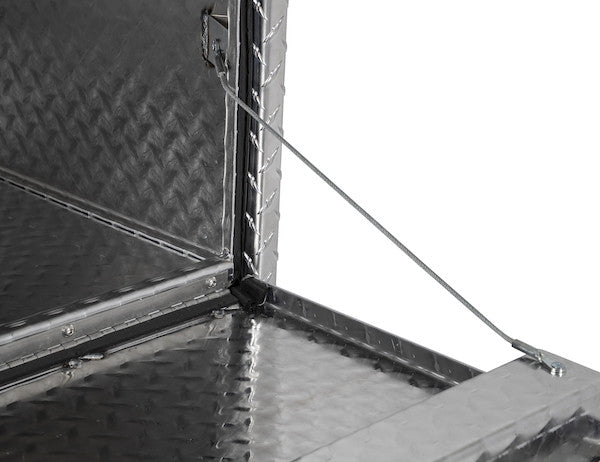

To ensure the door's robust support and prevent damage during opening and closing, the box is equipped with aircraft-grade cables. These cables are engineered for high tensile strength and fatigue resistance, providing reliable support for the drop door when it is open, preventing excessive strain on the hinges and ensuring controlled lowering. The term "aircraft grade" denotes a higher standard of material quality and manufacturing precision, typically involving multi-strand stainless steel or galvanized steel cables that offer exceptional strength-to-weight ratios and superior resistance to corrosion and abrasion, making them ideal for demanding outdoor applications.
Security is paramount for valuable equipment, and this truck box addresses this with a locking, die-cast compression latch. The "die-cast" manufacturing process for the latch body ensures high strength, dimensional accuracy, and a dense, non-porous finish, resisting deformation and corrosion more effectively than fabricated or stamped alternatives. A "compression latch" mechanism is significantly more secure and weather-tight than standard rotary or bolt latches. When engaged, the latch not only secures the door but actively pulls it inward, compressing the D-Bulb gasket firmly against the frame. This action creates a positive, watertight, and dust-proof seal, while simultaneously eliminating door rattling during vehicle movement. The integrated lock provides a robust deterrent against unauthorized access and theft, ensuring peace of mind for operators.
Installation Versatility and Application Scope

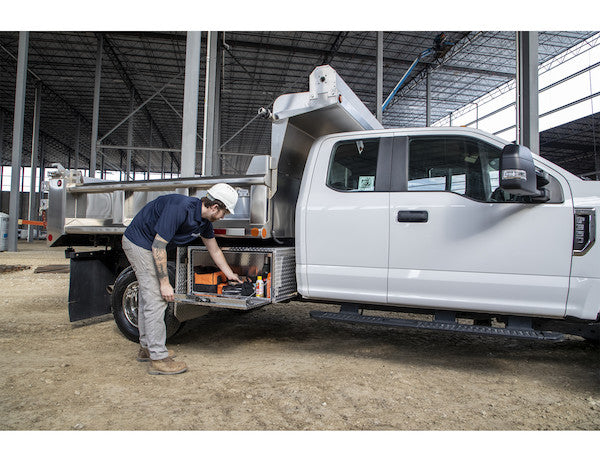

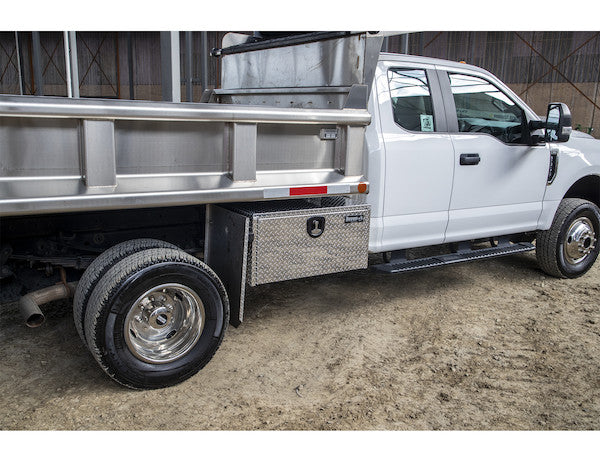

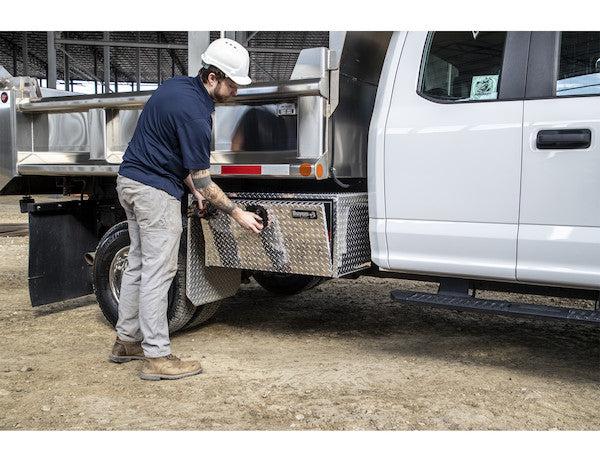

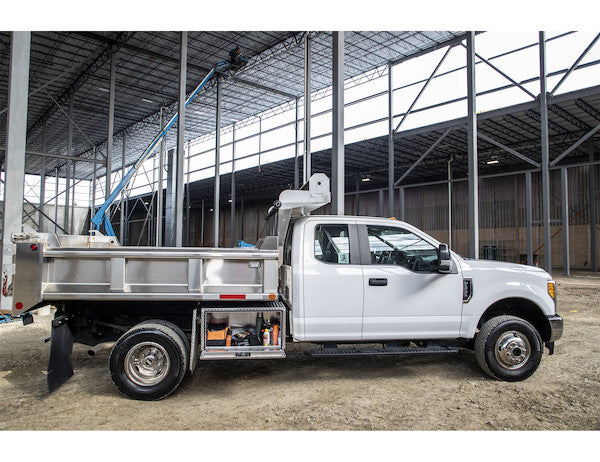

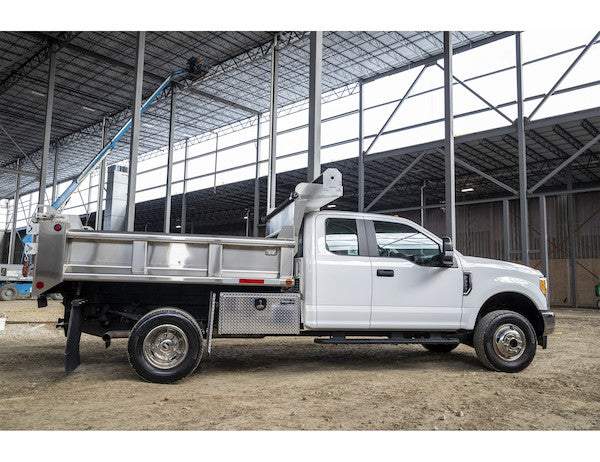

The design philosophy of the Buyers Products underbody truck box emphasizes flexibility in installation. While primarily intended for underbody mounting on trucks, its robust construction allows for secure installation on any flat surface. This adaptability expands its utility beyond traditional truck beds to include trailers, flatbeds, service bodies, and even stationary equipment storage needs. For under-truck mounting, specific Buyers Products Mounting Brackets (sold separately) are recommended. These brackets are designed to integrate seamlessly with the box, providing a secure and stable attachment point that withstands dynamic forces encountered during vehicle operation, ensuring compliance with relevant safety and load-bearing standards. The specific dimensions and configuration make it an ideal choice for tradespeople such as electricians, plumbers, landscapers, construction workers, and utility professionals who require organized, secure, and weatherproof storage for their tools and components.
Detailed Technical Specifications Breakdown
- Box Finish: Diamond Tread - As discussed, this offers enhanced durability and a professional aesthetic.
- Box Gauge & Thickness: 0.100" Aluminum - This specification confirms the substantial material thickness for superior structural integrity and longevity.
- Box Material: Aluminum - Underlines the lightweight and corrosion-resistant nature of the primary construction material.
- Depth, Height, Width: 20.0" x 20.0" x 36.0" - These precise measurements define the overall external envelope and internal volume capacity.
- Door Finish: Diamond Tread - Consistent with the box, offering matching protection and appearance.
- Door Gauge: .100" - Identical thickness to the box body, ensuring uniform strength across the entire enclosure.
- Door Material: Aluminum - Guarantees consistency in corrosion resistance and weight.
- Door Opening Height/Width: 17.30" H x 32.75" W - Crucial dimensions indicating the clear, usable access aperture, vital for assessing tool and equipment fit.
- Door Style: Drop Door - Specifies the functional and ergonomic design of the access panel.
- Gasket Type: D-Bulb Seal - Highlights the specific and effective sealing profile used for environmental protection.
- Hinge Style: Aluminum Continuous Hinge - Details the robust, full-length hinge design chosen for durability and smooth operation.
- Latch Style: Die Cast Compression Latch - Emphasizes the high-strength, secure, and weather-sealing latch mechanism.
- Lock Included (y/n): Yes - Confirms the inherent security feature against theft.
- Number of Doors/Latches: 1 - Indicates a single access point with a single, centrally located or appropriately sized latch for secure closure.
- Pro Series: False - While not a "Pro Series" box, this unit still offers professional-grade features and robust construction for demanding environments, emphasizing its value proposition.
- Rain Gutter: False - The recessed door design and D-Bulb seal effectively manage water ingress, making a dedicated rain gutter unnecessary and simplifying the design.
- Shelf: False - This design prioritizes maximum internal volume for larger items or customizable internal organization by the end-user, offering a clear, open storage cavity.
Operational Benefits and Long-Term Value
The cumulative effect of these meticulously engineered features translates into significant operational benefits. Operators gain rapid and reliable access to their tools, reducing downtime on job sites. The superior environmental sealing ensures that sensitive equipment remains dry and clean, minimizing maintenance and extending tool life. The robust security features deter theft, protecting valuable assets. Furthermore, the low-maintenance nature of aluminum, combined with the replaceable gasket system, translates into a lower total cost of ownership over the product's extended service life. This 20x20x36 inch Diamond Tread Aluminum Underbody Truck Box is not merely a storage unit; it is a critical component of an efficient, secure, and professional mobile workspace, designed to withstand the rigors of continuous use in challenging environments.
