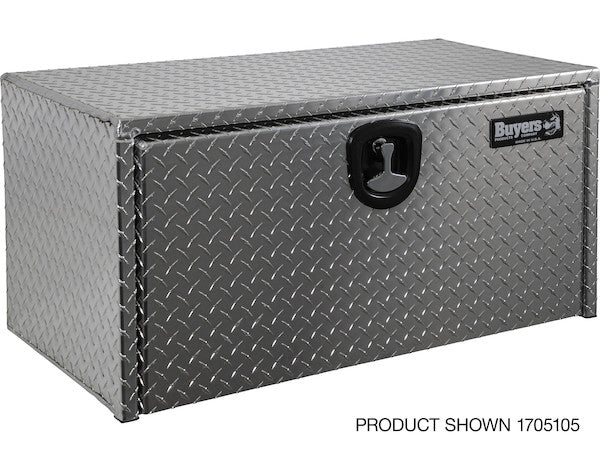

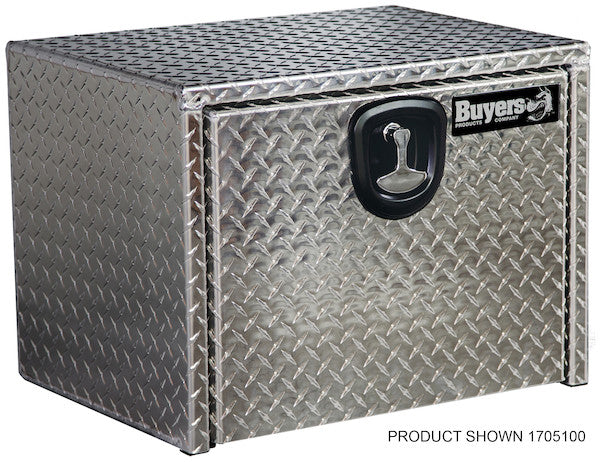

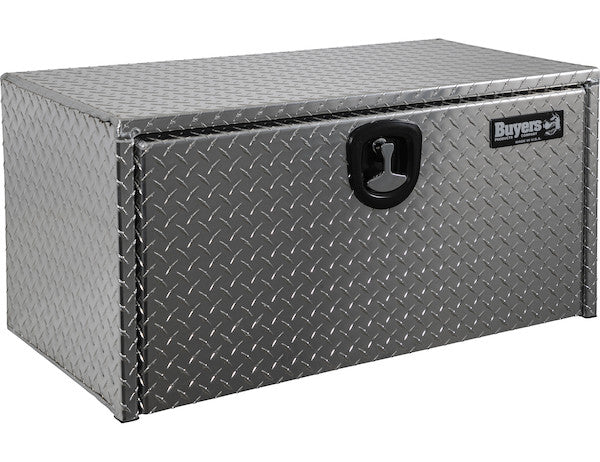

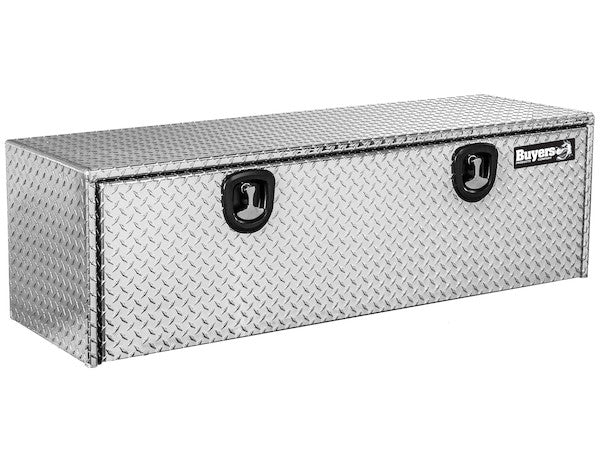

Protect and easily access your equipment with the Buyers Products Diamond Tread Aluminum Underbody Truck Box. Available in a variety of sizes, each box is made of strong, corrosion-resistant .100 in. thick aluminum. The recessed drop door combined with the continuous hidden hinge and replaceable gasket system keep weather and grime away from your tools. Aircraft grade cables help prevent damage. The locking, die-cast compression latch provides a tight seal and deters theft. Mount the box on any flat surface or under your truck using Buyers Products Mounting Brackets (sold separately, see "Accessories" below).
Specifications
| Box Finish | Diamond Tread |
|---|---|
| Box Gauge | 0.100" |
| Box Material | Aluminum |
| Box Thickness | Aluminum - 0.100" |
| Depth | 24.0 |
| Door Finish | Diamond Tread |
| Door Gauge | .100 |
| Door Material | Aluminum |
| Door Opening Height | 15.30 |
| Door Opening Width | 32.75 |
| Door Style | Drop Door |
| Gasket Type | D-Bulb Seal |
| Height | 18.0 |
| Hinge Style | Aluminum Continuous Hinge |
| Latch Style | Die Cast Compression Latch |
| Lock Included (y/n) | Yes |
| Number of Doors | 1 |
| Pro Series | False |
| Rain Gutter | False |
| Shelf | False |
| Width | 36.0 |
The Buyers Products 18x24x36 Inch Diamond Tread Aluminum Underbody Truck Box represents a pinnacle of utility storage design, meticulously engineered to address the rigorous demands of professional trades, fleet management, and heavy-duty applications. This detailed exposition aims to provide a comprehensive technical overview of its construction, features, and operational benefits, justifying its position as an indispensable asset for secure and accessible equipment management.
Advanced Material Selection and Structural Integrity
At the core of this underbody truck box's exceptional performance is its choice of material: robust .100 inch thick aluminum, uniformly applied to both the main box structure and the drop door. Aluminum, specifically in this thickness, offers a compelling balance of properties crucial for mobile storage solutions. Its inherent strength-to-weight ratio is a significant advantage, ensuring the box adds minimal unladen weight to the vehicle while providing substantial structural integrity to protect its contents. This translates into improved fuel efficiency and payload capacity compared to heavier steel alternatives, without compromising durability.
The corrosion resistance of aluminum is paramount for equipment exposed to diverse environmental conditions, including road salts, moisture, industrial pollutants, and extreme temperatures. Unlike steel, aluminum forms a passive oxide layer that self-repairs when scratched, effectively preventing rust and maintaining its structural and aesthetic integrity over extended periods. This characteristic significantly reduces maintenance requirements and prolongs the service life of the unit, representing a sound long-term investment.
The distinctive diamond tread finish is not merely an aesthetic choice; it serves multiple functional purposes. The raised pattern increases the surface area's rigidity, enhancing resistance to dents and deformation from impacts that are common in demanding work environments. Furthermore, the diamond tread pattern is highly effective at concealing minor scratches and scuffs, maintaining a professional appearance even after years of heavy use. The texture also provides a degree of slip resistance, which can be beneficial during installation or when accessing the contents in wet conditions.
Precision Engineering and Dimensional Specifications
Measuring 18 inches in height, 24 inches in depth, and 36 inches in width, this underbody truck box is designed to maximize storage utility within the confined spaces beneath a vehicle's chassis. These dimensions provide a substantial internal volume of approximately 15,552 cubic inches, or roughly 9 cubic feet, which is ample for accommodating a wide array of tools, equipment, and supplies. The specific door opening dimensions of 15.30 inches in height and 32.75 inches in width are strategically engineered to facilitate easy loading and retrieval of even bulky items, minimizing ergonomic strain for the operator.
The fabrication process involves precision cutting, bending, and welding of the .100-inch aluminum sheets. The welds are meticulously executed to ensure complete seam integrity, preventing water ingress and reinforcing the structural rigidity of the box. This attention to detail in manufacturing ensures that each unit meets stringent quality standards, capable of withstanding the dynamic stresses associated with vehicular movement and heavy loads.
Advanced Sealing and Environmental Protection Systems
Protection against environmental ingress is a critical design parameter for underbody storage. The Buyers Products box incorporates a multi-faceted approach to achieving superior weather and grime resistance:

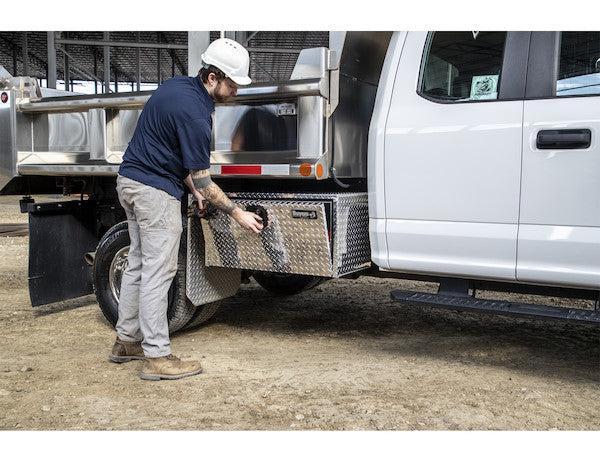

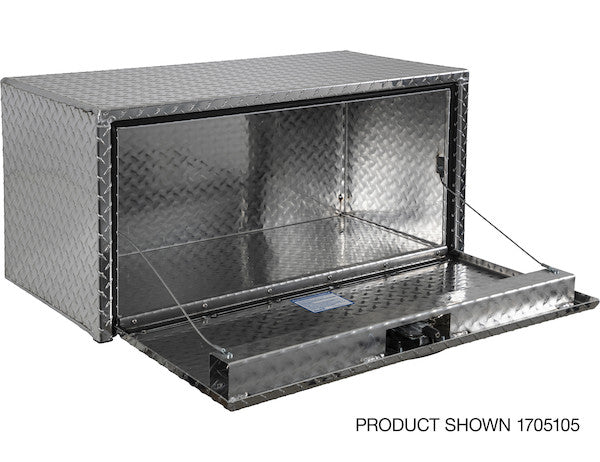

- Recessed Drop Door: The door is designed to sit within a recessed frame, creating an overlapping lip that actively diverts water and debris away from the sealing interface. This mechanical barrier is highly effective at preventing direct impingement of water, snow, and road spray onto the gasket.

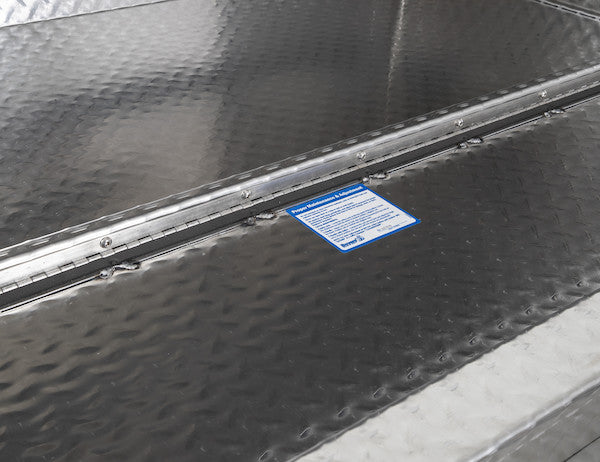

- Continuous Hidden Hinge: The use of a full-length, continuous aluminum hinge offers multiple advantages. Structurally, it distributes the weight and stress of the door evenly across its entire length, significantly enhancing durability and preventing warping or failure associated with point-load hinges. From a security standpoint, the "hidden" design means the hinge pins are not externally accessible, making it highly resistant to prying attempts. Furthermore, being constructed from aluminum, it shares the same corrosion-resistant properties as the box, ensuring smooth, consistent operation throughout its lifespan.
- Replaceable D-Bulb Seal Gasket System: A high-performance D-Bulb seal gasket is strategically positioned around the door perimeter. This specific gasket profile is chosen for its excellent compression characteristics, creating a tight, hermetic seal when the door is closed and latched. The D-shape provides a resilient, hollow core that deforms effectively to fill any microscopic irregularities between the door and the frame, thereby preventing the ingress of dust, moisture, and fine particulates. The "replaceable" aspect is a key maintenance feature, allowing for easy field replacement should the gasket become worn or damaged over time, ensuring the long-term integrity of the environmental seal without requiring costly box replacement.
Collectively, these features ensure that the contents of the box remain clean, dry, and protected from the elements, extending the life of stored tools and preventing damage to sensitive equipment.
Security and Access Mechanisms
The security of valuable tools and equipment is paramount. This underbody box integrates robust mechanisms to deter theft and ensure reliable access:
- Locking Die-Cast Compression Latch: The heart of the security system is the die-cast compression latch. Die-casting produces components with superior strength, dimensional accuracy, and an excellent surface finish, making it ideal for high-stress applications like latches. A compression latch operates by drawing the door firmly inwards as it closes, creating a pre-load force against the D-Bulb gasket. This action not only enhances the weather seal but also eliminates rattling and vibration during vehicle operation, contributing to the longevity of the box and its contents. The integrated lock mechanism provides a robust deterrent against unauthorized access, safeguarding stored items.

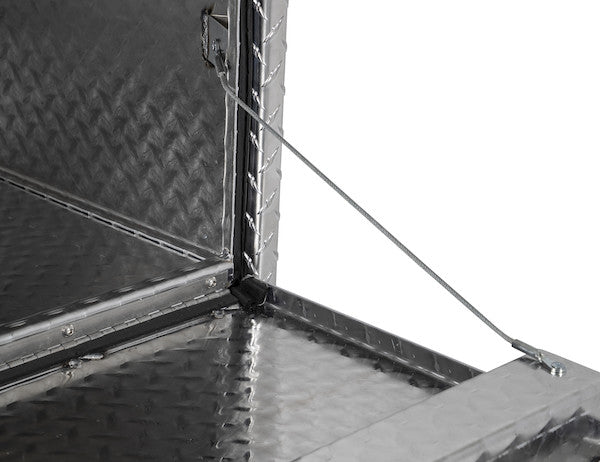

- Aircraft Grade Cables: The door is supported by two heavy-duty cables, specified as "aircraft grade." This designation typically refers to stainless steel wire rope constructed to stringent specifications, offering exceptional tensile strength, flexibility, and corrosion resistance. These cables are designed to withstand significant dynamic loads and provide reliable support for the drop door in its open position, preventing overextension and undue stress on the hinges. Their robust construction ensures they will not fray or fail under normal operational conditions, contributing significantly to the longevity and user-friendliness of the box.
The synergy between the robust latch, internal locking mechanism, and the support cables ensures both secure closure and safe, convenient access to the box's contents.
Installation and Versatility

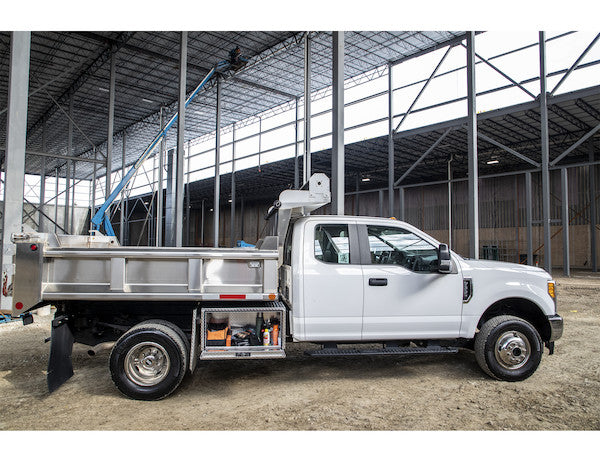

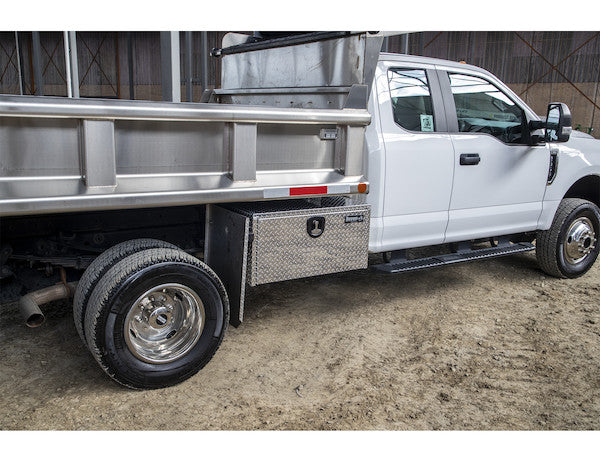

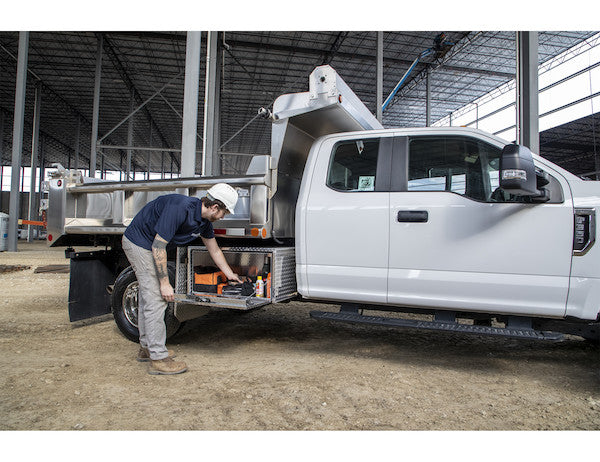

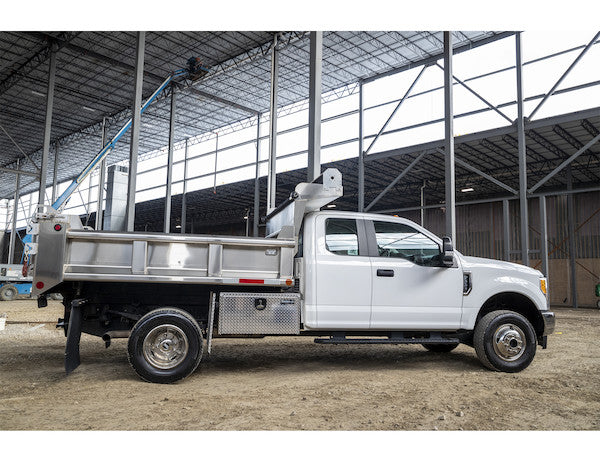

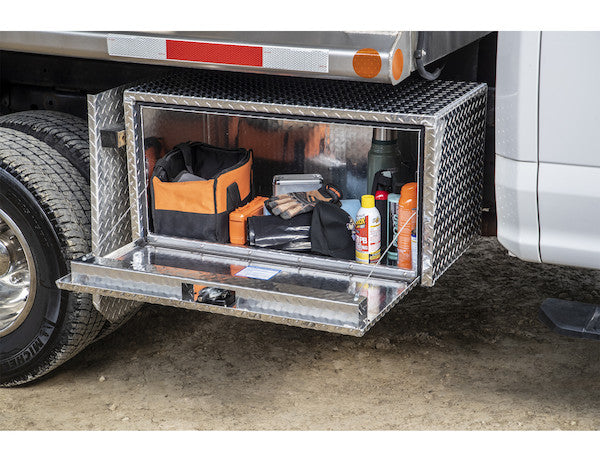

The design flexibility of this underbody box allows for versatile mounting options. While primarily intended for underbody installation on trucks, utility trailers, or other commercial vehicles, it can also be securely mounted on any flat surface. This adaptability expands its utility beyond conventional truck applications, making it suitable for stationary storage in workshops, garages, or within service bodies where traditional underbody mounting is not feasible.

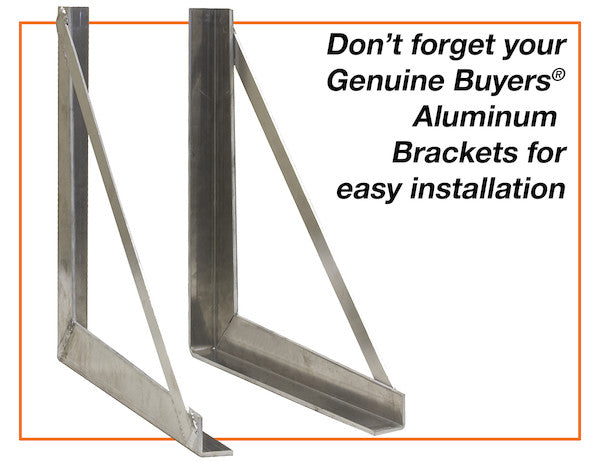

For underbody applications, the use of Buyers Products Mounting Brackets (sold separately) is strongly recommended. These brackets are engineered specifically for compatibility with the box, ensuring a secure, stable, and compliant installation. They are typically constructed from robust materials like powder-coated steel to withstand road forces and corrosive environments. Proper installation using the specified brackets is crucial for maintaining the box's structural integrity, preventing detachment during transit, and ensuring optimal performance and safety.
Operational Context and Target User Groups
The 18x24x36 Inch Diamond Tread Aluminum Underbody Truck Box is an indispensable tool for a diverse range of professionals and industries:
- Construction and Contractors: Ideal for storing hand tools, power tools, fasteners, and safety equipment, keeping them organized and protected from construction site elements and potential theft.
- Electricians and Plumbers: Provides secure storage for specialized tools, fittings, wires, and diagnostic equipment, ensuring they are readily available at job sites.
- Landscapers and Municipal Crews: Suitable for stowing smaller gardening tools, maintenance supplies, safety cones, and vehicle recovery gear, keeping them dry and secure from outdoor conditions.
- Fleet Operators: Standardizes storage solutions across vehicle fleets, ensuring consistency in equipment management, enhancing efficiency, and reducing downtime due to misplaced or damaged tools.
- Off-Road and Recreational Enthusiasts: Offers robust, weather-resistant storage for recovery gear, spare parts, camping equipment, or emergency supplies in demanding off-road environments or during extended travels.
The underbody placement of the box frees up valuable bed space in trucks and allows for a lower center of gravity, which can contribute to vehicle stability, particularly when carrying heavy loads in the main cargo area.
Maintenance and Longevity
While designed for durability and minimal maintenance, adherence to a few simple practices will ensure the optimal performance and extended lifespan of the underbody truck box:
- Regular Cleaning: Periodically wash the exterior of the box with mild soap and water, especially after exposure to road salts or corrosive chemicals, to maintain the aluminum's finish and prevent build-up.
- Gasket Inspection: Routinely inspect the D-Bulb seal for signs of wear, cracking, or compression set. The replaceable design facilitates easy field replacement, ensuring the environmental seal remains effective throughout the box's service life.
- Hinge and Latch Lubrication: Apply a light lubricant, such as a silicone spray or dry lubricant, to the continuous hinge and compression latch mechanisms periodically to ensure smooth operation and prevent seizing, particularly in dusty or corrosive environments.
- Cable Examination: Check the aircraft-grade cables for any signs of fraying, kinks, or corrosion. Although designed for high durability, proactive inspection can prevent potential issues.
- Mounting Bracket Integrity: For underbody mounted boxes, periodically inspect the mounting brackets and fasteners to ensure they remain secure and free from corrosion, especially in areas subjected to high vibration or impact.
Conclusion
The Buyers Products 18x24x36 Inch Diamond Tread Aluminum Underbody Truck Box is more than just a storage container; it is a meticulously engineered component designed to meet the rigorous demands of professional use. Its construction from .100-inch diamond tread aluminum provides an optimal blend of strength, lightweight properties, and superior corrosion resistance. The integration of a recessed drop door, continuous hidden hinge, replaceable D-Bulb gasket, and a locking die-cast compression latch establishes an unparalleled level of environmental protection and security. Supported by robust aircraft-grade cables and offering versatile mounting options, this box ensures that valuable tools and equipment are not only safeguarded from theft and the elements but also remain readily accessible, enhancing operational efficiency and extending the lifespan of critical assets. For those who demand uncompromising quality, reliability, and technical sophistication in their mobile storage solutions, this underbody truck box represents a definitive choice.
