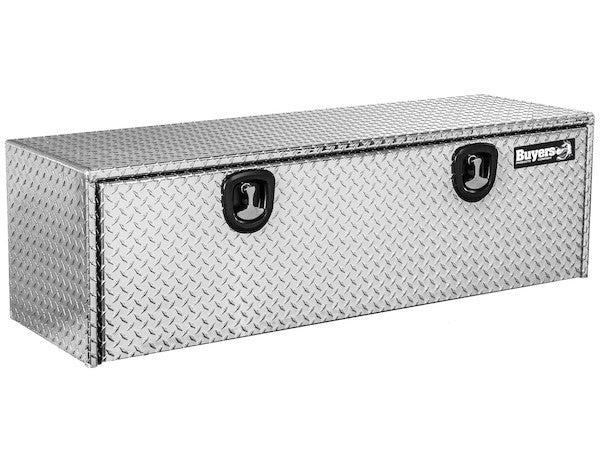

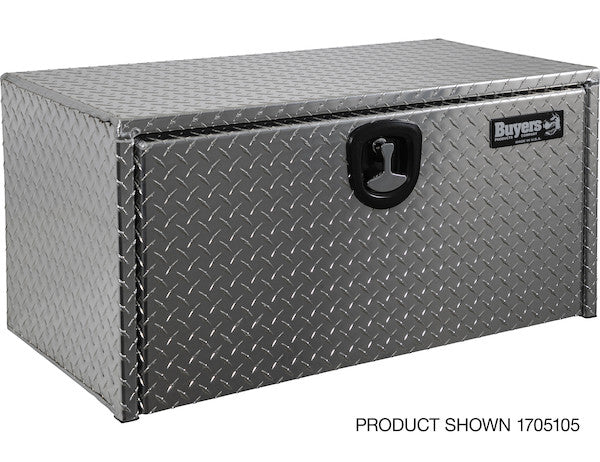

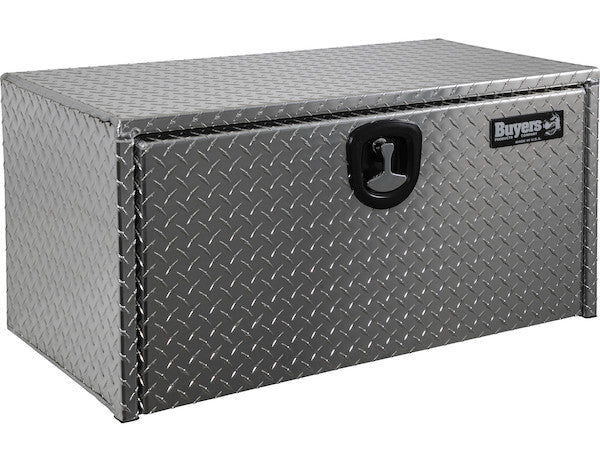

Protect and easily access your equipment with the Buyers Products Diamond Tread Aluminum Underbody Truck Box. Available in a variety of sizes, each box is made of strong, corrosion-resistant .100 in. thick aluminum. The recessed drop door combined with the continuous hidden hinge and replaceable gasket system keep weather and grime away from your tools. Aircraft grade cables help prevent damage. The locking, die-cast compression latch provides a tight seal and deters theft. Mount the box on any flat surface or under your truck using Buyers Products Mounting Brackets (sold separately, see "Accessories" below).
Specifications
| Box Finish | Diamond Tread |
|---|---|
| Box Gauge | 0.100" |
| Box Material | Aluminum |
| Box Thickness | Aluminum - 0.100" |
| Depth | 24.0 |
| Door Finish | Diamond Tread |
| Door Gauge | .100 |
| Door Material | Aluminum |
| Door Opening Height | 21.30 |
| Door Opening Width | 26.75 |
| Door Style | Drop Door |
| Gasket Type | D-Bulb Seal |
| Height | 24.0 |
| Hinge Style | Aluminum Continuous Hinge |
| Latch Style | Die Cast Compression Latch |
| Lock Included (y/n) | Yes |
| Number of Doors | 1 |
| Number of Latches | 1 |
| Pro Series | False |
| Rain Gutter | False |
| Shelf | False |
| Width | 30.0 |
Advanced Technical Overview: 24x24x30 Inch Diamond Tread Aluminum Underbody Truck Box
The Buyers Products 24x24x30 Inch Diamond Tread Aluminum Underbody Truck Box represents a robust and meticulously engineered solution for secure and accessible equipment storage on commercial and utility vehicles. Designed to withstand the rigors of demanding operational environments, this storage unit integrates superior material science with intelligent mechanical design, ensuring longevity, protection, and operational efficiency. This technical exposition delves into the core attributes, design principles, and functional advantages that distinguish this product within its category.
Material Science and Structural Integrity: .100" Diamond Tread Aluminum
At the foundation of this truck box's exceptional durability is its construction from .100 inch (approximately 2.54 mm) thick aluminum. This specific gauge is strategically selected to offer a superior balance between structural rigidity and manageability of weight. Aluminum, renowned for its high strength-to-weight ratio, is an ideal material for vehicle-mounted accessories, contributing minimally to the overall vehicle weight while maximizing payload capacity. The aluminum alloy typically employed for such applications is from the 3xxx or 5xxx series, known for their excellent formability, weldability, and inherent corrosion resistance, particularly to atmospheric elements and common road chemicals such like salt and de-icing agents.
The choice of a diamond tread finish for both the box body and door is not merely aesthetic; it serves several critical functional purposes. The raised diamond pattern significantly enhances the surface's abrasion resistance, providing an additional layer of protection against scratches, scuffs, and minor impacts that are common in industrial and vocational settings. Furthermore, this textured surface contributes to improved traction, a relevant safety feature if the box surface is ever used as a temporary step or working area, although it is primarily designed for underbody mounting. From a structural perspective, the pattern inherently stiffens the aluminum sheets, mitigating flex and enhancing overall panel rigidity, which is crucial for maintaining the integrity of the enclosure over its operational lifespan. The .100-inch thickness ensures that even under repeated impact or heavy loading, the box maintains its structural geometry and protective capabilities.
Dimensions and Volumetric Capacity Analysis
With external dimensions of 24 inches in height, 24 inches in depth, and 30 inches in width, this underbody truck box offers a substantial volumetric capacity, calculated at approximately 17,280 cubic inches (or roughly 10 cubic feet). The internal door opening dimensions, measuring 21.30 inches in height and 26.75 inches in width, further define the practical accessibility and storage capabilities. These dimensions are optimized for accommodating a diverse range of tools, equipment, and supplies, from power tools and pneumatic equipment to safety gear and spare parts. The generous opening facilitates easy loading and retrieval of even bulky items, minimizing strain and improving operational workflow.
The underbody mounting configuration is a strategic design choice that maximizes usable bed space on the truck, maintaining a clear cargo area for larger items or specialized payloads. This placement also contributes to a lower center of gravity for the vehicle, which can subtly enhance vehicle stability, particularly when traversing uneven terrain or cornering. The specified dimensions ensure compatibility with a wide array of medium-duty and heavy-duty truck chassis, vocational trucks, service vehicles, and trailers, making it a versatile addition to various fleet compositions. Careful consideration of vehicle clearance and wheel well proximity during installation is paramount to ensure optimal fitment and functionality.
Advanced Door System Engineering for Environmental Protection and Security
The door system of the Buyers Products underbody truck box integrates several sophisticated features to ensure unparalleled protection for its contents:

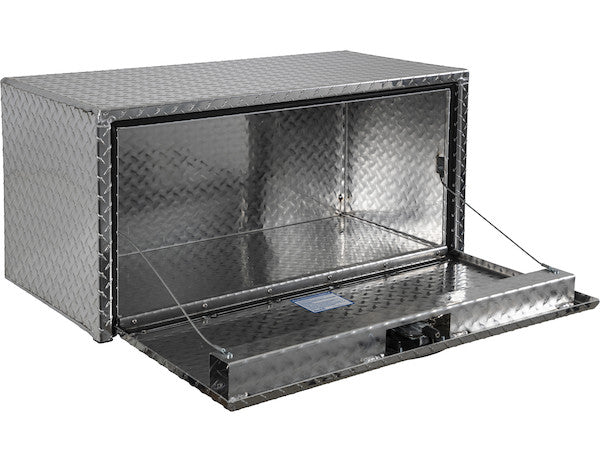

Recessed Drop Door Design
The recessed drop door is a cornerstone of the box's weather-resistant design. By sitting flush with or slightly inset from the main body frame, the door creates an overlapping barrier that actively diverts water and debris away from the seal. This architectural detail minimizes the exposure of the critical sealing interface to direct environmental assault from rain, road spray, and airborne particulates. The drop-down mechanism, coupled with the supporting cables, provides a convenient working surface when open, which can be invaluable in field operations.

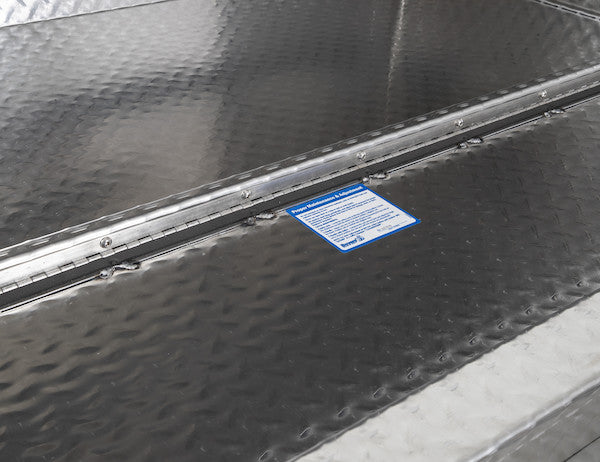

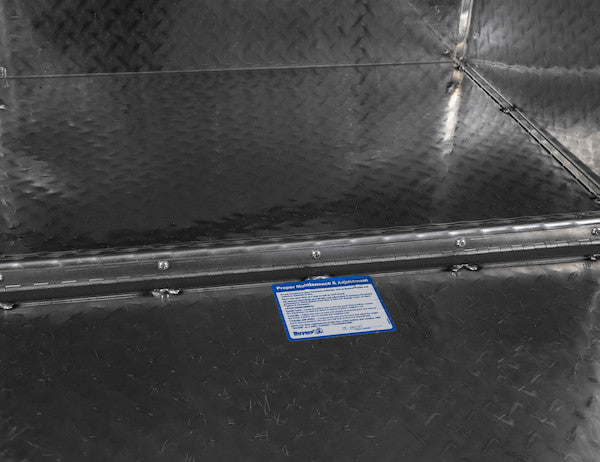

Continuous Hidden Hinge System
The implementation of an aluminum continuous hinge (also known as a piano hinge) offers significant advantages over conventional butt hinges. A continuous hinge distributes the load evenly across the entire length of the door, preventing stress concentrations that could lead to metal fatigue or deformation over time. This even load distribution ensures smooth, consistent operation and enhances the door's structural integrity. The "hidden" aspect of the hinge refers to its design where the hinge pins and knuckles are concealed when the door is closed. This not only presents a clean, aesthetic appearance but, more importantly, provides a critical security feature: it eliminates external points of attack, making it exceedingly difficult for unauthorized individuals to tamper with or remove the door by cutting hinge pins.

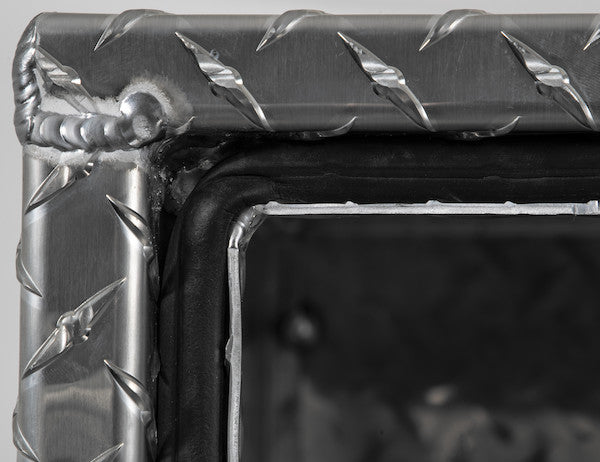

Replaceable D-Bulb Gasket System
The integrity of the box’s contents against environmental ingress is primarily managed by its replaceable D-Bulb seal gasket system. D-Bulb gaskets are engineered with a specific cross-sectional profile—a flat base for adhesion and a rounded, hollow "bulb" section—that compresses against the door frame to create a formidable seal. Typically manufactured from EPDM (Ethylene Propylene Diene Monomer) rubber, these gaskets possess excellent resistance to ozone, UV radiation, extreme temperatures, and various chemicals, ensuring their elasticity and sealing effectiveness over prolonged periods of exposure. The "replaceable" nature of this system is a key maintenance advantage, allowing for easy field replacement of worn or damaged gaskets without requiring specialized tools or extensive downtime, thereby extending the service life and protective capability of the entire unit.

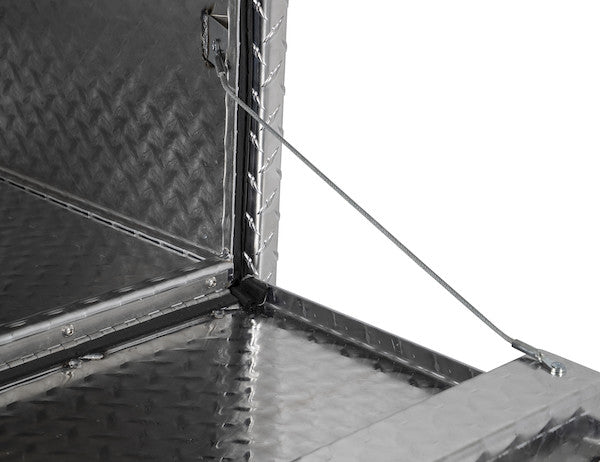

Aircraft Grade Cables for Controlled Door Deployment
Supporting the drop door are two aircraft grade cables. These cables are not merely supports; they are precision components designed for high tensile strength, flexibility, and resistance to fatigue. Commonly constructed from galvanized steel or stainless steel, they typically feature a multi-strand, braided configuration, which provides an exceptional strength-to-diameter ratio. This construction prevents sudden failure and ensures a controlled, smooth descent of the door when opened, preventing uncontrolled slamming that could damage the hinge, door, or stored contents. Their robust nature ensures reliable performance under varying load conditions and environmental stressors, safeguarding both the equipment within and the structural integrity of the door assembly itself.

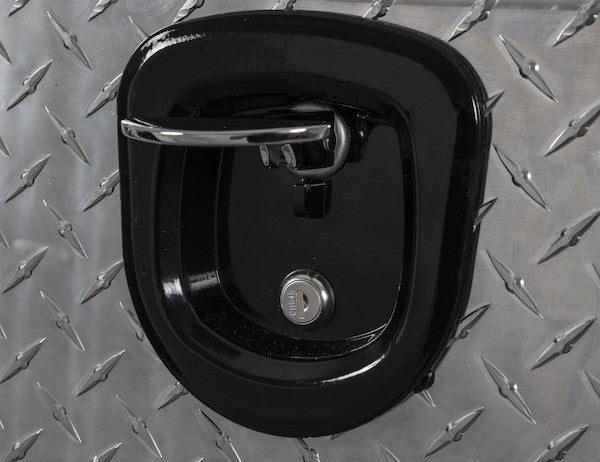

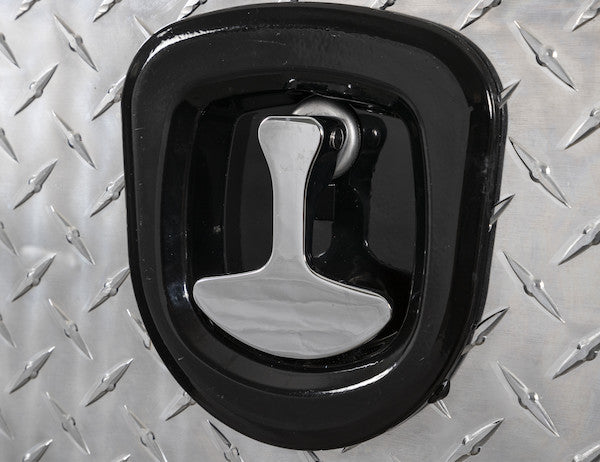

Locking Die-Cast Compression Latch
Security and a tight seal are ensured by the locking, die-cast compression latch. The term "die-cast" indicates that the latch components are manufactured using a die-casting process, which yields parts with high dimensional accuracy, excellent surface finish, and superior mechanical properties, including strength and hardness. This manufacturing method makes the latch highly resistant to forced entry and wear. The "compression" mechanism of the latch is critical for achieving an optimal seal: as the latch is engaged, it pulls the door firmly into the gasket, compressing the D-Bulb seal against the frame. This action eliminates any gaps and reinforces the watertight and dust-proof integrity of the box. The integrated locking mechanism provides a tangible deterrent against theft, securing valuable tools and equipment, and offering peace of mind to operators. With a single latch and single door configuration, operation is straightforward and efficient.
Versatile Mounting and Installation Considerations

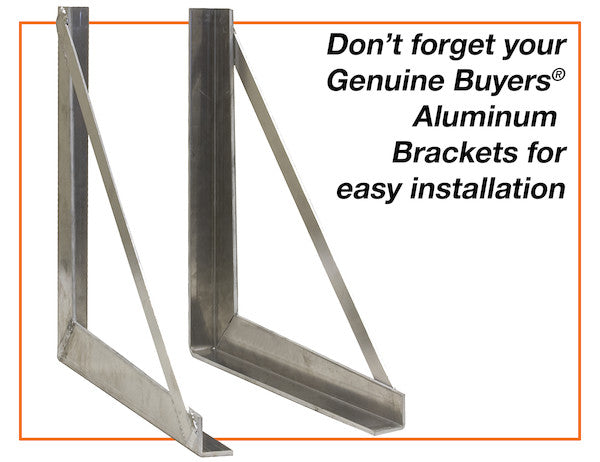

The design of the 24x24x30 inch underbody truck box emphasizes flexibility in installation. While primarily intended for underbody mounting, it can be securely affixed to any flat surface, making it adaptable for various vehicle types and custom applications. For underbody installation, the use of Buyers Products Mounting Brackets (sold separately) is explicitly recommended. These proprietary brackets are engineered to provide optimal load distribution, vibration dampening, and secure attachment to the vehicle's frame. Proper installation involves selecting suitable frame attachment points, considering vehicle dynamics, weight distribution, and ensuring adequate ground clearance and avoidance of critical vehicle components such as exhaust systems, fuel lines, or electrical wiring.
The installation process typically involves precision drilling and fastening, often utilizing grade 8 hardware for maximum strength and shear resistance. Attention to detail during mounting is crucial to prevent long-term issues such as box misalignment, loosened fasteners due to vibration, or accelerated wear on the vehicle frame. Professional installation is highly recommended to ensure compliance with vehicle manufacturer guidelines and to guarantee the structural integrity and safety of the mounted unit.
Applications and Operational Benefits
This 24x24x30 inch Diamond Tread Aluminum Underbody Truck Box is an indispensable asset for a wide spectrum of industries and applications, including:
- Construction and Trades: Secure storage for power tools, hand tools, fasteners, and safety equipment.
- Utility Services: Organization and protection of specialized equipment for electrical, plumbing, telecommunications, and gas line maintenance crews.
- Landscaping and Grounds Maintenance: Safe keeping of chainsaws, trimmers, blowers, and other essential gear, shielded from weather and theft.
- Municipal and Government Fleets: Durable storage for emergency response equipment, public works tools, and park maintenance supplies.
- Fleet Vehicles: Enhancing the functionality and security of commercial trucks, vans, and trailers across various service sectors.
- Personal Use: Adding robust, secure, and weather-protected storage for off-road enthusiasts, campers, or anyone needing organized capacity on their truck.
The inherent design features – corrosion-resistant aluminum, secure latching, and advanced weather sealing – translate into significant operational benefits: reduced equipment damage, minimized tool loss due to theft or environmental exposure, improved tool organization, and ultimately, enhanced productivity and reduced operational costs.
Conclusion
The Buyers Products 24x24x30 Inch Diamond Tread Aluminum Underbody Truck Box stands as a testament to engineering excellence in mobile storage solutions. Its meticulous construction from .100 inch diamond tread aluminum, combined with an intelligently designed recessed drop door, continuous hidden hinge, robust D-Bulb gasket, aircraft grade cables, and a locking die-cast compression latch, culminates in a product that offers superior protection, accessibility, and security. Engineered for the most demanding environments, this truck box provides a durable, weather-resistant, and secure sanctuary for valuable equipment, thereby optimizing operational efficiency and ensuring long-term reliability for a diverse range of vocational and personal applications.
