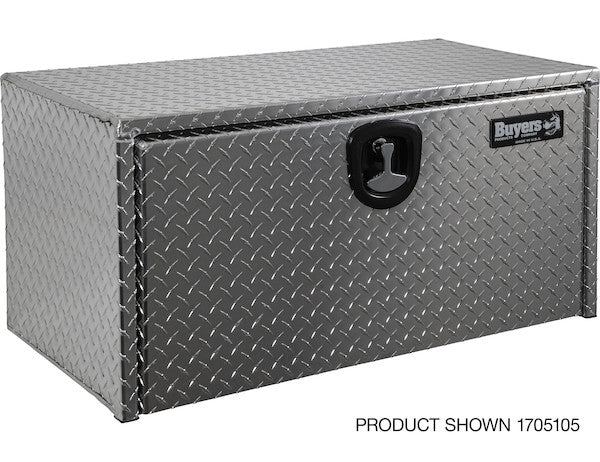

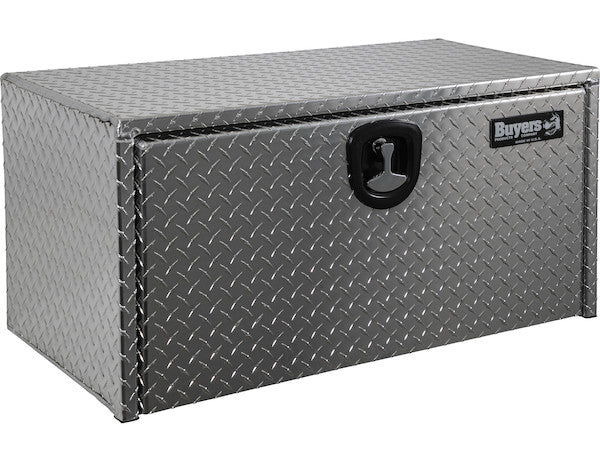

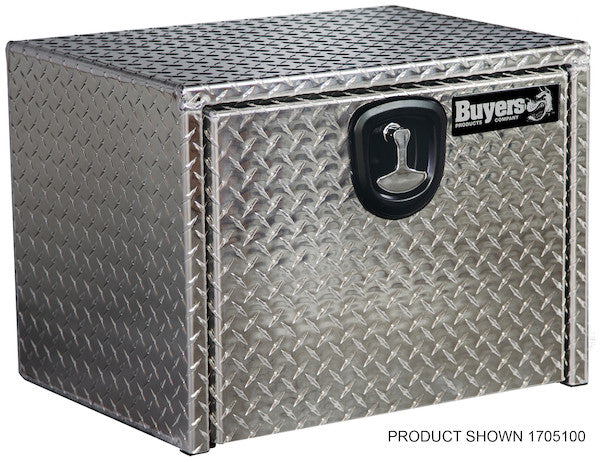

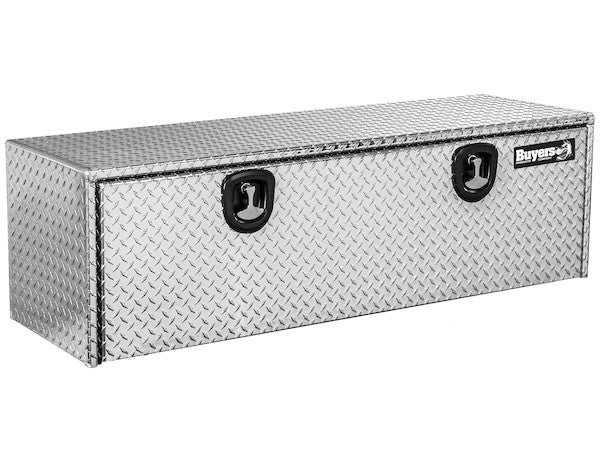

1705145 - 24x24x60 Inch Diamond Tread Aluminum Underbody Truck Box

Protect and easily access your equipment with the Buyers Products Diamond Tread Aluminum Underbody Truck Box. Available in a variety of sizes, each box is made of strong, corrosion-resistant .100 in. thick aluminum. The recessed drop door combined with the continuous hidden hinge and replaceable gasket system keep weather and grime away from your tools. Aircraft grade cables help prevent damage. The locking, die-cast compression latch provides a tight seal and deters theft. Mount the box on any flat surface or under your truck using Buyers Products Mounting Brackets (sold separately, see "Accessories" below).

Specifications

Advanced Technical Overview: Buyers Products 24x24x60 Inch Diamond Tread Aluminum Underbody Truck Box

The Buyers Products 24x24x60 Inch Diamond Tread Aluminum Underbody Truck Box represents a pinnacle of mobile equipment storage solutions, engineered for the most demanding professional environments. This robust storage unit is meticulously designed to provide unparalleled protection, superior organization, and convenient access to critical tools and gear for a diverse range of industries, including construction, utility services, landscaping, municipal operations, and commercial fleet management. Its substantial dimensions of 24 inches in height, 24 inches in depth, and 60 inches in width offer a generous internal volume, making it an ideal choice for storing a wide array of equipment, from power tools and hand tools to safety gear and specialized components.

Material Science and Structural Integrity: .100 Inch Diamond Tread Aluminum

At the core of this underbody truck box's exceptional performance is its construction from high-grade 0.100 inch thick aluminum. This specific gauge of aluminum, often referred to as 10-gauge in the sheet metal industry, strikes an optimal balance between material strength and weight efficiency. Aluminum, as a material, offers several intrinsic advantages that are critical for vehicular applications:

• Superior Corrosion Resistance: Unlike steel, aluminum naturally forms a passive oxide layer upon exposure to air, providing inherent and exceptional resistance to rust and various forms of chemical corrosion. This characteristic is paramount for underbody installations, where the box is constantly exposed to moisture, road salts, de-icing chemicals, mud, and other corrosive elements encountered during operation. The longevity and structural integrity of the box are significantly extended in such harsh conditions, reducing the need for premature replacement and associated costs.
• High Strength-to-Weight Ratio: The use of aluminum allows for a robust construction that can withstand significant impact and stress while remaining considerably lighter than an equivalent steel box. This weight saving directly translates into several operational benefits for the vehicle operator:
  • Increased Payload Capacity: A lighter truck box contributes less to the vehicle's gross vehicle weight rating (GVWR), leaving more capacity for actual cargo, tools, and equipment.
  • Improved Fuel Efficiency: Reduced vehicle weight can lead to marginal improvements in fuel economy, offering long-term operational cost savings, especially for large fleets.
  • Reduced Wear and Tear: Less overall vehicle weight places less strain on tires, brakes, and suspension components, potentially extending their service life and reducing maintenance frequency.
• Diamond Tread Finish: The exterior of this box features a distinctive diamond tread pattern. This design is not merely aesthetic; it serves several functional purposes:
  • Enhanced Rigidity: The raised pattern of the diamond tread significantly increases the surface rigidity of the aluminum panels, making the box more resistant to dents, dings, and deformation from impacts or heavy loads. This structural enhancement contributes to the box's overall durability in demanding work environments.
  • Scratch and Scuff Concealment: The textured surface is highly effective at camouflaging minor scratches, scuffs, and abrasions that are inevitable with heavy daily use, helping to maintain a professional appearance over the product's lifespan.
  • Improved Grip: While primarily an underbody installation, the diamond tread pattern can offer a degree of slip resistance, which can be beneficial during installation or when accessing contents in certain configurations.

The manufacturing process for these boxes involves precision cutting, bending, and welding of the 0.100 inch aluminum sheets. Expert welding ensures strong, continuous seams that contribute to the box's structural integrity and resistance to environmental intrusion, forming a cohesive unit designed to endure rigorous operational demands.

Advanced Design Features for Environmental Protection and Security

The Buyers Products underbody truck box incorporates several engineering advancements focused on maximizing protection for its contents against environmental factors and unauthorized access:

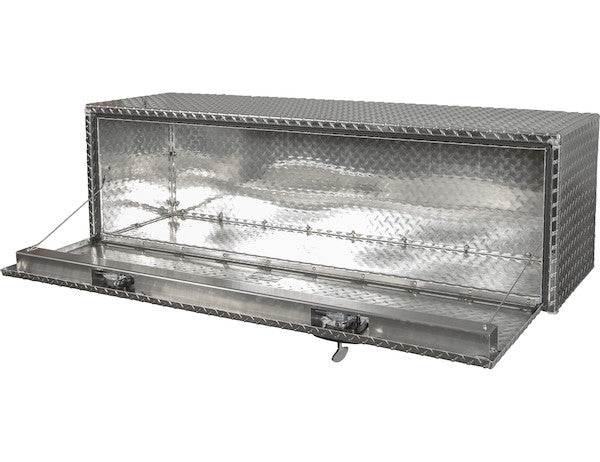

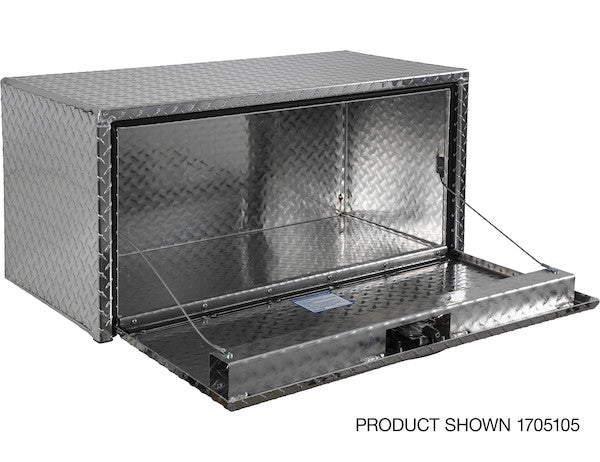

Recessed Drop Door Design

The innovative recessed drop door design is a critical element in the box's protective capabilities. Instead of sitting flush with the exterior frame or overlapping, the door is set back into the box frame. This creates a natural barrier and channel around the door's perimeter, effectively preventing direct ingress of water, dust, and debris. As water runs down the side of the box, it is channeled away from the door seal, significantly enhancing weather resistance. This design also provides a more streamlined, lower-profile aesthetic and reduces the likelihood of the door catching on obstacles in dynamic vehicle environments.

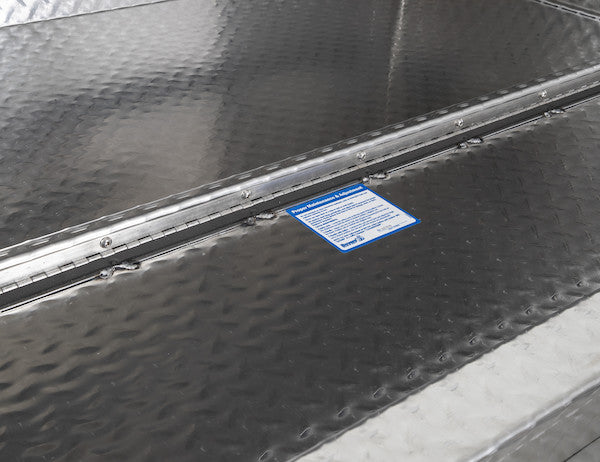

Continuous Hidden Hinge System

The box utilizes an aluminum continuous hidden hinge. This type of hinge runs the entire width of the door, distributing the load evenly across its length, thereby reducing stress points and significantly increasing the hinge's durability and lifespan compared to traditional spot hinges. Being "hidden," the hinge is not exposed on the exterior of the box, which serves a dual purpose:

• Enhanced Security: By concealing the hinge, it eliminates exterior access points that could be exploited by thieves using cutting tools, thereby bolstering the box's resistance to forced entry.
• Protection from Elements: The hidden design shields the hinge mechanism from direct exposure to road grime, salt, and moisture, preventing corrosion and ensuring smooth, reliable operation over time. The use of aluminum for the hinge itself further contributes to its corrosion resistance and light weight.

Replaceable D-Bulb Gasket System

A high-performance, replaceable D-Bulb gasket system is integral to maintaining a watertight and dust-proof seal. This gasket, typically made from high-quality EPDM rubber or a similar durable polymer, is engineered for optimal compression and resilience. The "D-Bulb" profile ensures a robust seal when the door is closed, conforming precisely to the door frame to create a barrier against moisture, dust, and other contaminants. The replaceability of the gasket is a significant advantage, allowing for easy maintenance and restoration of the seal's integrity should it become worn or damaged after years of service. This feature extends the functional life of the truck box indefinitely, ensuring continuous protection for valuable equipment.

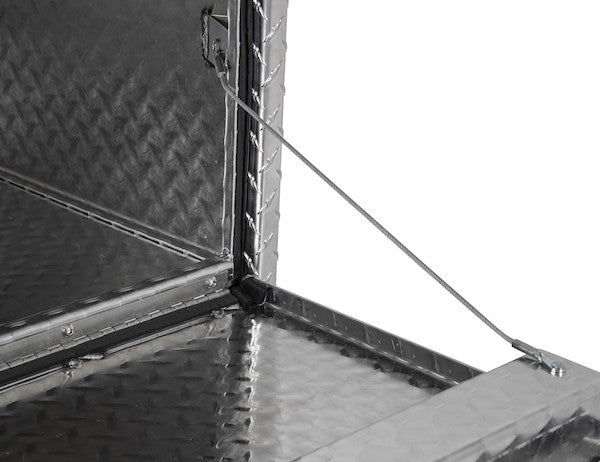

Aircraft-Grade Support Cables

To ensure robust door support and prevent over-extension or damage, the box is equipped with aircraft-grade cables. These cables are typically constructed from braided stainless steel or galvanized steel, often with a protective PVC or nylon coating, designed for exceptional tensile strength and resistance to fatigue, corrosion, and abrasion. When the drop door is opened, these cables provide stable, controlled support, allowing for easy access to the box's contents without fear of the door slamming down or being stressed beyond its limits. Their "aircraft-grade" designation signifies a higher standard of material quality and engineering for reliability in demanding conditions.

Locking, Die-Cast Compression Latch

Security is paramount for valuable tools and equipment, and this truck box addresses it with a sophisticated locking, die-cast compression latch. The design and materials of this latch are critical:

• Die-Cast Construction: Latches are manufactured through a die-casting process, typically using zinc or aluminum alloys. This process allows for the creation of complex shapes with high precision, excellent surface finish, and superior strength and durability compared to stamped or fabricated components. Die-cast latches are inherently robust and resistant to deformation or breakage under stress.
• Compression Mechanism: The compression feature of the latch is a key differentiator. As the latch is engaged, it pulls the door tightly against the gasket and frame, creating a positive seal that eliminates door rattling during transit and further enhances the weather seal. This firm closure also adds a layer of security by making it harder to pry the door open.
• Integrated Locking Cylinder: An integrated locking cylinder provides secure access control, deterring theft. The mechanism is designed for smooth operation and features robust internal components to resist tampering and forced entry attempts. The inclusion of a lock as standard provides immediate security upon installation.

Optimal Functionality, Ergonomics, and Capacity

The 24x24x60 inch dimensions of this underbody truck box are meticulously chosen to balance substantial storage capacity with practical integration beneath a vehicle chassis. With an internal volume approximating 86,400 cubic inches (approximately 50 cubic feet), this box can accommodate a significant quantity and variety of equipment, from large power tools like rotary hammers and reciprocating saws to pneumatic tools, generators, and an assortment of hand tools and consumables.

• Enhanced Accessibility: Despite its underbody mounting, the drop-down door design, supported by aircraft-grade cables, ensures full and unobstructed access to the entire contents of the box. This design allows users to easily load and retrieve items without awkward reaching or obstruction, improving workflow efficiency on the job site.
• Weight Distribution and Vehicle Dynamics: Locating heavy equipment in underbody boxes helps to maintain a lower center of gravity for the vehicle. This can contribute to more stable vehicle dynamics, particularly important for commercial vehicles that often navigate challenging terrain or carry substantial loads.
• Space Optimization: Utilizing the underbody area of a truck or trailer frees up valuable bed space or internal cabin space, allowing for more efficient organization of other cargo or improved crew comfort. This strategic placement helps maximize the utility of the entire vehicle platform.

Versatile Installation and Application

The Buyers Products 24x24x60 Inch Diamond Tread Aluminum Underbody Truck Box is designed for flexible installation. While ideally suited for underbody mounting on a range of commercial trucks, trailers, and specialized vehicles, its robust construction and flat mounting surfaces also permit secure installation on any flat platform. For optimal and secure underbody installation, Buyers Products Mounting Brackets are recommended (sold separately). These brackets are specifically engineered to interface seamlessly with the truck box and the vehicle chassis, ensuring a safe, stable, and durable attachment that can withstand the dynamic stresses of vehicle operation.

The versatility of this truck box makes it indispensable across numerous sectors:

• Construction: Safely stores tools, fasteners, and small equipment for contractors, carpenters, electricians, and plumbers.
• Utility Services: Ideal for housing specialized tools and components for telecommunications, electrical, and gas line technicians.
• Landscaping: Provides secure storage for trimmers, blowers, hand tools, and spare parts.
• Municipal Fleets: Equips public works, park maintenance, and sanitation vehicles with organized storage for repair kits, emergency tools, and supplies.
• Over-the-Road Trucking: Offers secure, weather-protected storage for chains, binders, tie-downs, and emergency repair items for long-haul drivers.
• Emergency Services: Can store auxiliary equipment for fire departments, EMS, or disaster response units.

Long-Term Value and Investment Protection

Investing in a high-quality storage solution like the Buyers Products 24x24x60 Inch Diamond Tread Aluminum Underbody Truck Box translates into significant long-term value. The robust .100 inch aluminum construction, coupled with advanced sealing, hinge, and latch mechanisms, ensures years of reliable service with minimal maintenance requirements. Protecting expensive tools and equipment from theft, damage, and harsh environmental exposure directly contributes to operational efficiency and reduces replacement costs. The professional appearance and consistent functionality of this truck box also reflect positively on the image of any business or fleet.

Furthermore, the inherent properties of aluminum contribute to environmental sustainability. Aluminum is 100% recyclable without any loss of its natural properties, making this product an environmentally conscious choice that aligns with modern corporate responsibility initiatives.

Conclusion

The Buyers Products 24x24x60 Inch Diamond Tread Aluminum Underbody Truck Box stands as a testament to intelligent engineering and robust construction. Its foundation in .100 inch diamond tread aluminum provides unparalleled corrosion resistance, structural integrity, and a beneficial strength-to-weight ratio. The meticulously designed recessed drop door, continuous hidden hinge, replaceable D-Bulb gasket, aircraft-grade support cables, and locking die-cast compression latch collectively establish a formidable barrier against theft and environmental degradation. Offering a substantial storage capacity and adaptable mounting options, this truck box is more than just a storage unit; it is an indispensable asset for professionals who demand the highest standards of equipment protection, organization, and accessibility in the field. This unit is specifically designed for enduring performance and represents a strategic investment in the efficiency and security of any commercial or professional operation.
