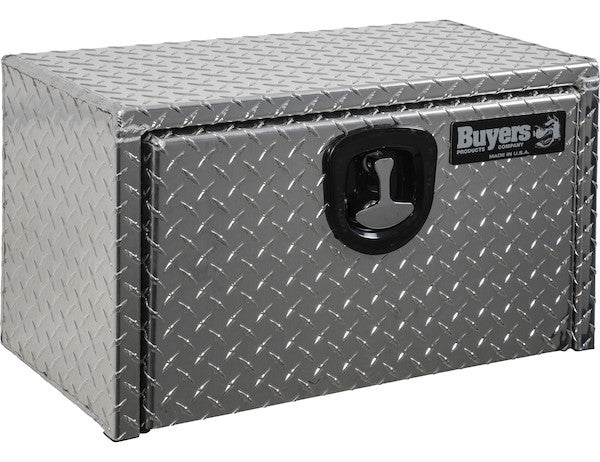

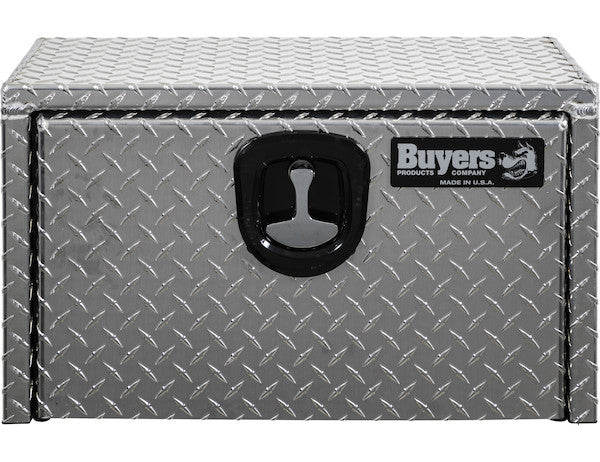

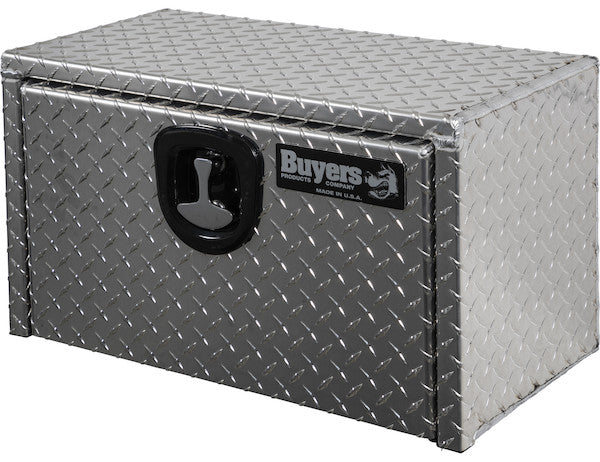

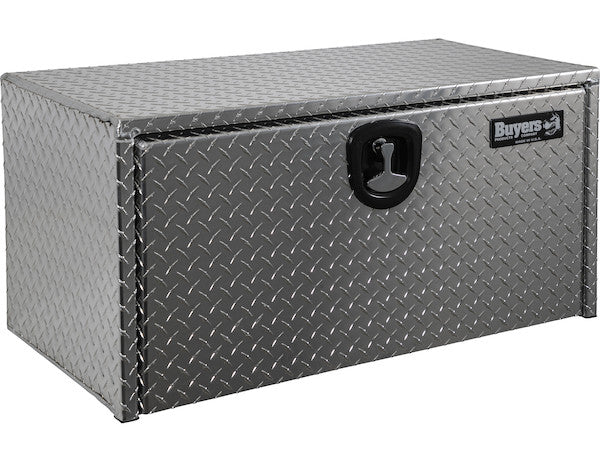

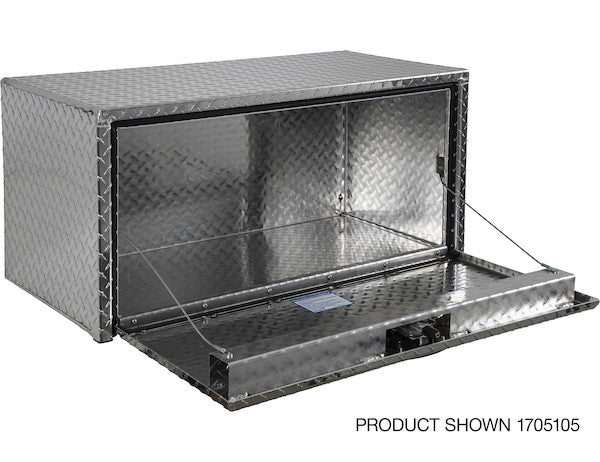

1705150 - 14x12x24 Inch Diamond Tread Aluminum Underbody Truck Box

Protect and easily access your equipment with the Buyers Products Diamond Tread Aluminum Underbody Truck Box. Available in a variety of sizes, each box is made of strong, corrosion-resistant .100 in. thick aluminum. The recessed drop door combined with the continuous hidden hinge and replaceable gasket system keep weather and grime away from your tools. Aircraft grade cables help prevent damage. The locking, die-cast compression latch provides a tight seal and deters theft. Mount the box on any flat surface or under your truck using Buyers Products Mounting Brackets (sold separately, see "Accessories" below).

Specifications

Advanced Engineering and Robust Design: The 14x12x24 Inch Diamond Tread Aluminum Underbody Truck Box

In the demanding environments encountered by commercial and utility vehicles, the integrity and accessibility of onboard equipment are paramount. The 14x12x24 Inch Diamond Tread Aluminum Underbody Truck Box, meticulously engineered by Buyers Products, represents a superior solution for secure, weather-resistant, and readily accessible storage. This detailed product overview delves into the technical specifications, material science, and design principles that position this underbody truck box as an indispensable asset for professionals across various industries.

Material Science and Structural Integrity: .100 Inch Diamond Tread Aluminum

The foundation of this storage solution's exceptional durability and longevity lies in its material composition: a robust .100 inch (approximately 1/10th of an inch, equivalent to 11 gauge) aluminum construction. Aluminum, specifically alloys commonly used in sheet fabrication for truck accessories, offers a unique combination of properties highly beneficial for this application:

• Superior Corrosion Resistance: Unlike steel, aluminum inherently forms a passive oxide layer upon exposure to air, providing excellent resistance to rust and various corrosive agents. This characteristic is crucial for underbody applications where exposure to road salt, moisture, and chemical splashes is routine. The longevity of the box is significantly enhanced, reducing maintenance requirements and extending service life.
• Optimized Strength-to-Weight Ratio: At .100 inches thick, the aluminum sheet provides substantial structural rigidity and impact resistance without imposing excessive weight on the vehicle. This is critical for maintaining fuel efficiency, complying with vehicle payload capacities, and preserving overall vehicle performance and handling. The gauge selected strikes an optimal balance between robustness and mass reduction.
• Diamond Tread Finish: The exterior surface features a distinctive diamond tread pattern. This design is not merely aesthetic; it serves several functional purposes. Firstly, it significantly enhances the material's rigidity, acting as a stress distributor and reducing susceptibility to denting or warping from minor impacts. Secondly, the raised pattern provides increased surface friction, which can be advantageous during installation or when interacting with the box in slippery conditions. Lastly, the textured surface effectively disguises minor scratches and scuffs, maintaining a professional appearance over years of rigorous use.
• Fabrication and Welding Excellence: The structural integrity of the box is further assured through advanced manufacturing processes, typically involving precision forming and welding techniques such as Gas Metal Arc Welding (GMAW, or MIG) or Gas Tungsten Arc Welding (GTAW, or TIG). These methods ensure strong, continuous seams that contribute to the box's overall resistance to structural fatigue and environmental infiltration.

Sophisticated Door Mechanism and Environmental Sealing

The design of the access door is a critical element in the overall performance of an underbody storage unit. This model incorporates a meticulously engineered system to ensure both ease of access and uncompromising protection:

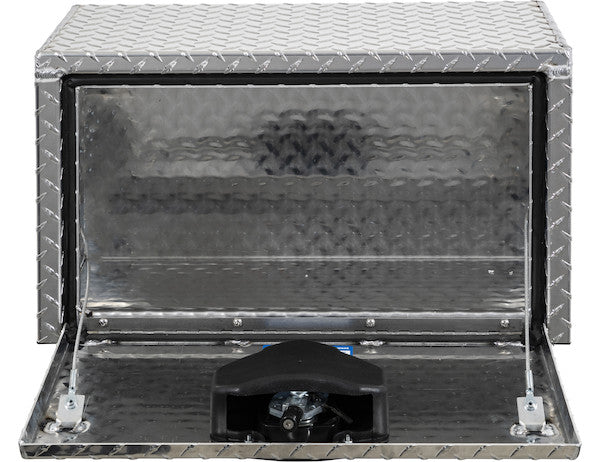

• Recessed Drop Door Design: The door is engineered with a recessed profile, meaning it sits slightly inward relative to the main body of the box when closed. This strategic design feature creates an inherent drip edge, effectively channeling water and debris away from the door opening. This mitigates the risk of water ingress, ice buildup, or the accumulation of grime around the seal, even in severe weather conditions or high-pressure washing scenarios. Furthermore, the recessed nature offers an additional layer of protection against accidental impacts.

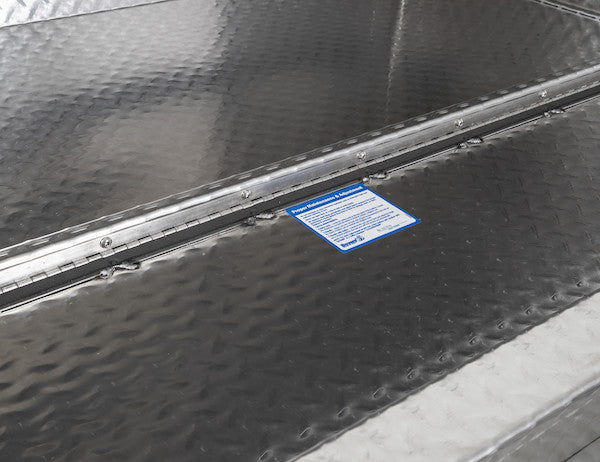

• Continuous Hidden Hinge System: The door utilizes an aluminum continuous hinge, commonly referred to as a piano hinge. This robust hinge spans the entire width of the door, distributing kinetic stress evenly across the entire attachment point. This contrasts sharply with segmented hinges, which concentrate stress at specific pivot points, leading to premature wear and failure. The "hidden" aspect means the hinge pins are not exposed externally, significantly enhancing security against tampering and providing a cleaner, more streamlined aesthetic. The aluminum construction of the hinge complements the box material, ensuring consistent corrosion resistance and durability.
• Replaceable D-Bulb Gasket System: A high-performance D-Bulb seal gasket is integrated into the door's perimeter. The "D" shape of the gasket is specifically designed to provide optimal compression and create a positive, impervious barrier when the door is closed. This seal effectively blocks out dust, moisture, and road spray, ensuring that stored contents remain clean and dry. The material typically used for these gaskets is EPDM (ethylene propylene diene monomer) rubber, known for its excellent resistance to weathering, ozone, UV radiation, and extreme temperatures. The "replaceable" feature is a testament to the product's long-term serviceability, allowing for cost-effective maintenance and extended lifespan of the environmental seal without requiring full box replacement.

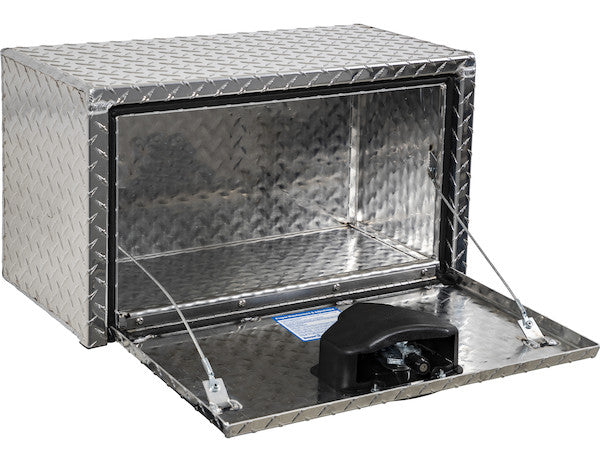

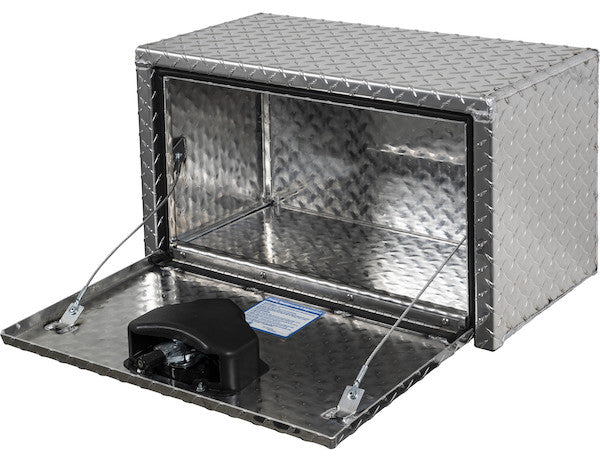

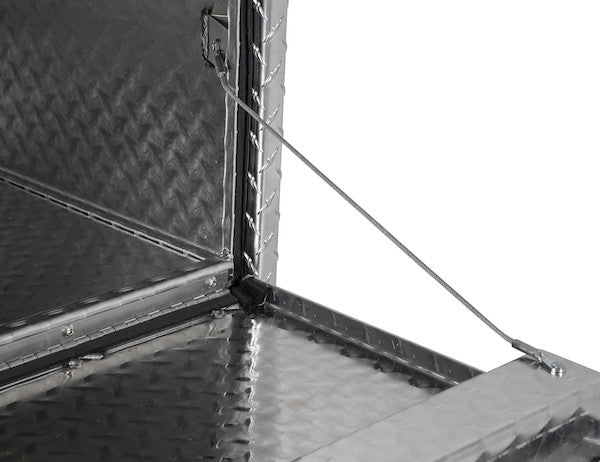

• Aircraft Grade Cable Supports: To ensure controlled and reliable door operation, the box is equipped with "aircraft grade" cables. These cables are typically constructed from high-strength stainless steel, often coated with vinyl for enhanced corrosion resistance and smooth operation. Their primary function is to support the door when open, preventing it from dropping violently or over-extending, which could damage the hinges or the box itself. The precise length and attachment points ensure the door opens to a practical angle, facilitating unobstructed access to the compartment while maintaining its structural integrity.

Advanced Security and Ergonomic Access

Protecting valuable tools and equipment is a primary concern for any professional. This underbody box integrates security features designed to deter theft and ensure reliable containment:

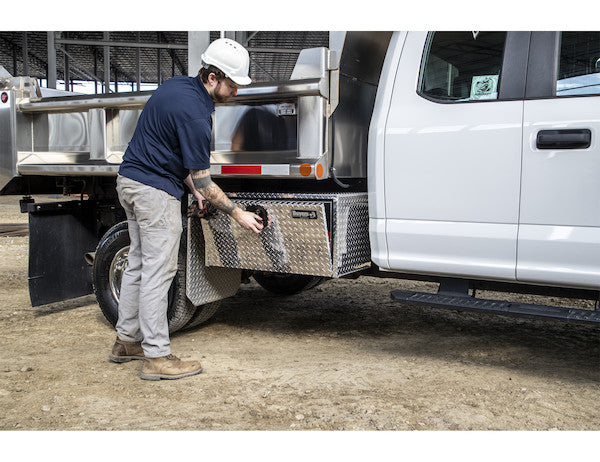

• Locking, Die-Cast Compression Latch: The security mechanism is centered around a single, robust die-cast compression latch. The "die-cast" manufacturing process involves injecting molten metal into a mold under high pressure, resulting in components with exceptional strength, precision, and intricate details. This ensures the latch mechanism is highly durable and resistant to forced entry. The "compression" aspect is critical: when engaged, the latch actively pulls the door tightly against the frame, compressing the D-Bulb gasket. This not only creates an incredibly tight, weather-resistant seal but also eliminates door rattle and vibration during vehicle operation, preserving the contents and reducing wear on the latch itself. The integrated locking mechanism provides a reliable deterrent against unauthorized access, safeguarding tools and sensitive equipment.
• Optimized Door Opening Dimensions: With a door opening height of 11.30 inches and a width of 20.75 inches, the design prioritizes ergonomic access. These dimensions ensure that even bulkier tools, equipment, or parts can be comfortably loaded and retrieved without excessive maneuvering. The wide opening minimizes the need to reach deep into the compartment, improving user efficiency and reducing potential for strain.

Dimensional Efficacy and Versatile Mounting

The external dimensions of 14 inches high, 12 inches deep, and 24 inches wide are strategically chosen to provide substantial storage capacity while being perfectly suited for underbody installation on a wide array of vehicles.

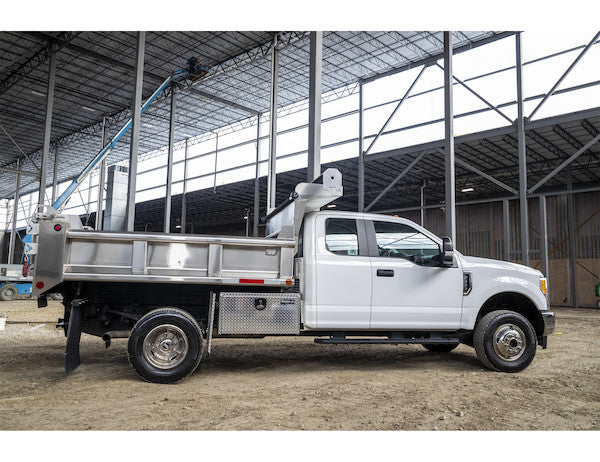

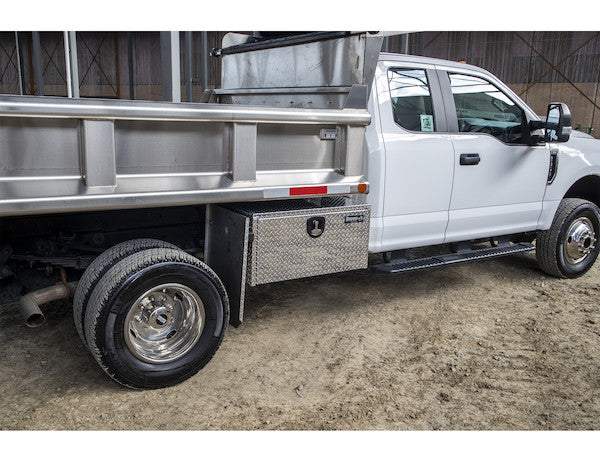

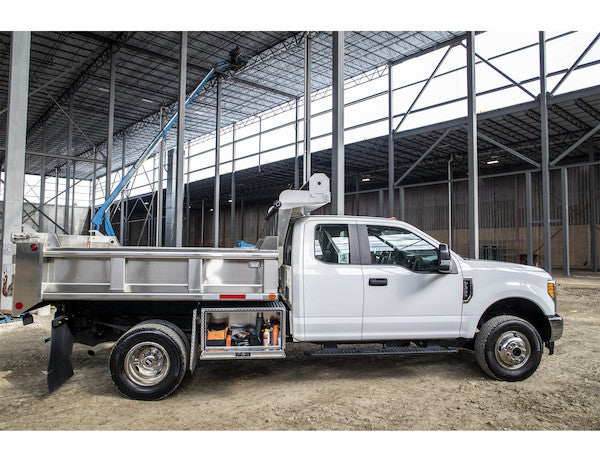

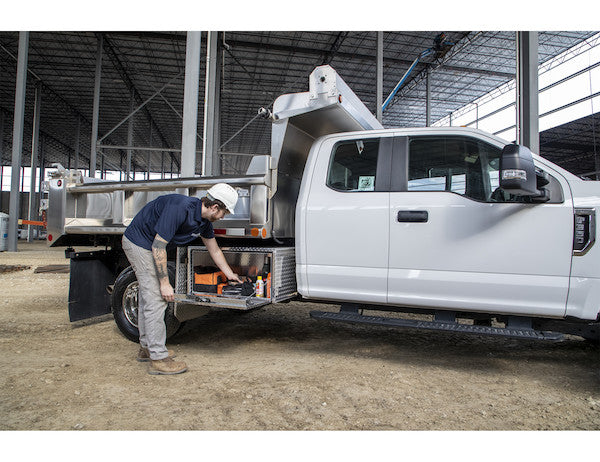

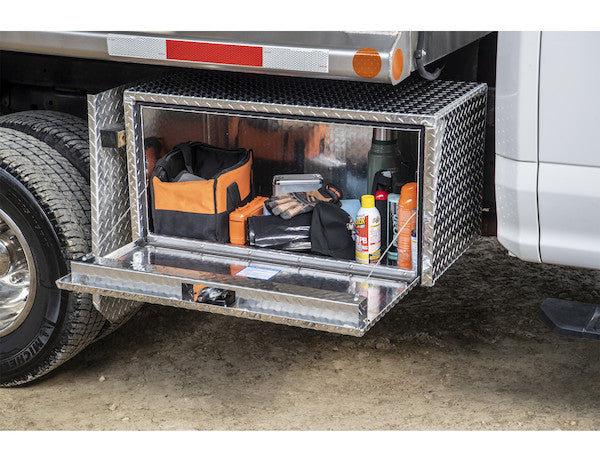

• Space Optimization: Underbody storage is a crucial strategy for maximizing usable space on service trucks, utility vehicles, flatbeds, and trailers. By utilizing the often-overlooked area beneath the vehicle's chassis, the box keeps the truck bed or cargo area clear for larger items, while securing frequently used tools or emergency equipment out of sight but within easy reach. The compact yet capacious dimensions of this specific box allow for installation in constrained spaces, making it highly adaptable.
• Payload and Weight Distribution: Mounting storage underbody contributes to a lower center of gravity for the vehicle, which can positively impact stability and handling, especially when transporting heavy loads. Proper installation, utilizing appropriate mounting brackets (sold separately), ensures even weight distribution and prevents undue stress on the vehicle's frame.
• Flexible Installation: While primarily designed for underbody applications, the robust construction and flat mounting surfaces allow for versatile installation on any suitable flat surface. This adaptability extends its utility to cargo trailers, workshops, or other fixed installations where secure, weather-resistant storage is required. The availability of Buyers Products Mounting Brackets (sold separately) emphasizes the importance of using purpose-built, rigorously tested hardware to ensure safe and secure attachment under dynamic operational conditions.

Applications and Operational Benefits

The 14x12x24 Inch Diamond Tread Aluminum Underbody Truck Box is an invaluable asset across numerous professional sectors, offering tangible operational benefits:

• Construction and Trades: For carpenters, electricians, plumbers, and general contractors, this box provides secure, weather-protected storage for power tools, hand tools, fasteners, and specialized equipment. It reduces clutter in the truck bed and ensures tools are readily available at the job site.
• Landscaping and Grounds Maintenance: Ideal for storing trimmers, spare parts, gloves, or small hand tools, keeping them dry and organized despite challenging outdoor conditions.
• Utility and Municipal Services: Technicians and municipal workers can safely store diagnostic equipment, safety gear, and repair tools, ensuring immediate access during field operations.
• Fleet Management: Standardizing storage solutions across a fleet with durable, consistent boxes improves efficiency, inventory management, and vehicle aesthetics.
• Emergency and Roadside Assistance: Critical roadside repair tools, safety cones, or first-aid kits can be securely stored and accessed quickly when needed.
• Enhanced Productivity: Organized tools are easily located, reducing downtime spent searching for equipment. This directly translates to increased efficiency and productivity on the job.
• Asset Protection: The locking compression latch and robust construction significantly deter theft and protect valuable equipment from environmental damage, extending the life of tools and reducing replacement costs.

Maintenance and Longevity

Designed for the rigors of daily use, this underbody box is built for minimal maintenance and maximum longevity. The inherent corrosion resistance of aluminum means no painting or rust-proofing is typically required. The diamond tread surface is easily cleaned with soap and water to maintain its appearance. The replaceable gasket system ensures that the critical environmental seal can be renewed as needed, rather than requiring the replacement of the entire unit, providing a cost-effective path to sustained performance over many years.

Conclusion

The 14x12x24 Inch Diamond Tread Aluminum Underbody Truck Box by Buyers Products exemplifies engineering excellence and practical utility. Its thoughtful design, robust material selection, and precision manufacturing combine to deliver a storage solution that is not only secure and weather-resistant but also enhances operational efficiency and prolongs the life of valuable equipment. From its .100 inch thick diamond tread aluminum construction to its advanced sealing and locking mechanisms, every feature is meticulously crafted to meet the rigorous demands of professional use. This product represents a strategic investment in organization, protection, and productivity for any vehicle operator.
