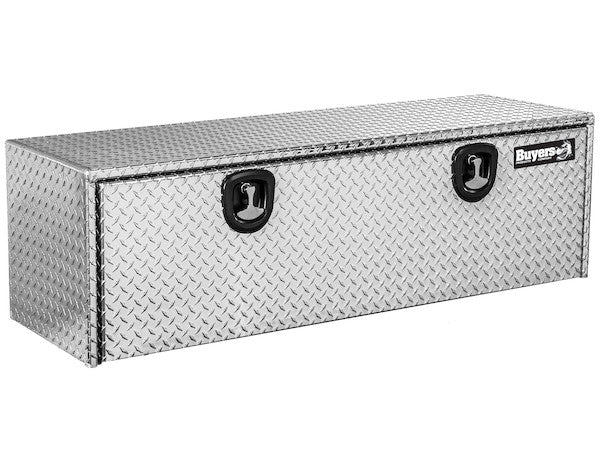

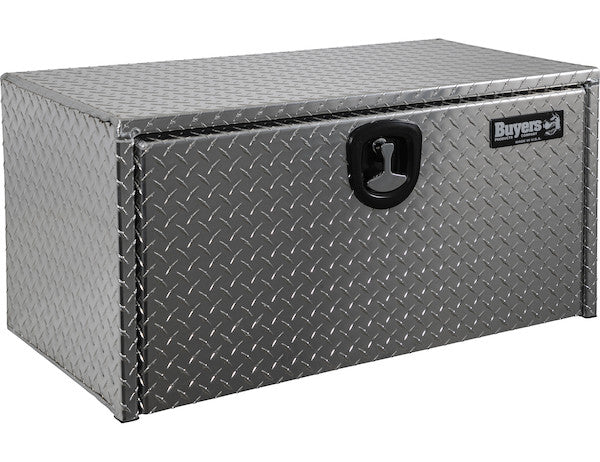

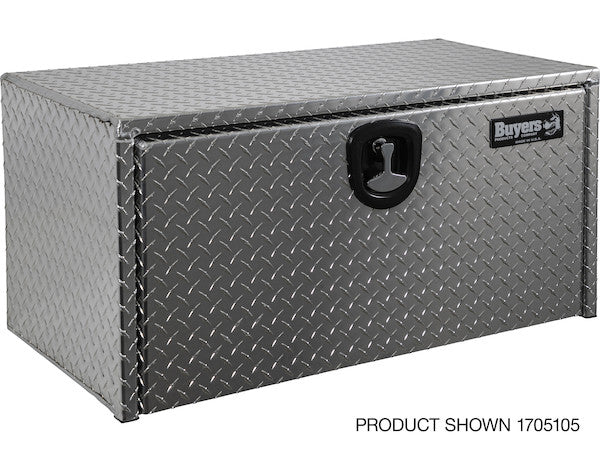

1705153 - 14x12x30 Inch Diamond Tread Aluminum Underbody Truck Box

Protect and easily access your equipment with the Buyers Products Diamond Tread Aluminum Underbody Truck Box. Available in a variety of sizes, each box is made of strong, corrosion-resistant .100 in. thick aluminum. The recessed drop door combined with the continuous hidden hinge and replaceable gasket system keep weather and grime away from your tools. Aircraft grade cables help prevent damage. The locking, die-cast compression latch provides a tight seal and deters theft. Mount the box on any flat surface or under your truck using Buyers Products Mounting Brackets (sold separately, see "Accessories" below).

Specifications

The 14x12x30 Inch Diamond Tread Aluminum Underbody Truck Box represents a pinnacle of engineering and practical design, meticulously crafted to meet the rigorous demands of professional trades, industrial applications, and discerning vehicle owners. This product is not merely a storage container; it is a critical component engineered to enhance operational efficiency, secure valuable assets, and withstand the harshest environmental conditions inherent to mobile work platforms. Its design philosophy centers on an optimal balance of durability, security, accessibility, and longevity, making it an indispensable asset for any fleet or service vehicle.

At the core of this underbody truck box’s exceptional performance is its material composition: high-grade aluminum with a thickness of 0.100 inches (equivalent to 10 gauge). This specific gauge is strategically chosen to provide superior structural integrity without imposing excessive weight, a critical consideration for vehicle payload capacity and fuel efficiency. Aluminum, as a material, offers a confluence of advantageous properties. Foremost among these is its inherent corrosion resistance. Unlike steel, aluminum forms a passive oxide layer upon exposure to air, which effectively prevents further oxidation and rust. This characteristic is particularly vital for underbody installations, where the box is continuously exposed to road salts, chemicals, moisture, mud, and various corrosive agents that would rapidly degrade other materials. The .100-inch thickness translates directly into enhanced impact resistance, mitigating the risk of dents and damage from road debris, minor collisions, or the daily rigors of loading and unloading heavy equipment. Furthermore, aluminum's excellent strength-to-weight ratio contributes to a lower overall vehicle weight, which can lead to improved fuel economy and increased payload capacity for tools and materials, providing a significant long-term economic benefit.

The distinctive Diamond Tread finish applied to both the box and the door is not merely an aesthetic choice; it serves several functional purposes. The raised pattern increases the surface area's rigidity, enhancing its resistance to minor abrasions and dings. Beyond structural reinforcement, the diamond plate texture is effective at camouflaging superficial scratches and wear that naturally occur in demanding environments, thereby maintaining a professional appearance over extended periods of use. This finish also contributes to a non-slip surface, which can be beneficial if the box is ever accessed or used in a manner that requires standing or placing items on its exterior, though its primary role is robust protection and visual durability.

The dimensions of this specific unit – 14 inches in height, 12 inches in depth, and 30 inches in width – are meticulously calibrated for optimal underbody installation. This compact yet capacious sizing ensures that the box integrates seamlessly beneath a truck chassis, trailer frame, or other vehicle structures, maximizing storage volume without compromising ground clearance or aerodynamic profiles. The 30-inch width offers substantial linear storage for longer tools, while the 14-inch height and 12-inch depth provide ample cubic capacity for a variety of equipment, from power tools to specialized instruments and safety gear. The precise door opening dimensions (11.30 inches in height and 26.75 inches in width) are engineered to facilitate unhindered access, allowing users to easily retrieve or store bulky items without obstruction, thereby optimizing workflow and reducing manual effort.

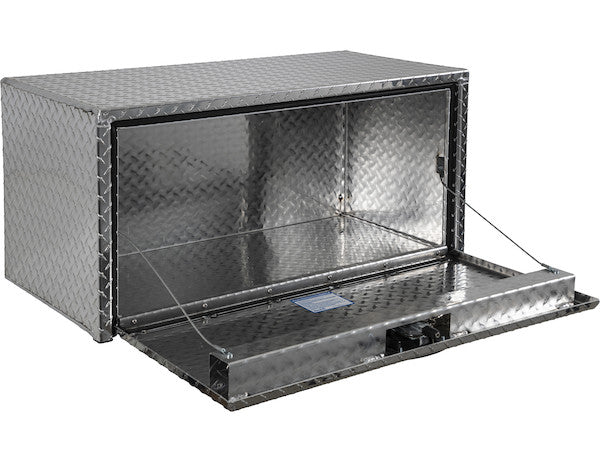

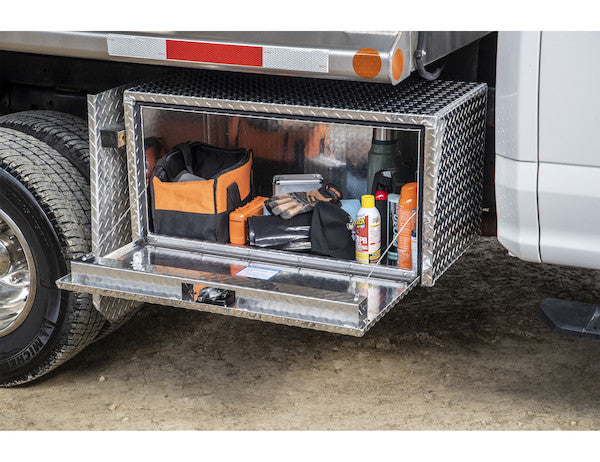

The design of the access system underscores the product's commitment to protection and operational fluidity. The recessed drop door mechanism is a hallmark of superior underbody box design. By positioning the door panel slightly inward relative to the main box frame, it creates an inherent barrier against direct impingement from precipitation, road spray, and airborne particulates. This design actively diverts water away from the door opening, significantly enhancing the weather seal's effectiveness and safeguarding internal contents from moisture intrusion. The "drop door" style, which pivots downwards, ensures that the interior is fully exposed and easily accessible from below or the side of the vehicle, a crucial ergonomic consideration for underbody applications.

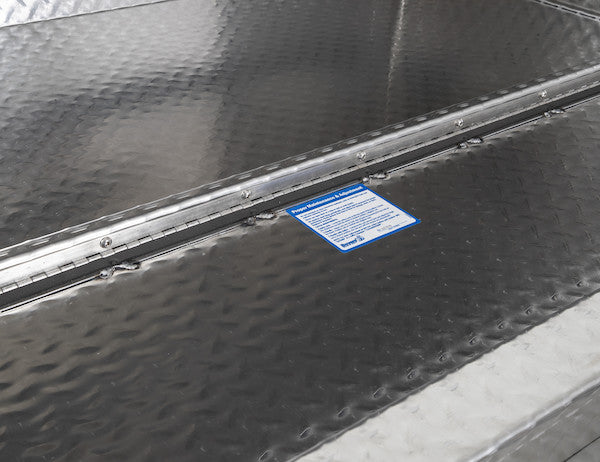

Complementing the recessed door is the robust aluminum continuous hidden hinge. Unlike conventional segmented hinges, a continuous hinge (often referred to as a piano hinge) distributes stress uniformly along the entire length of the door, preventing localized fatigue and significantly extending its operational life. The use of aluminum for the hinge material ensures material compatibility with the box itself, preventing galvanic corrosion, which can occur when dissimilar metals are in contact. Crucially, the "hidden" aspect of this hinge design not only contributes to the box’s sleek, professional aesthetic but also serves a vital security function: by eliminating exposed hinge pins or external fasteners, it renders the hinge highly resistant to tampering and forced entry, adding an extra layer of protection for valuable contents. This continuous, hidden hinge system operates with exceptional smoothness and reliability, designed for thousands of cycles in demanding real-world conditions.

The integrity of the internal environment is further guaranteed by a sophisticated and replaceable gasket system. Specifically, a D-Bulb seal is utilized, characterized by its distinct D-shaped cross-section. This geometry allows the gasket to compress effectively upon door closure, creating a watertight and dust-proof barrier. The material choice for such seals is typically high-performance EPDM (Ethylene Propylene Diene Monomer) rubber, renowned for its exceptional resistance to weathering, UV radiation, ozone, extreme temperatures (both hot and cold), and a wide range of chemicals. The "replaceable" aspect of this gasket system is a key feature, promoting long-term cost-effectiveness and sustained performance. Over years of heavy use, any gasket may eventually show signs of wear. The ability to easily replace the D-Bulb seal ensures that the box can maintain its factory-level environmental protection without requiring a full unit replacement, thereby maximizing the return on investment and extending the functional lifespan of the storage solution.

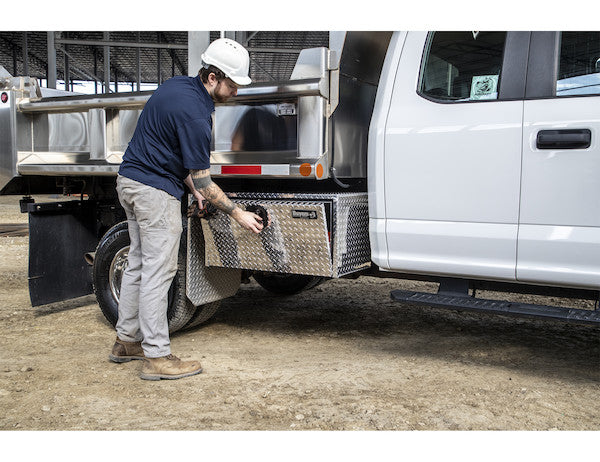

Security is paramount for any professional-grade storage solution, and this underbody box excels in this regard through its locking, die-cast compression latch. The compression latch mechanism is engineered to pull the door tightly into its frame, applying continuous pressure against the D-Bulb gasket. This firm compression creates an exceptionally tight seal, impervious to vibration, dust, and moisture, while simultaneously preventing door rattle during vehicle operation. The use of die-cast construction for the latch ensures superior strength and dimensional stability, capable of withstanding significant force and repetitive use. Die-casting is a manufacturing process that produces high-precision, complex metal parts with excellent surface finish and mechanical properties, making it ideal for critical components like latches. The integrated locking mechanism provides robust deterrence against theft, offering peace of mind for operators storing expensive tools and equipment. Typically, these latches are supplied with a key system, allowing secure closure and convenient access for authorized personnel.

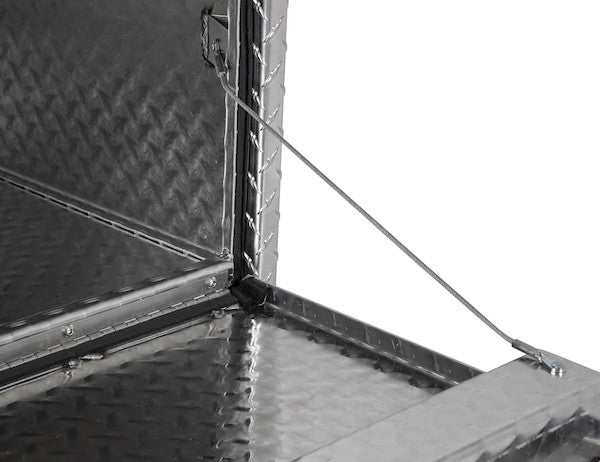

To ensure robust support and controlled door operation, aircraft-grade cables are integrated. The designation "aircraft grade" is significant, implying that these cables are manufactured to stringent specifications, possessing high tensile strength, excellent fatigue resistance, and superior corrosion resistance, often achieved through materials like stainless steel or galvanized steel with protective coatings. These cables are strategically positioned to support the drop door when open, preventing it from over-extending, impacting the ground, or placing undue stress on the hinge. They are designed to withstand the dynamic forces of vehicle movement and the weight of an open door, ensuring both safety and longevity of the entire door assembly. Their precise length also facilitates full, unhindered access to the box’s interior, without allowing the door to become a potential hazard or obstruction.

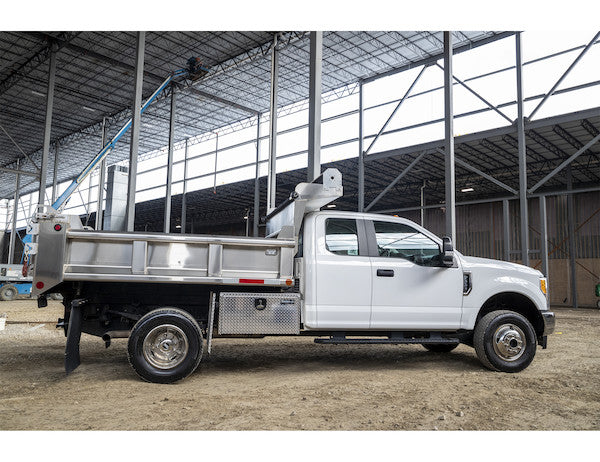

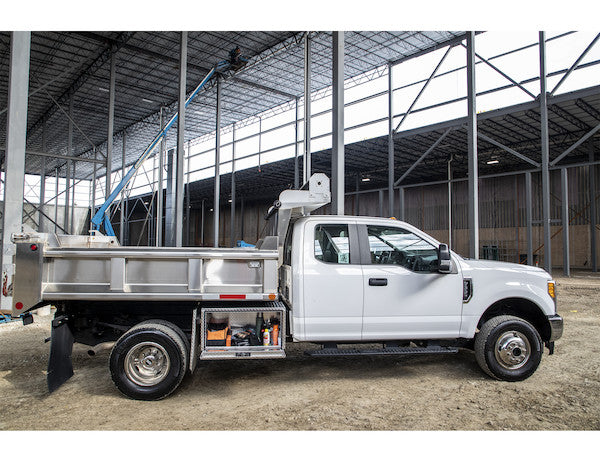

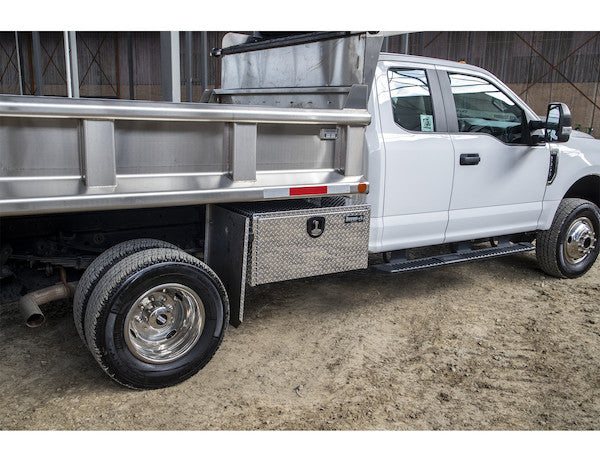

The versatility of the Buyers Products Diamond Tread Aluminum Underbody Truck Box extends to its mounting options. While explicitly designed for underbody installation, its robust construction and flat mounting surfaces allow for secure attachment to "any flat surface." This flexibility significantly broadens its application potential beyond traditional service trucks to include flatbed trailers, utility vehicles, custom machinery, or even stationary workshop environments where durable, weatherproof storage is needed. For optimal and secure underbody mounting, Buyers Products Mounting Brackets (sold separately) are recommended. These brackets are specifically engineered to interface seamlessly with the truck box, ensuring proper load distribution, vibration dampening, and secure attachment to the vehicle's frame. Utilizing manufacturer-specified brackets is crucial for maintaining the product's warranty, ensuring compliance with vehicle safety standards, and guaranteeing the long-term structural integrity of both the box and the vehicle chassis. These brackets are typically constructed from heavy-gauge steel, often powder-coated for additional corrosion resistance, and are designed for straightforward installation with appropriate hardware.

This underbody truck box is a testament to meticulous manufacturing quality. The fabrication process likely involves advanced welding techniques, such as TIG (Tungsten Inert Gas) welding for aluminum, which produces exceptionally strong, clean, and aesthetically pleasing welds crucial for structural integrity and weatherproofing. Each unit undergoes rigorous quality control checks to ensure dimensional accuracy, proper function of all moving parts, and the integrity of its environmental seals. The design prioritizes operational longevity with minimal maintenance requirements. The corrosion-resistant aluminum body, durable hinge, and replaceable gasket system are all chosen to reduce downtime and maintenance costs, presenting a significant advantage for businesses where equipment reliability is directly linked to productivity and profitability.

In conclusion, the 14x12x30 Inch Diamond Tread Aluminum Underbody Truck Box from Buyers Products is an exemplary solution for secure, weather-resistant, and easily accessible storage. Its superior material selection (0.100-inch diamond tread aluminum), precision engineering (recessed drop door, continuous hidden hinge, D-Bulb gasket, die-cast compression latch), and robust safety features (aircraft-grade cables, locking mechanism) combine to deliver a product of unparalleled durability and functionality. Designed for the most demanding professional environments, this truck box stands as a reliable investment, safeguarding valuable equipment, streamlining operations, and contributing to the overall efficiency and professionalism of any mobile workforce. Its thoughtful design ensures not only the protection of contents but also ease of use and long-term performance, making it an essential component for any serious professional requiring uncompromising on-the-go storage.
