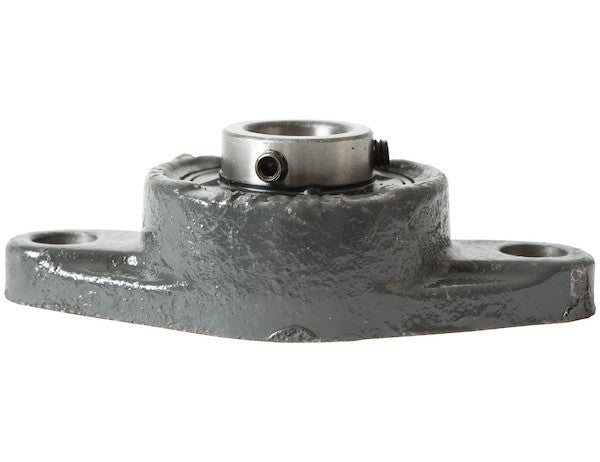

Buyers Products Set Screw Locking Flange Bearing (2 Bolt) is built for long life with simple installation and maintenance. The driveline-grade steel bearing is mounted in a cast iron housing, which helps make the flanges rugged and durable. The included grease fitting ensures ease of maintenance for continual smooth operation. The standard 2 bolt mounting design makes installation easy even in tight places. Its set screw design helps avoid shaft slippage.
Specifications
| Bearing Insert Material | Carbon Steel |
|---|---|
| Bearing Insert Type | Self Aligning |
| Bi (Diagram) | 1.221 |
| Bolt Hole Center to Center | 3.547 |
| Bolt Pattern | 2 Hole |
| Bolt Size | 0.375 |
| Bore Diameter | 0.750 |
| G (diagram) | 0.44 |
| Greasable (y/n) | Yes |
| Grease Fitting Size | - |
| Housing Material | Carbon Steel |
| I (diagram) | 0.59 |
| K (Diagram) | - |
| L (diagram) | 1.00 |
| Locking Type | Set Screw |
| Maximum Temperature | - |
| Minimum Temperature | - |
| Overall Depth | 1.56 |
| Overall Height | 2.38 |
| Overall Width | 4.44 |
| S (diagram/Bolt Hole Diameter) | 0.469 |
| Z (Diagram) | - |
Advanced Technical Overview: Replacement 2-Hole 3/4 Inch Lower Spinner Shaft Set Screw Locking Flanged Bearing
This technical overview provides an in-depth analysis of the Replacement 2-Hole 3/4 Inch Lower Spinner Shaft Set Screw Locking Flanged Bearing, designed for robust performance in demanding industrial and commercial applications. Engineered for precise shaft support and reliable rotational movement, this bearing unit integrates critical design features to ensure operational longevity, ease of maintenance, and exceptional resistance to the challenging conditions often encountered by spinner mechanisms.Component Deep Dive: Design and Material Science
The effectiveness and durability of any bearing assembly are fundamentally rooted in the meticulous selection of materials and precision in its design. This particular flanged bearing unit is a testament to engineering excellence, combining a high-quality bearing insert with a rugged housing and a secure locking mechanism.Bearing Insert: Core of Rotational Performance
The heart of this assembly is its bearing insert, fabricated from Carbon Steel. Carbon steel is a strategic choice for bearing applications due to its advantageous mechanical properties. It offers a superior balance of hardness, strength, and wear resistance, which are paramount for components subjected to continuous rotational loads and potential abrasive environments. * **Material Properties:** Carbon steel, particularly in grades suitable for bearings, undergoes specific heat treatments to achieve a microstructure that maximizes surface hardness while retaining a tough core. This treatment enhances its resistance to rolling contact fatigue, a common failure mode in bearings. The high carbon content contributes to its ability to be hardened, making the raceway surfaces extremely durable. * **Self-Aligning Capability:** A distinguishing feature of this bearing insert is its "Self Aligning" type. This design incorporates a spherical outer race that allows the inner ring and rolling elements (typically balls in this size range, though the specification is general) to pivot within the housing. This inherent flexibility provides a critical advantage: it compensates for minor static or dynamic misalignments between the shaft and the bearing housing. In practical terms, this means that even if the mounting surface is not perfectly planar or if the shaft experiences slight deflection during operation, the bearing can accommodate these deviations without inducing undue stress on the internal components. This mitigates premature wear, reduces friction, and significantly extends the operational lifespan of the bearing, minimizing the risk of edge loading on the rolling elements which can lead to catastrophic failure. * **Driveline-Grade Steel:** The description mentions "driveline-grade steel bearing." This term implies that the steel used for the bearing components meets the rigorous standards required for power transmission systems. Such grades typically exhibit excellent toughness, fatigue strength, and impact resistance, crucial for applications involving intermittent shock loads or high torque transmission. This specification reinforces the bearing's suitability for demanding mechanical systems where reliability is paramount.Housing: Structural Integrity and Mounting
The bearing insert is robustly housed within a Carbon Steel flanged unit. While the initial description noted "cast iron housing," the detailed specifications clarify "Carbon Steel" for the housing material. This distinction is significant from an engineering perspective. * **Carbon Steel Housing Properties:** Carbon steel for the housing offers superior tensile strength and ductility compared to typical cast iron. This makes the housing more resilient to impact loads and provides enhanced structural integrity, particularly critical for components mounted in dynamic, vibration-prone machinery like spinner shafts. Carbon steel also offers better weldability, which can be an advantage in certain installation or fabrication scenarios, though this bearing is designed for bolt-on application. Its robust nature ensures that the bearing unit can withstand the mechanical stresses transmitted from the operational environment, protecting the precision internal components. * **Flanged Design:** The 2-Hole flanged configuration is a practical and widely adopted mounting solution. Unlike pillow block bearings that mount on a base, flanged bearings are designed for direct attachment to a vertical or angled surface. This design offers several advantages: * **Space Efficiency:** It provides a more compact profile, crucial in applications where mounting space is restricted, such as within the confined enclosures of spreader mechanisms. * **Direct Load Transfer:** The flange ensures direct and stable load transfer from the shaft to the mounting structure, distributing stress evenly across the bolt pattern. * **Ease of Installation:** The "standard 2 bolt mounting design" simplifies installation. With a Bolt Hole Center to Center dimension of 3.547 inches and a Bolt Size of 0.375 inches, it allows for quick and secure fastening, even in locations that might be challenging to access. The Overall Height of 2.38 inches, Overall Width of 4.44 inches, and Overall Depth of 1.56 inches further define its compact footprint. * **Ruggedness and Durability:** The combination of a carbon steel housing and a driveline-grade steel bearing insert inherently contributes to the "rugged and durable" nature of the product. This selection is optimized for environments where machinery operates under varying conditions, including exposure to elements, abrasive materials, and mechanical stresses.Locking Mechanism: Set Screw for Positive Shaft Retention
The "Set Screw Locking" mechanism is central to the bearing's function, ensuring the secure attachment of the bearing insert to the shaft. * **Mechanism of Action:** Set screws work by threading into a tapped hole in the inner ring of the bearing and directly contacting the shaft. As the screw is tightened, its tip applies localized pressure to the shaft surface, creating a frictional lock and preventing relative rotation between the shaft and the inner ring. The specifications list a "Locking Type" of "Set Screw," confirming this method. * **Advantages:** * **Simplicity and Cost-Effectiveness:** Set screw locking is a straightforward and economical method to secure a bearing to a shaft. * **Ease of Installation and Removal:** Installation requires only an Allen wrench or hex key, making it quick and tool-efficient. Removal is equally simple, facilitating maintenance or replacement. * **Effective for Moderate Loads:** For applications like spinner shafts, which often involve moderate to high radial loads and some axial forces, the set screw design provides sufficient locking force to prevent shaft slippage, particularly when two set screws are positioned 120 degrees apart (a common configuration for enhanced grip, though not specified here, it's a common best practice). * **Considerations:** While effective, proper installation torque is crucial. Over-tightening can deform the shaft or the inner ring, while under-tightening can lead to slippage. Some designs may incorporate a cup point or dog point set screw to bite into the shaft for a more secure grip, which can leave a small indentation on the shaft, a minor consideration for replaceable shafts. The 0.750 inch Bore Diameter indicates precision manufacturing for a snug fit with standard 3/4 inch shafts, which further aids in preventing slippage when the set screws are engaged.Operational Context: Lower Spinner Shaft Applications
The designation "Lower Spinner Shaft" provides vital context for the bearing's intended application. Spinner shafts are integral components in various types of spreading equipment, including: * **Agricultural Spreaders:** Used for disseminating fertilizer, seeds, or lime, where consistent and even distribution is critical for crop yield. * **Commercial Salt and Sand Spreaders:** Essential for winter road maintenance, distributing de-icing agents or abrasives onto roads and pathways. * **Industrial Mixers and Conveyors:** In certain industrial processes, similar spinner mechanisms might be used for material distribution or agitation. In these applications, the lower spinner shaft typically experiences a combination of radial loads from the weight and centrifugal force of the spreading material, axial loads from potential material resistance, and dynamic loads from vibrations and impacts. The operational environment is often characterized by: * **Abrasive Contaminants:** Dust, dirt, sand, salt, and fertilizer particles can ingress into bearings, leading to accelerated wear. * **Moisture and Corrosive Agents:** Exposure to water, snow, ice melt, and corrosive chemicals like salt or fertilizers necessitates robust sealing and material resistance. * **Temperature Extremes:** Equipment may operate in freezing winter conditions or hot summer environments, impacting lubricant performance and material integrity. This Replacement 2-Hole 3/4 Inch Lower Spinner Shaft Set Screw Locking Flanged Bearing is specifically engineered to counteract these challenges, ensuring reliable operation of the spinner mechanism.Installation and Maintenance Protocol
Proper installation and diligent maintenance are critical to realizing the full potential lifespan and performance of this bearing unit.Installation Guidelines
1. **Shaft Preparation:** Ensure the 0.750-inch shaft is clean, free of burrs, rust, or any imperfections that could interfere with the bearing's fit or the set screw's grip. Slight chamfering of the shaft end can facilitate smoother bearing installation. 2. **Mounting Surface:** The mounting surface for the 2-hole flange must be flat, clean, and rigid. Any irregularities can induce uneven loading on the housing, leading to premature bearing failure. The Bolt Hole Center to Center dimension of 3.547 inches and a Bolt Size of 0.375 inches provides precise guidance for drilling and alignment. 3. **Bolt Tightening:** Secure the flanged housing to the mounting structure using appropriate hardware (0.375 inch bolts) and torque specifications. It is crucial to tighten mounting bolts evenly and progressively to prevent distortion of the housing. 4. **Shaft Insertion and Set Screw Engagement:** Slide the bearing onto the 3/4 inch shaft. Once positioned correctly, tighten the set screws. If two set screws are present (common for enhanced locking), tighten them alternately and progressively to recommended torque values. This distributes the clamping force more evenly. Ensure the set screws are fully engaged without excessive force that could damage the shaft or the screw head. The set screw locking mechanism is designed to prevent "shaft slippage," maintaining the critical rotational alignment of the spinner.Maintenance Best Practices: Lubrication and Inspection
The inclusion of a "grease fitting" and the "Greasable (y/n): Yes" specification are pivotal for extending the bearing's operational life through proper lubrication. 1. **Lubrication:** * **Importance:** Grease serves multiple vital functions: reducing friction between rolling elements and raceways, dissipating heat, and providing a barrier against contaminants. Without adequate lubrication, bearings will quickly overheat and fail due to metal-to-metal contact. * **Grease Type:** For spinner shaft applications, a high-quality, general-purpose lithium complex grease with EP (Extreme Pressure) additives is often recommended. If operating in extreme temperatures or wet conditions, a grease specifically formulated for those environments (e.g., water-resistant or synthetic greases) should be considered. * **Regreasing Schedule:** The frequency of regreasing depends on factors like operating speed, load, temperature, and environmental contamination. For harsh environments like those of spinner shafts, more frequent lubrication might be necessary. Over-greasing should be avoided as it can lead to excessive heat generation and seal damage, while under-greasing leads to premature wear. The grease fitting facilitates easy injection of fresh lubricant, purging old, contaminated grease. 2. **Routine Inspection:** Regular visual and auditory inspections can preempt major failures. * **Visual Checks:** Look for signs of grease leakage, cracked or damaged housing, loose mounting bolts, excessive rust, or shaft scoring near the set screw. * **Auditory Checks:** Listen for unusual noises such as grinding, squealing, or rumbling, which often indicate internal bearing damage, lack of lubrication, or contamination. * **Temperature Monitoring:** Excessive heat emanating from the bearing could signal lubrication issues or internal damage.Performance Characteristics and Engineering Advantages
The combination of design features contributes to a robust set of performance characteristics essential for demanding applications. * **Load Capacity:** The driveline-grade carbon steel bearing insert and robust carbon steel housing enable the unit to withstand significant radial and axial loads inherent in spinner shaft operations. The precision of the 0.750 inch bore ensures optimal load distribution across the rolling elements. * **Vibration and Shock Resistance:** The robust housing material and the self-aligning capability work in concert to absorb and mitigate vibrations and shock loads that are common in machinery handling bulk materials. The self-alignment prevents undue stress concentrations that could lead to fatigue failure. * **Contaminant Exclusion:** While not explicitly detailed in the specifications, flanged bearing units typically incorporate seals (e.g., labyrinth seals, lip seals) to protect the internal components from dust, moisture, and other environmental aggressors. Effective sealing is paramount for maintaining lubricant integrity and preventing abrasive wear in applications like agricultural or salt spreading. The regular greasing procedure also helps to flush out minor contaminants that might bypass the seals. * **Thermal Stability:** Although specific maximum and minimum temperatures are not provided in the specifications, the choice of carbon steel for both insert and housing, combined with appropriate lubrication, suggests a design capable of operating reliably across a typical industrial temperature range. For extreme temperature variations, specialized greases would be recommended. * **Reduced Downtime:** The "simple installation and maintenance" features, including the 2-bolt design and grease fitting, significantly reduce the time and effort required for setup and routine servicing. This translates directly into minimized downtime for critical equipment, enhancing productivity and operational efficiency. The nature of a "replacement" part also implies direct compatibility, ensuring quick swap-outs.Conclusion: A Reliable Solution for Demanding Environments
The Replacement 2-Hole 3/4 Inch Lower Spinner Shaft Set Screw Locking Flanged Bearing represents a meticulously engineered solution for the reliable support of critical rotating shafts, particularly those in lower spinner mechanisms. Its foundation in high-grade carbon steel for both the bearing insert and the housing, coupled with a self-aligning design and secure set screw locking, provides an outstanding blend of strength, durability, and operational flexibility. Designed to address the rigorous demands of environments laden with abrasive materials, moisture, and dynamic loads, this bearing unit ensures sustained performance. The ease of its 2-bolt installation and the integral grease fitting streamline both initial deployment and ongoing maintenance, contributing to extended service intervals and reduced operational costs. For applications requiring a dependable, robust, and easily maintainable bearing solution to support 3/4 inch lower spinner shafts, this unit stands as a professional-grade component, engineered for longevity and optimal mechanical efficiency. It is a critical investment in the reliability and sustained productivity of heavy-duty equipment.
