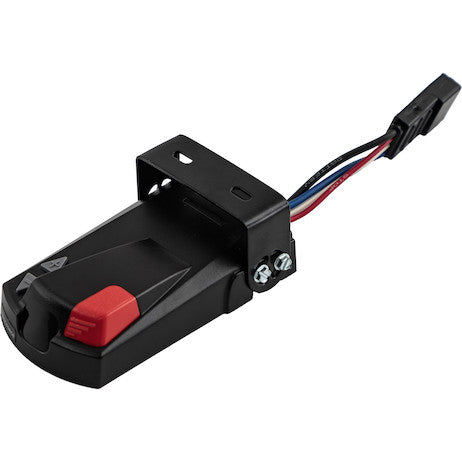

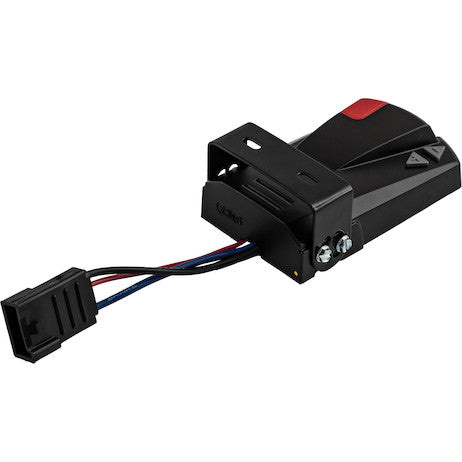

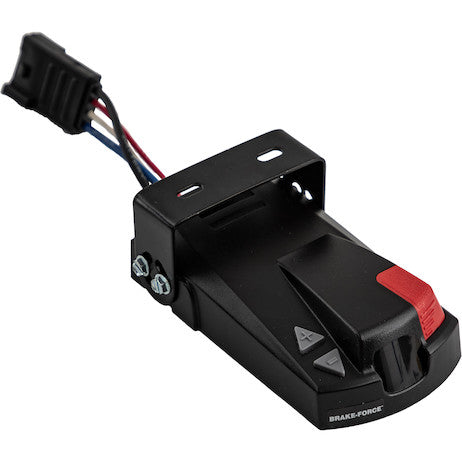

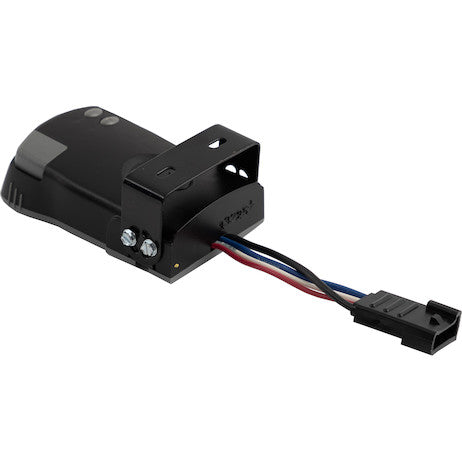

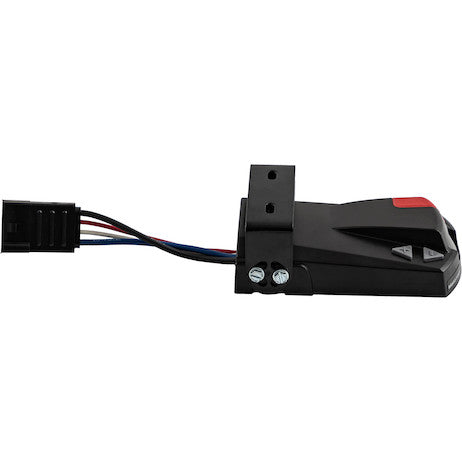

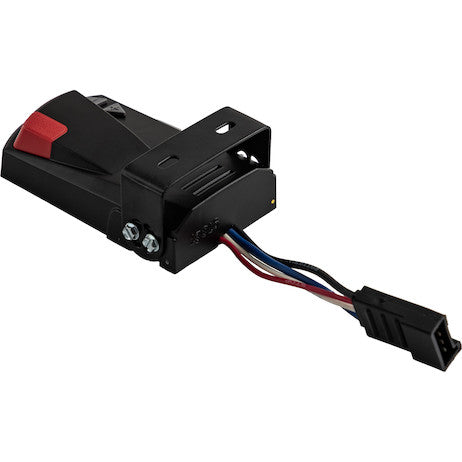

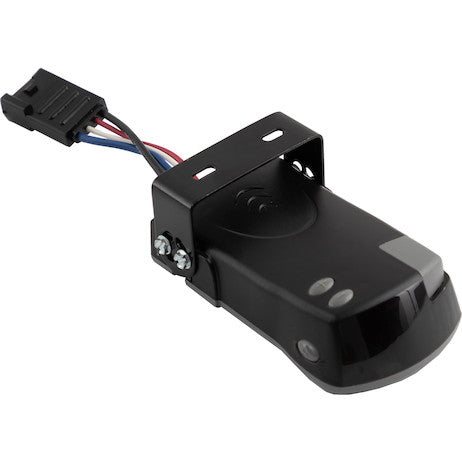

Buyers Products Electric Trailer Brake Controllers provide reliable control for trailers with up to 4 axles equipped with electric brakes. 5422003: A time-based controller applies braking power at a fixed rate, not proportional to the amount of pressure applied to the brake pedal. It's a reliable, cost-effective approach that makes it great for towing small and medium trailers with up to 2 axles (4 electric brakes) for items like ATVs, riding lawn mowers, or building materials 5422004: Proportional braking corresponds to the amount of pressure your foot is putting on the brake pedal in your cab. The trailer's brakes will match any situation, from a gradual slowdown to a sudden stop. This feature results in smoother performance and reduced wear on the brakes making it ideal for heavier trailers with up to 4 axles (8 electric brakes) like items like dump trailers, construction equipment, or excavating machinery The brake controller conveniently mounts inside the vehicle, and quickly connects to the vehicle's trailer wiring. An easy-to-adjust trim wheel lets you set the power level needed to brake and a slide switch lets you engage the trailer brakes brake whenever needed. Mounting bracket and hardware are included.
Specifications
| Control Style | Time-Based |
|---|---|
| Max Number of Brakes | 4 |
| Mount Hardware Included | Yes |
| Number of Axles | 2 |
| Quick Connect Wiring | Yes |
| Warranty | 3-Year |
When operating a tow vehicle with an attached trailer, the fundamental principles of physics dictate that the combined mass significantly increases, leading to a substantial extension of stopping distances. This critical factor underscores the paramount importance of integrated trailer braking systems for enhancing safety, maintaining control, and ensuring compliance with stringent regulatory requirements. Without an independent braking system for the trailer, the tow vehicle's brakes bear an excessive load, accelerating wear, risking brake fade, and compromising overall stopping performance. Electric trailer brake controllers serve as the crucial interface, intelligently activating and modulating the trailer's electric brakes to synchronize with the tow vehicle's deceleration, thereby restoring optimal braking performance to the entire rig.
Electric trailer brake controllers are broadly categorized into two primary types based on their operational methodology: time-based (or delay-based) and proportional. Each type is engineered to cater to distinct towing scenarios and user preferences. The Buyers Products 2 Axle Time-Based Brake Controller (model 5422003) represents a robust and highly effective solution within the time-based category, specifically designed for applications involving small to medium trailers equipped with up to two axles and a total of four electric brakes. This controller offers a reliable, straightforward, and economically advantageous approach to trailer braking, making it an excellent choice for a wide array of towing tasks.
The operational principle of a time-based brake controller is rooted in its application of braking power at a fixed rate, rather than dynamically adjusting it in direct proportion to the tow vehicle's deceleration rate. Upon activation by the tow vehicle's brake light switch, the controller initiates a pre-set delay period, typically adjustable by the user, before gradually ramping up the voltage supplied to the trailer's electric brakes. This ramp-up occurs at a constant, predetermined rate until the user-set maximum power level is achieved. Essentially, once the tow vehicle's brakes are engaged, the time-based controller delivers a consistent, predefined surge of braking power to the trailer, irrespective of the intensity or speed of the tow vehicle's brake pedal application. The initial delay helps prevent abrupt jerking, allowing a smoother transition into braking action, while the fixed ramp rate ensures a predictable application of force.
The inherent design of time-based controllers presents several compelling advantages, particularly for their intended applications. Firstly, their simpler internal architecture, devoid of accelerometers or intricate sensor arrays found in proportional units, translates to greater cost-effectiveness in both manufacturing and retail pricing. This makes them an accessible and budget-friendly option for many users. Secondly, the simplicity of their operation contributes to their high reliability and ease of setup. With fewer complex components, there are fewer potential points of failure, ensuring consistent performance. The initial calibration process is generally less complex, allowing for quicker installation and adjustment. Thirdly, and most importantly, time-based controllers are ideally suited for towing scenarios characterized by predictable loads and consistent driving conditions. For small utility trailers carrying items such as ATVs, riding lawn mowers, or building materials, where sudden, aggressive braking maneuvers are less common, the fixed-rate braking provides sufficient and dependable stopping power. This includes single-axle or light-duty tandem-axle trailers (up to 2 axles, 4 electric brakes) often used for recreational equipment, light commercial tasks, or general utility hauling. Their effectiveness shines in environments where the primary concern is the consistent, reliable activation of trailer brakes without the need for nuanced, real-time proportional adjustments.
This particular model, the 2 Axle Time-Based Brake Controller, is specifically engineered to manage trailers equipped with up to two axles, supporting a maximum of four electric brakes. This capacity is critical for ensuring that the controller can supply adequate electrical current and voltage to effectively actuate and maintain the braking force for all connected brakes. Each axle typically features two electric brakes, one per wheel, meaning a two-axle configuration implies four individual brake assemblies requiring coordinated power. The controller's design accounts for the cumulative power draw and resistance of these four brakes, ensuring optimal performance without overload or insufficient current delivery. Its robust electrical circuitry is designed to operate seamlessly within standard 12-volt automotive electrical systems, making it compatible with a vast majority of tow vehicles. The carefully engineered power output ensures that the trailer brakes engage with sufficient force to significantly reduce stopping distances and enhance stability, preventing situations where the trailer might push the tow vehicle during deceleration.
Two pivotal operational features distinguish the user interface and functionality of the Buyers Products Time-Based Brake Controller: the easy-to-adjust trim wheel and the manual slide switch. The trim wheel, strategically positioned for convenient access, allows the operator to precisely set the maximum power output delivered to the trailer brakes. This adjustment is critical for tailoring the braking force to the specific characteristics of the trailer, including its weight, load distribution, and the prevailing road conditions. Proper adjustment prevents common issues such as under-braking, where the trailer brakes are insufficient to effectively slow the trailer, leading to increased stopping distances and excessive wear on the tow vehicle's brakes. Conversely, it prevents over-braking, which can cause trailer wheel lock-up, skidding, premature tire wear, and potentially dangerous loss of control, especially on slick surfaces. The ability to fine-tune this setting ensures a balanced and controlled braking experience, which may require minor adjustments for different loads or changing environmental factors like wet roads or inclines.
Complementing the trim wheel is the highly functional manual slide switch. This feature provides the driver with immediate, on-demand control over the trailer brakes, independent of the tow vehicle's brake pedal. Activating the slide switch instantaneously sends the pre-set maximum power (or a proportion of it, depending on controller design) to the trailer brakes. This capability is invaluable in several critical scenarios: Firstly, in an emergency braking situation, manual activation can provide an additional surge of braking power, helping to reduce overall stopping distance and maintain rig stability. Secondly, it is an essential tool for mitigating trailer sway; a gentle application of the trailer brakes via the manual slide can often correct excessive trailer oscillation, preventing a dangerous loss of control. Thirdly, during uphill starts, the manual switch can be used to momentarily hold the trailer in place, preventing rollback while the tow vehicle is shifted into gear. Lastly, it serves as a convenient method for conducting pre-trip checks of the trailer brake functionality, allowing the driver to verify engagement before commencing travel. This direct control significantly augments the safety and operational versatility of the towing setup.
Installation of the Buyers Products 2 Axle Time-Based Brake Controller is designed for optimal convenience and efficiency. The unit is engineered to mount securely inside the vehicle's cab, ensuring that the control interface (trim wheel and manual slide switch) is easily accessible to the driver without obstructing critical driving controls or safety devices like airbags. Optimal placement is crucial for both ease of use and safety, typically favoring locations on the dashboard or near the steering column that allow for quick visual and tactile interaction. The inclusion of quick-connect wiring significantly simplifies the electrical integration process. This feature allows for a straightforward connection to the tow vehicle's existing trailer wiring harness, often eliminating the need for complex splicing or extensive electrical work. Quick-connect systems reduce installation time, minimize the potential for wiring errors, and can often be performed by the user or a mechanic with minimal specialized tools. Furthermore, the product arrives complete with a mounting bracket and all necessary hardware, ensuring that the user has everything required for a secure and stable installation right out of the box, reflecting a commitment to a complete and user-friendly solution.
The operational performance of this time-based controller is centered on delivering reliable and consistent control over the trailer's braking forces. By effectively integrating the trailer's braking system with that of the tow vehicle, the controller plays a crucial role in reducing overall stopping distances. This is a direct consequence of distributing the braking load across all wheels of the combined rig, thereby preventing the tow vehicle's brakes from becoming overloaded and reducing the risk of brake fade under heavy use. Moreover, proper brake synchronization is fundamental to maintaining vehicle stability, particularly during sudden deceleration or emergency maneuvers. A well-adjusted time-based controller ensures that the trailer decelerates in harmony with the tow vehicle, minimizing undesirable effects such as trailer push, jackknifing, or excessive sway, all of which can lead to hazardous driving conditions. This controlled deceleration contributes significantly to the overall safety envelope of the towing operation, protecting occupants, cargo, and other road users.
For optimal operation and to maximize the lifespan of both the controller and the trailer's braking components, adherence to best practices for initial setup and ongoing use is recommended. The initial setup procedure should be conducted in a safe, open area with minimal traffic. After connecting the trailer, the driver should manually engage the trailer brakes using the slide switch to feel the initial grab. Subsequently, while driving at approximately 25 mph, several moderate stops should be performed, adjusting the trim wheel incrementally until the trailer brakes engage smoothly and firmly without locking up. The goal is to achieve a sensation where the trailer is neither pushing nor pulling the tow vehicle. This fine-tuning process may need to be revisited if the trailer load changes significantly. Regular pre-trip checks, involving a quick test of the brake controller's functionality, are essential before each towing journey. While the controller itself is largely maintenance-free, periodic inspection of the wiring connections for corrosion or damage, and ensuring the unit remains securely mounted, will contribute to its long-term reliability. Understanding the limitations and strengths of a time-based controller, and adjusting driving style accordingly (e.g., allowing more stopping distance), will further enhance safety and performance.
The Buyers Products 2 Axle Time-Based Brake Controller is further backed by a comprehensive 3-year warranty. This substantial warranty period serves as a clear testament to the manufacturer's confidence in the product's design, materials, and manufacturing quality. A robust warranty provides significant peace of mind to the end-user, assuring them of the product's durability and the company's commitment to standing behind its offerings. It reflects rigorous testing and adherence to stringent quality control standards throughout the production process, ensuring that the controller will perform reliably under demanding towing conditions for an extended period. This commitment to quality and customer satisfaction reinforces the product's value proposition as a dependable and long-lasting investment in towing safety.
In conclusion, the Buyers Products 2 Axle Time-Based Brake Controller (model 5422003) offers an expertly engineered, reliable, and cost-effective solution for managing electric brakes on small to medium trailers with up to two axles. Its time-based control mechanism provides consistent, predictable braking power, making it an ideal choice for applications involving ATVs, riding lawn mowers, building materials, and other similar loads where simplicity and dependability are prioritized over dynamic proportional response. Key features such as the adjustable trim wheel and manual slide switch offer critical control and safety functionalities, allowing drivers to fine-tune braking performance and intervene manually when necessary. Designed for ease of installation with quick-connect wiring and included mounting hardware, this controller seamlessly integrates into your tow vehicle. Coupled with its robust construction and a reassuring 3-year warranty, this brake controller represents a smart and essential investment for any operator seeking to enhance the safety, control, and legal compliance of their 2-axle trailer towing operations.
