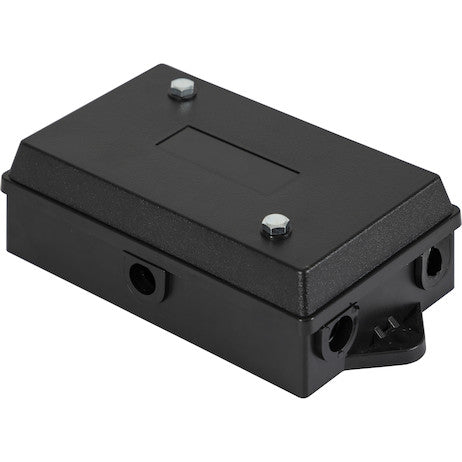

5601114 - Polypropylene Electrical Junction Box With 14 Terminals

Electrical Junction Boxes from Buyers Products provide an organized way to terminate and consolidate your electrical wiring. Includes polypropylene boxes with plain terminals.

Specifications

The Polypropylene Electrical Junction Box with 14 Terminals represents a critical component in the secure and organized management of electrical wiring systems across a myriad of applications. Engineered by Buyers Products, this junction box embodies a synthesis of advanced material science and practical design, providing a robust, reliable, and efficient solution for electrical consolidation. Its core function extends beyond mere wire containment; it serves as a central hub for connecting multiple electrical circuits, safeguarding connections from environmental degradation, mechanical stress, and potential electrical hazards, thereby ensuring the longevity and integrity of the entire electrical infrastructure.

The Fundamental Role of Electrical Junction Boxes in Modern Systems

Electrical junction boxes are indispensable for maintaining the operational safety and functional efficiency of any electrical system. Their primary purpose is to encase and protect wire splices, terminations, and connections, preventing accidental contact, short circuits, and exposure to adverse conditions. In any application, from automotive and marine environments to industrial machinery and fixed installations, the proper containment of electrical connections is paramount. Exposed wiring poses significant risks, including fire hazards, electrical shock, and system failures due to corrosion or physical damage. This Polypropylene Electrical Junction Box proactively mitigates these risks by providing a controlled and protected environment for up to 14 distinct electrical connections, facilitating systematic wire management and simplifying future troubleshooting or maintenance tasks.

Advanced Material Science: Polypropylene for Superior Performance

The selection of polypropylene as the primary material for this electrical junction box is a deliberate engineering choice, leveraging the polymer's unique set of properties that are exceptionally well-suited for demanding electrical applications. Polypropylene (PP) is a thermoplastic polymer known for its excellent balance of mechanical, thermal, and electrical characteristics, along with its chemical inertness and cost-effectiveness. The "plain" finish signifies a standard, un-coated surface, typical for materials where intrinsic properties are sufficient for protection.

Dielectric Properties and Electrical Insulation

For an electrical enclosure, superior dielectric properties are non-negotiable. Polypropylene exhibits high dielectric strength, meaning it can withstand significant electrical fields without breaking down and conducting electricity. This inherent insulative quality is crucial for preventing current leakage, minimizing the risk of electric shock, and ensuring the isolation of electrical connections within the box. Its low dissipation factor indicates minimal energy loss when exposed to alternating currents, contributing to overall system efficiency and reducing heat buildup. This makes it an ideal material for protecting live circuits and ensuring electrical safety.

Chemical and Corrosion Resistance

Electrical junction boxes often operate in environments where they may be exposed to various chemicals, solvents, oils, and moisture. Polypropylene boasts remarkable chemical resistance to a wide range of acids, bases, and organic solvents. This resistance prevents material degradation, embrittlement, or dissolution, which could compromise the enclosure's integrity and expose the electrical connections. Unlike metallic enclosures, polypropylene is inherently immune to galvanic corrosion, a critical advantage in moist or chemically active environments, extending the operational lifespan of the box and the components within it.

Impact and Mechanical Strength

Despite being a lightweight polymer, polypropylene offers excellent impact resistance and mechanical strength, particularly within its recommended operating temperature range. This resilience is vital for protecting delicate electrical connections from physical impacts, vibrations, and stress typically encountered in mobile applications or harsh industrial settings. The material's inherent flexibility also contributes to its durability, allowing it to absorb shocks without cracking or shattering, a common failure mode for more brittle plastics or metallic enclosures subject to deformation.

Temperature Stability and Thermal Performance

The specified dimensions of Length 8.34", Width 4.27", and Height 2.22" (presumably in inches) allow for effective thermal dissipation for the internal components while offering a compact footprint. Polypropylene maintains its mechanical and electrical properties across a broad temperature spectrum, although specific limits apply. While its melting point is relatively high, its practical continuous operating temperature range is typically from -20°C to +90°C, making it suitable for many indoor and outdoor applications. For extreme thermal environments, consideration of thermal management strategies and external shielding might be necessary, but for the majority of vehicular, marine, and general industrial uses, its thermal stability is more than adequate to protect the internal electrical connections.

UV Resistance and Environmental Durability

While standard polypropylene has moderate UV resistance, often improved with additives for outdoor applications, its inherent resistance to moisture and many environmental contaminants makes it a robust choice. The black color specified for this junction box naturally absorbs UV radiation more effectively than lighter colors, offering a degree of enhanced UV stability. For prolonged outdoor exposure to direct sunlight, strategic placement or additional UV-protective coatings could be considered to maximize its service life, though for most applications, its durability in varying weather conditions is high.

Lightweight and Cost-Effective Manufacturing

The low density of polypropylene contributes to a lightweight final product, simplifying handling, installation, and reducing overall system weight – a significant advantage in applications sensitive to mass, such as automotive or aerospace. Furthermore, polypropylene is a highly recyclable material and offers cost-effective manufacturing processes, allowing for the production of durable and high-performing junction boxes at an accessible price point, delivering exceptional value without compromising on critical performance attributes.

Optimized Connectivity: The 14-Terminal Configuration

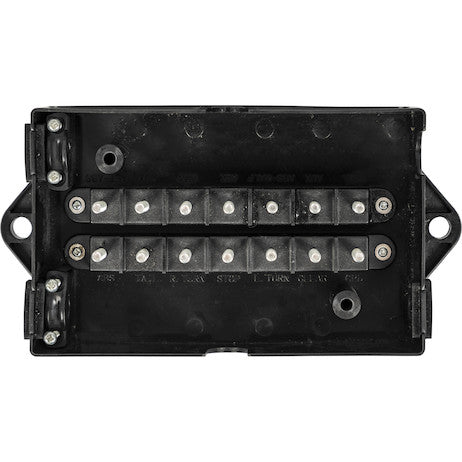

The inclusion of 14 terminals, specified as #10-32 studs, underscores this junction box's capacity for managing complex electrical circuits. This configuration provides a substantial number of individual connection points, enabling the consolidation of multiple power feeds, grounds, and signal lines within a single, organized enclosure. This level of capacity is particularly beneficial in applications where numerous accessories, sensors, lights, or control modules need to be integrated into a cohesive electrical system.

Capacity for Complex Circuits

A 14-terminal junction box offers considerable flexibility for circuit design. It can accommodate systems requiring multiple independent circuits, shared power or ground buses, or combinations thereof. For instance, in a vehicle application, it could manage circuits for headlamps, taillights, auxiliary lighting, communication radios, GPS units, and various control signals, all routed and protected within one compact unit. This reduces the need for multiple smaller junction boxes, streamlining wiring harnesses and simplifying diagnostic procedures.

Terminal Type: #10-32 Studs

The specification of #10-32 studs is a critical detail defining the connection method and compatibility.

• Stud Size: A #10 stud indicates a nominal diameter suitable for a wide range of common electrical wiring gauges, typically accepting ring or spade terminals designed for #10 fasteners. This size offers a balance between robust mechanical connection and compatibility with standard automotive and industrial wiring.
• Thread Pitch: The "32" in #10-32 signifies 32 threads per inch (TPI). This fine thread pitch provides a secure, vibration-resistant connection when properly torqued. Fine threads generally offer higher holding power and finer adjustment than coarse threads of the same diameter, making them ideal for applications where consistent electrical contact and mechanical stability are paramount.
• Secure Connections: Stud terminals, when used with appropriate crimped ring or spade terminals and secured with a nut (not specified as included but implied by "studs"), provide a highly reliable and low-resistance electrical connection. This method offers superior mechanical retention and surface contact compared to push-in or screw-clamp terminals for certain applications, especially where vibration is a factor. Proper torque application according to manufacturer specifications for the specific stud material and terminal type is essential to ensure optimal electrical conductivity and prevent loosening over time.
• Wiring Practices: For optimal performance and safety, all wires connected to these studs should be terminated with high-quality, crimped ring or spade terminals. The use of heat-shrink tubing over crimped connections can provide additional environmental sealing and strain relief, enhancing the longevity of the connections within the polypropylene box.

Robust Enclosure Design and Engineering

Beyond material selection and terminal count, the physical design of the junction box plays a crucial role in its effectiveness. The dimensions (Length 8.34", Width 4.27", Height 2.22") are optimized to provide ample internal volume for wire routing and terminal access, while maintaining a relatively compact external footprint for installation flexibility. The black color offers a professional aesthetic that blends well into various mechanical and electrical environments.

Protection Against Environmental Factors

While the current description doesn't specify an IP (Ingress Protection) or NEMA rating, a well-designed polypropylene junction box is inherently resistant to dust and moisture ingress. The enclosure's construction should ideally feature tight-fitting seams or potential provisions for gasketing to enhance its sealing capabilities, protecting the internal connections from corrosive elements, particulate matter, and splash water. In environments where high levels of dust or direct water spray are anticipated, users may need to incorporate appropriate cable glands or conduit fittings at the entry points to maintain the enclosure's protective integrity.

Mounting Versatility

The "plain" finish typically suggests the absence of pre-drilled mounting holes, offering the installer the flexibility to drill and mount the box using methods best suited for their specific application. This allows for surface mounting on panels, frames, or bulkheads using screws, bolts, or other fasteners, optimizing placement for accessibility and wire routing. The robust polypropylene material can withstand the stresses of mounting without compromising its structural integrity.

Internal Layout for Wire Management

The internal geometry of the box is designed to facilitate organized wire routing and termination. The layout of the 14 studs should allow for clear separation of circuits, minimizing the risk of accidental contact and simplifying identification. The internal volume provides sufficient space for wire bends and strain relief, preventing sharp angles that could damage insulation or conductors over time. For more complex installations, internal wire ties or adhesive-backed cable management clips can be utilized to further secure and organize the wiring within the enclosure.

Safety, Standards, and Compliance

The use of a properly designed and manufactured junction box like this one from Buyers Products is fundamental to meeting electrical safety standards. By containing and insulating connections, it prevents accidental contact with live wires, thereby protecting personnel from electric shock. It also confines potential electrical faults, such as arc flashes, preventing them from propagating and causing fires or damage to adjacent equipment. While specific certifications (e.g., UL, CE) are not listed, the principles of its design align with general electrical safety best practices and industry codes for wiring containment and protection.

Diverse Application Spectrum

The versatility of this Polypropylene Electrical Junction Box with 14 Terminals makes it suitable for an extensive range of applications:

• Commercial and Industrial: Ideal for control panels, machinery wiring, building automation, and material handling equipment, where consolidating multiple sensor inputs, actuator outputs, or control signals is necessary.
• Automotive and Heavy-Duty Equipment: Crucial for managing complex wiring harnesses in trucks, trailers, construction equipment, agricultural machinery, and specialty vehicles. It can centralize power distribution, lighting circuits, accessory connections, and diagnostic ports.
• Marine and Recreational Vehicles (RVs): Provides a corrosion-resistant solution for boat wiring, consolidating navigation lights, bilge pumps, communication systems, and auxiliary power. In RVs, it can manage internal lighting, appliance circuits, and external connections.
• Renewable Energy Systems: Can be used in solar panel installations (off-grid or smaller arrays) or wind turbine setups for consolidating DC power lines, sensor wiring, or charge controller connections.
• Telecommunications and Data Infrastructure: Suitable for housing splice points, terminal blocks, or surge protection devices in outdoor cabinets, distribution boxes, or premise wiring applications, particularly where environmental protection is needed for signal integrity.
• Fixed Installations: For general building wiring where non-metallic, robust enclosures are preferred for junctions that may be exposed to some level of moisture or chemical agents, such as in utility rooms, basements, or outdoor sheds.

Installation, Integration, and Longevity

Installation of the junction box requires careful consideration of wiring practices. Cables entering the box should be secured with appropriate strain relief at their entry points to prevent tension from being transferred to the terminal connections. The #10-32 studs require the use of properly sized and crimped ring or spade terminals, secured with nuts to the recommended torque specifications for reliable electrical and mechanical performance. Regular inspection of connections, especially in high-vibration environments, can help maintain optimal performance over the product's lifespan.

Given the robust nature of polypropylene and the secure stud connections, this junction box is designed for long-term reliability. Its resistance to environmental factors, coupled with proper installation and periodic checks, ensures that it will continue to protect and organize electrical connections effectively for many years, contributing significantly to the overall reliability and safety of the electrical systems it serves.

Conclusion

The Polypropylene Electrical Junction Box with 14 Terminals from Buyers Products is a thoughtfully engineered solution for advanced electrical wire consolidation and protection. Its core strength lies in the intelligent application of polypropylene, a material offering an exceptional blend of dielectric integrity, chemical resilience, and mechanical durability. The precisely specified 14 #10-32 studs provide a high-capacity, secure, and standardized connection platform for managing complex circuits. This junction box stands as an essential component for system designers and installers seeking a reliable, safe, and efficient method to organize and safeguard electrical connections across a broad spectrum of demanding industrial, vehicular, marine, and general-purpose applications. It not only streamlines wiring but fundamentally enhances the safety and operational longevity of the entire electrical system it supports, embodying a commitment to quality and performance.
