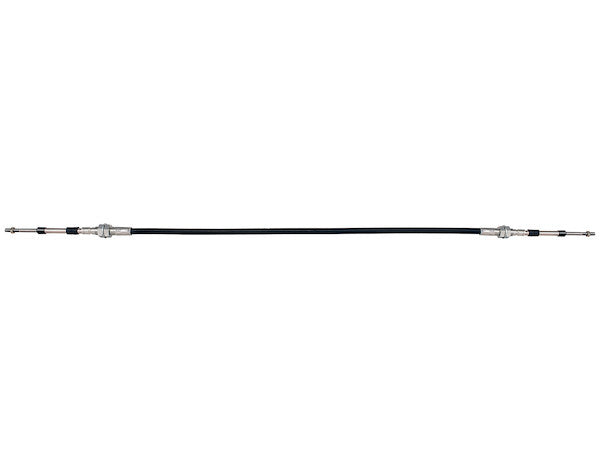

The 6200 Series Universal Mount Control Cable from Buyers Products is a push-pull style cable for heavier duty PTO and hoist applications. With an 10 in. minimum bend radius and a 110-200 lb load range, the cable is a flexible choice for many jobs. All cables include bulkhead nuts and washers for fast and easy connectivity.
Specifications
| Cable Core Material | Stainless Steel |
| Conduit Material | PVC |
| End Type | Rod |
| Rod End Thread Size | 5/16-24 " |
| Conduit Diameter (in.) | .51 " |
| Cable Diameter (in.) | 0.188 " |
| Conduit Color | Black |
| Cable Series | 6200 Series |
| Cable Length (in.) | 60 " |
| Total Travel (in.) | 3 " |
| Bulkhead Thread Size | 11/16-16 " |
The 60 Inch 6200 Series Universal Mount Control Cable represents a pinnacle of engineering and material science, meticulously designed to meet the rigorous demands of heavy-duty power take-off (PTO) and hoist applications. As a critical component in the actuation and control systems of commercial vehicles, industrial machinery, and agricultural equipment, this push-pull style cable delivers unparalleled reliability, precision, and durability. Its robust construction and carefully selected specifications ensure consistent performance in environments where operational integrity is paramount.
At the core of its superior performance is the choice of Stainless Steel for the Cable Core Material. This selection is not merely a preference but a fundamental engineering decision underpinning the cable's longevity and reliability. Stainless steel, typically an alloy like AISI 302 or 304, is renowned for its exceptional tensile strength, which allows it to withstand significant pulling and pushing forces without stretching or deforming. Crucially, stainless steel exhibits excellent fatigue resistance, a vital characteristic for control cables subjected to continuous cyclical loading in push-pull operations. This resistance to metal fatigue ensures that the cable maintains its structural integrity and precise control characteristics over countless actuation cycles, significantly extending its service life. Furthermore, stainless steel offers superior corrosion resistance compared to other common cable materials. In heavy-duty applications, exposure to moisture, road salts, chemicals, lubricants, and abrasive elements is unavoidable. The inherent ability of stainless steel to resist oxidation and rust formation protects the core from degradation, preventing friction build-up within the conduit and preserving the smooth, unhindered movement essential for responsive control. This material choice ensures consistent, low-friction operation even after prolonged exposure to harsh environmental conditions, making the 6200 Series cable a highly dependable solution for demanding industrial and mobile environments.
Complementing the robust cable core, the Conduit Material is crafted from PVC (Polyvinyl Chloride). PVC is an ideal choice for the outer conduit due to its excellent combination of flexibility, chemical resistance, and abrasion resistance. The flexibility of the PVC conduit, coupled with a 10-inch minimum bend radius, is critical for facilitating complex routing paths within confined machinery spaces without compromising the cable's internal structure or operational efficiency. This allows for greater versatility in installation, adapting to various equipment configurations while minimizing the risk of kinking or excessive stress on the internal components. Beyond flexibility, PVC offers substantial protection against environmental aggressors. It forms a resilient barrier against moisture ingress, road grime, dust, and many industrial chemicals, safeguarding the internal cable core and any lubrication. Its high abrasion resistance protects against wear and tear from friction against surrounding components during operation, further contributing to the cable's longevity. The uniform Black Conduit Color provides a professional aesthetic and is often chosen for its UV stability, preventing material degradation when exposed to sunlight, which is common in outdoor heavy equipment applications. The precise Conduit Diameter of 0.51 inches is meticulously engineered to provide an optimal fit around the internal cable assembly. This precise dimension minimizes internal play, reducing backlash and ensuring that the push-pull motion is transmitted with maximum efficiency and minimal loss, thereby contributing to the cable's overall precision and responsiveness.
The internal Cable Diameter of 0.188 inches is a testament to the engineering balance struck between strength and flexibility. This specific diameter ensures that the stainless steel core possesses the necessary cross-sectional area to withstand the specified 110-200 lb load range, providing ample reserve strength for the demanding forces associated with PTO and hoist operations. Simultaneously, it maintains sufficient flexibility to navigate the 10-inch minimum bend radius without exhibiting excessive stiffness, which could lead to operational strain or premature wear. The synergistic design of the cable core and conduit ensures robust performance under significant axial loads while maintaining dynamic flexibility.
The cable’s actuation mechanism is a proven push-pull style, renowned for its direct and reliable force transmission in both directions. This bidirectional capability is essential for applications requiring precise engagement and disengagement, such as PTOs, or accurate positioning, like in hoist controls. The push-pull action ensures positive control, eliminating reliance on springs or external forces for return, thereby enhancing safety and operational consistency. With a Total Travel of 3 inches, the cable provides a sufficient stroke length for the full range of motion required by typical heavy-duty PTO clutches, hydraulic valves, or hoist brake mechanisms. This specific travel distance is critical for ensuring complete engagement or disengagement, preventing partial activations that could lead to operational inefficiencies or potential damage to the connected machinery.
Connectivity and installation ease are addressed through the inclusion of bulkhead nuts and washers and standardized end fittings. The End Type is Rod, providing a robust and secure connection point for the actuated mechanism. The Rod End Thread Size of 5/16-24 inches is a common and robust industrial thread standard, ensuring compatibility with a wide array of existing linkages and components while providing significant mechanical strength for the transmitted load. This precise threading guarantees a secure and reliable attachment, crucial for maintaining control and preventing disconnection under vibration or dynamic loads. For mounting, the Bulkhead Thread Size of 11/16-16 inches allows for universal mounting through a panel or chassis. The inclusion of bulkhead nuts and washers facilitates quick, secure, and straightforward installation, ensuring a stable and vibration-resistant anchor point for the cable, which is vital in high-vibration heavy equipment environments. The "Universal Mount" designation underscores the cable's adaptability, signifying that its mounting hardware and design are compatible with a broad spectrum of vehicle and equipment configurations, simplifying integration and reducing the need for custom fabrication.
The 6200 Series designation itself signifies a commitment to high-performance, heavy-duty applications. This series is engineered for environments where standard control cables may falter, providing enhanced strength, durability, and operational consistency. The specific Cable Length of 60 inches offers practical flexibility for routing in many applications, balancing the need for adequate reach with minimizing excessive slack that could hinder responsiveness or create entanglement hazards. The fixed length ensures consistent performance characteristics across all units, simplifying design and replacement processes.
In terms of specific applications, the 60 Inch 6200 Series Universal Mount Control Cable excels in two primary areas: PTO (Power Take-Off) systems and Hoist applications. For PTO systems, which transfer mechanical power from an engine to an auxiliary component (such as a pump for a dump truck, a spreader, or a chipper), reliable engagement and disengagement are paramount. The cable's robust push-pull design and high load capacity make it ideal for controlling the PTO clutch, ensuring a firm connection when power is needed and a clean release when not. This prevents wear on PTO components and ensures safe operation. In hoist applications, whether for truck-mounted cranes, winches, or hydraulic lifting mechanisms, precise and dependable control is critical for safety and operational efficiency. The 6200 Series cable can be employed to control braking mechanisms, engage/disengage hydraulic valves, or operate safety latches, offering the necessary strength and smooth operation to manage the significant forces and precise movements involved in lifting and lowering heavy loads. Beyond these primary uses, the cable's robust design lends itself to other demanding control functions, including heavy-duty throttle controls, gear shifting mechanisms in specialized vehicles, heavy-duty valve actuation in industrial processes, and complex linkage systems in construction and agricultural machinery.
Installation and maintenance considerations for the 6200 Series cable emphasize ease and longevity. The universal mount design, combined with robust bulkhead fittings, allows for straightforward integration into various vehicle and equipment platforms. Proper routing, respecting the 10-inch minimum bend radius, is crucial to prevent internal stress and ensure the cable's advertised lifespan. Avoiding sharp turns, abrasive surfaces, and securing the cable at appropriate intervals will prevent premature wear. Due to its high-quality stainless steel core and durable PVC conduit, the cable requires minimal maintenance, primarily limited to periodic inspection for physical damage or wear, ensuring that it continues to perform optimally throughout its extended service life.
In conclusion, the 60 Inch 6200 Series Universal Mount Control Cable by Buyers Products is a meticulously engineered component designed to deliver uncompromising performance in the most challenging heavy-duty applications. From its stainless steel core, offering exceptional strength and corrosion resistance, to its flexible and protective PVC conduit, every aspect of this cable is optimized for durability and reliability. The precision-machined rod end and bulkhead fittings ensure secure connections and ease of installation, making it a truly universal solution. Its ability to handle a 110-200 lb load range with 3 inches of precise travel, all within a compact 60-inch length and a forgiving 10-inch bend radius, positions it as an essential choice for critical PTO, hoist, and other heavy-duty control functions where dependable, long-lasting performance is not just desired, but absolutely essential for operational success and safety. This cable represents a smart investment for any system requiring robust and reliable mechanical control.
