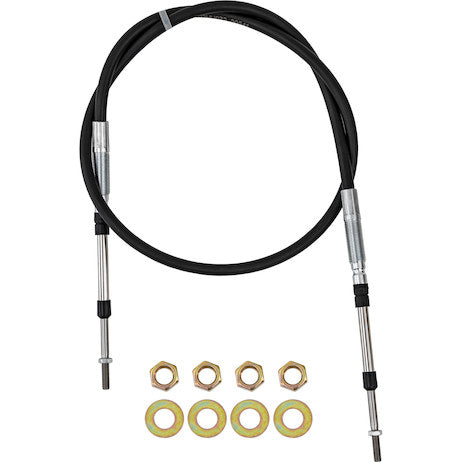

The 6200 Series Universal Mount Control Cable from Buyers Products is a push-pull style cable for heavier duty PTO and hoist applications. With an 10 in. minimum bend radius and a 110-200 lb load range, the cable is a flexible choice for many jobs. All cables include bulkhead nuts and washers for fast and easy connectivity.
Specifications
| Rod End Thread Size | 5/16-24 " |
| Cable Length (in.) | 84 " |
| Cable Diameter (in.) | 0.188 " |
| Cable Core Material | Stainless Steel |
| Conduit Material | PVC |
| End Type | Rod |
| Conduit Color | Black |
| Conduit Diameter (in.) | .51 " |
| Bulkhead Thread Size | 11/16-16 " |
| Cable Series | 6200 Series |
| Total Travel (in.) | 3 " |
Introduction to the 84 Inch 6200 Series Universal Mount Control Cable
The 84-inch 6200 Series Universal Mount Control Cable from Buyers Products offers robust, precise mechanical control for demanding industrial environments. As a cornerstone for heavy-duty push-pull actuation, this cable translates operator input into machine action for critical applications like Power Take-Off (PTO) systems and various hoisting mechanisms. Its 6200 Series designation ensures heavy-duty performance, built on durable materials, rigorous design, and operational longevity. The 84-inch length provides versatile routing, balancing reach with stiffness for accurate force transmission. Characterized by a 10-inch minimum bend radius and a substantial 110-200 lb load range, this cable is an indispensable asset across diverse heavy-duty machinery. Every component, from the stainless steel core to the rod end fittings and included bulkhead hardware, is optimized for superior performance. This discourse details the technical specifications, material science, performance characteristics, and application suitability defining this universal mount control cable's exceptional utility.
Design Philosophy and Engineering Excellence
The 6200 Series cable leverages a fundamental push-pull mechanism, chosen for inherent reliability and efficiency in transmitting both compressive and tensile forces. This design provides positive, bidirectional control, eliminating slack for immediate, precise response crucial for exacting applications like valve actuation or clutch engagement. Minimal backlash and hysteresis ensure operator actions translate to predictable machine movements. The "Universal Mount" highlights the cable's adaptable design, facilitating integration into diverse equipment without specialized tooling, simplifying installation and inventory. The 84-inch length strategically accommodates various installation scenarios, providing ample reach for connecting remote components while minimizing excess slack. This length optimizes performance by balancing reach with responsiveness, ensuring effective routing through complex chassis or engine bays. This robust design ensures flawless function, withstanding rigorous operational and environmental challenges, enhancing safety and machine longevity.
Core Components and Materials Science
The efficacy and longevity of the 6200 Series control cable are profoundly influenced by its meticulously selected core components and materials. The cable core, with a precise 0.188-inch diameter, is fabricated from stainless steel. This material is paramount for exceptional corrosion resistance in harsh, moisture-prone, or chemically exposed environments, offering superior strength-to-weight ratio and excellent fatigue resistance. The 0.188-inch diameter balances load-bearing strength with flexibility for the 10-inch minimum bend radius. Encasing this core is a PVC (Polyvinyl Chloride) conduit, 0.51 inches in diameter and black. PVC provides outstanding resistance to chemicals, oils, abrasion, and UV radiation, protecting the core from environmental and mechanical wear. It functions as a low-friction guide, ensuring smooth, efficient force transmission, minimizing operational losses. The rod end type features a 5/16-24 inch thread, designed as a precision mechanical linkage with a spherical plain bearing. This allows angular misalignment, preventing binding and reducing stress for smooth, consistent operation. The 5/16-24 inch thread is an industry standard for secure, adjustable attachment. For robust panel integration, bulkhead nuts and washers are included for "fast and easy connectivity." The 11/16-16 inch bulkhead thread ensures a strong, vibration-resistant mounting solution, critical for environmental sealing and mechanical support. This comprehensive material and component selection underpins the 6200 Series' superior performance and enduring durability.
Performance Characteristics and Application Suitability
The operational integrity and versatility of the 84-inch 6200 Series Control Cable are defined by its rigorously engineered performance characteristics. The 110-200 lb load range is a critical indicator of reliable continuous working capacity. This range is ideal for PTO and hoist applications, requiring substantial forces for engagement or load manipulation, incorporating an inherent safety factor against transient peak loads. Consistent force transmission minimizes operator effort. The 10-inch minimum bend radius is crucial for installation flexibility in confined spaces, specifying the tightest curve without compromising performance or integrity. Exceeding this limit increases internal friction, accelerates wear, causes kinking, and reduces fatigue life. The 10-inch radius offers significant routing flexibility, extending service life and ensuring consistent control in space-constrained vehicle applications. The 3-inch total travel dictates linear displacement, vital for precise actuation. This stroke length is often sufficient for full clutch engagement, valve opening/closing, or gear selection, ensuring consistent, repeatable mechanical feedback. Smooth utilization without binding is key. These characteristics make the 6200 Series a highly adaptable, dependable component for complex mechanical control systems, optimizing performance and safety.
Target Applications: PTO and Hoist, Expanded
While primarily highlighted for Power Take-Off (PTO) and hoist applications, the 84-inch 6200 Series Universal Mount Control Cable's robust construction extends its utility across diverse heavy-duty industrial and commercial environments.
Power Take-Off (PTO) Systems: In trucks, tractors, and industrial machinery, PTOs divert engine power. This cable provides the critical mechanical link to the often-remote PTO engagement. The 110-200 lb load range reliably overcomes engagement forces for decisive activation. Stainless steel core and PVC conduit withstand corrosive under-vehicle environments. Precise 3-inch travel ensures full engagement, preventing wear.
Hoist Mechanisms: For winches, cranes, and material handling, precise, reliable control is paramount. Whether actuating brakes, clutches, or directional valves, the 6200 Series transmits necessary force. Its push-pull design enables positive bidirectional control, a critical safety feature. Durability and environmental resistance are crucial for outdoor hoist operations.
Beyond PTO and Hoist: The 6200 Series is ideal for:
- Throttle Controls: Direct, reliable engine RPM control in heavy equipment, marine, and specialty vehicles.
- Choke Controls: Precise cold start/warm-up management.
- Valve Actuation: Remote control of hydraulic/pneumatic valves.
- Remote Shifting: Robust alternative to linkage rods for manual transmissions.
- Auxiliary Brake/Clutch Controls: Simple, effective mechanical solutions.
- Dump Bed/Snow Plow Controls: Actuating raise/lower or angling functions.
Installation, Maintenance, and Longevity
Optimal integration and long-term performance of the 84-inch 6200 Series Control Cable hinge on proper installation and minimal, effective maintenance, contributing to lower total cost of ownership.
Installation: The included bulkhead nuts and washers facilitate "fast and easy connectivity," providing secure, stress-free mounting. Best practices:
- Optimal Routing: Aim for straightest path, minimizing bends; never exceed 10-inch minimum bend radius.
- Adequate Support: Use clamps or clips to prevent sagging, vibration, or chafing.
- Clearance: Ensure ample space from moving parts or hot surfaces.
- Alignment: Precisely align rod ends; excessive angles increase wear.
- Secure Connections: Torque all threaded connections to specifications, using thread-locking compounds.
- Visual Inspection: Check for wear, abrasion, kinking, or conduit damage.
- End Fitting Check: Examine rod ends for wear, looseness, or play.
- Operational Check: Test for smooth operation; increased friction/binding signals issues.
- Environmental Cleaning: Clean exposed parts in harsh environments.
Quality Assurance and Compliance
Buyers Products' commitment to engineering excellence for the 6200 Series Universal Mount Control Cable extends to rigorous quality assurance. Every 84-inch cable undergoes stringent quality control from raw material sourcing through final assembly. This systematic approach ensures consistent adherence to specified performance parameters, dimensional tolerances, and material properties. Manufacturing processes follow recognized industrial standards, encompassing checks for material composition, core tensile strength, conduit abrasion resistance, and dimensional accuracy of all fittings. Performance testing typically includes cycling for fatigue life, friction measurement for smooth operation, and load testing to verify the 110-200 lb range. This dedication to quality control ensures predictable, reliable performance in demanding applications, mitigating premature failure and associated downtime. For professional applications where safety and operational continuity are paramount, high manufacturing standards are invaluable, providing confidence that the 6200 Series cable is a high-integrity solution for mission-critical tasks, aligning with industry best practices for dependable mechanical controls.
Conclusion
In summary, the 84-inch 6200 Series Universal Mount Control Cable from Buyers Products offers an exemplary solution for heavy-duty push-pull control. Its comprehensive design, featuring a stainless steel core within a durable PVC conduit, provides unparalleled corrosion resistance and mechanical strength. Rod end and bulkhead fittings ensure secure, adaptable, and efficient installation. Key performance characteristics—a 110-200 lb load range, a practical 10-inch minimum bend radius, and a precise 3-inch total travel—are meticulously calibrated for robust, responsive, and reliable mechanical actuation. While optimally suited for PTO and hoist systems, its inherent design versatility extends its utility to throttle controls, valve actuation, remote shifting, and other critical functions. Emphasizing ease of installation and minimal maintenance, this cable is engineered for exceptional longevity, reducing operational interruptions and lowering total cost of ownership. Buyers Products' commitment to stringent quality assurance guarantees each 6200 Series cable is a dependable, high-integrity investment in operational efficiency and safety. For professionals demanding a control cable combining robust construction with precise, flexible, and reliable performance, the 84-inch 6200 Series Universal Mount Control Cable delivers unequivocally.
