Specifications
| Auger/Chain Port | 3/4 SAE ORB (-12) |
|---|---|
| GPS Capable? | Yes |
| GPS Included? | Yes |
| Hoist Action | Power Up/Power Down - 1 Port Relief |
| Hoist Control Included | Yes |
| Hoist Control Type | Pneumatic |
| Inlet Port | 3/4 SAE ORB (-12) |
| Magnetic Drain Plug | Yes |
| Main Relief Setting | 2500 |
| Maximum Flow Rate | 40 |
| Maximum Pressure | 3000 |
| Number of Functions Supported | 6 |
| Oil Level/Temperature Gauge Included | Yes |
| Outlet Port | 2 NPT |
| Plow Action | Power Up/Power Down |
| Plow Control Included | Yes |
| Plow Control Type | Pneumatic |
| Port Relief Angle | 1800 |
| Port Relief Hoist | 500 |
| Reservoir Material | 304 Stainless Steel |
| Reservoir Mount Position | Side Mount |
| Reservoir Type | Standard |
| Reservoir Volume (Gal.) | 30 |
| Return Line Filter Flow Rating | 50 |
| Return Line Filter Included? | Yes |
| Return Line Filter Rating | 25 |
| Spinner Port | 1/2 SAE ORB (-8) |
| Spreader Control Included | Yes |
| Spreader Control Type | Electric Over Hydraulic |
| Spreader Controller | HVC06T |
| Suction Filter Rating | 150 |
| Suction Filter Flow Rating | 49 |
| Suction Filter Included? | Yes |
| Suction Port | 2 NPT |
| Work Ports | 3/4 JIC (-12) |
The Buyers Products 30 Gallon Central Hydraulic System with 6-Function, Air/Hydraulic Proportional Control, and Integrated GPS represents a cutting-edge solution for the demanding operational requirements of modern utility and municipal fleets. This system is meticulously engineered to deliver unparalleled performance, efficiency, and control for critical truck-mounted applications such as hoists, plows, spreaders, and pre-wet systems. By consolidating multiple hydraulic functions into a single, robust, and intelligently controlled unit, it provides a superior alternative to fragmented hydraulic setups, optimizing both installation and operational paradigms.
At its core, the system is designed for medium to heavy-duty applications, where reliability and precision are paramount. Its all-in-one architecture minimizes complexity, reduces potential points of failure, and enhances overall system maintainability. The integration of advanced control technologies, including air/hydraulic proportionality and GPS-based ground speed control, positions this system as a leader in hydraulic automation, enabling operators to achieve precise material application and equipment manipulation with unprecedented ease and accuracy.
Integrated Design and Engineering Excellence

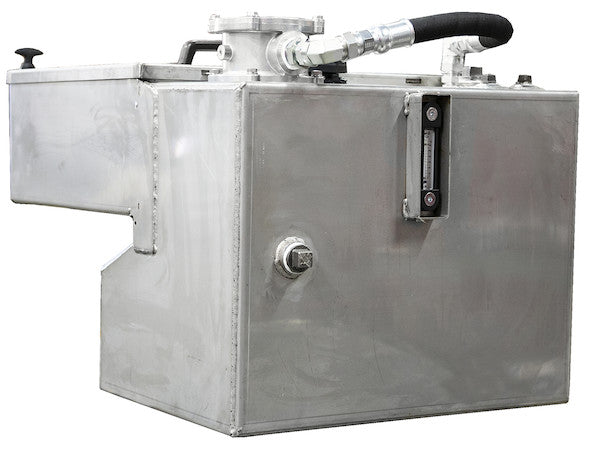

The foundation of this Central Hydraulic System is its 30-gallon reservoir assembly, meticulously fabricated from premium 304 stainless steel. The selection of 304 stainless steel is not arbitrary; it is a critical engineering decision driven by its superior corrosion resistance, high tensile strength, and excellent durability in harsh environmental conditions. This material withstands exposure to road grime, de-icing salts, corrosive chemicals, and extreme weather, ensuring an extended service life and minimizing the need for premature replacement or costly repairs. The reservoir’s substantial 30-gallon volume is optimized to provide sufficient hydraulic fluid capacity for continuous operation across multiple high-demand functions, while also contributing to effective heat dissipation, which is crucial for maintaining fluid integrity and system efficiency.
Integral to the reservoir assembly is a robust valve enclosure, also constructed from durable materials, featuring a secure, latching stainless steel lid. This enclosure serves a vital protective function, shielding the critical spreader, hoist, and plow valves from physical damage, environmental contaminants, and adverse weather conditions. The strategic mounting of all directional valves and spreader controls directly onto the tank assembly is a hallmark of intelligent design. This consolidated arrangement significantly streamlines hydraulic plumbing, reducing the number of external hoses, fittings, and connection points. The result is a cleaner, more organized installation with fewer leak paths, simplified diagnostic procedures, and expedited service interventions. This approach not only enhances operational reliability but also translates into substantial savings in installation time and labor costs.
The Power Core: Hydraulic Specifications and Performance Parameters
The hydraulic power unit is engineered for robust performance, capable of delivering a maximum flow rate of 40 GPM (gallons per minute) and sustaining a maximum system pressure of 3000 PSI (pounds per square inch). The main relief valve is factory-set at 2500 PSI, providing a critical safety and operational threshold to protect the system components from over-pressurization while ensuring sufficient power for demanding tasks. The system's inlet port is specified as 3/4 SAE ORB (-12) and the outlet port as 2 NPT, facilitating standard and robust connections to the hydraulic pump and return lines, respectively. The suction port, also a 2 NPT, is adequately sized to ensure efficient fluid intake, preventing cavitation and promoting smooth pump operation. These specifications underscore the system's capacity to handle the energetic demands of simultaneous, heavy-duty operations.
Advanced Filtration and Fluid Management
Maintaining hydraulic fluid cleanliness is paramount for the longevity and efficiency of any hydraulic system. The Buyers Products Central Hydraulic System integrates a comprehensive filtration and fluid management strategy. It includes an in-tank return filter assembly with a 25-micron rating and a flow rating of 50 GPM. This fine filtration capability effectively captures particulate contaminants from the returning hydraulic fluid before it re-enters the reservoir, preventing wear on sensitive components such as valves and cylinders. Furthermore, a 150-micron suction filter with a 49 GPM flow rating is incorporated to protect the main hydraulic pump from larger debris, ensuring a clean supply of fluid at the pump inlet.
Beyond filtration, the system incorporates a filler-strainer breather cap assembly. This component is dual-purpose: it allows for clean replenishment of hydraulic fluid while simultaneously providing filtered air exchange with the atmosphere, preventing the ingress of airborne contaminants and moisture. A shielded sight temperature gauge provides operators with a continuous, at-a-glance indication of the hydraulic fluid level and temperature. This allows for proactive monitoring of fluid conditions, enabling operators to identify potential issues such as overheating or low fluid levels before they lead to system damage or operational downtime. Additionally, a magnetic drain plug is included, which attracts and retains ferrous metal particles, offering an additional layer of protection against wear and serving as an early indicator of internal component degradation.
Precision Control: Six-Function Air/Hydraulic Proportionality
The system's designation as a "6-Function" unit signifies its capability to independently control up to six distinct hydraulic operations, providing comprehensive power and versatility for vocational truck applications. The implementation of air/hydraulic proportional controls is a significant advancement over traditional on/off hydraulic systems. Proportional control allows for variable speed and force adjustments, enabling smooth, precise, and infinitely adjustable manipulation of implements.
- Plow System Control (Lift, Angle Left, Angle Right): The system allocates 11 GPM for plow operations, controlled by a 3-way valve for lift/lower and a 4-way valve for left/right angle. Proportional pneumatic controls offer operators the ability to "feather" the plow blade, achieving incremental adjustments in height and angle with exceptional accuracy. This precision is critical for effective snow removal and grading, minimizing surface damage and maximizing operational efficiency. The two integrated port reliefs, rated at 1800 PSI for the angle function, provide essential protection against over-pressure events during dynamic plow movements or impacts, safeguarding hydraulic cylinders and hoses. The power up/power down action ensures active control in both directions.
- Hoist System Control (Power Up/Power Down): A dedicated 30 GPM 4-way double-acting (DA) dump hoist valve provides robust power for lifting and lowering truck beds. The inclusion of a down port relief set at 500 PSI precisely manages the lowering speed and prevents shock loads on the hoist cylinder. The "power beyond" feature allows for continuous hydraulic flow to additional downstream components even when the hoist is operating, maximizing the system's utility without sacrificing performance. Proportional pneumatic controls ensure smooth, controlled hoist movements, enhancing safety and preventing abrupt shifts of cargo.
-
Spreader System Control (Auger/Conveyor, Spinner, Pre-wet): The spreader functions benefit from highly sophisticated electric-over-hydraulic proportional control, managed by the HVC06T spreader controller. This control type is crucial for optimizing material spreading operations.
- Auger/Conveyor Port (3/4 SAE ORB -12): Proportional control of the auger or conveyor system ensures a consistent flow of material from the hopper to the spinner. This variable flow capability is fundamental for precise material dosage, preventing over-application and ensuring even distribution.
- Spinner Port (1/2 SAE ORB -8): Proportional control of the spinner motor allows operators to finely adjust the spread width and pattern. This enables adaptive spreading strategies based on road conditions, traffic, and environmental factors, reducing material waste and improving coverage uniformity.
- Pre-wet System: For GPS-equipped systems, a 3-function control option includes a proportional pre-wet function. This allows for the precise application of liquid anti-icing agents to dry granular materials, enhancing their effectiveness and adhesion to road surfaces. The integrated controller supports programmable blast (1-30 seconds) for targeted material application and features a low-pressure pre-wet indicator, alerting operators to potential issues with the liquid system.
GPS-Enabled Intelligent Spreading System
The inclusion of an optional, integrated GPS-based ground speed control system represents a significant leap in spreader technology, transforming variable manual control into intelligent, automated material management. With the GPS module installed, the system continuously monitors vehicle speed and automatically adjusts the flow rate of spreading materials (e.g., salt, sand, or liquid de-icers) to maintain a consistent application rate per unit area, regardless of the truck's speed.
This automated adjustment provides several critical advantages:
- Optimized Material Usage: By eliminating over-application in slower zones and under-application in faster zones, the GPS system significantly reduces material waste. This translates into substantial cost savings on spreading materials and reduces environmental impact.
- Consistent Coverage: Ensures a uniform level of salt or other material coverage across all treated surfaces, regardless of variations in vehicle speed due to traffic, terrain, or operator adjustments. This leads to more effective ice and snow control.
- Enhanced Operational Efficiency: Operators can focus more on driving and less on constantly adjusting spreader settings, reducing fatigue and improving overall safety. The system's automation minimizes human error, ensuring optimal performance across different shifts and operators.
- Data-Driven Decision Making: The GPS system can provide valuable data logs (application rates, distances, speeds, materials used), which can be utilized for post-operation analysis, route optimization, compliance reporting, and inventory management.
- Expanded Liquid Application Capabilities: For systems with GPS, the controller can manage both pre-wet and broader liquid spray functions. This allows for diverse liquid application strategies, from anti-icing brines to dust suppression, all controlled with precision. The programmable blast function enables short bursts of material, useful for intersections or specific problem areas.
Intuitive Operator Interface
All system functionalities are managed and monitored via a Color TFT-LCD touchscreen display mounted conveniently in the cab. This modern interface replaces cumbersome mechanical levers and gauges, providing operators with clear, real-time feedback on system status, material flow rates, ground speed, and diagnostic information. The touchscreen's intuitive graphical interface simplifies complex operations, making the system accessible even to less experienced operators. By consolidating controls and reducing in-cab clutter, it enhances ergonomics, safety, and operator comfort, minimizing distractions and allowing for a greater focus on the task at hand. The electronic nature of the controls also means less heat and noise are transferred into the cab, further improving the working environment.
Installation Efficiency and Serviceability
The integrated design of the Central Hydraulic System is a key factor in its ease of installation. By mounting all critical hydraulic valves and spreader controls directly onto the reservoir assembly, the need to route multiple hydraulic lines through the truck chassis and into the cab is virtually eliminated. This significantly reduces plumbing complexity, material requirements, and installation labor. The centralized location of components within the protective valve enclosure also simplifies future service and maintenance tasks, as all key hydraulic elements are readily accessible for inspection, adjustment, or replacement.
Safety and Durability Engineering
Safety is paramount in the design of vocational truck equipment. The Buyers Products Central Hydraulic System incorporates various features to ensure safe and reliable operation. The robust construction using 304 stainless steel and protective enclosures guarantees long-term durability, even in the most corrosive and challenging environments. The system's maximum pressure and relief settings are carefully calibrated to prevent component damage while providing ample power.
A crucial consideration for specific applications is the requirement for critical load holding. For tasks where hydraulic cylinders must maintain a load for extended periods without drift, such as certain crane or lifting operations, the installer is strongly advised to utilize Pilot Operated (P.O.) checks or counterbalance valves. These supplementary valves provide positive load holding, preventing uncontrolled descent or movement in the event of hose rupture or internal valve leakage, thereby enhancing operational safety and compliance with industry standards.
Strategic Advantages for Medium to Heavy Duty Applications
This 30 Gallon Central Hydraulic System offers a compelling value proposition for fleet operators and municipalities. Its integrated design, comprehensive 6-function capability, and advanced proportional and GPS controls translate directly into tangible operational benefits:
- Increased Productivity: Faster, more precise control of implements means jobs are completed more efficiently.
- Reduced Operating Costs: Optimized material usage through GPS control minimizes waste, while durable construction and streamlined maintenance reduce repair and downtime expenses.
- Enhanced Safety: Proportional controls provide smoother operation, reducing abrupt movements, and robust construction ensures reliability. The note on P.O. checks highlights a commitment to comprehensive safety.
- Improved Performance: Consistent material application and precise implement positioning lead to superior results in snow removal, spreading, and hoisting tasks.
- Simplified Management: Integrated controls and diagnostics ease operator training and fleet oversight.
In conclusion, the Buyers Products 30 Gallon Central Hydraulic System with 6-Function, Air/Hydraulic Proportional, and GPS capabilities is more than just a hydraulic power unit; it is a meticulously engineered, intelligent system designed to elevate the efficiency, precision, and reliability of medium to heavy-duty vocational truck operations. By consolidating power, control, and advanced automation into a single, robust package, it provides a comprehensive solution that meets the rigorous demands of modern fleet management and delivers measurable improvements in productivity and cost-effectiveness.
