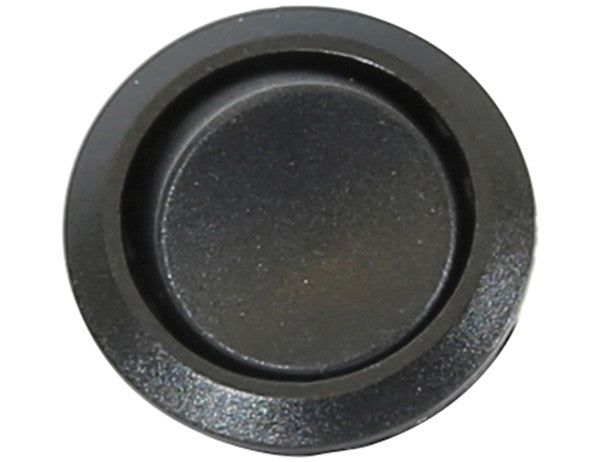

Each of these Mini Round Rocker Switches from Buyers Products features a distinct rocker switch engagement, depending on your needs and preferences. Choose among a simple ON-OFF, a backlit ON-OFF, an ON-OFF-ON function and a momentary-ON switch. Each switch is easy to install in your truck dash or mount to the console in a hole measuring 3/4 in. in diameter.
Specifications
| Color | Black |
|---|---|
| Continuous Current Rating | - |
| Finish | Plain |
| Material | Plastic |
| Mount Style | Panel |
| Number of Functions | 1 |
| Pre-fused (y/n) | No |
| Pre-Wired (y/n) | No |
| Surge Current Rating | 10 |
| Switch Style | Rocker |
Advanced Technical Overview: Black Mini Round Rocker Switch for Robust Control Applications
The On/Off Mini Round Rocker Switch in Black from Buyers Products represents a cornerstone component in a vast array of electrical control systems, particularly those demanding reliable and intuitive user interaction within confined spaces. This specific product, identified by its singular ON-OFF functionality, offers a robust and straightforward solution for circuit activation and deactivation. Engineered for seamless integration into various panels, dashboards, and control consoles, its compact form factor and durable construction make it an ideal choice for challenging operational environments. This detailed technical description will explore the design, material science, electrical specifications, installation protocols, and diverse applications of this essential control device.
Design, Ergonomics, and Aesthetics
The fundamental design of this mini round rocker switch prioritizes both functionality and discreet integration. With a classic black finish, the switch presents a professional and understated appearance that complements a wide range of industrial, automotive, marine, and recreational vehicle interiors without aesthetic intrusion. The "plain" finish signifies a non-textured, matte or semi-gloss surface that resists fingerprints and smudges, maintaining a clean look even after prolonged use. The round form factor, a key characteristic, is inherently space-efficient and aesthetically versatile. Round cutouts are often simpler to achieve with standard drilling tools, facilitating quicker and more precise installation compared to complex rectangular or irregular apertures. The rocker mechanism itself is designed for tactile feedback, providing a distinct haptic sensation upon engagement, which confirms the state change to the operator. This tactile response is crucial in applications where visual confirmation might be intermittent or where operations are performed by feel. The rocker’s contour is ergonomically designed for comfortable finger actuation, minimizing operator fatigue during repetitive use. Its compact dimensions ensure it occupies minimal panel real estate, which is a significant advantage in modern designs where instrument panels are increasingly crowded with various controls and displays.
Material Science: The Choice of Plastic for Durability and Performance
The selection of plastic as the primary material for the switch body and rocker mechanism is a deliberate engineering choice, offering a judicious balance of properties crucial for its intended applications. Specifically, high-grade engineering plastics such as Nylon 6/6, ABS (Acrylonitrile Butadiene Styrene), or Polycarbonate are commonly employed in such components. Each of these materials brings distinct advantages:
- Nylon 6/6: Renowned for its excellent mechanical strength, rigidity, and resistance to abrasion. It exhibits good chemical resistance to many oils, fuels, and solvents commonly encountered in automotive and industrial environments. Its high melting point allows it to withstand elevated temperatures, an important consideration for electrical components.
- ABS: Offers a good combination of toughness, impact resistance, and aesthetic appeal. It is relatively easy to mold and can achieve a smooth, plain finish. While generally robust, its temperature and chemical resistance might be slightly lower than Nylon or Polycarbonate.
- Polycarbonate: Exceptional impact strength and clarity (though not relevant for a black, plain finish, its underlying strength is key). It also boasts excellent dimensional stability and good electrical insulation properties, making it suitable for precise, high-performance applications.
Regardless of the specific polymer, the general benefits of using plastic include:
- Electrical Insulation: Plastics are inherently non-conductive, providing crucial isolation between the live electrical components and the external environment, thereby enhancing user safety and preventing short circuits.
- Corrosion Resistance: Unlike metallic alternatives, plastic components are impervious to rust and galvanic corrosion, which is particularly vital in humid, wet, or chemically exposed environments such as marine applications or industrial settings.
- Lightweight: The low density of plastic contributes to the overall weight reduction of the end product, a significant factor in automotive and aerospace industries where mass reduction is paramount.
- Cost-Effectiveness: Manufacturing plastic components through injection molding is highly efficient and economical for high-volume production, contributing to the overall affordability of the switch.
- UV Stability: For outdoor or vehicle interior applications, the plastic often incorporates UV stabilizers to prevent degradation, fading, and brittleness caused by prolonged exposure to sunlight. This ensures long-term aesthetic and structural integrity.
Mounting and Installation: The Panel Mount System
The specified "Panel" mount style and the 3/4 inch diameter hole requirement are critical parameters for successful integration. This design allows the switch to be securely fastened into a pre-drilled aperture within a control panel, dashboard, or console. The 3/4 inch (approximately 19.05 mm) hole is a common standard, simplifying installation by utilizing widely available drill bits and hole saws. The installation process typically involves:
- Hole Preparation: Precisely drilling a 3/4 inch diameter hole into the chosen mounting surface. Accuracy is paramount to ensure a snug fit and prevent rotational movement or excessive play.
- Switch Insertion: The switch body is designed with flexible retention clips or tabs that compress when pushed through the mounting hole and then expand on the other side, securely locking the switch into place. This snap-in mechanism eliminates the need for additional mounting hardware such as nuts or screws, streamlining the installation process and reducing assembly time.
- Panel Thickness: It is important to note that snap-in panel mount switches typically have a specified range of panel thicknesses they can accommodate. While not explicitly stated, general mini rocker switches are designed for panel thicknesses ranging from approximately 0.8 mm to 3 mm (1/32 to 1/8 inch). Exceeding or falling below this range can compromise the security of the mount.
- Orientation: For switches with specific ON/OFF markings or internal illumination, correct orientation during installation is crucial for intuitive user operation. The circular design often features a keying element or a specific orientation for the rocker itself to ensure proper alignment.
The panel mount configuration results in a clean, flush appearance on the control surface, enhancing both aesthetics and safety by minimizing protruding components that could be snagged or damaged.
Electrical Characteristics and Performance
Understanding the electrical specifications is paramount for safe and effective integration of the On/Off Mini Round Rocker Switch into any circuit. The provided specifications offer crucial insights:
- Continuous Current Rating: - The dash indicates that a specific continuous current rating is not universally assigned or may vary based on the exact variant or specific testing conditions. In practical terms, users must refer to specific product datasheets or manufacturer guidelines for the precise continuous current rating suitable for their application. Typically, mini rocker switches designed for vehicle applications (12V/24V DC) can handle continuous currents ranging from 3A to 15A, depending on their internal contact materials, spring mechanisms, and overall thermal dissipation capabilities. It is critical never to exceed the specified continuous current rating, as this can lead to overheating, degradation of contact materials, increased contact resistance, and ultimately, premature switch failure or fire hazards.
- Surge Current Rating: 10 Amperes (implicitly Amperes). The surge current rating represents the maximum current the switch can safely handle for a very brief duration (typically milliseconds to a few seconds) without suffering damage. This is particularly important for inductive loads such as motors, solenoids, or certain types of lamps, which draw a significantly higher "inrush" current at the moment of activation than their steady-state operating current. A surge current rating of 10A signifies the switch's ability to withstand these momentary electrical spikes, offering a degree of robustness against transient overloads. However, it is imperative that the duration of this surge is limited, as sustained current at this level will invariably damage the switch if it exceeds the continuous rating.
- Voltage Rating: While not explicitly stated, switches for "truck dash" applications are typically designed for 12V DC or 24V DC systems. Some robust versions may also be rated for low-voltage AC applications (e.g., 125V AC for certain power tools or appliances), but the primary context suggests DC automotive use. The voltage rating specifies the maximum potential difference the switch can safely interrupt or conduct without dielectric breakdown between contacts or between contacts and the switch housing.
- Contact Resistance: A key performance indicator, contact resistance refers to the resistance to electrical flow across the closed contacts of the switch. High-quality switches are designed to have very low contact resistance (typically in the milliohm range) to minimize power loss as heat and ensure efficient current transfer to the load. Over time, contact resistance can increase due to arc erosion, contamination, or oxidation.
- Insulation Resistance: This measures the resistance to current leakage between isolated conductive parts of the switch when it is in the open position or between contacts and the switch body. High insulation resistance (typically in the gigaohm range) is essential for preventing electrical hazards and ensuring circuit integrity.
- Dielectric Strength (Withstanding Voltage): This is the maximum voltage the switch's insulation can withstand for a specified period without breaking down. It's a measure of the insulation's integrity and ability to prevent arc-over, ensuring safety during voltage surges.
- Mechanical and Electrical Life: The mechanical life refers to the number of operations (make-and-break cycles) the switch can endure without mechanical failure (e.g., rocker breaking, springs failing). Electrical life refers to the number of cycles the switch can perform while carrying its rated electrical load without significant degradation of its electrical performance (e.g., increased contact resistance, inability to make or break contact). Both are typically rated in tens of thousands or hundreds of thousands of cycles for quality switches.
Functional Specificity and Product Family Versatility
The specification "Number of Functions: 1" precisely delineates that this particular product offering is a straightforward single-pole, single-throw (SPST) ON-OFF switch. This means it controls one circuit and has only two stable positions: completely ON (closed circuit) or completely OFF (open circuit). This simplicity is often preferred for applications requiring unambiguous control of a single function, such as:
- Activating auxiliary lighting (e.g., fog lights, work lights).
- Powering a cooling fan or circulation pump.
- Switching on or off interior cabin lights.
- Controlling a radio or communication device.
- Backlit ON-OFF Switches: These incorporate an internal LED indicator that illuminates when the switch is in the ON position. This feature is invaluable for providing immediate visual status feedback to the operator, particularly in low-light conditions within a vehicle cabin or dimly lit control room. The illumination ensures that the operator can quickly ascertain the state of the circuit, preventing accidental activation or leaving systems powered unnecessarily.
- ON-OFF-ON Switches: Also known as three-position or double-throw switches (DPDT or SPDT center-off), these switches offer control over two distinct circuits or provide two different operational modes for a single system. For instance, they might control two speeds of a fan (e.g., low-off-high) or direct power to one of two different loads (e.g., left turn signal - off - right turn signal). Their versatility makes them suitable for more complex control schemes where sequential or directional operations are required.
- Momentary-ON Switches: These switches maintain their ON state only as long as the actuator is pressed and return to the OFF position once released. They are essential for applications requiring temporary activation, such as horns, window controls (up/down), electric door locks, or starter solenoids. The "momentary-ON" variant ensures that the controlled function is engaged only when actively desired, preventing continuous power draw or accidental prolonged activation.
Understanding this distinction is crucial: while this specific product is a simple ON-OFF, the availability of these variants within the same form factor allows designers to maintain a consistent aesthetic and installation methodology across a panel while deploying different functional controls.
Connectivity and Circuit Protection: The "No Pre-Fused, No Pre-Wired" Advantage
The specifications "Pre-fused (y/n): No" and "Pre-Wired (y/n): No" indicate that the switch is provided as a standalone component without integrated wiring harnesses or fuses. This is not a limitation but rather an advantage for professional installers and system designers, offering maximum flexibility:
- Customization: Users are free to select the appropriate wire gauge (AWG) based on the circuit's current requirements and length, ensuring optimal electrical performance and safety. They can also choose the type of terminals (e.g., spade connectors, solder lugs, screw terminals) that best suit their wiring practices and application.
- Integration into Existing Harnesses: For complex systems, the switch can be seamlessly integrated into custom-built or pre-existing wiring harnesses without modification, reducing potential points of failure often associated with spliced or adapter-based connections.
- Circuit Protection: The absence of an integrated fuse necessitates that the installer incorporates external circuit protection (e.g., fuses, circuit breakers) appropriate for the specific circuit and load being controlled. This is a critical safety measure, preventing overcurrent conditions that could damage wiring, the switch itself, or the connected device, and mitigating fire hazards. The fuse rating must be carefully selected to protect the weakest link in the circuit – typically the wiring or the load itself – and should never exceed the continuous current rating of the switch.
Standard wiring practices for these switches often involve crimping insulated spade connectors onto the circuit wires and then pressing them onto the corresponding terminals on the back of the switch. This method provides a secure, low-resistance connection that can be easily disconnected for maintenance or replacement.
Diverse Application Scenarios
The On/Off Mini Round Rocker Switch is a ubiquitous component across a wide spectrum of industries and applications, primarily due to its simplicity, reliability, and compact size. Its designation for "truck dash" hints at its primary market, but its utility extends far beyond commercial vehicles:
- Commercial and Heavy-Duty Vehicles: Essential for controlling auxiliary lighting (driving lights, warning beacons), interior cabin lights, fan systems, minor hydraulic pump activation, diagnostic equipment, and PTO (Power Take-Off) indicators in semi-trucks, agricultural machinery, construction equipment, and utility vehicles.
- Marine Applications: Ideal for boats and marine craft to manage bilge pumps, navigation lights, anchor lights, cabin lighting, and communication radios. The plastic construction offers inherent corrosion resistance crucial in saline environments.
- Recreational Vehicles (RVs) and Caravans: Used for controlling interior and exterior lighting, water pumps, heating elements, vent fans, and various 12V DC accessories.
- Automotive Customization and Aftermarket: Frequently employed in custom car builds for auxiliary light bars, aftermarket audio components, electronic accessories, and nitrous oxide systems, providing a clean, factory-like control interface.
- ATVs and Off-Road Vehicles: Its robust nature makes it suitable for controlling off-road lighting, winches, and auxiliary power outlets in demanding outdoor conditions.
- Industrial Control Panels: In smaller industrial machinery or control interfaces, these switches can be used for basic ON/OFF functions for specific machine components, indicator lights, or safety interlocks where a simple, unmistakable action is required.
- Home Automation and DIY Electronics: For hobbyists and makers, these switches provide a convenient means to control low-voltage circuits in custom projects, power supplies, or experimental setups.
The versatility of this mini rocker switch stems from its robust design, straightforward functionality, and ease of installation, making it a preferred choice for reliable control in myriad low-voltage DC applications.
Quality Assurance and Reliability
As a product from Buyers Products, the On/Off Mini Round Rocker Switch is expected to conform to rigorous quality standards, ensuring long-term reliability and consistent performance. This typically involves:
- Material Sourcing: Utilization of high-grade plastics and contact materials that meet specified chemical and physical properties.
- Manufacturing Process Control: Adherence to strict manufacturing protocols during injection molding and assembly to ensure dimensional accuracy, proper contact alignment, and secure housing.
- Electrical Testing: Each batch or a statistically significant sample of switches undergoes electrical testing to verify contact resistance, insulation resistance, dielectric strength, and operational current ratings.
- Environmental Testing: Switches may be subjected to tests for temperature extremes, humidity, vibration, and shock to simulate real-world operating conditions and confirm durability.
- Lifecycle Testing: Mechanical and electrical lifecycle tests are conducted to ensure the switch can withstand its rated number of operations without degradation.
While specific certifications (e.g., UL, CE, RoHS) are not detailed, reputable manufacturers like Buyers Products generally adhere to industry best practices and standards relevant to the markets they serve, indicating a commitment to producing components that are not only functional but also safe and durable.
Conclusion
The On/Off Mini Round Rocker Switch in Black from Buyers Products is more than just a simple electrical component; it is a meticulously engineered solution for reliable and intuitive circuit control. Its compact, round, panel-mount design, coupled with durable plastic construction and precise ON-OFF functionality, makes it an indispensable element in a wide array of applications, from commercial vehicle dashboards to marine control panels and industrial machinery. The flexibility offered by its "no pre-fused, no pre-wired" configuration empowers installers to customize wiring and circuit protection according to specific system requirements, ensuring both optimal performance and uncompromising safety. While this particular listing focuses on the single-function ON-OFF variant, its place within a broader family of switches – including backlit, ON-OFF-ON, and momentary options – underscores Buyers Products' commitment to providing versatile and robust control solutions that meet diverse operational needs. Choosing this switch means opting for a component that delivers consistent, dependable performance in demanding environments, simplifying user interaction and enhancing overall system functionality.
