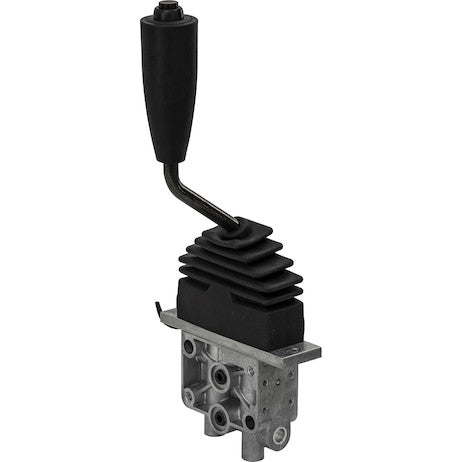

Buyers Products Single and Dual Axis Air Control Valves are available in a variety of handle configurations: Proportional, Feathering, and Stackable. Used in many applications, such as hook lift/cable lift hoists, dump bodies, and snow plows. Single or dual axis options available with varying handle configurations and knob styles. An LED light or push button on/off switch on top of the handle offers additional functionality.
Specifications
| Depth (in.) | 4.7 |
|---|---|
| Feathering | Yes |
| Height (in.) | 12 |
| Port Type | 1/8 NPT female |
| Spring to Neutral / Deadman Control (y/n) | Yes |
| Valve Action | Double Acting |
| Valve Actuation | Single axis lever control, 55deg offset handle with on/off push button in top of knob |
| Valve Primary Application | Plow / Hoist Control - Stackable |
| Width (in.) | 1.4 |
Advanced Pneumatic Control: Precision and Ergonomics in Mobile Equipment Operations
The Buyers Products Single Axis Air Control Valve, featuring a 55-degree handle offset and an integrated on/off switch, represents a pivotal component in the advancement of pneumatic control systems for demanding mobile and industrial applications. This meticulously engineered device is not merely a valve; it is a sophisticated interface designed to translate operator intent into precise pneumatic actuation, offering unparalleled control, enhanced safety, and superior ergonomic performance across a broad spectrum of heavy-duty machinery. Its design is a testament to the principles of efficiency, reliability, and operator-centric functionality, making it an indispensable tool for operations requiring meticulous control over hydraulic cylinders, pneumatic motors, and other actuated mechanisms.
Core Principles of Pneumatic Air Control
At its heart, this device operates as a directional control valve within a pneumatic system. Pneumatic systems utilize compressed air to generate mechanical force, a method favored in many applications due to its cleanliness, safety, and simplicity compared to hydraulic or electrical systems. Air control valves regulate the flow and direction of compressed air to actuators, dictating their movement. The Single Axis Air Control Valve excels in this role by providing a direct, intuitive, and highly responsive means of command. Its internal mechanism, typically involving spools or poppets, is designed to withstand the rigors of continuous operation, ensuring consistent performance and longevity. The valve's capacity to manage airflow accurately allows for a nuanced control over the speed and force of pneumatic cylinders, which is critical for operations where sudden movements can lead to instability or damage.
Single Axis Control: Unilateral Precision and Streamlined Operation
The designation "Single Axis" is fundamental to understanding this valve's operational philosophy. Unlike dual-axis controllers that manage two independent functions simultaneously, a single-axis valve is engineered for dedicated, unilateral control over one specific function. This design choice offers several distinct advantages. Firstly, it simplifies the operator interface, reducing cognitive load and the potential for operational error, particularly in high-stress environments. Operators can focus entirely on the precise manipulation of a single function, such as lifting a plow, extending a hoist, or articulating a specific component. Secondly, it contributes to a more streamlined and compact control panel design, as each function receives its dedicated control element. This focused control is invaluable in applications where exact positioning or speed regulation of a single actuator is paramount, providing a direct, unambiguous link between operator command and machine response. While dual-axis valves offer versatility, the single-axis variant emphasizes clarity and precision for specific, critical tasks, ensuring that every movement is deliberate and controlled.
Ergonomics Redefined: The 55-Degree Offset Handle
A standout feature of this control valve is its 55-degree handle offset. This ergonomic design consideration is far from superficial; it is a critical element engineered to significantly enhance operator comfort, reduce fatigue, and improve overall operational efficiency during prolonged use. The 55-degree offset repositions the operator's wrist and arm into a more natural, relaxed posture, minimizing strain on tendons and joints that can result from extended periods of repetitive motion with straight-handled controls. This ergonomic optimization translates directly into tangible benefits: operators experience less discomfort, are more alert, and can maintain a higher level of precision and control throughout their shift. Beyond comfort, the offset also provides a natural leverage point, enabling smoother and more controlled manipulation of the lever, especially when delicate "feathering" movements are required. The tactile feedback from the handle further contributes to an intuitive control experience, allowing operators to feel the engagement and disengagement points of the valve mechanism.
Integrated Functionality: The On/Off Push Button Switch
The inclusion of an on/off push button switch within the handle's knob elevates this valve beyond a simple mechanical control. This electrical integration provides auxiliary functionality that can be configured for a multitude of purposes, vastly expanding the valve's utility and contributing to system safety and operational flexibility. Common applications for this switch include:
- System Enable/Disable: Acting as a master control to arm or disarm the pneumatic system, preventing accidental activation of machinery.
- Auxiliary Device Activation: Engaging secondary functions such as lighting, an alarm, a beacon, or even a hydraulic pump in a combined system.
- Safety Interlocks: Requiring the switch to be depressed simultaneously with lever actuation, ensuring intentional operation and enhancing "deadman" style safety protocols beyond just the spring-to-neutral feature.
- Mode Selection: Toggling between different operational modes for the primary function, such as fast/slow speed settings or high/low pressure modes.
Advanced Control Capabilities: Feathering and Proportionality
The "Feathering" capability of this valve is a critical feature, indicating its capacity for proportional control rather than merely on/off switching. Feathering allows the operator to precisely modulate the flow of compressed air to the actuator, thereby controlling the speed and force of its movement with exceptional finesse. Instead of an actuator moving at full speed or stopping abruptly, feathering enables incremental adjustments, ranging from a slow crawl to full extension or retraction. This is achieved by the internal design of the valve, which allows for gradual opening and closing of air passages as the lever is moved incrementally. Applications benefiting immensely from feathering include:
- Delicate Load Positioning: Carefully lowering a heavy container onto a chassis with minimal impact.
- Precise Articulation: Adjusting the angle of a snow plow blade to match terrain contours.
- Smooth Transitions: Initiating and terminating movement without jerky motions, reducing wear on mechanical components and improving load stability.
Safety and Operational Integrity: Spring to Neutral / Deadman Control
The inclusion of "Spring to Neutral / Deadman Control" is a paramount safety feature for this valve, particularly in mobile and heavy machinery applications. This mechanism ensures that the control lever automatically returns to a neutral, non-actuating position as soon as the operator releases it. In practical terms, this means that if an operator's hand is removed from the lever for any reason – intentional release, accidental slip, or an emergency – the valve immediately ceases air flow to the actuator, bringing the associated machinery function to a halt or returning it to a safe, default state. This "deadman" principle is a critical safeguard against unintended machine movements, which could otherwise lead to accidents, injuries, or damage to equipment or property. It mandates continuous operator engagement for any active function, thereby significantly mitigating risks associated with operator incapacitation or distraction. For applications like plows and hoists, where large, powerful movements are involved, this feature is not just beneficial, but often a mandatory safety requirement.
Powering Actuation: Double Acting Valve Action
The "Double Acting" classification of this valve refers to its capability to control double-acting pneumatic cylinders. A double-acting cylinder uses compressed air to power both its extension and retraction strokes, as opposed to single-acting cylinders which rely on a spring or external force for one of the strokes. This valve is specifically designed to direct air pressure to either side of the cylinder's piston, providing positive control over both directions of movement. The advantages of double-acting control are significant:
- Full Power in Both Directions: Provides controlled force for both extending and retracting motions, essential for tasks like lifting and lowering, pushing and pulling.
- Enhanced Control: Allows for precise positioning and speed control throughout the entire stroke length, independent of gravity or external loads.
- Increased Efficiency: Eliminates the need for return springs, which can consume energy and limit the force available for the working stroke.
System Integration and Modularity: The Stackable Design
The "Stackable" nature of this control valve offers significant advantages in terms of system design, installation, and future expandability. A stackable design means that multiple single-axis or dual-axis valves can be combined into a single, compact control assembly. This modularity provides:
- Space Efficiency: Multiple controls can be mounted in a confined space, simplifying control panel design.
- Simplified Plumbing: Common air supply and exhaust lines can be shared across stacked valves, reducing the number of individual connections and potential leak points.
- Scalability: Systems can be easily expanded by adding more valve sections as additional functions are introduced, without redesigning the entire control console.
- Maintenance Ease: Individual valve sections can often be serviced or replaced without disturbing the entire assembly.
Connectivity Standards: 1/8 NPT Female Port Type
The specification of "1/8 NPT female" for the port type denotes a standard and widely accepted interface for pneumatic connections. NPT (National Pipe Taper) is a common threading standard in North America for sealing pipes and fittings in various fluid power applications. The 1/8-inch size refers to the nominal pipe diameter. Key aspects of this port type include:
- Industry Standard: Ensures broad compatibility with a wide range of pneumatic hoses, fittings, and quick-disconnect couplings available on the market, simplifying integration into existing or new systems.
- Reliable Sealing: The tapered threads of NPT fittings create a mechanical seal when tightened, which is further enhanced by thread sealant (e.g., PTFE tape or paste) to prevent air leaks, critical for maintaining system pressure and efficiency.
- Pressure Handling: While specific pressure ratings for this valve would be detailed by the manufacturer, 1/8 NPT fittings are generally suitable for typical industrial and mobile pneumatic system pressures.
Primary Applications: Engineered for Demanding Mobile Equipment
The Buyers Products Single Axis Air Control Valve with its specific features is ideally suited for a range of heavy-duty mobile equipment, particularly in the "Plow / Hoist Control" category, and applications involving dump bodies. Its robust construction and precise control capabilities make it invaluable in environments where reliability and accuracy are paramount.
Plow Control
For snow plows, this valve provides granular control over the blade's position. The feathering capability allows operators to gently raise or lower the plow, articulate its angle, or apply down pressure with precision, crucial for navigating varied terrain and ensuring optimal snow removal without damaging the road surface or the plow itself. The spring-to-neutral feature acts as a critical safety mechanism, instantly disengaging the plow movement if the operator releases the handle, preventing accidental deployments or retractions. The 55-degree offset handle significantly reduces operator fatigue during long shifts, especially common during inclement weather operations, improving both safety and productivity.
Hoist Control (Hook Lift/Cable Lift Hoists)
In hook lift and cable lift hoist systems, precision and safety are non-negotiable. This valve facilitates the controlled raising and lowering of heavy containers and equipment. The double-acting capability ensures robust power for both lifting and gently lowering loads, preventing uncontrolled free-falls. Feathering allows for exact positioning of containers onto truck frames or ground surfaces, minimizing shock and potential damage. The deadman control is vital here, ensuring that the hoist immediately ceases movement if the operator loses contact, preventing loads from swinging dangerously or crushing objects. The on/off switch can be configured to enable the entire hoist system, acting as an additional layer of security or to activate auxiliary lighting for night operations.
Dump Bodies
For dump body operations, the valve provides precise control over the tilting mechanism. The feathering feature permits a gradual and controlled dump, essential when spreading aggregate materials evenly or avoiding sudden, heavy impacts during full dumps. The double-acting nature allows for controlled lowering of the dump body, preventing it from slamming down. The spring-to-neutral feature is critical for safety, ensuring the dump body immediately stops movement upon release of the control, preventing unintended lifting or lowering during transport or while personnel are in proximity.
Construction, Durability, and Environmental Resilience
The operational environment for mobile equipment is inherently harsh, characterized by extreme temperatures, persistent vibration, exposure to moisture, dust, and corrosive agents. Consequently, the Buyers Products Single Axis Air Control Valve is manufactured with materials and construction techniques designed to withstand these challenging conditions. Robust housing materials, often high-grade engineered polymers or corrosion-resistant metals, protect the internal pneumatic mechanisms. Seals and O-rings are selected for their resistance to degradation from temperature fluctuations and common industrial lubricants or contaminants. The entire assembly is typically designed to resist ingress of dust and moisture, ensuring consistent performance regardless of external conditions. This commitment to durability translates into a longer operational lifespan, reduced maintenance frequency, and superior reliability, minimizing costly downtime for equipment operators.
Installation, Integration, and Maintenance Best Practices
Proper installation is crucial for optimizing the performance and longevity of this air control valve. While specific instructions would accompany the product, general best practices include:
- Clean Air Supply: Ensuring the pneumatic system is supplied with clean, dry, filtered air is paramount. Contaminants can rapidly degrade internal seals and mechanisms.
- Secure Mounting: The valve should be securely mounted to prevent vibration-induced wear or loosening. Its compact width of 1.4 inches, depth of 4.7 inches, and height of 12 inches are conducive to various mounting orientations within a control console.
- Correct Plumbing: Using appropriate 1/8 NPT fittings and ensuring all connections are leak-free is essential for maintaining system pressure and efficiency.
- Electrical Integration: The on/off switch requires proper electrical wiring to the designated auxiliary circuit, adhering to voltage and current specifications.
Conclusion
The Buyers Products Single Axis Air Control Valve with its 55-degree handle offset and integrated on/off switch is a prime example of advanced engineering meeting the practical demands of the mobile equipment industry. Its blend of single-axis precision, ergonomic design, feathering control, robust safety features like spring-to-neutral actuation, and double-acting capability, all within a stackable and durable form factor, positions it as an essential component for critical applications. From the precise deployment of snow plows to the delicate maneuvering of heavy hoist loads and the controlled operation of dump bodies, this valve provides operators with the intuitive, reliable, and safe control interface necessary to perform their tasks efficiently and effectively. It represents an investment in operational excellence, operator well-being, and the long-term reliability of heavy-duty machinery.
