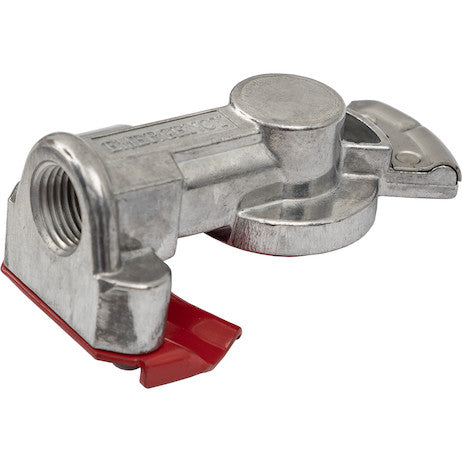

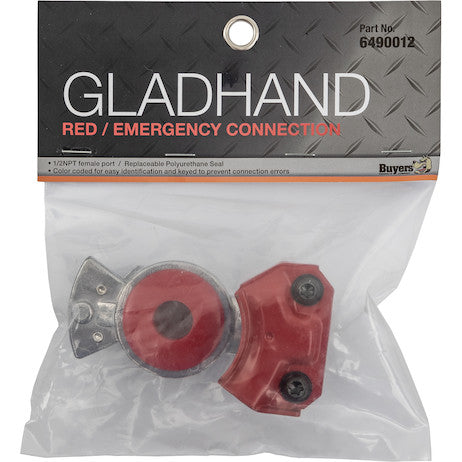

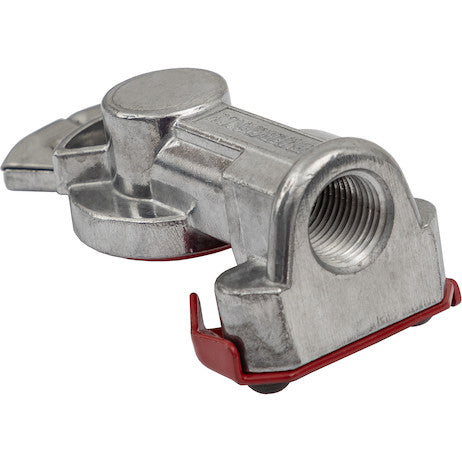

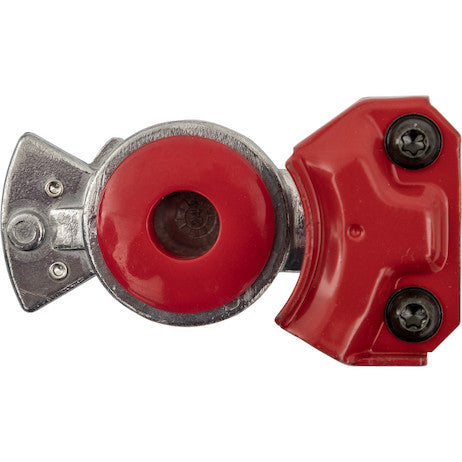

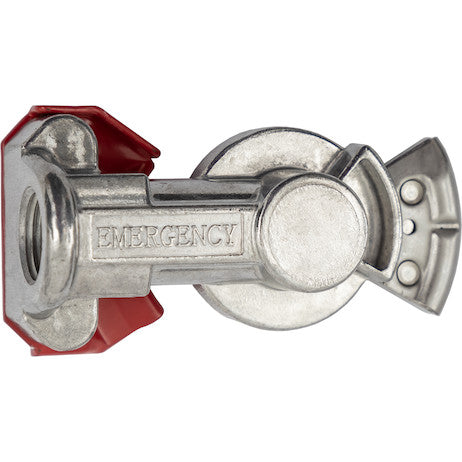

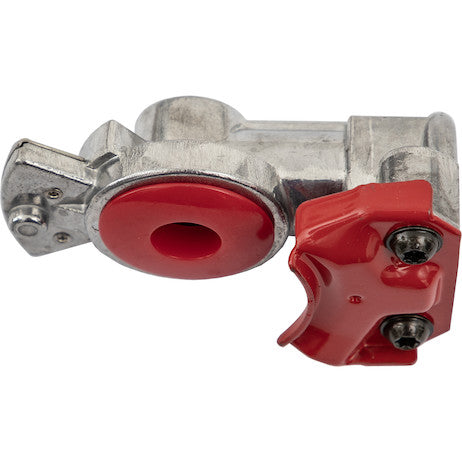

6490012 - Gladhand Red / Emergency Connection

Buyers Products Gladhand Connectors for Air Brake Systems allow for quick and secure coupling and uncoupling of your truck's air lines. The male and female connector lock together with a twisting motion, forming an airtight seal when connected. Designed to withstand harsh operating conditions, our Gladhands are offered in durable polyurethane or cast aluminum construction. Several connectors also feature polyurethane seals to prevent air leakage. Color-coded to ensure correct connections: red for the emergency brake line; blue for the service brake line.

Specifications

The Gladhand Red / Emergency Connection represents a critical component within the complex air brake systems of heavy-duty commercial vehicles. Engineered to facilitate the rapid and secure coupling and uncoupling of air lines between a tractor and its trailer, this specific gladhand is designated by its distinctive red color, signifying its exclusive role in the emergency brake circuit. This demarcation is not merely aesthetic but a fundamental safety feature, preventing inadvertent misconnections that could compromise vehicle control and operational integrity. Built to exacting standards, this gladhand leverages advanced material science and precision manufacturing to ensure unparalleled performance and durability in the most demanding operational environments, adhering strictly to D.O.T. FMVSS 571.106 regulations for air brake system components.

At the core of the gladhand's functionality is its innovative male and female interlock mechanism. When two gladhands are brought together, their mating faces align precisely, and a simple twisting motion locks them into a secure, hermetic seal. This design prevents accidental disengagement due to vehicle vibration, road irregularities, or sudden braking forces. The effectiveness of this connection is paramount; any compromise in the airtight seal can lead to a loss of air pressure within the emergency brake system, triggering an immediate and potentially dangerous chain of events. The robust mechanical design, coupled with high-performance sealing elements, guarantees that once connected, the air flow remains uninterrupted and precisely controlled, ensuring the emergency braking capabilities of the trailer are always maintained at optimal levels.

Material Science and Engineering for Extreme Durability

The selection of materials for the Gladhand Red / Emergency Connection is a testament to its engineering for longevity and reliability under duress. This particular model features a high-grade aluminum construction, chosen for its exceptional strength-to-weight ratio, superior corrosion resistance, and thermal stability. Unlike ferrous metals, aluminum exhibits inherent resistance to oxidation, a critical attribute given the constant exposure to moisture, road salt, de-icing chemicals, and abrasive road debris that commercial vehicles encounter. The lightweight nature of aluminum also contributes to overall vehicle efficiency without compromising structural integrity, a crucial consideration in the heavy-duty trucking industry where every gram contributes to fuel economy and payload capacity.

Further enhancing the aluminum body's resilience is a meticulously applied powder-coat finish. This advanced coating technique involves electrostatically applying a dry powder to the gladhand, which is then cured under heat to form a hard, durable layer. The powder-coat finish provides an additional barrier against chemical attack, impacts, and abrasion, significantly extending the gladhand's service life and maintaining its distinctive red color for easy identification. This multi-layered protection ensures that the gladhand remains functionally and visually robust throughout its operational tenure, resisting chipping, scratching, and fading far more effectively than traditional paint applications.

Complementing the robust aluminum body are the critical polyurethane seals. Polyurethane is an elastomer renowned for its exceptional physical properties, making it an ideal choice for pneumatic sealing applications. These seals exhibit outstanding resistance to abrasion, tearing, and ozone degradation, which are common failure modes for seals made from lesser materials. Furthermore, polyurethane maintains its elasticity and sealing effectiveness across a broad temperature range, from sub-zero winter conditions to the elevated temperatures generated by engine heat and prolonged braking. The inherent resistance of polyurethane to oils, fuels, and common hydraulic fluids also prevents chemical degradation, ensuring the seals remain pliable and leak-free for extended periods. This combination of material attributes guarantees a consistently airtight connection, preventing the minute air leakages that can accumulate over time and lead to significant pressure drops within the emergency air brake system.

The Imperative of FMVSS 571.106 Compliance

Compliance with D.O.T. FMVSS 571.106, the Federal Motor Vehicle Safety Standard for Air Brake Systems, is not merely a regulatory checkbox; it is a fundamental pillar of safety in commercial transportation. This standard sets forth rigorous performance requirements for all components within a vehicle’s air brake system, including gladhand connectors. It mandates that air brake systems must be capable of stopping a vehicle safely and reliably under various conditions, with specific stipulations regarding air pressure maintenance, leakage rates, and operational functionality. For gladhands, this translates into stringent requirements for their ability to form and maintain an airtight seal, withstand specified pressures without failure, and resist environmental degradation over time.

The Gladhand Red / Emergency Connection is meticulously designed and manufactured to not only meet but often exceed these demanding specifications. Each unit undergoes rigorous testing to validate its structural integrity, sealing efficiency, and resistance to environmental factors. Tests include pressure cycle testing to simulate repeated connections and disconnections, leak detection tests to ensure zero air loss under static and dynamic conditions, and environmental exposure tests (e.g., salt spray, extreme temperature cycling) to confirm durability. By meeting FMVSS 571.106, this gladhand provides assurance that it will perform as intended in critical emergency braking scenarios, contributing directly to the overall safety of the vehicle, its cargo, and all road users. Failure to comply with such standards can result in severe legal penalties, vehicle downtime, and, most critically, catastrophic accidents.

Understanding the Emergency Brake Line: Red for Safety

The color-coding of gladhands, particularly the red designation for the emergency brake line, is a critical human factors engineering principle applied to commercial vehicle operation. The emergency air line, sometimes referred to as the supply line or control line, serves a dual purpose: it supplies air pressure from the tractor to the trailer's air reservoirs, and it controls the application and release of the trailer's parking/emergency brakes. When the emergency gladhand is connected and pressurized, the trailer's emergency brakes are released. Conversely, a loss of pressure in this line—whether intentional (e.g., parking the trailer, disconnecting the gladhand) or unintentional (e.g., a ruptured air line, a significant leak)—will automatically apply the trailer's emergency brakes, bringing the trailer to a controlled stop.

This fail-safe mechanism underscores the absolute necessity of correctly identifying and connecting the red gladhand. Misconnecting the emergency line with the service brake line (typically blue) could lead to a complete loss of trailer braking control, a scenario with potentially dire consequences. The service brake line, identified by its blue gladhand, transmits modulated air pressure from the tractor's foot valve to the trailer's service brake chambers, allowing the driver to apply and release the trailer's brakes dynamically during operation. The clear visual distinction provided by the red powder-coat finish is therefore an indispensable safety feature, reducing the potential for human error during the critical coupling process and ensuring that the vital emergency braking system operates as designed.

Installation, Maintenance, and System Integration

Proper installation and routine maintenance are paramount to maximizing the operational life and ensuring the consistent performance of the Gladhand Red / Emergency Connection. The straight fitting shape and 1/2 NPT (National Pipe Taper) thread size are standard for this application, facilitating a straightforward and secure connection to the vehicle's existing air brake plumbing. During installation, it is crucial to ensure clean, undamaged threads on both the gladhand and the air line connection. The use of an appropriate thread sealant (e.g., PTFE tape or liquid sealant) is recommended to prevent air leakage through the threaded connection, applying it only to the male threads to avoid contamination of the air system. Overtightening should be avoided to prevent stripping threads or damaging the gladhand body, while insufficient torque can lead to leaks. Adhering to manufacturer-specified torque values is always the best practice.

Routine inspection of gladhands is a simple yet effective preventative maintenance task. Technicians should visually inspect the gladhand body for any signs of physical damage, corrosion, or deformation. More critically, the polyurethane seals should be checked for cracks, hardening, excessive wear, or embedding of foreign debris. Worn or damaged seals are a primary cause of air leakage and should be replaced immediately. The locking mechanism should also be tested to ensure it engages securely without excessive play. Periodically cleaning the gladhand faces and seals of dirt and grime can also extend their life and ensure a reliable connection. Addressing minor issues promptly prevents them from escalating into more significant and costly failures, thereby minimizing vehicle downtime and enhancing safety.

Within the broader context of the tractor-trailer air brake system, the gladhand serves as a critical interface that bridges the air pressure circuits of two distinct vehicle units. Air from the tractor's compressor and reservoirs flows through the emergency line (via the red gladhand) to charge the trailer's air tanks. This continuous supply of air maintains the pressure necessary for both service braking and to keep the emergency brakes released. The precise pressure regulation and consistent air flow facilitated by a high-quality gladhand are integral to the proper function of the trailer's brake valves, air chambers, and slack adjusters. A compromised gladhand can disrupt this delicate balance, leading to issues ranging from slow brake response and increased stopping distances to complete loss of trailer braking capability or unintended trailer brake application. Therefore, the reliability of this seemingly simple component directly impacts the entire braking performance of a combination vehicle.

Conclusion

The Gladhand Red / Emergency Connection is far more than a simple coupler; it is a precisely engineered, safety-critical component essential for the secure and reliable operation of heavy-duty truck and trailer air brake systems. Its robust aluminum construction, enhanced by a durable powder-coat finish, provides exceptional resistance to environmental rigors, while its high-performance polyurethane seals ensure an airtight, leak-free connection under all conditions. The distinct red coloring is a vital visual cue, preventing dangerous misconnections of the emergency air line. Furthermore, its strict adherence to D.O.T. FMVSS 571.106 regulations underscores its commitment to safety and performance excellence. By facilitating quick, secure connections and upholding the integrity of the emergency braking circuit, this gladhand plays an indispensable role in ensuring the operational safety and efficiency of commercial vehicles, embodying reliability, durability, and unwavering compliance with the highest industry standards.
