Buyers Products Gladhand Connectors for Air Brake Systems allow for quick and secure coupling and uncoupling of your truck's air lines. The male and female connector lock together with a twisting motion, forming an airtight seal when connected. Designed to withstand harsh operating conditions, our Gladhands are offered in durable polyurethane or cast aluminum construction. Several connectors also feature polyurethane seals to prevent air leakage. Color-coded to ensure correct connections: red for the emergency brake line; blue for the service brake line.
Specifications
| Color | Blue |
|---|---|
| Finish | Powder-Coat |
| Fitting Shape | 45?? Elbow |
| Material | Multiple |
| Meets D.O.T. FMVSS 571.106 Air Brake Performance Regulations (y/n) | Yes |
| Pipe Thread Size | 3/8 NPT |

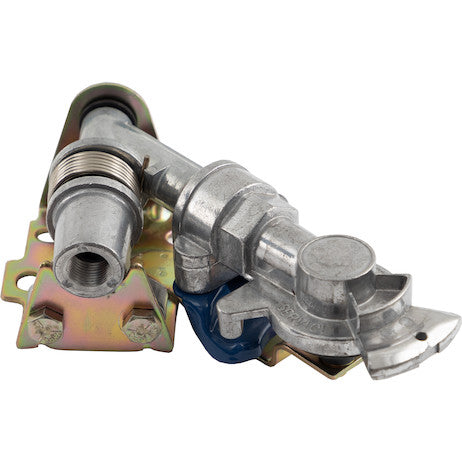

Advanced Gladhand Blue / Service Connection: Precision Engineering for Commercial Air Brake Systems
The Gladhand Blue / Service Connection, featuring a 45-Degree Spring Loaded Swing Away design, represents a pinnacle in pneumatic coupling technology for commercial heavy-duty vehicles. This highly specialized component is meticulously engineered to serve as the critical interface for the service air brake line, ensuring precise and reliable transmission of modulated air pressure from the tractor to the trailer's braking system. Its robust construction, innovative features, and adherence to stringent industry standards underscore its indispensable role in maintaining vehicular safety and operational efficiency within the logistics and transportation sectors.
Functional Imperative: The Service Brake Line
The blue gladhand connector is specifically designated for the service brake line, a critical conduit for the primary braking action. In a dual-line air brake system, the service line carries the variable air pressure commanded by the driver via the foot valve, directly controlling the application and release of the trailer's brakes. A flawless connection here is paramount; any compromise in integrity can lead to delayed brake response, reduced braking force, or, in severe cases, complete loss of trailer braking capability. The distinct blue color coding is not merely an aesthetic choice but a crucial safety measure mandated by industry best practices and regulatory bodies, preventing misconnections that could result in catastrophic accidents.
The Ergonomics and Efficacy of the 45-Degree Elbow Design
The integrated 45-degree elbow on this gladhand connector is a deliberate design choice that significantly enhances both ergonomic functionality and system longevity. In the dynamic and often confined spaces encountered during coupling operations, a straight connector can induce undue stress on air lines, leading to kinking, abrasion, and premature wear. The 45-degree angle provides a natural, stress-free routing for the air hose as it extends from the tractor's service port to the trailer's corresponding gladhand. This optimized geometry minimizes sharp bends and torsional forces on the hose, preserving its structural integrity and ensuring consistent airflow, which is critical for responsive braking. Furthermore, the angled orientation can facilitate easier access and manipulation during connection and disconnection, particularly in challenging weather conditions or when operators are working in tight clearances, thereby reducing operational downtime and improving overall efficiency.
Innovation in Protection: The Spring-Loaded Swing Away Mechanism
One of the distinguishing features of this particular gladhand model is its advanced Spring Loaded Swing Away mechanism. This innovative design addresses common challenges associated with traditional gladhand connections, significantly enhancing durability, safety, and ease of use. The swing-away component allows the gladhand to pivot freely, typically within a 45 to 90-degree arc, under spring tension. This inherent flexibility provides several key advantages:
- Impact Protection: In busy loading docks, congested yards, or during general maneuvering, gladhand connections are frequently exposed to potential impacts from trailer movements, forklifts, or other equipment. The spring-loaded swing-away feature allows the gladhand to absorb and deflect these forces by yielding to the impact, rather than rigidly resisting it. This significantly reduces the likelihood of structural damage to the gladhand itself, its mounting bracket, or the connected air line, thereby extending the service life of the entire assembly.
- Reduced Hose Strain: As mentioned, the 45-degree elbow helps with routing. The swing-away mechanism further complements this by accommodating dynamic movements between the tractor and trailer during operation. As the vehicles articulate, especially during turns or over uneven terrain, the air lines experience varying degrees of pull and twist. The ability of the gladhand to swing away alleviates these stresses, preventing excessive tension or chafing on the air hose where it connects to the gladhand, a common point of failure for fixed connectors.
- Enhanced Coupling Ergonomics: The inherent flexibility makes the coupling process more forgiving. Operators can approach the connection with slightly less precision, as the gladhand can self-align to some degree, "swinging into" the optimal position for engagement. This can be particularly beneficial in low-light conditions or when operating quickly, reducing the effort and time required to establish a secure connection.
- Self-Protection During Non-Use: When disconnected, the spring mechanism can be designed to hold the gladhand in a protected, often retracted, position. This shields the sealing face from dirt, debris, and environmental exposure, maintaining the integrity of the critical sealing surface and reducing the need for frequent cleaning or premature seal replacement.
This intelligent mechanical integration represents a significant advancement over static designs, offering superior resilience against operational wear and tear and contributing directly to reduced maintenance costs and enhanced vehicle uptime.
Material Science and Construction Integrity
The performance and longevity of any pneumatic component in harsh environments are fundamentally determined by its material composition. This gladhand connector leverages a "Multiple" material approach, predominantly employing durable polyurethane or robust cast aluminum, complemented by a protective powder-coat finish and high-performance polyurethane seals.
- Cast Aluminum: For components requiring high structural rigidity and resistance to mechanical stress, cast aluminum is an ideal choice. Its excellent strength-to-weight ratio minimizes added mass to the air line system while providing superior resistance to impact and deformation. Aluminum inherently offers good corrosion resistance, which is further amplified by the powder-coat finish, making it suitable for exposure to road salts, chemicals, and varying atmospheric conditions.
- Polyurethane: Where flexibility, resilience, and exceptional abrasion resistance are critical, polyurethane is employed. This advanced polymer is particularly valuable for components exposed to repetitive motion, vibration, or potential scuffing. Its elastic properties allow it to absorb energy without permanent deformation, making it highly resistant to cracking and chipping, even in extreme temperatures. When used for the body, it offers excellent dielectric properties and acoustic damping.
- Polyurethane Seals: The integrity of an air brake system hinges on leak-free connections. Polyurethane seals are chosen for their outstanding resistance to compression set, high tensile strength, and excellent resilience across a broad temperature range. They maintain their sealing effectiveness even after repeated cycles of connection and disconnection, and exposure to oils, greases, and atmospheric ozone. This ensures a consistent, airtight seal, preventing pressure drops that could compromise braking performance.
- Powder-Coat Finish: Applied to metal components, the powder-coat finish provides a superior layer of protection against environmental degradation. This electrostatically applied and heat-cured coating creates a tough, aesthetic, and highly durable surface that is significantly more resistant to chipping, scratching, fading, and corrosion than traditional liquid paints. It contributes to the gladhand's ability to maintain its appearance and structural integrity over years of service in demanding outdoor conditions.
The strategic selection and application of these materials ensure that the gladhand not only performs optimally but also withstands the rigorous demands of commercial vehicle operation, including vibration, extreme temperatures, chemical exposure, and physical abuse.
Precision Threading: 3/8 NPT Pipe Thread Size
The specification of a 3/8 NPT (National Pipe Taper) pipe thread size is a standard dimension within heavy-duty pneumatic systems, ensuring broad compatibility and interchangeability with existing air brake plumbing. NPT threads are designed with a taper that creates an interference fit between the male and female threads, forming a mechanical seal when tightened. This tapered design, often augmented with thread sealant compounds, is crucial for establishing and maintaining a leak-free connection capable of withstanding the pressurized air within the brake system. The 3/8 NPT size is carefully selected to balance sufficient airflow capacity for rapid brake application and release with a compact physical footprint, allowing for efficient integration into the vehicle's air system without excessive bulk.
Adherence to Regulatory Excellence: D.O.T. FMVSS 571.106 Compliance
Compliance with D.O.T. FMVSS 571.106, the Federal Motor Vehicle Safety Standard for Air Brake Systems, is not merely a feature but a fundamental requirement for any component integral to a commercial vehicle's braking infrastructure. This standard outlines comprehensive performance requirements for air brake components, ensuring they meet rigorous safety criteria under various operating conditions. For gladhand connectors, compliance signifies that the product has undergone extensive testing and certification to guarantee its reliability in critical areas such as:
- Pressure Integrity: The gladhand must withstand specified operating and burst pressures without leakage or structural failure, ensuring the continuous and reliable supply of air pressure to the trailer brakes.
- Sealing Performance: The connection must form an airtight seal that can maintain pressure over extended periods, preventing air loss that could lead to diminished braking performance or system failure.
- Durability and Endurance: The connector must demonstrate resistance to fatigue, wear, and environmental degradation under simulated long-term operational stresses, including vibration, temperature cycling, and exposure to contaminants.
- Connection/Disconnection Forces: The forces required to couple and uncouple the gladhand must fall within specified ranges, ensuring that connections are secure yet manageable for operators, preventing accidental disconnections or excessive physical strain.
- Material Compatibility: All materials used must be compatible with air brake system fluids and gases and must not degrade under typical operating conditions.
By meeting FMVSS 571.106, this Gladhand Blue / Service Connection provides a verified assurance of quality, safety, and reliability, offering peace of mind to operators, fleet managers, and regulatory bodies alike. It underscores a commitment to manufacturing excellence and ultimately contributes to safer roads for everyone.
Operational Dynamics and Best Practices
The effective functioning of the Gladhand Blue / Service Connection relies on both its intrinsic design and proper operational practices. When connecting, the operator aligns the male and female gladhands, pushing them together, and then twists to lock the unique inter-locking faces. This twisting motion compresses the internal seals, forming the airtight pneumatic connection essential for brake system operation. Disconnection is achieved by reversing this twisting motion and pulling the connectors apart. Operators are advised to regularly inspect gladhand faces for debris, damage, or wear on the seals, as these can compromise the airtight seal. Proactive maintenance, including cleaning and occasional replacement of seals or the entire unit when wear is evident, is crucial to prevent air leaks and ensure optimal brake system response.
Conclusion: A Critical Link for Uncompromised Safety and Performance
The Gladhand Blue / Service Connection, with its 45-Degree Spring Loaded Swing Away design, is far more than a simple coupler; it is a meticulously engineered component that embodies advanced pneumatic technology, robust material science, and an unwavering commitment to safety. Its color-coded identification for the service line, ergonomic angled design, protective swing-away mechanism, durable multi-material construction, precise threading, and full compliance with D.O.T. FMVSS 571.106 collectively ensure its reliability in the most demanding commercial transportation environments. By providing a secure, leak-free, and resilient interface for the service air brake system, this gladhand connector contributes significantly to the operational integrity, driver confidence, and overall safety profile of heavy-duty truck and trailer combinations, making it an indispensable asset for any modern fleet.
