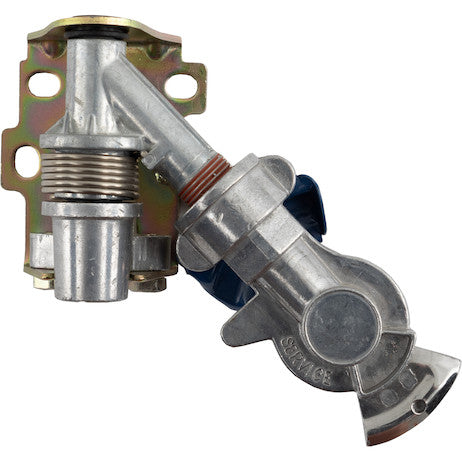

Buyers Products Gladhand Connectors for Air Brake Systems allow for quick and secure coupling and uncoupling of your truck's air lines. The male and female connector lock together with a twisting motion, forming an airtight seal when connected. Designed to withstand harsh operating conditions, our Gladhands are offered in durable polyurethane or cast aluminum construction. Several connectors also feature polyurethane seals to prevent air leakage. Color-coded to ensure correct connections: red for the emergency brake line; blue for the service brake line.
Specifications
| Color | Blue |
|---|---|
| Material | Polyurethane |
| Meets D.O.T. FMVSS 571.106 Air Brake Performance Regulations (y/n) | Yes |
| Pipe Thread Size | - |

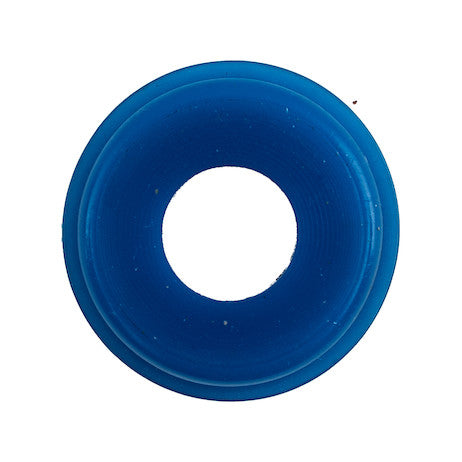

The Critical Role of the Gladhand Full Face Replacement Seal in Commercial Air Brake Systems
In the demanding world of commercial transportation, the reliability and safety of heavy-duty vehicles hinge on the meticulous performance of every component, particularly within the air brake system. At the heart of this crucial system, ensuring the integrity of pneumatic connections between a tractor and its trailer, are the gladhand connectors. While the gladhand itself provides the mechanical coupling, the true guardian of system pressure and operational efficacy is the internal seal. The Gladhand Color Coded Blue Full Face Replacement Seal represents a pinnacle in engineering for this vital function, specifically designed for the service brake line, and engineered to meet the rigorous demands of sustained, high-performance operation.
Understanding Gladhand Connectors and Their Functionality
Gladhand connectors, often referred to as air couplings or palm-type couplings, serve as the primary interface for connecting the air lines of a tractor to those of a semi-trailer. This connection facilitates the transmission of compressed air from the tractor's air compressor and reservoirs to the trailer's braking system, essential for both service braking and emergency braking functions. The male and female components of a gladhand connector engage through a secure twisting motion, establishing a robust mechanical link. However, this mechanical linkage is only as effective as the pneumatic seal it creates. Without an airtight seal, air pressure cannot be maintained, leading to diminished braking performance, increased compressor cycling, and potential safety hazards. The distinction between the emergency and service brake lines is critical, a differentiation effectively managed through universally accepted color-coding standards: red for the emergency line and blue for the service line. This blue replacement seal is specifically engineered for the service brake line, managing the air pressure that directly activates the trailer's brakes during normal operation.
The Engineering Excellence of Polyurethane: A Superior Material Choice
The selection of material for a gladhand seal is paramount, directly influencing its longevity, resilience, and sealing capabilities. Our Gladhand Full Face Replacement Seal is manufactured from high-grade polyurethane, a material renowned for its exceptional properties that significantly outperform traditional rubber elastomers in critical applications. Polyurethane uniquely combines rubber's elasticity with plastic's rigidity and wear resistance. Its urethane linkages provide superior physical and chemical resistance. This material offers outstanding tensile strength, ensuring the seal withstands dynamic pressures and stresses without permanent deformation or tearing. Furthermore, polyurethane exhibits excellent abrasion resistance, crucial given repeated coupling/uncoupling cycles and potential exposure to particulate matter. Its remarkable resilience maintains sealing integrity after numerous compression/decompression cycles, mitigating air leak risks over an extended service life. Beyond mechanical strength, polyurethane offers robust chemical resistance, impervious to common automotive contaminants like oils, greases, fuel residues, and road salts. Unlike natural rubber, which degrades from ozone and UV radiation, polyurethane maintains structural and sealing properties under prolonged outdoor exposure, preventing embrittlement, cracking, and premature failure. Its wide operational temperature range further enhances suitability, performing reliably in extreme cold where rubber might become brittle, and in high heat without softening excessively. This material superiority ensures consistent, leak-free performance across diverse operational conditions, directly contributing to air brake system safety and efficiency.

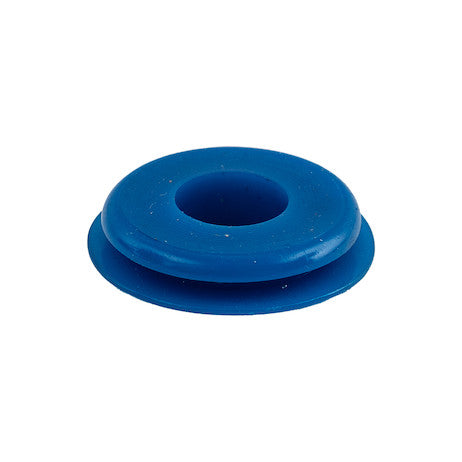

The Significance of the "Full Face" Design
The "Full Face" designation for this replacement seal is not merely a descriptive term; it signifies a specific engineering design principle aimed at maximizing sealing efficiency and durability. Traditional or partial seals may offer insufficient contact area, leading to localized stress points, uneven wear patterns, and potential pathways for air leakage. A full face seal, by contrast, is designed to occupy the entire mating surface within the gladhand connection. This comprehensive contact area distributes the clamping force more evenly across the seal's surface when the gladhand connectors are engaged. The benefits of this design are multi-fold:
- Enhanced Sealing Integrity: By covering the entire interface, the full face design eliminates potential bypass channels, creating a more robust and impermeable barrier against air loss. This holistic contact ensures a consistently airtight seal, crucial for maintaining optimal air pressure throughout the braking system.
- Uniform Wear Distribution: The even distribution of pressure across the seal's surface minimizes localized stress concentrations, which are common culprits for premature wear and failure in lesser designs. This results in a significantly longer operational lifespan for the seal, reducing the frequency of replacements and associated maintenance costs.
- Improved Resistance to Contaminants: A full face seal presents a larger, more complete barrier against the ingress of dust, dirt, moisture, and other foreign particles into the air brake lines. This protection is vital for preventing contamination of pneumatic components, which can lead to valve malfunctions, compressor issues, and compromised braking performance.
- Increased Durability Under Dynamic Loads: Commercial vehicle air brake systems are subjected to constant vibrations, pressure fluctuations, and mechanical stresses. The full face design, with its superior structural stability, is better equipped to absorb and dissipate these dynamic loads without compromising its sealing function.
Compliance with D.O.T. FMVSS 571.106: A Benchmark for Safety
The "Meets D.O.T. FMVSS 571.106 Air Brake Performance Regulations" declaration is a critical indicator of this gladhand replacement seal's quality and suitability for commercial vehicle applications. Federal Motor Vehicle Safety Standard (FMVSS) 106, specifically within Part 571, outlines the stringent performance requirements for brake hoses and their associated fittings, including gladhand seals, used in hydraulic, air, and vacuum brake systems. This regulation is established by the National Highway Traffic Safety Administration (NHTSA) to ensure the safety and reliability of braking components, thereby preventing accidents caused by brake system failures.
For gladhand seals, FMVSS 106 specifies performance criteria related to:
- Leakage Rates: Defines the maximum permissible air leakage under various pressure conditions to ensure that the brake system can maintain adequate pressure for safe operation. A high-quality seal like this polyurethane full face design is engineered to exhibit negligible leakage, far exceeding the minimum requirements.
- Pressure Resistance: Specifies the ability of the seal to withstand sustained high pressures without rupture or failure, reflecting the maximum operating pressures within commercial air brake systems.
- Temperature Extremes: Mandates performance stability across a broad range of temperatures, ensuring the seal remains effective in both freezing arctic conditions and scorching desert environments.
- Cyclic Durability: Requires the seal to endure a specified number of connection/disconnection cycles and pressure fluctuations without degradation in sealing performance, simulating real-world operational wear.
- Material Compatibility: Ensures that the materials used in the seal are compatible with compressed air and do not degrade under typical operating conditions or exposure to common atmospheric elements.
Adherence to FMVSS 571.106 signifies rigorous design, testing, and manufacturing, ensuring a component that meets the highest safety and performance standards. For fleet operators and maintenance professionals, choosing a certified replacement seal provides absolute assurance of regulatory compliance and, more importantly, enhanced operational safety. It means the product has been independently verified to perform reliably under the most challenging conditions, directly contributing to the prevention of catastrophic brake failures and ensuring the vehicle's roadworthiness.
The Importance of Color-Coding: Blue for Service Brake Lines
The color-coding of gladhand components, specifically blue for the service brake line, is a standardized safety feature that plays an indispensable role in preventing critical errors during trailer hookups. In dual-line air brake systems, the service brake line (often referred to as the "control line") transmits pressure from the tractor's foot valve or hand valve to the trailer's service brake chambers, allowing the driver to modulate braking force. The emergency brake line (red) carries a constant supply of air pressure to hold the trailer brakes released; a loss of pressure in this line automatically applies the trailer's emergency brakes.
The visual distinction provided by the blue color for the service line seal simplifies the connection process for drivers and technicians, drastically reducing the possibility of misconnection. A reversal of these lines—connecting the service line to the emergency port and vice-versa—would lead to immediate and severe operational hazards. For instance, if the service line were mistakenly connected to the emergency port, the trailer brakes would apply when the tractor's service brakes are released, and vice versa. This could result in uncontrolled braking, jackknifing, or complete loss of braking capability, with potentially fatal consequences. The blue color-coded full face replacement seal directly supports this critical safety protocol, ensuring that correct connections are made swiftly and intuitively, thereby upholding the integrity and safe operation of the entire braking system.
Installation and Maintenance Best Practices
While the Gladhand Color Coded Blue Full Face Replacement Seal is engineered for durability, proper installation and routine maintenance are crucial for maximizing its lifespan and ensuring continuous optimal performance. When replacing a seal, it is imperative to ensure that the gladhand housing is clean and free from any debris, rust, or damage that could compromise the new seal's integrity. A clean mating surface ensures uniform contact and an effective seal.
Installation should involve careful placement, ensuring the full face design is correctly seated within its recess, avoiding any pinching or twisting of the material. While polyurethane is robust, improper installation can lead to immediate or premature failure. No lubricants, beyond a very thin film if specified by the gladhand manufacturer, should typically be used that could degrade the polyurethane.
Regular inspection of gladhand seals is a fundamental aspect of preventative maintenance for commercial vehicles. Technicians should look for visible signs of wear, such as cracking, tearing, hardening, or significant compression set. Any indication of air leakage around the gladhand connection, often detectable by a hissing sound or through a soap-and-water test, mandates immediate inspection and probable seal replacement. Proactive replacement of seals showing early signs of degradation, even before obvious leakage occurs, can prevent costly roadside breakdowns and ensure compliance with safety regulations. Factors such as exposure to extreme temperatures, frequent coupling/uncoupling, and abrasive environments can accelerate seal wear, necessitating more frequent checks.
Contributing to Overall System Efficiency and Longevity
The quality of a gladhand seal, though a small component, has a profound impact on the overall efficiency and longevity of a commercial air brake system. A perfectly sealed connection prevents air loss, which directly reduces the workload on the vehicle's air compressor. A compressor that runs less frequently consumes less fuel and experiences less wear and tear, extending its operational life and reducing maintenance costs. Conversely, persistent air leaks due to worn or inferior seals force the compressor to work harder and more often, leading to increased fuel consumption, accelerated component wear, and potential overheating of the compressor or air dryer.
Furthermore, consistent air pressure maintained by leak-free seals ensures optimal braking response times and consistent braking performance across the trailer's axles. This contributes to smoother, more predictable stopping, which is critical for cargo safety and accident prevention. By choosing a high-quality, D.O.T.-compliant polyurethane full face replacement seal, fleet operators invest in a component that not only meets safety standards but also significantly contributes to the operational economy, reliability, and extended service life of their valuable assets.
Conclusion: An Investment in Safety and Performance
The Gladhand Color Coded Blue Full Face Replacement Seal is far more than a simple spare part; it is a meticulously engineered component critical to the safe and efficient operation of commercial air brake systems. Its specific design for the service brake line, coupled with the superior material properties of polyurethane and a full face configuration, ensures an unparalleled level of sealing integrity and durability. Meeting D.O.T. FMVSS 571.106 regulations affirms its compliance with the highest safety and performance benchmarks. For professionals responsible for the maintenance and operation of heavy-duty vehicles, selecting this premium replacement seal is not merely a choice for compliance but an astute investment in prolonged equipment life, reduced operational costs, and, most importantly, the unwavering safety of drivers and cargo on the road. Its robust construction and intelligent design guarantee that the vital pneumatic connection for the service brake line remains secure and leak-free, providing peace of mind and reliable performance mile after mile.
