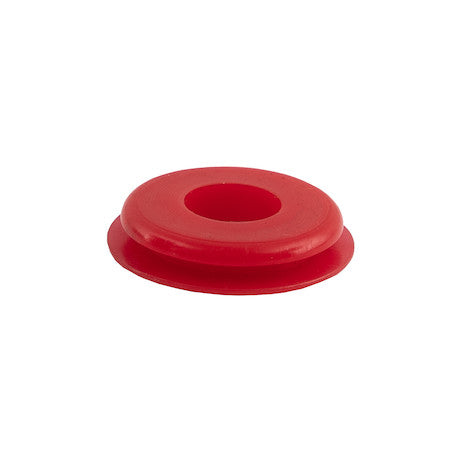

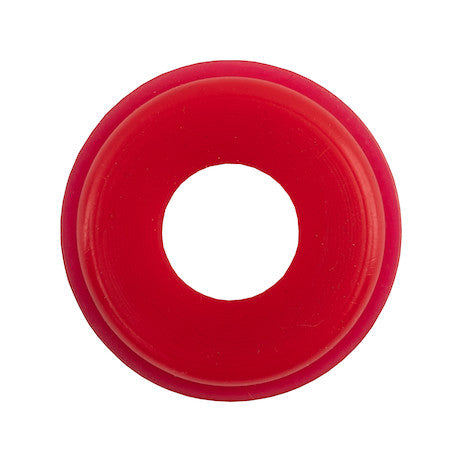

6490032 - Gladhand Color Coded Red Full Face Replacement Seal

Buyers Products Gladhand Connectors for Air Brake Systems allow for quick and secure coupling and uncoupling of your truck's air lines. The male and female connector lock together with a twisting motion, forming an airtight seal when connected. Designed to withstand harsh operating conditions, our Gladhands are offered in durable polyurethane or cast aluminum construction. Several connectors also feature polyurethane seals to prevent air leakage. Color-coded to ensure correct connections: red for the emergency brake line; blue for the service brake line.

Specifications

Gladhand Color Coded Red Full Face Replacement Seal: Precision Engineering for Critical Air Brake Systems

The integrity of a commercial vehicle's air brake system is paramount for operational safety and compliance with stringent regulatory standards. Within this complex pneumatic framework, every component plays a critical role, and perhaps none is as frequently engaged and essential as the gladhand connection. Specifically, the seal within these connectors represents the frontline defense against air pressure loss, a condition that can compromise braking performance and lead to catastrophic failure. This detailed description focuses on the Gladhand Color Coded Red Full Face Replacement Seal, a precision-engineered component designed to meet and exceed the rigorous demands of heavy-duty truck and trailer applications.

This replacement seal is not merely a piece of rubber; it is a vital safety component, meticulously crafted from high-grade polyurethane and distinguished by its industry-standard red color coding. Its "full face" design signifies a superior sealing geometry, engineered to maximize contact area and maintain an impregnable barrier against air leakage, even under dynamic operating conditions and varying environmental stressors. As a replacement part, it underscores the importance of proactive maintenance and the cost-effective restoration of original equipment performance. Understanding the technical specifications, material science, and regulatory compliance associated with this specific seal is crucial for fleet managers, maintenance professionals, and owner-operators alike.

The Critical Role of Gladhand Seals in Air Brake Systems

Air brake systems in commercial vehicles rely on compressed air to actuate braking mechanisms. This requires a robust, leak-free pneumatic circuit from the compressor to the brake chambers. Gladhand connectors serve as the primary interface for coupling and uncoupling air lines between tractors and trailers. These connections are subjected to continuous vibration, temperature fluctuations, and environmental contaminants. The seal within the gladhand connector is the single most important element responsible for maintaining the necessary air pressure integrity at this crucial junction. A compromised seal, even with a minute leak, can lead to a gradual or rapid depletion of air pressure, directly impacting brake responsiveness and overall vehicle control. This is particularly critical for the emergency brake line, which the red seal signifies, as it maintains the air supply required to keep the trailer's brakes released. Loss of pressure in this line causes the emergency brakes to apply, potentially leading to roadside breakdowns and costly delays.

Detailed Examination of the "Red" Color Coding and Regulatory Compliance

The color coding of gladhand seals is not arbitrary; it is a standardized requirement mandated by the Federal Motor Vehicle Safety Standard (FMVSS) 571.106, specifically outlining air brake performance regulations. This regulation dictates that the gladhand for the emergency or supply line must be identified with a red color, while the service or control line gladhand must be blue. The red Gladhand Color Coded Red Full Face Replacement Seal specifically corresponds to the emergency brake line (also known as the supply line). This line provides continuous air pressure to the trailer's air reservoir, ensuring that the trailer's brakes remain disengaged during normal operation and are automatically applied in the event of an accidental uncoupling or air supply failure. The immediate visual identification offered by the red color is paramount for preventing misconnections, which could result in severe safety hazards, including unintended brake application or complete loss of braking capability. The adherence to this standard by manufacturers of replacement seals like this one ensures interoperability and consistent safety protocols across the industry.

Understanding the "Full Face" Design Advantage

The term "Full Face" in the context of this replacement seal refers to a design philosophy that optimizes the sealing surface area within the gladhand connector. Unlike simpler O-ring or partial-face seals that may rely on a narrow contact band, a full-face seal is engineered to cover the maximum possible mating surface between the two gladhand halves. This design offers several distinct advantages:

• Enhanced Sealing Efficiency: By maximizing the contact area, the full-face seal distributes the sealing pressure more evenly, significantly reducing the likelihood of localized leakage paths.
• Superior Resistance to Extrusion and Deformation: The broader profile and robust structure of a full-face seal make it inherently more resistant to being extruded out of its groove or deforming under high pressure or prolonged compression, common failure modes for lesser designs.
• Improved Durability: With more material contributing to the sealing integrity, the full-face design inherently possesses greater resistance to wear, tear, and abrasion over its operational lifespan, translating to extended service intervals.
• Tolerance for Minor Surface Imperfections: The expansive contact area can better compensate for minor surface irregularities or wear on the gladhand casting itself, providing a reliable seal even if the connector faces are not perfectly pristine.

The full-face geometry of this polyurethane seal is a direct contributor to its ability to maintain an airtight connection under the rigorous demands of commercial vehicle operation, reinforcing safety and operational reliability.

Material Science: Polyurethane for Optimal Performance

The selection of polyurethane as the material for this replacement seal is a deliberate engineering choice, reflecting its superior mechanical properties compared to conventional elastomers like natural rubber or neoprene, especially in the demanding environment of an air brake system. Polyurethane offers a unique combination of characteristics critical for this application:

• Exceptional Abrasion Resistance: Gladhand seals are subjected to constant rubbing and friction during coupling and uncoupling, as well as exposure to dust and debris. Polyurethane's outstanding abrasion resistance ensures a longer service life in these conditions.
• High Tear and Cut Resistance: The dynamic nature of the connection and potential for foreign object impingement necessitate a material with high tear strength, which polyurethane provides.
• Excellent Chemical Resistance: Air brake systems can be exposed to a variety of contaminants, including oils, greases, diesel, and road salts. Polyurethane exhibits strong resistance to these substances, preventing degradation and maintaining material integrity.
• Wide Temperature Range Performance: Commercial vehicles operate in diverse climates, from extreme cold to intense heat. Polyurethane retains its flexibility and sealing capabilities across a broad operational temperature spectrum, preventing hardening in cold or softening in heat.
• Superior Compression Set Resistance: Over time, seals under constant compression can permanently deform, losing their ability to rebound and maintain sealing force. Polyurethane's excellent compression set resistance ensures it maintains its shape and sealing effectiveness over extended periods.
• Dynamic Load Resilience: The constant vibration and mechanical stresses encountered by gladhand connections are effectively absorbed by polyurethane, which maintains its elastic properties, crucial for consistent sealing.

The manufacturing process for these polyurethane seals typically involves advanced injection or compression molding techniques, ensuring consistent density, dimensional accuracy, and optimal material property distribution throughout each unit. Rigorous quality control measures are implemented to verify that each seal meets specified hardness, tensile strength, and elongation requirements, ensuring reliable performance in the field.

The "Replacement Seal" Imperative: Maintenance and Longevity

While designed for durability, even the most robust seals have a finite lifespan. As a "replacement seal," this product addresses the essential need for proactive maintenance within fleet operations. Seals are wear components, and their degradation is inevitable due to factors such as:

• Repeated Coupling/Uncoupling Cycles: Mechanical wear from friction.
• Environmental Exposure: UV radiation, ozone, moisture, road chemicals.
• Temperature Cycling: Expansion and contraction stresses.
• Compression Set: Loss of elasticity over time.

Indicators of a failing gladhand seal include visible cracking, hardening, tearing, or permanent flattening (compression set). Regular inspection of gladhand connectors during routine vehicle maintenance is crucial. A proactive replacement strategy, rather than waiting for a noticeable air leak or system failure, offers significant benefits:

• Enhanced Safety: Ensures maximum braking efficiency and prevents emergency roadside situations caused by air loss.
• Reduced Downtime: Proactive replacement is quick and inexpensive, preventing prolonged vehicle downtime associated with diagnosing and repairing major air leaks or D.O.T. violations.
• Cost-Effectiveness: A minor investment in replacement seals can prevent more significant repair costs associated with compressor overuse or damage to other pneumatic components struggling to maintain pressure against a leak.
• Regulatory Compliance: Ensures the vehicle consistently meets FMVSS 571.106 standards, avoiding fines and operational restrictions.

Proper installation of the replacement seal is also key to its performance. This involves cleaning the gladhand groove, ensuring the seal is correctly oriented, and verifying its secure seating before reconnecting the air lines. This simple maintenance step significantly extends the operational reliability of the entire air brake system.

Technical Specifications and Performance Metrics

Beyond the material and design, the technical performance of the Gladhand Color Coded Red Full Face Replacement Seal is quantifiable. While specific pressure and temperature ratings can vary slightly, typical performance parameters for a high-quality polyurethane gladhand seal include:

• Operating Pressure Range: Engineered to maintain an airtight seal across the standard operating pressures of commercial vehicle air brake systems, typically ranging from 80 PSI to 125 PSI, with robust burst pressure capabilities significantly exceeding these values.
• Temperature Resistance: Capable of performing effectively in extreme ambient temperatures, often from -40°F (-40°C) up to 200°F (93°C), ensuring consistent performance in diverse climates.
• Cycle Life: Designed for thousands of coupling/uncoupling cycles, resisting fatigue and maintaining sealing integrity over the expected lifespan of the gladhand connector itself.
• Dimensional Precision: Manufactured to precise industry standard dimensions to ensure perfect fitment within standard gladhand connectors, guaranteeing interchangeability and ease of replacement. The "full face" aspect implies precise thickness and diameter to ensure optimal compression without excessive stress.

The compliance with D.O.T. FMVSS 571.106 is a testament to these rigorous performance characteristics, indicating that the product has undergone necessary testing to ensure it meets federal safety standards for air brake components.

Advantages of Choosing Buyers Products Replacement Seals

Opting for the Gladhand Color Coded Red Full Face Replacement Seal from Buyers Products offers distinct advantages, rooted in their commitment to quality and understanding of heavy-duty applications:

• Assured Quality and Durability: Leveraging high-grade polyurethane and meticulous manufacturing processes, these seals are built to withstand the harshest operating conditions, ensuring longevity and consistent performance.
• Guaranteed Compliance: The explicit statement of meeting D.O.T. FMVSS 571.106 regulations provides assurance of legal and safety compliance, a critical factor for commercial vehicle operators.
• Optimized Design: The full-face design, coupled with the inherent advantages of polyurethane, delivers superior sealing capability, reducing the incidence of air leaks and associated operational issues.
• Reliable Color Coding: The consistent and durable red coloring eliminates ambiguity, promoting correct connections and enhancing safety protocols for the emergency brake line.
• Cost-Effective Maintenance Solution: As an essential replacement part, it offers an economical way to extend the life of existing gladhand connectors, preventing more costly failures and ensuring minimal operational downtime.

By investing in genuine, high-quality replacement seals, fleet operators not only safeguard their vehicles and cargo but also protect their bottom line through reduced maintenance costs, improved fuel efficiency (by preventing compressor overwork), and enhanced operational uptime.

Conclusion

The Gladhand Color Coded Red Full Face Replacement Seal is an unassuming yet absolutely critical component in the commercial vehicle air brake system. Its design, material, and adherence to stringent regulatory standards underscore its importance. Crafted from durable polyurethane, featuring a performance-optimizing full-face design, and clearly color-coded red for the emergency brake line, this seal offers unparalleled reliability and safety. It represents a proactive investment in vehicle uptime, driver safety, and regulatory compliance. For any operation where the integrity of air brake connections cannot be compromised, choosing this precisely engineered replacement seal from Buyers Products is a decision that reinforces both operational excellence and peace of mind on the road.
