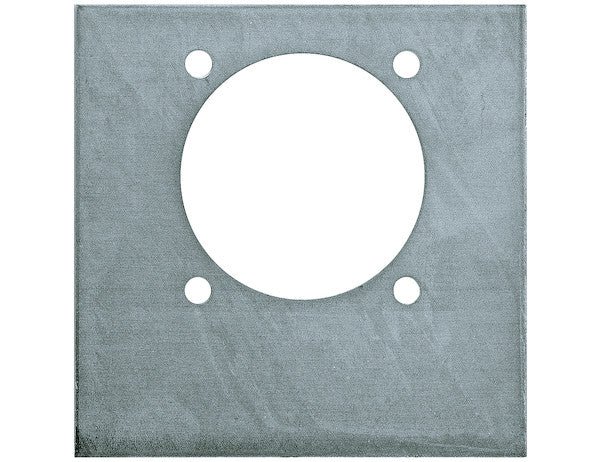

801BP - Back Support Plate For B801A Plain

Buyers Products Plain Back Support Plate for B801 Series Rope Ring provides additional support for a sturdy installation.

Specifications

The Buyers Products Plain Back Support Plate for the B801 Series Rope Ring represents a critical component in the design and implementation of robust cargo securement systems. While seemingly a simple accessory, its engineering and material specifications are precisely tailored to enhance the structural integrity and operational longevity of tie-down points across a myriad of applications, particularly within the demanding environments of commercial transportation and industrial equipment. This product is engineered not merely to facilitate installation but to fundamentally improve the distribution of dynamic and static loads, thereby mitigating localized stress concentrations that could otherwise lead to premature failure of the mounting surface or the securement assembly itself.

At the core of this support plate's efficacy is its material composition: Carbon Steel. Carbon steel is an iron-carbon alloy containing up to 2.1% by weight of carbon, and varying amounts of other alloying elements such as manganese, silicon, and copper. The specific grade of carbon steel chosen for structural components like this back support plate is typically a low to medium carbon steel, characterized by an optimal balance of strength, ductility, and formability. This material exhibits excellent tensile strength, which is the maximum stress a material can withstand while being stretched or pulled before breaking, and a high yield strength, which denotes the stress level at which permanent deformation begins. These mechanical properties are paramount for a component intended to bear significant and often unpredictable loads. Furthermore, carbon steel offers superior impact resistance, an essential characteristic for components exposed to the vibrations, shocks, and sudden forces inherent in vehicular and industrial operations. Its inherent toughness ensures that the plate can absorb and dissipate energy without catastrophic brittle fracture, providing a critical safety margin.

The manufacturing process for this carbon steel plate typically involves precision stamping or laser cutting, followed by forming operations to achieve precise dimensions and flatness. This meticulous fabrication ensures that each plate conforms to strict engineering tolerances, facilitating seamless integration with the B801 Series Rope Ring and the intended mounting substrate. The ability of carbon steel to be readily welded, machined, and formed makes it an economically viable yet high-performing choice for mass-produced industrial components, offering a cost-effective solution without compromising on the fundamental requirements of strength and reliability. Its uniform grain structure and absence of significant internal defects, when properly manufactured, contribute to its predictable mechanical behavior under various loading conditions, allowing engineers to reliably calculate its contribution to the overall system strength.

The engineering design principle underpinning the back support plate is primarily focused on load distribution and stress mitigation. When a rope ring, or any tie-down anchor, is secured directly to a thin sheet metal panel, a wooden deck, or a composite wall, the concentrated forces applied during cargo securement or transit can create immense localized stresses. These stresses can manifest as deformation, tearing, or pull-through of the mounting surface, especially under dynamic conditions where forces are amplified by acceleration, deceleration, and road irregularities. The back support plate addresses this by effectively increasing the load-bearing area. It acts as an intermediary structural element, spreading the concentrated point load from the rope ring's mounting hardware over a significantly larger surface area of the primary structure. This distribution reduces the stress intensity at any single point, thereby preventing localized yielding, fatigue crack initiation, and catastrophic failure of the mounting substrate. For instance, if a bolt is tightened to a specific torque, the compressive stress beneath the bolt head is significantly reduced when a back plate is introduced, allowing the bolt to maintain its preload more effectively and for longer durations.

Consideration of the plate's geometry is crucial. While specific dimensions are not provided in the summary, the effective area of the plate, its thickness, and the precision of its bolt holes are all critical design parameters. A sufficiently thick plate resists bending and buckling under compressive loads, ensuring that the load is transferred uniformly. The larger surface area of the back plate, relative to the rope ring's footprint, ensures that forces are distributed broadly. The accurate alignment of mounting holes is essential for proper fastener engagement, preventing eccentric loading on bolts and ensuring that the entire assembly functions as a single, cohesive unit. In dynamic environments, such as those experienced by commercial trailers and heavy-duty trucks, the back support plate also plays a vital role in enhancing the fatigue resistance of the entire tie-down assembly. Repeated cycles of loading and unloading, coupled with constant vibration, can lead to material fatigue. By distributing these stresses more effectively, the back plate extends the operational life of the tie-down point, reducing the likelihood of fatigue-induced failure and improving safety over time. Advanced design processes often incorporate Finite Element Analysis (FEA) to simulate various loading scenarios and optimize the plate's geometry and thickness for maximum effectiveness and material efficiency, ensuring that the design meets or exceeds performance requirements under extreme conditions.

The "Plain" finish of the carbon steel plate refers to its un-coated, mill-finished state. This choice of finish has several implications. On the one hand, a plain finish is economical, simplifying the manufacturing process by eliminating the need for additional surface treatments like galvanizing, painting, or powder coating. It also offers excellent weldability, which is advantageous if the plate is to be permanently integrated into a larger steel structure through welding. The absence of a coating means there are no concerns about coating integrity being compromised during installation or operational use from impact or abrasion. However, the primary disadvantage of a plain carbon steel finish is its inherent susceptibility to corrosion, specifically rust, when exposed to moisture and oxygen. In environments where the plate will be exposed to significant humidity, road salts, chemicals, or direct precipitation, post-installation protective measures are highly recommended. These might include painting with corrosion-resistant primers and topcoats, applying grease or wax coatings, or ensuring the installation location is otherwise protected from the elements. Regular inspection and maintenance are particularly important for plain finished components to monitor for signs of corrosion and to apply remedial treatments as necessary. For applications requiring superior corrosion resistance from the outset without user intervention, alternative finishes such as hot-dip galvanization, zinc plating, or electrostatic powder coating would be specified, each offering different levels of protection and aesthetic qualities at varying cost points. The decision for a plain finish often implies that the end-user or installer will manage the specific corrosion protection requirements based on their particular operating environment and maintenance protocols.

Proper installation methodology is paramount for realizing the full benefits of the Back Support Plate. The integrity of the entire tie-down system is only as strong as its weakest link, and often, that link is the installation itself. Key considerations include the selection of appropriate fasteners. For heavy-duty applications, high-strength, grade 8 bolts, nuts, and hardened washers are typically recommended. These fasteners are designed to withstand the same rigorous forces as the rope ring and back plate. The diameter and length of the bolts must be carefully chosen to pass through the rope ring, the mounting surface, and the back support plate, with sufficient thread engagement for the nut. Crucially, the fasteners should be tightened to their manufacturer-specified torque values. Correct torque application ensures that the bolts are properly preloaded, creating a clamping force that holds the entire assembly together tightly. Insufficient torque can lead to fasteners loosening under vibration, while excessive torque can strip threads, deform components, or even lead to fastener fracture. The use of thread-locking compounds can provide an additional layer of security against vibrational loosening. The mounting surface itself requires preparation; precise drilling of holes is essential, followed by deburring to remove any sharp edges that could compromise material integrity or fastener seating. When installing on differing substrates like wood, metal, or composites, specific precautions are necessary. For wood, larger washers or load-spreading plates may be beneficial, while for thin metal sheets, the back plate is critically important to prevent pull-through. Alignment of the rope ring, the mounting surface, and the back plate is vital to ensure that loads are distributed evenly and no component is subjected to eccentric loading. A thorough, sequential tightening pattern should be employed to ensure even compression across the entire contact surface. Periodic inspection of all tie-down points, including the back support plate and fasteners, is recommended to check for signs of wear, corrosion, loosening, or damage, thereby ensuring continuous operational safety.

The applications for the B801A Plain Back Support Plate are extensive, reflecting its utility across various industries requiring reliable cargo securement. These include, but are not limited to, flatbed trailers, enclosed cargo trailers, utility trailers, commercial trucks, cargo vans, recreational vehicles (RVs), agricultural equipment, marine vessels, and general industrial machinery. In each of these contexts, the plate's contribution is consistent: enhancing safety by providing a robust anchor point that minimizes the risk of cargo shifting, detaching, or causing damage during transit. This direct impact on safety translates into significant operational benefits, including reduced potential for accidents, lower incidence of cargo damage, and increased confidence for operators. Furthermore, by reinforcing the tie-down points, the back support plate contributes to the longevity of the entire vehicle or equipment structure, reducing wear and tear on mounting surfaces and extending the service life of both the rope ring and the underlying structure. This longevity ultimately results in lower maintenance costs and reduced downtime for repairs, thereby improving overall operational efficiency and profitability. Compliance with various transportation safety regulations often mandates secure cargo tie-downs, and the use of components like this back support plate helps ensure that such regulations are met or exceeded, safeguarding against penalties and ensuring legal operation.

Quality assurance in the manufacturing of such critical components is non-negotiable. Reputable manufacturers adhere to stringent quality control processes, encompassing material traceability, dimensional inspections, and mechanical testing to ensure that each back support plate meets its design specifications. Material certifications, such as those conforming to ASTM (American Society for Testing and Materials) standards for carbon steel, provide documented assurance of material properties. While the Work Load Limit (W.L.L.) for the back support plate itself is listed as '-', this notation reflects its role as a supporting component rather than a primary load-bearing device with its own distinct W.L.L. Instead, the back support plate acts as an enabling component, allowing the B801 Series Rope Ring to achieve its stated W.L.L. when installed correctly into a compatible structure. In essence, the W.L.L. of the entire tie-down system – comprising the rope ring, the back support plate, the fasteners, and the mounting substrate – is a synergistic function of the strength of all these elements combined. The back support plate is instrumental in ensuring that the mounting substrate does not become the limiting factor in the system's overall capacity, thus allowing the rope ring to operate at its maximum designed performance. The B801 Series, when integrated with this meticulously engineered back support plate, forms part of a complete, reliable, and durable cargo securement solution, epitomizing the importance of foundational strength in demanding industrial and transportation applications.
