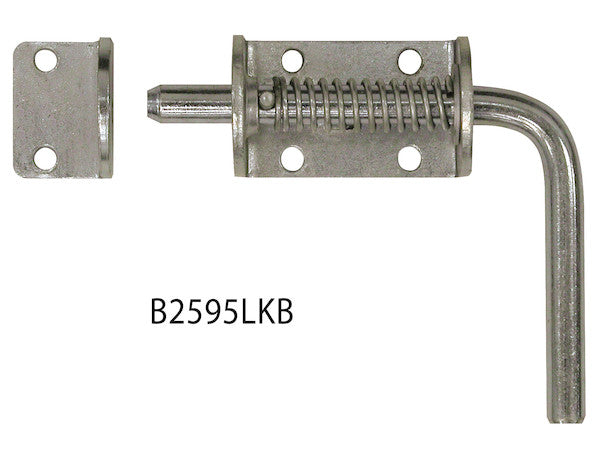

B2595LKB - 1/2 Inch Zinc Plated Spring Latch Assembly with Keeper

Buyers Products Spring Latch is ideal for uses where doors, compartments, or panels need to engage and disengage quickly and securely. The spring-loaded bolt can be locked in the open position as needed; turning the lever allows the bolt to close securely under spring pressure. The latch is available in your choice of stainless steel or zinc-plated steel and in various sizes. It can be ordered with or without the keeper. All mounting hardware is sold separately.

Specifications

Advanced Technical Overview: 1/2 Inch Zinc Plated Spring Latch Assembly with Keeper

The 1/2 Inch Zinc Plated Spring Latch Assembly with Keeper represents a robust and highly functional mechanical fastening solution engineered for critical applications demanding both rapid access and secure closure. This product, characterized by its 0.50-inch diameter bolt, comprehensive zinc plating, and integrated keeper, is meticulously designed to meet the rigorous demands of industrial, commercial, and heavy-duty environments. Its core utility lies in facilitating swift engagement and disengagement of doors, compartments, panels, gates, and other access points, all while ensuring a consistently positive and reliable lock-up under continuous spring pressure. The inclusion of a keeper as a standard component further enhances the integrity and longevity of the latching system, providing a dedicated strike surface that optimizes engagement and mitigates wear on adjacent structures.

Precision Engineering and Core Mechanism

At the heart of this assembly is the meticulously engineered spring-loaded bolt mechanism. This system leverages a high-strength spring to exert constant forward pressure on the bolt, ensuring it remains securely engaged within the keeper when in the closed position. The design allows for a user-friendly operational cycle: a lever, ergonomically designed for efficient manual manipulation, is actuated to retract the bolt against the spring’s resistance. A critical feature of this design is the ability to positively lock the bolt in a retracted, or "open," position. This is achieved through an internal detent or camming mechanism that holds the lever and bolt assembly in its disengaged state, providing temporary hands-free operation. This functionality is invaluable in scenarios requiring prolonged access or repeated opening and closing, such as loading and unloading operations, maintenance procedures, or during temporary staging of equipment. Upon release from the open-lock position, the lever automatically springs back, driving the bolt forward with decisive force into the waiting aperture of the keeper, thereby securing the access point. This rapid, self-actuating engagement mechanism differentiates spring latches from simpler mechanical bolts, offering superior operational efficiency and security through active bolt retention.

Material Science and Surface Treatment for Optimal Performance

The selection of materials and surface treatments for the 1/2 Inch Zinc Plated Spring Latch Assembly is a direct response to the demanding operational environments it is designed to endure. All primary structural components – including the bolt, handle, and housing – are fabricated from high-grade carbon steel. Carbon steel is chosen for its exceptional balance of mechanical properties, offering high tensile strength, excellent yield strength, and good impact resistance, which are crucial for components subjected to repetitive mechanical stresses and potential impacts. Its inherent hardness contributes significantly to the wear resistance of the bolt and keeper interface, prolonging the operational lifespan of the assembly.

To augment the inherent robustness of carbon steel, all exposed components of this latch assembly undergo a specialized zinc plating process. Zinc plating, a widely recognized electrochemical surface treatment, serves primarily as a sacrificial corrosion protection layer. During this process, a thin, uniform coating of zinc metal is deposited onto the carbon steel substrate. This layer acts as an anodic coating; in the presence of moisture and oxygen, the zinc preferentially corrodes before the underlying steel, thereby protecting the base material from rust and degradation. This galvanic protection is highly effective in mitigating corrosion across a broad spectrum of atmospheric conditions, including exposure to humidity, mild chemicals, and various outdoor elements. Furthermore, the zinc plating imparts a clean, bright, and aesthetically pleasing finish, which also contributes to the material's surface hardness and resistance to minor abrasions. While zinc plating offers substantial environmental protection, it is particularly well-suited for applications where exposure to highly corrosive agents, such as saltwater immersion or strong industrial acids, is limited. For such extreme environments, alternative materials like stainless steel (which is mentioned as an option for other product variants) would typically be specified. The zinc plating on this specific assembly is optimized to provide durable, cost-effective corrosion resistance for a vast majority of general-purpose and heavy-duty industrial applications.

Dimensional Specifications and Structural Integrity

The precise dimensional specifications of the 1/2 Inch Zinc Plated Spring Latch Assembly are crucial for its secure and reliable operation, as well as for seamless integration into diverse structural designs. The bolt, with a nominal diameter of 0.50 inches (12.7 mm), provides substantial shear strength, making it highly resistant to forced entry or accidental disengagement under load. Its length of 1.03 inches allows for adequate projection into the keeper, ensuring deep and secure engagement, while the bolt height of 0.88 inches defines the vertical dimension of its engaging profile. The overall pin length, specified at 5.19 inches, is indicative of the operational throw and structural support for the internal mechanism.

The housing, which encapsulates the internal spring and bolt mechanism and serves as the primary mounting interface, features dimensions of 3.00 inches in length, 1.75 inches in width, and 1.75 inches in height. These dimensions establish a compact yet robust footprint for installation, allowing for placement in areas with limited space while providing ample structural support for the latch's operational forces. The handle, measuring 3.88 inches in length, is designed to provide sufficient leverage and ergonomic comfort for manual operation, ensuring that the latch can be easily engaged and disengaged, even with gloved hands or under moderate resistance.

For installation, the assembly employs a bolt-on mounting type, a standard and highly secure method for heavy-duty hardware. The mounting holes have a diameter of 0.28 inches, precisely sized for common industrial fasteners such as 1/4-inch bolts or screws, ensuring a strong and stable connection to the mounting surface. The center-to-center distance between these mounting holes is 1.25 inches, providing a clear template for pre-drilling and ensuring proper load distribution across the mounting points. This standardized mounting configuration simplifies installation, allowing for reliable attachment to various substrates including metal, wood, or composite panels, provided appropriate fasteners are selected and correctly applied.

The Integral Role of the Keeper

This product is supplied as a complete assembly, including the crucial keeper component. The keeper, often referred to as a strike plate or catch, is the counterpart to the latch bolt. Its primary function is to provide a dedicated, reinforced receptacle for the bolt to engage with, forming a secure mechanical interlock. The inclusion of the keeper in the assembly ensures optimal compatibility and performance, as it is designed to precisely mate with the dimensions and profile of the 1/2-inch bolt. This precise fit minimizes play and rattling, enhancing the security and quiet operation of the latch. Furthermore, the keeper absorbs the impact and wear from repeated bolt engagement, protecting the adjacent structural material of the door frame or panel from damage and extending the overall service life of the entire latching system. Its robust construction, also carbon steel with zinc plating, mirrors that of the main latch body, ensuring consistent durability and corrosion resistance across the complete fastening solution.

Diverse Applications Across Industries

The versatility and robust construction of the 1/2 Inch Zinc Plated Spring Latch Assembly with Keeper make it an indispensable component across a broad spectrum of industries and applications. Its combination of rapid operation, secure engagement, and durable materials renders it ideal for scenarios where reliable fastening and quick access are paramount. Key application areas include:

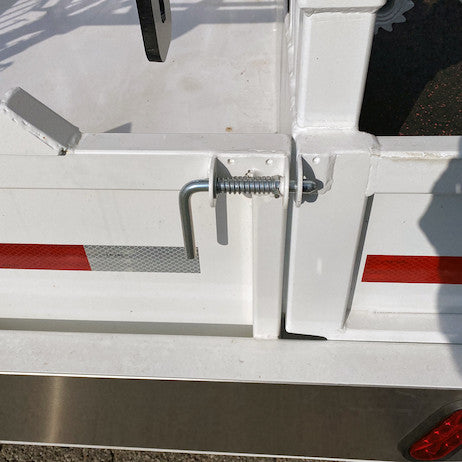

• Commercial and Fleet Vehicles: Essential for securing access to toolboxes, service body compartments, trailer doors, utility truck beds, and other equipment storage on commercial vehicles. The ability to lock the bolt in the open position is particularly beneficial during loading and unloading operations.
• Industrial Machinery and Enclosures: Used extensively on access panels for machinery guards, electrical control cabinets, HVAC units, and industrial enclosures where components need to be protected yet readily accessible for maintenance or inspection.
• Agricultural Equipment: Employed on gates, access hatches, and equipment compartments for tractors, harvesters, and other farm machinery, providing durable fastening in challenging outdoor conditions.
• Construction Sites: Securing temporary gates, equipment storage containers, and job site enclosures, where ruggedness and resistance to environmental factors are critical.
• Marine (Freshwater/Protected Environments): Suitable for boat compartments, storage lockers, and cabin doors in freshwater or protected marine environments where general atmospheric corrosion resistance suffices.
• Storage and Logistics: Utilized on various storage units, shipping containers, and custom crates requiring robust and easily operable securing mechanisms.
• Specialty and Custom Fabrication: An excellent choice for custom-built enclosures, cabinets, gates, and panels in manufacturing facilities, workshops, and for OEM applications where a reliable, self-latching mechanism is required.
• Facilities Management: Applied to utility access doors, janitorial closets, and other service points within commercial and public buildings, balancing security with ease of access for authorized personnel.

The bolt-on mounting type further enhances its adaptability, allowing it to be securely affixed to a wide array of existing structures or integrated into new designs with minimal complexity.

Performance Characteristics and Operational Reliability

The design principles of the 1/2 Inch Zinc Plated Spring Latch Assembly focus on delivering exceptional performance and unwavering operational reliability. The spring mechanism is precisely calibrated to provide consistent closing force, ensuring that the bolt always fully engages the keeper without requiring manual adjustment or intervention. This reliability is crucial in applications where proper closure is paramount for safety, security, or environmental sealing.

Durability is a cornerstone of its design. The carbon steel construction, fortified by zinc plating, endows the latch with high resistance to wear from repeated cycles of engagement and disengagement. The robust materials and straightforward mechanical action minimize points of failure, contributing to a longer service life and reduced maintenance requirements. The 0.50-inch bolt diameter provides a significant mechanical advantage, resisting bending and shearing forces that might compromise smaller or less robust latching systems. The positive open-position lock feature not only enhances user convenience but also prevents accidental closure during critical operations, thereby improving safety and efficiency. This deliberate engineering ensures that the latch performs consistently in demanding operational environments, maintaining its structural integrity and functional efficacy over extended periods of use.

Installation Considerations and Best Practices

While mounting hardware is sold separately, proper installation is key to maximizing the performance and longevity of the 1/2 Inch Zinc Plated Spring Latch Assembly with Keeper. The bolt-on design allows for straightforward installation, but several factors should be considered for optimal results:

• Surface Preparation: Ensure the mounting surface is flat, clean, and structurally sound to provide a stable foundation for the latch and keeper. Any irregularities can lead to misalignment or uneven stress distribution.
• Alignment: Precise alignment between the latch body and the keeper is critical. Misalignment can cause excessive wear on the bolt and keeper, lead to improper engagement, and increase operational effort. It is recommended to temporarily position both components, mark the mounting holes, and then drill with precision. The 1.25-inch center-to-center mounting hole specification provides a clear guide for this.
• Fastener Selection: Given the 0.28-inch mounting hole diameter, appropriate 1/4-inch fasteners (bolts, screws, rivets) made of a material compatible with the mounting substrate and environmental conditions should be chosen. For optimal corrosion resistance, zinc-plated or stainless steel fasteners are often recommended.
• Torque Specifications: Fasteners should be tightened to appropriate torque specifications to ensure a secure attachment without over-tightening, which could deform the housing or strip threads. Consult fastener manufacturer guidelines for specific torque values.
• Clearance: Ensure sufficient clearance for the handle’s full range of motion and for the bolt to fully retract and extend without obstruction.

Adherence to these installation best practices will guarantee the latch operates as intended, providing reliable and secure fastening for years to come.

Conclusion

The 1/2 Inch Zinc Plated Spring Latch Assembly with Keeper stands as a testament to functional design and material integrity in the realm of industrial hardware. Its robust carbon steel construction, augmented by a durable zinc plating, provides a formidable defense against mechanical stresses and environmental degradation. The precisely engineered spring-loaded mechanism ensures rapid, secure engagement, while the convenient open-position lock feature significantly enhances operational efficiency and user safety. With a 0.50-inch bolt diameter, meticulously specified housing dimensions, and an included keeper designed for perfect mating, this assembly delivers unparalleled reliability and performance. From commercial fleet vehicles and heavy machinery to industrial enclosures and agricultural equipment, its versatile applications underscore its value as a premier fastening solution. By offering a comprehensive, durable, and highly functional unit, the 1/2 Inch Zinc Plated Spring Latch Assembly with Keeper provides engineers, manufacturers, and end-users with a technically superior choice for all demanding access control requirements, ensuring enduring security and ease of operation.
