Buyers Products Spring Latch is ideal for uses where doors, compartments, or panels need to engage and disengage quickly and securely. The spring-loaded bolt can be locked in the open position as needed; turning the lever allows the bolt to close securely under spring pressure. The latch is available in your choice of stainless steel or zinc-plated steel and in various sizes. It can be ordered with or without the keeper. All mounting hardware is sold separately.
Specifications
| Bolt Dia. (in.) | 0.50 |
|---|---|
| Bolt Finish | Zinc Plated |
| Bolt Height | 0.88 |
| Bolt Length (in.) | 1.00 |
| Bolt Material | Carbon Steel |
| Handle Finish | Zinc Plated |
| Handle Length | 2.38 |
| Handle Material | Carbon Steel |
| Housing Finish | Zinc Plated |
| Housing Height (in.) | 1.75 |
| Housing Length (in.) | 3.00 |
| Housing Material | Carbon Steel |
| Housing Width (in.) | 1.75 |
| Keeper (y/n) | No |
| Latch Style | Spring Latch |
| Mount Type | Bolt-On |
| Mounting Hole Diameter | 0.28 |
| Mounting Holes Center to Center | 1.25 |
| Pin Length | 5.19 |

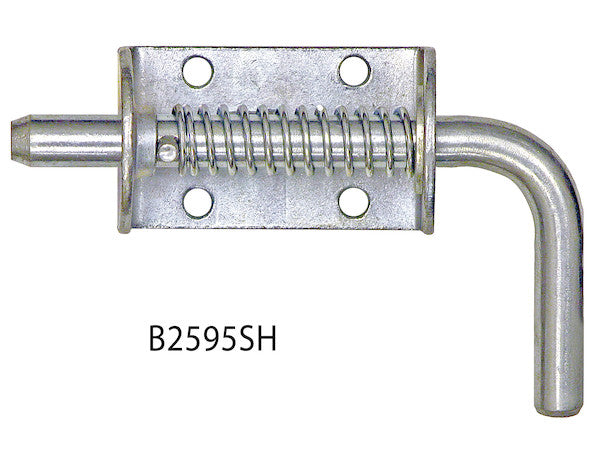

The 1/2 Inch Zinc Plated Spring Latch Assembly with Short Handle, measuring 1.75 x 5.19 inches, represents a meticulously engineered solution for securing various access points in demanding industrial and commercial environments. This product is designed to offer a robust, reliable, and expedient mechanism for the engagement and disengagement of doors, compartments, panels, gates, and other movable components. Its design prioritizes both functional security and operational efficiency, making it an indispensable component in applications where swift and positive locking is paramount. From fleet vehicles and utility trailers to agricultural machinery and specialized enclosures, this spring latch assembly delivers consistent performance under a wide array of operational stresses and environmental conditions.
Fundamental Mechanism and Operational Superiority
At the core of this latch assembly is its spring-loaded bolt mechanism, a design principle celebrated for its inherent reliability and ease of use. The system operates on a simple yet highly effective principle: a solid bolt, under constant spring pressure, is driven into a corresponding strike plate or keeper, thereby establishing a secure mechanical lock. This continuous spring force ensures that the bolt remains firmly engaged, resisting vibrations, accidental dislodgement, and external forces that might compromise less robust locking solutions.
The operational sequence of the latch is intuitively designed for user convenience and operational speed. Users can retract the bolt manually by actuating the integrated short handle. This action compresses the internal spring, pulling the bolt clear of its engaged position. A key feature of this design is the ability to lock the bolt in an open or retracted position. This "locked-open" functionality is critical for scenarios requiring temporary, unrestricted access or when preparing for repeated engagements. To release the bolt from its open position, a simple turning of the lever-style handle allows the compressed spring to propel the bolt forward, ensuring a secure and positive closure under precisely calculated spring pressure. This automatic closing action is a significant advantage, reducing the risk of human error in forgetting to secure the latch, and ensuring that compartments or panels are always reliably fastened upon closure.
The dynamic interplay of the spring mechanism and the robust carbon steel bolt translates into several operational advantages. Firstly, it offers rapid engagement and disengagement, crucial in time-sensitive operations. Secondly, the constant pressure of the spring-loaded bolt provides an anti-rattle function, preventing movement and noise during transit or operation, which is particularly beneficial in vehicular applications. Lastly, the positive locking action minimizes the likelihood of unintentional opening, enhancing the security of enclosed contents or the safety of personnel operating near secured components.
Material Science: Carbon Steel and Zinc Plating for Enhanced Durability
The selection of materials for the 1/2 Inch Zinc Plated Spring Latch Assembly is a deliberate choice, balancing structural integrity, cost-effectiveness, and environmental resilience. The primary structural components, including the bolt, handle, and housing, are fabricated from high-grade carbon steel. Carbon steel is renowned for its exceptional strength-to-weight ratio, high hardness, and excellent ductility, making it ideal for components subjected to mechanical stress, impact, and frequent operation. Its inherent toughness ensures that the latch can withstand the rigors of heavy-duty applications without succumbing to deformation or fracture, contributing significantly to the product's long service life.
To augment the inherent properties of carbon steel and specifically address the challenge of corrosion, all exposed carbon steel components of this assembly—the bolt, handle, and housing—undergo a professional zinc plating process. Zinc plating, often referred to as galvanization when applied as a coating, is an electrochemical process where a thin layer of zinc is deposited onto the surface of the steel substrate. This metallic coating serves as a sacrificial barrier against rust and corrosion. Zinc is more electrochemically active than steel, meaning it will preferentially corrode when exposed to corrosive elements like moisture, salts, and atmospheric pollutants, thereby protecting the underlying steel from degradation. This sacrificial protection mechanism is particularly effective in environments where the coating might be scratched or superficially damaged, as the surrounding zinc continues to protect the exposed steel.
Beyond its primary role in corrosion prevention, zinc plating also imparts a bright, aesthetically pleasing finish to the latch assembly. This uniform, silvery-white appearance not only contributes to the product's visual appeal but also provides a degree of scratch and abrasion resistance, protecting the carbon steel from minor surface damage. The consistency and adherence of the zinc layer are critical to the overall performance of the latch, ensuring that the protective coating remains intact throughout the product's operational lifespan. While stainless steel, an alternative mentioned for other variants, offers superior inherent corrosion resistance, zinc-plated carbon steel provides a highly effective and economical solution for applications where a balance of strength, corrosion protection, and cost efficiency is desired, especially in environments not consistently exposed to highly aggressive corrosive agents like saltwater.
The combination of robust carbon steel and the protective zinc plating makes this latch assembly suitable for a broad spectrum of indoor and outdoor applications. It provides the necessary resilience against typical environmental exposures such as rain, humidity, dust, and temperature fluctuations, ensuring consistent and reliable functionality over extended periods with minimal maintenance. This engineering choice reflects a commitment to delivering durable hardware that can endure the demanding operational conditions of commercial and industrial settings.
Precision Engineering: Dissecting the Dimensional Specifications
Understanding the precise dimensional specifications of the 1/2 Inch Zinc Plated Spring Latch Assembly is crucial for proper integration, optimal performance, and safe operation. Each measurement provided in the specifications table reflects careful engineering considerations aimed at maximizing the latch's efficacy and compatibility.
The Bolt Diameter of 0.50 inches (1/2 inch) signifies a substantial cross-sectional area for the primary locking component. This dimension is critical as it directly correlates with the bolt's shear strength and resistance to bending forces. A half-inch diameter bolt offers a robust level of security, capable of withstanding significant loads and impacts, making it appropriate for securing heavy doors, gates, or high-value compartments where structural integrity is paramount. Complementing this, the Bolt Length of 1.00 inch ensures adequate engagement depth within the strike plate or keeper, providing a secure, positive lock that minimizes play and maximizes resistance against forced entry or accidental disengagement. The Bolt Height of 0.88 inches, when referring to the bolt's profile, further contributes to its structural rigidity and the contact surface area with the mating component.
The Housing, which encapsulates and protects the internal spring mechanism, exhibits precise dimensions engineered for secure mounting and component protection. With a Housing Height of 1.75 inches, a Housing Length of 3.00 inches, and a Housing Width of 1.75 inches, this compact yet sturdy enclosure provides a stable platform for the operational parts. The 1.75-inch dimension noted in the product title (1.75 x 5.19 Inch) likely refers to this housing's height or width, indicating its minimal footprint for installation. The housing's dimensions are carefully balanced to protect the spring and bolt assembly from external elements and impacts while offering sufficient space for the lever mechanism to operate freely. Fabricated from carbon steel and zinc plated, the housing itself is an integral structural element, contributing significantly to the overall durability and resistance to environmental factors.
The Short Handle, with a Handle Length of 2.38 inches, is ergonomically designed for comfortable and efficient manual operation. The term "short handle" implies a compact design that minimizes protrusion, reducing the risk of snagging or accidental activation in constrained spaces, while still providing sufficient leverage for easy retraction of the robust 1/2-inch bolt. The handle's zinc-plated carbon steel construction ensures it can withstand repeated use and environmental exposure without compromise.
The Mount Type is specified as "Bolt-On," indicating that the latch assembly is designed for permanent and secure attachment to a substrate using mechanical fasteners. This method offers superior strength and reliability compared to adhesive or clamp-based mounting solutions. The Mounting Hole Diameter of 0.28 inches (approximately 7.1 mm) dictates the appropriate size for fasteners, typically suggesting compatibility with 1/4-inch bolts or screws, allowing for strong mechanical attachment. The Mounting Holes Center to Center distance of 1.25 inches provides precise guidance for drilling and installation, ensuring proper alignment and distribution of mounting forces for optimal structural integration. This precision in mounting specifications is critical for maintaining the operational integrity of the latch under dynamic conditions.
A notable dimension in the overall assembly is the Pin Length of 5.19 inches. This figure, coupled with the housing dimensions in the product title (1.75 x 5.19 Inch), suggests that 5.19 inches represents the maximum longitudinal extension of the entire assembly, likely from the outermost edge of the handle mechanism to the fully extended tip of the bolt. This comprehensive length measurement is vital for designers and installers to account for the total space envelope required by the latch, ensuring proper clearance and preventing interference with adjacent components or structures, particularly when the bolt is in its extended or retracted state. This dimension is crucial for fitting the latch into specific architectural or mechanical designs, confirming it can operate within the available spatial constraints.
Collectively, these meticulously defined specifications underscore a commitment to precision engineering, ensuring that each component of the 1/2 Inch Zinc Plated Spring Latch Assembly is optimized for its role, contributing to a product that is reliable, durable, and universally applicable across a spectrum of demanding applications.
Versatility Across Industrial and Commercial Applications
The robust construction and dependable operation of the 1/2 Inch Zinc Plated Spring Latch Assembly position it as an exceptionally versatile solution for a multitude of industrial and commercial applications. Its ability to provide quick, secure, and positive locking makes it indispensable in environments where reliability is paramount.
In the **Transportation and Logistics sector**, this latch is widely adopted for securing access points on commercial vehicles such as utility trucks, semi-trailers, cargo vans, and specialized service vehicles. It is ideally suited for tool compartments, storage boxes, battery covers, trailer ramps, and utility body doors. The spring-loaded mechanism ensures that these critical access points remain securely closed during transit, resisting the constant vibrations and impacts encountered on roads. The "locked-open" feature is particularly useful for drivers and technicians needing hands-free access during loading, unloading, or maintenance operations.
For **Agriculture and Heavy Equipment**, the latch provides dependable security for machinery components, tractor hoods, equipment covers, and storage compartments on farm implements. The zinc plating offers sufficient protection against the dust, moisture, and agricultural chemicals often present in these demanding environments, ensuring the operational longevity of the latch even with exposure to outdoor elements.
In **Manufacturing and Industrial Enclosures**, these latches are crucial for securing control panel doors, machine guards, access panels for HVAC systems, electrical cabinets, and safety enclosures. Their quick engagement and disengagement facilitate efficient operation and maintenance access, while the secure locking mechanism helps maintain operational safety by preventing unauthorized or accidental entry into hazardous zones. The bolt-on design ensures a stable and robust attachment to metal enclosures or framework.
The latch also finds significant utility in **Security and Access Control** applications beyond traditional vehicle use. It is suitable for gates in non-residential settings, shed doors, outdoor storage unit access points, and various types of secure containers where a straightforward yet effective locking mechanism is required. While not typically a primary security device for high-value assets without additional locking provisions, it serves as an excellent primary engagement mechanism for general access control and containment. Its simple, mechanical nature makes it reliable in conditions where electronic or more complex systems might fail.
Furthermore, its application extends to **Marine environments** for freshwater vessels or protected areas where extreme saltwater corrosion is not a constant threat. It can secure hatches, cabinet doors, and storage lockers, offering reliable performance against spray and humidity due to its zinc-plated finish.
The inherent design of this spring latch assembly, characterized by its robustness, ease of use, and effective material treatment, ensures its reliable performance across diverse sectors, making it a foundational component for securing access and containing contents in countless operational scenarios.
Installation Protocols and Longevity Considerations
The "Bolt-On" mount type specified for this 1/2 Inch Zinc Plated Spring Latch Assembly highlights its design for secure, permanent attachment, offering superior structural integrity compared to alternative mounting methods. Proper installation is critical to achieving the intended performance and maximizing the lifespan of the latch.
Installation typically involves aligning the latch housing with the desired mounting surface and marking the positions for the mounting holes. Given the Mounting Hole Diameter of 0.28 inches and a Mounting Holes Center to Center distance of 1.25 inches, precision drilling is essential to ensure proper alignment and prevent undue stress on the latch or fasteners. For optimal performance and durability, users must select appropriate mounting hardware (sold separately), considering the specific application and substrate material. For instance, high-grade steel bolts, nuts, and washers (e.g., Grade 5 or 8) should be used for heavy-duty applications or where significant vibration is present. The fastener material should ideally be compatible with the zinc-plated carbon steel of the latch to minimize galvanic corrosion, with zinc-plated or stainless steel fasteners being common choices depending on the environment.
Regular inspection and minimal maintenance contribute significantly to the longevity and consistent performance of the spring latch. Periodically, the latch should be inspected for signs of wear, particularly on the bolt and the spring mechanism. While zinc plating offers excellent corrosion resistance, severe abrasive wear or deep scratches can expose the underlying carbon steel, necessitating touch-up or more thorough inspection. Keeping the moving parts free of excessive dirt, debris, or solidified grease is also important. A light lubrication with a suitable dry lubricant or grease, depending on the operational environment, can ensure smooth operation of the bolt and handle mechanism and protect against friction-induced wear. However, care should be taken not to over-lubricate, as this can attract and accumulate contaminants. The robust design of carbon steel components coupled with the protective zinc plating significantly reduces the need for intensive maintenance, but periodic checks will ensure years of reliable service.
Attention to these installation and maintenance details ensures that the 1/2 Inch Zinc Plated Spring Latch Assembly continues to provide its intended function of secure and reliable engagement, mitigating potential failures and extending the product's operational life well beyond expectations in demanding commercial and industrial settings.
Conclusion: A Testament to Reliability and Performance
The 1/2 Inch Zinc Plated Spring Latch Assembly with Short Handle (1.75 x 5.19 Inch) is more than just a simple fastening device; it is a meticulously engineered component designed for enduring performance in the most challenging operational environments. Its foundational strength derived from carbon steel, coupled with the superior corrosion protection offered by zinc plating, ensures unparalleled durability. The precision in its dimensional specifications, from the robust 1/2-inch bolt diameter to the ergonomic short handle and strategic mounting points, underscores a design philosophy centered on reliability, ease of use, and seamless integration. Whether deployed in the dynamic world of commercial transportation, the rugged landscape of agricultural machinery, or the demanding confines of industrial enclosures, this spring latch assembly consistently delivers a secure, positive lock. It empowers users with quick engagement and disengagement capabilities, enhanced by a practical "locked-open" feature for operational flexibility. This product stands as a testament to thoughtful engineering, providing a cost-effective, high-performance solution that secures critical assets and ensures operational continuity across a vast array of technical applications.
