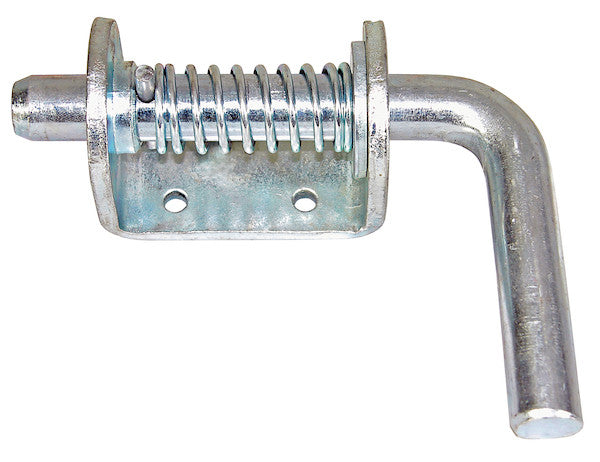

Buyers Products Heavy Duty Spring Latch is ideal where doors, compartments, or panels need to engage and disengage quickly and securely. The spring-loaded bolt can be locked in the open position as needed; turning the lever allows the bolt to close securely under spring pressure. The latch is available in your choice of stainless steel or zinc-plated steel. Can be ordered with or without the keeper. Mounting hardware is sold separately.
Specifications
| Bolt Dia. (in.) | 0.75 |
|---|---|
| Bolt Finish | Zinc Plated |
| Bolt Length (in.) | 6.00 |
| Bolt Material | Carbon Steel |
| Bolt Travel | .875 |
| Handle Finish | Zinc Plated |
| Handle Length | 3.50 |
| Handle Material | Carbon Steel |
| Housing Finish | Zinc Plated |
| Housing Height (in.) | 2.00 |
| Housing Length (in.) | 3.25 |
| Housing Material | Carbon Steel |
| Housing Width (in.) | 2.00 |
| Keeper (y/n) | No |
| Latch Style | Spring Latch |
| Mount Type | Bolt-On |
| Mounting Hole Diameter | 0.26 |
| Mounting Holes Center to Center | 1.50 |
Advanced Technical Overview: 3/4 Inch Zinc Plated Heavy Duty Spring Latch Assembly
The 3/4 Inch Zinc Plated Heavy Duty Spring Latch Assembly represents a robust and highly engineered solution designed for demanding industrial, commercial, and agricultural applications where secure and rapid engagement/disengagement of closures is paramount. This meticulously crafted component integrates superior material science with intelligent mechanical design to deliver unparalleled performance and longevity. At its core, this latch is engineered to withstand the rigors of frequent operation, exposure to environmental stressors, and significant mechanical loads, making it an indispensable asset for critical fastening requirements on doors, compartments, panels, and gates across various sectors.
The "heavy-duty" designation is not merely a descriptor but a reflection of the fundamental design principles governing this assembly. Every element, from the substantial 3/4-inch diameter bolt to the robust carbon steel construction and the protective zinc plating, has been specified to exceed conventional performance thresholds. The integral spring-loaded mechanism ensures positive engagement, while the innovative lock-open feature provides operational flexibility, enhancing both safety and convenience in diverse application scenarios. This assembly is a testament to the confluence of material strength, precision engineering, and practical functionality.
Detailed Component Analysis and Material Science
The 3/4-Inch Diameter Bolt: Core Strength and Engagement
The primary engagement mechanism of this latch assembly is its substantial 0.75-inch (19.05 mm) diameter bolt. This dimension is crucial for conveying the "heavy-duty" characteristic, providing exceptional shear strength and resistance to bending forces. A larger bolt diameter inherently distributes stress over a greater cross-sectional area, significantly increasing the load-bearing capacity compared to smaller counterparts. The bolt itself is precisely manufactured from carbon steel, a material renowned for its excellent mechanical properties, including high tensile strength, good hardness, and superior weldability, making it ideal for components subjected to dynamic and static loads. The 6.00-inch (152.4 mm) length of the bolt ensures ample engagement depth, providing a secure lock even when there are slight variations or misalignments in the mating surface or keeper. This extended reach minimizes the risk of accidental disengagement under vibration or external impact, contributing to the overall integrity of the secured closure.
The bolt’s operational stroke, or "Bolt Travel," is specified at 0.875 inches (22.225 mm). This travel distance is optimized to allow for sufficient retraction of the bolt to clear the keeper or mating surface, enabling smooth opening and closing operations. Simultaneously, it provides adequate engagement when extended, ensuring a firm and positive lock. This precise travel tolerance is critical for consistent performance, preventing premature wear on the bolt head and the receiving mechanism, and accommodating minor shifts or thermal expansion in the secured assembly.
Corrosion Protection: Zinc Plating
Both the bolt and the handle, along with the housing, feature a zinc-plated finish. This electrodeposited coating serves a critical function in enhancing the durability and extending the service life of the latch assembly, particularly in environments susceptible to corrosion. Zinc plating provides dual-action protection: it acts as a physical barrier, preventing moisture and corrosive agents from directly contacting the underlying carbon steel, and more importantly, it offers sacrificial (galvanic) protection. In the event of minor scratches or breaches in the coating, the zinc, being more electrochemically active than steel, will preferentially corrode, thereby protecting the steel substrate from rust. This protective mechanism is particularly effective in atmospheric and mildly aggressive chemical environments. The zinc plating also imparts an aesthetically pleasing, bright metallic finish, contributing to the professional appearance of the installed product. This treatment significantly enhances the latch's resistance to rust, oxidation, and general degradation, ensuring reliable operation over extended periods in outdoor, industrial, and maritime settings.
Robust Housing and Ergonomic Handle Design
The latch's housing, constructed from carbon steel and similarly zinc-plated, measures 3.25 inches (82.55 mm) in length, 2.00 inches (50.8 mm) in height, and 2.00 inches (50.8 mm) in width. These compact yet substantial dimensions ensure that the housing provides a stable and secure anchorage for the internal spring mechanism and bolt guidance system. The robust material and protective finish of the housing guarantee its structural integrity against operational stresses, impact, and environmental exposure, maintaining precise alignment for the bolt's operation. The bolt-on mount type is explicitly designed for secure, rigid attachment, mitigating any potential for movement or compromise under dynamic conditions.
The handle, also crafted from zinc-plated carbon steel, boasts a length of 3.50 inches (88.9 mm). This ergonomic length is engineered to provide sufficient leverage for comfortable and efficient operation, allowing the user to easily retract the heavy-duty spring-loaded bolt. The choice of carbon steel for the handle ensures its resilience against repeated pulling and turning forces, preventing bending or fatigue over thousands of operational cycles. The zinc plating on the handle mirrors that of the other components, ensuring consistent corrosion resistance and aesthetic uniformity across the entire assembly.
Operational Mechanics and Functional Superiority
The Spring-Loaded Mechanism and Positive Engagement
The core of this assembly's superior functionality lies in its spring-loaded mechanism. This design ensures that the bolt is under constant outward pressure, guaranteeing immediate and positive engagement with the keeper or receiving aperture upon release. This automatic self-closing action eliminates the need for manual positioning of the bolt, simplifying operation and enhancing security. The consistent spring pressure also helps to counteract the effects of vibration, preventing accidental disengagement in dynamic environments, such as those found on vehicles, machinery, or heavy equipment. The spring itself is typically manufactured from high-grade spring steel, heat-treated to ensure consistent force output and exceptional fatigue resistance over its operational lifespan.
Innovative Lock-Open Feature
A significant advantage of this heavy-duty spring latch is its capability to be locked in the open (retracted) position. This feature is actuated by "turning the lever" after retracting the bolt, which engages an internal cam or locking detent, holding the bolt in its fully withdrawn state. This functionality is invaluable in scenarios where temporary unhindered access is required, such as during loading/unloading operations, maintenance procedures, or during periods of high-traffic flow. By preventing the bolt from extending prematurely, it eliminates obstruction and potential damage to the bolt or mating surfaces, improving operational efficiency and user safety. When secure closure is again needed, a simple turn of the lever disengages the lock, allowing the spring pressure to propel the bolt into its engaged position. This combination of self-closing and lock-open features offers unparalleled operational versatility.
Installation, Mounting, and Versatility
Secure Bolt-On Mounting
The latch assembly is designed for a bolt-on mounting configuration, which is the preferred method for heavy-duty applications requiring maximum security and stability. The precise mounting hole specifications – a diameter of 0.26 inches (6.6 mm) and a center-to-center spacing of 1.50 inches (38.1 mm) – ensure compatibility with standard industrial fasteners and facilitate accurate, rigid installation. While mounting hardware is sold separately, this allows users to select application-specific fasteners (e.g., bolts, nuts, washers) that meet their particular load requirements, material compatibility, and environmental exposure conditions. Proper bolt-on installation minimizes play and movement, ensuring the latch performs optimally under heavy use and vibrational stress.
Keeper Options and Integration
The availability to order the latch "with or without the keeper" provides crucial flexibility for diverse installation requirements. A dedicated keeper (strike plate) is designed to perfectly receive the latch bolt, ensuring optimal alignment, load distribution, and wear resistance. When a keeper is included, it typically matches the material and finish of the latch assembly, providing a cohesive and durable system. However, in applications where an existing strike surface or custom receiving aperture is already in place, or where space constraints dictate an alternative solution, ordering without the keeper offers cost-effectiveness and adaptability. For optimal performance and longevity, utilizing a purpose-designed keeper is generally recommended as it ensures precise bolt engagement, protects the mating surface from wear, and maintains the designed mechanical clearances.
Expansive Range of Applications
The inherent robustness and functional design of the 3/4 Inch Zinc Plated Heavy Duty Spring Latch Assembly make it suitable for an extensive array of demanding environments. Its utility extends far beyond simple doors and panels, encompassing critical applications in:
- Transportation Sector: Tailgates on utility trucks, cargo doors on semi-trailers, access panels on heavy-duty construction vehicles, emergency vehicle compartments, and agricultural machinery enclosures.
- Industrial and Manufacturing: Safety guards on machinery, access doors for electrical enclosures, material handling equipment, industrial cabinet closures, and secure gates within factory settings.
- Agricultural Equipment: Securing implements on tractors, gates for livestock enclosures, storage bin access, and components on harvesting machinery.
- Marine and Offshore: Though zinc plating has limitations in full saltwater immersion, it offers excellent resistance in splash zones and humid marine environments for boat hatches, storage lockers, and dock utility boxes.
- Construction Sites: Securing toolboxes, temporary fencing gates, access points on modular buildings, and heavy-duty storage containers.
- Security Installations: Perimeter gates, equipment sheds, and critical access points requiring a quick, secure, and robust locking mechanism.
In each of these contexts, the latch's ability to provide secure closure, withstand vibration, resist corrosion, and facilitate rapid access proves invaluable, contributing significantly to operational safety, efficiency, and equipment longevity.
Quality Assurance and Performance Standards
While specific compliance certifications are not enumerated, the "Buyers Products" brand implies adherence to high manufacturing standards, including rigorous material sourcing, precision machining, and consistent finishing processes. Components like the carbon steel bolt and housing would typically meet or exceed relevant ASTM (American Society for Testing and Materials) standards for material composition and mechanical properties. The zinc plating process would likely conform to industry specifications such as ASTM B633 for electrodeposited coatings of zinc on iron and steel, ensuring uniform thickness, adhesion, and corrosion resistance performance. Each latch assembly undergoes stringent quality control checks, including evaluations of spring tension, bolt travel, lock-open mechanism functionality, and dimensional accuracy, to guarantee consistent performance and reliability in the field. This commitment to quality ensures that the latch provides dependable operation throughout its extended service life, even under the most challenging conditions.
Conclusion
The 3/4 Inch Zinc Plated Heavy Duty Spring Latch Assembly stands as a quintessential example of robust engineering designed for enduring performance. Its judicious selection of carbon steel, fortified by a high-quality zinc plating, ensures exceptional resistance to both mechanical stress and environmental degradation. The precise 0.75-inch bolt diameter coupled with its optimized travel, alongside the thoughtfully designed spring mechanism and critical lock-open feature, collectively delivers a fastening solution that is simultaneously secure, reliable, and user-friendly. From the demanding environments of heavy-duty transportation and industrial manufacturing to the rigorous needs of agricultural and construction applications, this latch assembly provides the unwavering integrity and operational flexibility required for critical closures. It represents an intelligent investment for any application where durability, security, and efficient access are non-negotiable requirements, embodying a superior blend of technical sophistication and practical utility.
