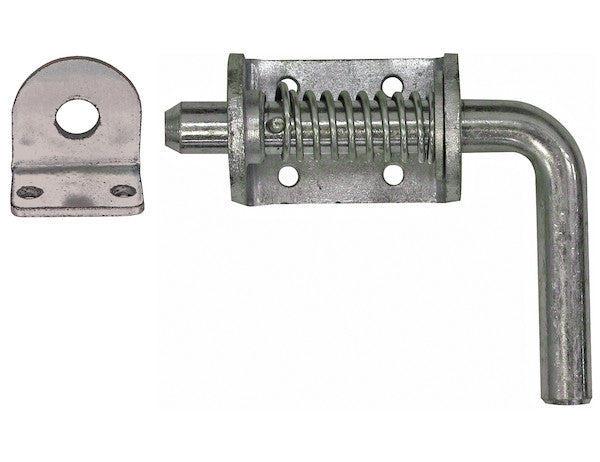

B2596LKB - Spring Latch Assembly with Keeper for B2596 Series Spring Latches

Buyers Products Heavy Duty Spring Latch is ideal where doors, compartments, or panels need to engage and disengage quickly and securely. The spring-loaded bolt can be locked in the open position as needed; turning the lever allows the bolt to close securely under spring pressure. The latch is available in your choice of stainless steel or zinc-plated steel. Can be ordered with or without the keeper. Mounting hardware is sold separately.

Specifications

Technical Overview: Spring Latch Assembly with Keeper for B2596 Series Spring Latches

The Spring Latch Assembly with Keeper, specifically designed for seamless integration within the B2596 Series, represents a pinnacle of robust engineering and functional reliability in industrial and commercial securing mechanisms. Manufactured by Buyers Products, a recognized leader in heavy-duty equipment components, this particular spring latch is engineered to deliver superior performance in demanding environments where secure, rapid, and repeatable engagement and disengagement of doors, compartments, and panels are paramount. Its design prioritizes operational efficiency, user safety, and long-term durability, making it an indispensable component for a wide array of heavy-duty applications.

Core Functional Principles and Design Excellence

At its heart, this Spring Latch operates on a meticulously engineered spring-loaded bolt mechanism. This design ensures that the bolt is consistently under pressure, driving it into the keeper and maintaining a secure locked state until intentionally released. The intrinsic advantage of a spring-loaded system lies in its inherent resistance to vibration-induced disengagement and its ability to accommodate minor misalignments while still achieving a positive lock. The spring mechanism is precisely calibrated to provide sufficient force for secure locking without requiring excessive manual effort, thereby enhancing user experience and operational efficiency.

A key distinguishing feature of this assembly is its ability to lock the bolt in the open position. This critical functionality is achieved via an intuitive lever mechanism. When the bolt is retracted to the fully open position, the lever can be manipulated to engage a detent or catch, holding the bolt in a non-engaged state. This feature is invaluable in scenarios requiring temporary or prolonged access, facilitating loading, unloading, maintenance, or continuous operation without the need to manually hold the latch open. Releasing the bolt from this open position is equally straightforward; a simple manipulation of the lever disengages the detent, allowing the powerful spring to propel the bolt forward, achieving a secure closure. This dual-mode operation significantly enhances the versatility and practical utility of the latch, setting it apart from simpler, non-locking designs.

Material Science and Surface Treatment for Optimal Performance

The selection of materials for the Spring Latch Assembly is a testament to Buyers Products' commitment to durability and longevity under rigorous conditions. The primary structural components – the bolt, handle, and housing – are fabricated from high-grade carbon steel. Carbon steel is chosen for its exceptional mechanical properties, including high tensile strength, excellent yield strength, and robust impact resistance. These characteristics are crucial for components subjected to repetitive mechanical stresses, potential impacts, and constant operational cycles inherent in heavy-duty applications.

To further enhance the durability and operational lifespan of these carbon steel components, they undergo a comprehensive zinc plating process. Zinc plating is a sacrificial coating that provides superior corrosion resistance by preferentially oxidizing before the underlying steel. This electrochemically applied layer forms a durable barrier against moisture, salt spray, and various environmental contaminants, significantly extending the service life of the latch, particularly in outdoor or humid environments. The uniformity and adherence of the zinc plating are meticulously controlled to ensure complete coverage and sustained protective capabilities, thereby mitigating the risk of rust and subsequent structural degradation that could compromise functionality and safety. While this specific assembly features zinc-plated carbon steel, Buyers Products offers variants in stainless steel, providing an alternative for applications demanding even higher levels of corrosion resistance, particularly in marine, chemical, or extremely corrosive industrial settings.

The decision to include a keeper as part of this assembly underscores a comprehensive design philosophy aimed at providing a complete, ready-to-install solution. The keeper, also engineered for strength and finished with zinc plating, is designed to precisely mate with the bolt, ensuring a positive and secure lock. Its robust construction prevents deformation or wear over time, which could compromise the latch's security. The synergistic design of the bolt and keeper ensures optimal engagement depth and lateral stability, contributing to the overall integrity of the secured component.

Detailed Technical Specifications and Their Implications

A thorough understanding of the technical specifications is crucial for proper selection, integration, and performance prediction of the Spring Latch Assembly. Each parameter has been carefully defined to ensure optimal functionality and compatibility within its intended operational scope.

• Bolt Diameter: 0.75 inches. This substantial bolt diameter provides exceptional shear strength, a critical factor for resisting forces that attempt to dislodge the secured panel. The 0.75-inch dimension ensures that the bolt can withstand significant direct and lateral loads, preventing premature failure and maintaining integrity even under stress. This robust dimension directly contributes to the 'heavy-duty' classification of the latch.
• Bolt Finish: Zinc Plated. As discussed, zinc plating offers sacrificial corrosion protection, extending the lifespan and maintaining the aesthetic and functional integrity of the bolt in diverse environmental conditions. This finish minimizes friction during bolt travel, contributing to smooth operation.
• Bolt Length: 6.00 inches. The generous 6.00-inch bolt length provides ample material for effective engagement and sufficient clearance for operational mechanisms. This length allows for deep penetration into the keeper, ensuring a secure hold even when minor vibrations or movements are present. It also ensures compatibility across a range of panel thicknesses and mounting configurations.
• Bolt Material: Carbon Steel. Carbon steel for the bolt ensures high tensile strength and wear resistance, critical properties for a component that experiences direct mechanical interaction and repetitive motion. This material choice guarantees longevity and consistent performance.
• Bolt Travel: 0.875 inches. The bolt travel of 0.875 inches represents the distance the bolt moves between its fully retracted (open) and fully extended (closed) positions. This specific travel distance is optimized for rapid engagement while providing sufficient throw to clear the keeper and accommodate variations in panel alignment or thermal expansion/contraction without compromising the locking action.
• Handle Finish: Zinc Plated. The zinc plating on the handle not only protects against corrosion but also provides a tactile surface that resists wear from frequent human interaction. It ensures that the handle remains functional and aesthetically pleasing over time, contributing to the overall durability of the user interface.
• Handle Length: 3.50 inches. A handle length of 3.50 inches is ergonomically designed to provide adequate leverage for comfortable and efficient operation. This length allows for a firm grip, enabling users to easily retract and engage the bolt, even while wearing gloves or in challenging conditions, minimizing user fatigue and enhancing operational safety.
• Handle Material: Carbon Steel. Similar to the bolt, using carbon steel for the handle ensures its structural integrity and resistance to bending or breaking under repetitive manual force, maintaining reliable operation throughout its service life.
• Housing Finish: Zinc Plated. The housing, which encases the internal spring mechanism and guides the bolt, also benefits from zinc plating. This protective layer ensures that the primary structural component remains shielded from environmental degradation, preserving the precise tolerances required for smooth bolt operation.
• Housing Height: 2.00 inches, Housing Length: 3.25 inches, Housing Width: 2.00 inches. These dimensions define the compact footprint of the latch assembly. The robust housing provides mechanical protection for the internal spring and bolt guidance system, ensuring reliable operation. The carefully considered dimensions allow for versatile mounting options without excessive protrusion, making it suitable for installations where space is a consideration.
• Housing Material: Carbon Steel. The use of carbon steel for the housing provides the necessary rigidity and structural strength to withstand mounting stresses and external forces, ensuring that the internal components are properly aligned and protected.
• Keeper (y/n): Yes. The inclusion of a dedicated keeper is integral to the complete functionality of this latch assembly. It provides the specific mating component for the bolt, ensuring precise alignment and optimal engagement depth for secure locking. This eliminates the need for separate procurement or fabrication of a strike plate.
• Latch Style: Spring Latch. This classification explicitly defines the operational mechanism: a bolt that is spring-loaded to automatically return to a closed position unless manually held open or locked in the open position. This style is chosen for its reliability, speed of operation, and resistance to accidental unlocking.
• Mount Type: Bolt-On. The bolt-on mounting type signifies that the latch is designed for secure, permanent attachment using mechanical fasteners. This method provides superior structural integrity and resistance to vibration compared to adhesive or clamp-on solutions, making it ideal for heavy-duty and dynamic applications.
• Mounting Hole Diameter: 0.26 inches. The 0.26-inch diameter for mounting holes is designed to accommodate standard ¼-inch (0.25-inch) bolts or screws, allowing for a tight fit that minimizes play and maximizes fastening strength. This common size ensures ease of sourcing appropriate mounting hardware.
• Mounting Holes Center to Center: 1.50 inches. The 1.50-inch center-to-center spacing for mounting holes provides a standardized pattern for secure attachment, distributing fastening stress effectively across the housing. This standardized dimension facilitates installation and ensures compatibility with various mounting surfaces.

Applications and Operational Environments

The Spring Latch Assembly with Keeper for B2596 Series is designed for a broad spectrum of heavy-duty applications across various industries. Its robust construction and reliable operation make it ideal for:

• Commercial and Industrial Vehicles: Securing trailer gates, utility body compartments, toolboxes, personnel doors on service trucks, and access panels on heavy equipment. The ability to lock in the open position is particularly useful for frequent loading and unloading operations.
• Agricultural Equipment: Latches for farm machinery access panels, tractor compartments, and gates on agricultural trailers or enclosures, where durability against dust, moisture, and vibration is essential.
• Construction Machinery: Used on skid-steers, excavators, dozers, and other construction vehicles for securing engine access panels, battery compartments, and storage boxes, where exposure to harsh elements and rugged usage is common.
• Marine Applications: While this specific model is zinc-plated, its design principles extend to marine-grade stainless steel variants for securing hatches, doors, and storage lockers on boats and offshore platforms, offering critical resistance to saltwater corrosion.
• Manufacturing and Factory Equipment: Safeguarding machine guards, access doors on processing equipment, and secure enclosures within industrial plants, where quick access for maintenance and high operational cycles are common.
• Material Handling: Used on conveyor system access points, storage racks, and industrial carts, providing secure closure and ease of access.

In each of these environments, the spring-loaded action, coupled with the lock-open feature, provides an optimal balance of security, speed, and user convenience, critical for maintaining operational efficiency and safety.

Installation and Integration Considerations

Installation of the Spring Latch Assembly is straightforward due to its bolt-on design and standardized mounting dimensions. While mounting hardware is sold separately, this allows the installer to select fasteners appropriate for the specific substrate and application load requirements. For optimal performance, it is imperative to ensure the mounting surface is flat and rigid enough to support the latch and withstand operational forces. Precise alignment of the latch and keeper is crucial to ensure smooth bolt travel and secure engagement. Proper installation will maximize the latch's mechanical advantage and extend its service life, preventing undue stress on components.

Conclusion

The Buyers Products Spring Latch Assembly with Keeper for B2596 Series Spring Latches represents a highly dependable and technically superior solution for demanding securement applications. Its thoughtful design, incorporating a robust spring-loaded mechanism, a convenient lock-open feature, and meticulous material selection with protective zinc plating, ensures unparalleled durability and operational efficiency. Backed by comprehensive specifications that detail every critical dimension and material choice, this latch assembly provides engineers, designers, and procurement professionals with the confidence that they are integrating a product engineered for peak performance and longevity in the most challenging industrial and commercial environments. This assembly is not merely a component; it is a meticulously engineered system designed to deliver consistent, secure, and user-friendly operation for years to come.
