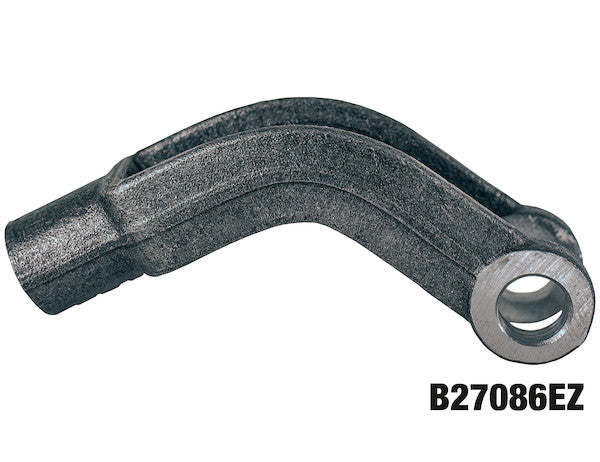

B27086EZ - Adjustable Yoke End 1/2-20 NF and 1/2 Inch Diameter Thru-Hole

Buyers Products Adjustable Yoke Ends are machine forged and curved to position your linkage around obstacles.

Specifications

The Adjustable Yoke End, featuring a 1/2-20 NF thread and a 1/2 Inch Diameter Thru-Hole, from Buyers Products represents a critical component in mechanical linkage systems requiring precise articulation and robust structural integrity. This meticulously engineered component is designed to facilitate the connection of various mechanical elements, enabling rotational and pivotal movement while accommodating for positional offsets and angular misalignments within a system. Its fundamental utility lies in translating linear or rotational motion across different planes, making it indispensable in agricultural machinery, industrial equipment, heavy-duty vehicle applications, and various custom fabrication projects.

The core characteristic of this yoke end is its machine-forged construction. Forging is a manufacturing process that involves shaping metal by localized compressive forces. This method, as opposed to casting or machining from bar stock, significantly enhances the material's grain structure, eliminating porosity, improving ductility, and increasing its ultimate tensile strength and fatigue resistance. The resulting forged steel component exhibits superior toughness and resistance to impact and shock loads, making it exceptionally well-suited for demanding environments where high stresses and dynamic forces are prevalent. The "curved to position your linkage around obstacles" feature is a direct benefit of this advanced manufacturing technique, allowing for complex geometries that would be challenging or impossible to achieve with other methods, thus providing crucial design flexibility and problem-solving capability in constrained spaces.

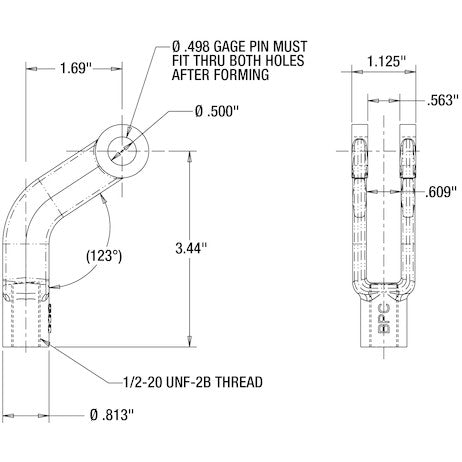

Let's delve deeper into the specific technical specifications provided. The "Hole Dia. (in.)" is 0.500 inches (1/2 inch). This precisely machined thru-hole is designed to accommodate a corresponding clevis pin, bolt, or shaft of the same diameter. The accuracy of this dimension is paramount for ensuring a snug fit, minimizing play, and distributing loads evenly across the connection point. A tight fit reduces wear on both the pin and the yoke, extending the service life of the entire linkage assembly and maintaining the precision of motion transmission.

The "Neck Dia. (in.)" is specified as 0.813 inches. This dimension refers to the diameter of the cylindrical section that transitions from the threaded shank to the clevis portion of the yoke. A robust neck diameter is crucial for handling the bending moments and shear forces that can occur at this transition point, particularly when the linkage is under tension or compression. The 0.813-inch diameter provides ample material cross-section to prevent deformation or failure under typical operating loads.

The material, as stated, is "Forged Steel." Steel, in general, is an alloy primarily composed of iron and carbon, known for its high strength and versatility. The term "forged steel" indicates that the steel has undergone the forging process, which refines its microstructure and enhances its mechanical properties significantly. This makes the yoke end exceptionally durable and reliable, capable of withstanding the rigors of heavy-duty applications. The specific grade of steel used for forging would typically be a medium-carbon or alloy steel, selected for its balance of strength, toughness, and machinability, though specific alloy details are not provided in this summary. The choice of forged steel over other materials ensures maximum operational lifespan and reduced maintenance requirements.

The "Neck Length (in.)" is 1.810 inches. This measurement describes the axial length of the cylindrical neck section. An adequate neck length is important for several reasons: it provides sufficient engagement for the threading process, ensures a stable transition to the clevis, and contributes to the overall structural integrity by distributing stresses over a longer area. This dimension is crucial in designs where the yoke might be subject to significant torsional loads or where attachment to other components requires specific stand-off distances.

The "Center Hole to Neck (in.)" dimension is 3.440 inches. This critical measurement defines the distance from the center of the clevis pin hole to the beginning of the threaded neck section. This dimension is vital for determining the effective length of the linkage and for ensuring proper clearance and alignment within an assembly. Designers must consider this dimension meticulously when calculating the geometry of complex mechanical systems to avoid interference and achieve the desired range of motion. It directly impacts the moment arm and thus the forces experienced by the yoke when connected within a system.

The specification "Clevis Pin Incl. (y/n)" states "No." This indicates that the clevis pin, which is necessary to complete the connection through the 0.500-inch diameter thru-hole, is not supplied with the yoke end. Users must source the appropriate clevis pin or bolt separately, allowing for flexibility in choosing pins made of specific materials, finishes, or with particular locking mechanisms (e.g., cotter pins, spring clips) that best suit their application's requirements.

The "Finish" is "Plain." A plain finish means the steel surface is left as-forged or as-machined, without any additional protective coatings such as paint, plating (e.g., zinc), or black oxide. While this might suggest a susceptibility to corrosion in certain environments, it is a common specification for components that will either be painted by the end-user as part of a larger assembly, or operate in environments where corrosion is not a primary concern, or where lubrication is consistently applied. For harsh, corrosive environments, a plain finish would necessitate further treatment or a protective coating applied post-purchase to ensure longevity and prevent rust.

The "Inner Arm to Arm (in.)" is 0.563 inches. This dimension refers to the clear distance between the two parallel arms of the clevis portion of the yoke. It dictates the maximum width of the component (e.g., a rod end, bracket, or another linkage component) that can be inserted into the yoke for connection. A precise inner arm spacing is essential for accommodating the mating component without excessive play, which could lead to rattling, premature wear, or loss of motion control. This dimension, combined with the hole diameter, defines the fit for the connecting element.

The "Type" is "Standard." This classification suggests that the yoke end conforms to commonly accepted dimensions and designs within the industry. A "standard" type implies broad compatibility with other standard components and generally indicates a readily available and widely understood form factor, simplifying integration into existing designs or common applications. This helps engineers and designers quickly identify and apply the component without needing extensive custom adaptations.

Finally, the "Thread Size (in.)" is "1/2-20." This is a crucial specification for mating the yoke end to a threaded rod or shaft. "1/2" refers to the nominal major diameter of the thread in inches. "20" refers to the number of threads per inch (TPI). "NF" or National Fine thread designation, typically implied by the 1/2-20 callout, signifies a finer pitch than National Coarse (NC) threads. Fine threads offer several advantages: they provide greater resistance to loosening under vibration, allow for finer adjustments, and have a larger tensile stress area, which can translate to higher load-carrying capacity for a given nominal diameter, especially in applications where precise axial adjustment is required. The 1/2-20 NF thread is a common and robust thread size, widely utilized across various industrial and automotive applications for its strength and reliability in dynamic systems.

The "Adjustable" aspect mentioned in the product title and description further emphasizes the utility of the threaded neck. The fine pitch of the 1/2-20 NF thread allows for precise axial adjustment when the yoke is screwed onto a corresponding threaded rod. This adjustability is invaluable in systems that require periodic fine-tuning of linkage length to compensate for wear, assembly tolerances, or operational changes. For instance, in control linkages, precise length adjustment ensures correct engagement points and optimal responsiveness of the connected mechanisms. This capability significantly streamlines installation and ongoing maintenance, reducing downtime and improving system accuracy.

In terms of application, these adjustable yoke ends are essential in myriad mechanical assemblies. Consider agricultural machinery, where they connect hydraulic cylinders to implements, facilitating the movement of blades, plows, or other tools. In heavy-duty truck suspensions, they might connect control arms or sway bars, allowing for robust yet flexible articulation. Industrial automation uses them in robotic arms, conveyor systems, or material handling equipment to link actuators to end effectors or other moving parts. The ability to "position your linkage around obstacles" implies their use in complex geometric configurations where straight-line connections are not feasible. This is particularly relevant in chassis and frame designs where structural members and other components might obstruct a direct path, necessitating the subtle curvature or offset provided by the yoke's design.

From an engineering perspective, selecting the correct yoke end involves a thorough understanding of the operational environment, load conditions (tensile, compressive, shear, bending, torsional, dynamic), required range of motion, and desired service life. The forged steel construction ensures high static and dynamic load capacity, making it suitable for applications where safety and reliability are paramount. While the "plain" finish might necessitate additional corrosion protection in humid or corrosive environments, it offers flexibility for integrators to apply specific coatings tailored to their precise environmental demands.

The combination of a precise 1/2-inch thru-hole, robust 0.813-inch neck diameter, substantial 1.810-inch neck length, and generous 3.440-inch center hole to neck dimension ensures that this yoke end provides a strong, stable, and versatile connection point. The 0.563-inch inner arm to arm spacing accommodates standard mating components, and the 1/2-20 NF thread offers secure and adjustable attachment. Buyers Products' commitment to machine-forged construction underlines the superior quality and longevity expected from such a critical mechanical component.

In summary, the Adjustable Yoke End 1/2-20 NF and 1/2 Inch Diameter Thru-Hole is a high-performance, precision-engineered component designed for demanding mechanical linkage applications. Its forged steel construction, combined with meticulous dimensional specifications and fine-thread adjustability, ensures exceptional strength, durability, and versatility. This component is an invaluable asset for engineers and manufacturers seeking reliable and precisely articulable connections in their machinery and equipment, facilitating robust motion transfer and linkage solutions even in complex and space-constrained operational environments.
