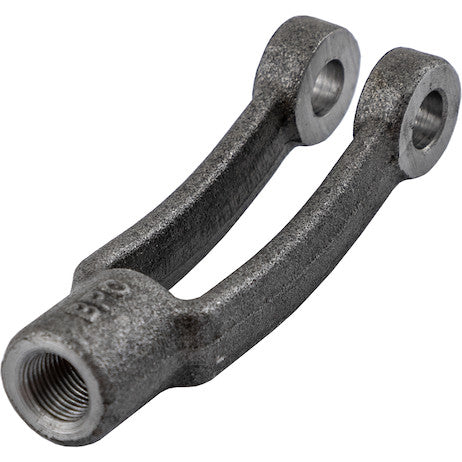

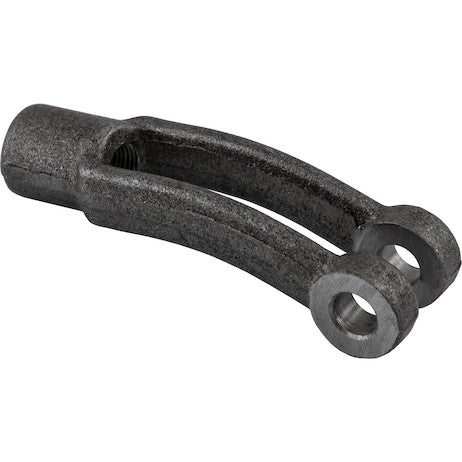

B27087BB - Adjustable Yoke End 5/8-18 NF Thread And 1/2 Inch Diameter Thru-Hole

Buyers Products Adjustable Yoke Ends are machine forged and curved to position your linkage around obstacles.

Specifications

The Adjustable Yoke End, featuring a 5/8-18 NF thread and a 1/2 inch diameter thru-hole, represents a meticulously engineered component designed for critical mechanical linkage applications across a diverse range of industries. This product is not merely a connection point but a precision-fabricated element intended to provide robust, reliable, and adaptable performance in demanding operational environments. Its construction from forged steel, combined with specific dimensional attributes and a strategically curved design, positions it as an essential component for engineers and manufacturers seeking high-integrity solutions for motion control, power transmission, and structural articulation.

At the core of this adjustable yoke end's functionality is its threaded connection. The designation "5/8-18 NF Thread" carries significant technical implications. The '5/8 inch' refers to the nominal major diameter of the thread, a standard dimension indicating substantial load-bearing capacity suitable for medium to heavy-duty applications. The '18' denotes 18 threads per inch (TPI), signifying a fine thread series. The 'NF' stands for National Fine, a standard thread classification in North America. National Fine threads are characterized by a greater number of threads per unit length compared to National Coarse (NC) threads of the same diameter. This characteristic provides several distinct advantages crucial for mechanical linkages. Firstly, NF threads offer a larger stress area in tension, contributing to a higher ultimate tensile strength and improved resistance to stripping under static and dynamic loads. This increased material engagement means that a joint assembled with an NF thread can typically withstand greater axial forces before failure, enhancing the overall safety factor of the linkage system. Secondly, the finer pitch of NF threads facilitates more precise adjustments during assembly, which is particularly beneficial in applications requiring accurate positioning or tensioning. The reduced lead angle also makes NF threaded connections inherently more resistant to vibrational loosening, an invaluable property in machinery subjected to continuous motion, impact, or cyclic stresses. This superior resistance to self-loosening minimizes the need for additional locking mechanisms, simplifying design and reducing maintenance. Furthermore, the shallower thread depth of NF threads means less material removal during the threading process, often resulting in a stronger neck diameter immediately behind the threaded section, contributing to the component's overall fatigue life and shear strength. This specific thread configuration ensures secure and stable attachment to corresponding male-threaded rods or shafts, forming a rigid yet adjustable segment within a broader mechanical system.

Complementing the robust threaded connection is the precisely machined 1/2 inch diameter thru-hole, also specified as a 0.500" Clevis Pin Hole Dia. This thru-hole serves as the primary articulation point of the yoke end, designed to accommodate a standard 1/2 inch clevis pin. The accuracy of this bore is paramount for ensuring a proper fit with the mating clevis pin, which is typically manufactured to a nominal 0.500-inch diameter. A precisely sized thru-hole minimizes play and slop in the joint, which is critical for maintaining linkage accuracy, reducing wear on mating components, and preventing premature fatigue failure. Excessive clearance in a pinned joint can lead to oscillatory motion, fretting corrosion, and concentrated stress points, ultimately compromising the integrity and lifespan of the entire assembly. Conversely, an overly tight fit could hinder assembly or restrict the intended angular movement. The 0.500-inch diameter is a common standard in many industrial and automotive applications, providing compatibility with a wide array of commercially available clevis pins, bushings, or bearing inserts, thereby offering flexibility in design and repair. The selection of a 1/2 inch clevis pin size indicates that the yoke end is designed to handle significant shear forces experienced at the pivot point, consistent with its forged steel construction and intended heavy-duty applications. While the clevis pin itself is not included (as indicated by "Clevis Pin Incl. (y/n): No"), this specification confirms the universal applicability and compatibility of the yoke end with standard hardware.

The choice of material and manufacturing process is fundamental to the performance and durability of this adjustable yoke end. Fabricated from "Forged Steel," this component benefits from one of the most effective metalworking processes for creating high-strength, high-integrity parts. Forging involves shaping metal by localized compressive forces, typically at elevated temperatures (hot forging), using hammers or presses. This process dramatically refines the internal grain structure of the steel, aligning the grain flow with the part's contours. Unlike casting, which can introduce porosity and internal defects, or machining from bar stock, which cuts across the grain flow, forging produces a continuous grain structure that follows the shape of the part. This optimized grain flow imparts superior mechanical properties to the forged component, including significantly increased tensile strength, yield strength, ductility, and toughness. Forged steel is inherently more resistant to impact, fatigue, and shock loads than parts produced by other methods, making it ideal for components subjected to repetitive stresses and dynamic forces in harsh environments. The dense, non-porous nature of forged steel also provides excellent resistance to wear and abrasion. While specific steel grades are not enumerated, the term "Forged Steel" implies a robust carbon or alloy steel selected for its balance of strength, machinability, and forgeability, ensuring that the yoke end can reliably withstand the rigorous demands of industrial service. The material’s inherent properties contribute directly to the component’s long operational life and reduced likelihood of catastrophic failure, which is paramount in safety-critical applications.

The "Plain" finish of the yoke end signifies that the component has not undergone any additional surface treatment such as plating, painting, or coating after the forging and machining processes. This plain finish provides several practical advantages. It is cost-effective, as it eliminates the expense and complexities associated with secondary finishing operations. For many industrial applications where the component is housed within a protected environment or where the end-user intends to apply their own specific coating (e.g., painting to match equipment color schemes, or specialty coatings for unique environmental resistance), a plain finish is preferred. Furthermore, plain steel surfaces can be readily welded, allowing for integration into custom fabrications without the need for stripping existing coatings, which can be an advantage in certain assembly scenarios or field repairs. However, it is important to note that a plain finish leaves the steel susceptible to oxidation and corrosion, particularly in humid or outdoor environments. For applications exposed to corrosive agents or elements, users should anticipate the need for post-purchase surface protection, such as painting, oiling, or applying a rust-inhibiting coating, to maintain the component's aesthetic and functional integrity over time. The "plain" finish is a testament to the component's focus on foundational mechanical integrity, allowing flexibility for application-specific finishing.

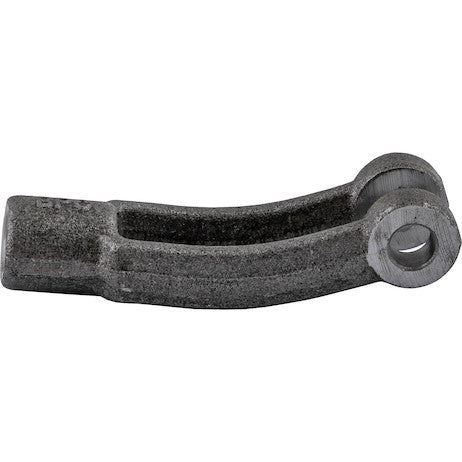

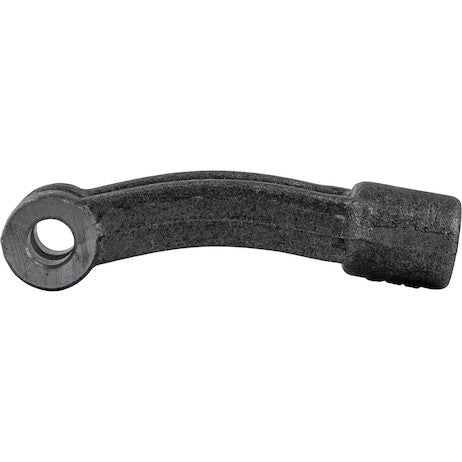

The design specifics of this adjustable yoke end are critical to its functionality and adaptability. The initial description highlights that Buyers Products Adjustable Yoke Ends are "curved to position your linkage around obstacles," and the specifications elaborate on this with a "Yoke Curve Angle" of "20°". This specific geometric feature is a key differentiator. In complex machinery and vehicle chassis, straight linkages can often interfere with other components, structural elements, or moving parts. The 20-degree curve in the yoke arm provides an engineered offset, allowing the linkage to effectively navigate around such obstructions, preventing clashes and facilitating smoother, unhindered operation. This curvature enables designers to create more compact assemblies, optimize space utilization, and resolve potential clearance issues without resorting to more complicated, multi-part linkage designs. The "Type: Spread" refers to the general configuration of the yoke arms, indicating that they diverge or remain parallel to encompass a mating component. This is the most common and versatile yoke configuration, allowing for secure clevis pin articulation with minimal side-to-side play when paired with appropriately sized components. The "Height of Yoke Arm (in.): 2.500" provides the vertical dimension of the structural arms, indicating their robustness and ability to withstand bending moments and shear forces transmitted through the clevis pin. This dimension is crucial for ensuring adequate clearance in the system and contributes to the overall strength of the yoke structure. The "Width (in.): 1.125" refers to the overall maximum width of the yoke end, which is important for spatial planning and ensuring it fits within the designated envelope of the assembly. These design elements collectively enhance the versatility and integration capabilities of the yoke end within various mechanical systems.

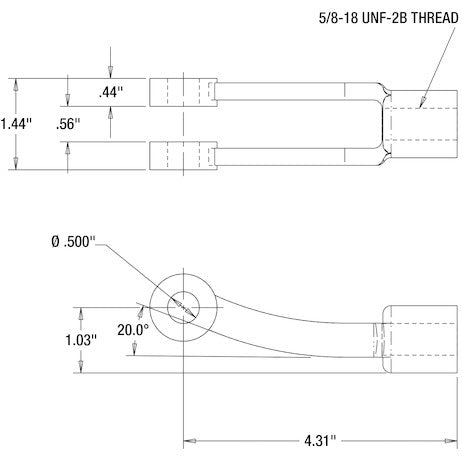

Several other dimensional specifications contribute significantly to the precise application and integration of this component. The "Neck Length (in.): 0.844" specifies the length of the unthreaded shank immediately preceding the yoke. This dimension is vital for determining the overall length of the assembled rod and ensuring adequate thread engagement without the yoke interfering prematurely with the mating rod. The "Inner Arm to Arm (in.): 0.563" is a critical measurement for the internal clearance between the two arms of the yoke. This dimension dictates the maximum width of the component that can be accommodated within the yoke's embrace, such as a rod end with a bearing, a bushing, or a custom clevis component. Precision in this measurement ensures a proper fit, minimizing lateral movement of the pinned component while allowing for free angular motion. An incorrect inner arm spacing can lead to binding or excessive play. The "Neck Dia. (in.): 0.813" refers to the diameter of the cylindrical portion of the yoke end where it transitions from the thread to the yoke arms. This diameter is important for manufacturing considerations, stress distribution, and potentially for mating with collars or other components that might bear against this section. The "Base to Hole Center (in.): 4.31"" provides the total effective length of the yoke end from the theoretical base of its threaded portion to the center of the clevis pin hole. This measurement is indispensable for calculating the total length of a linkage assembly, determining leverage ratios, and ensuring precise positioning in the mechanical system. Finally, the "Center Hole to Neck (in.): 1.690"" dimension specifies the distance from the center of the clevis pin hole to the start of the neck section. This measurement is crucial for preventing interference between the clevis pin and the rod to which the yoke end is threaded, especially during angular articulation. It ensures that there is sufficient clearance for the clevis pin and any associated hardware (like cotter pins) without impinging on the threaded rod or the neck of the yoke itself. All these dimensions, when considered holistically, allow engineers to accurately model, design, and assemble robust mechanical linkages with confidence in their spatial compatibility and kinematic performance.

The applications for this adjustable yoke end are extensive, spanning numerous industrial sectors where reliable and adjustable mechanical connections are paramount. In the heavy-duty vehicle industry, these yoke ends are integral to steering linkages, throttle controls, brake systems, suspension components, and various auxiliary equipment on trucks, trailers, agricultural machinery, and construction vehicles. Their robust forged steel construction makes them ideal for enduring the shock, vibration, and environmental exposure inherent in these demanding environments. Within industrial machinery, they are frequently employed in hydraulic and pneumatic cylinder connections, providing a secure and articulated interface between the cylinder rod and the driven mechanism. They are also vital in material handling equipment, such as forklifts, conveyors, and lifting platforms, where they facilitate precise movement and load control. In automation and robotics, these components offer the adjustability and strength required for complex motion control systems, allowing for fine-tuning of arm positions and end-effector orientations. Furthermore, they find utility in power generation equipment, marine applications (with appropriate surface treatment), and various custom-fabricated assemblies where a high-strength, adjustable clevis connection is needed. The inherent adjustability of the threaded connection combined with the robust articulating clevis hole provides engineers with a versatile building block for a multitude of kinematic and structural challenges.

The benefits derived from integrating this specific adjustable yoke end into mechanical designs are multifaceted. Its forged steel construction guarantees exceptional strength, impact resistance, and fatigue life, leading to significantly reduced downtime and lower maintenance costs over the operational lifespan of the equipment. The 5/8-18 NF thread ensures a secure, vibration-resistant connection, crucial for maintaining positional accuracy and preventing component detachment under dynamic loads. The precisely sized 1/2 inch clevis pin hole minimizes play, thereby enhancing the precision and responsiveness of the linkage, reducing wear on mating parts, and improving the overall efficiency of power transmission. The unique 20-degree curve in the yoke arm offers unparalleled design flexibility, allowing engineers to route linkages around obstacles and optimize spatial arrangements, which can lead to more compact and efficient machinery designs. The "spread" type configuration and detailed dimensional specifications ensure broad compatibility and ease of integration into existing or new systems, streamlining the design and assembly process. While possessing a "plain" finish, this also offers the advantage of allowing end-users to apply their preferred protective coatings or integrate the component into welded assemblies without pre-treatment concerns. In essence, this adjustable yoke end provides a superior combination of strength, precision, adjustability, and spatial adaptability, making it an economically viable and technically sound choice for critical linkage applications.

Proper installation and periodic maintenance are key to maximizing the lifespan and performance of the Adjustable Yoke End. During installation, it is crucial to ensure correct thread engagement; the 5/8-18 NF thread should be fully engaged with the mating rod end or shaft to utilize its full strength and vibration resistance. Adherence to specified torque values for the threaded connection, if available for the specific application, is essential to prevent both under-tightening (which can lead to loosening) and over-tightening (which can damage threads or distort components). The clevis pin should be correctly sized and secured with an appropriate retaining mechanism, such as a cotter pin or a spring clip, to prevent accidental dislodgement. While the plain finish allows for flexibility, for applications in corrosive or outdoor environments, it is strongly recommended that a suitable rust-preventative coating, such as paint, primer, or specialized industrial coating, be applied immediately after installation to protect the forged steel from oxidation. Regular inspection of the yoke end for signs of wear, deformation, or corrosion is advised, particularly at the clevis pin hole and the threaded section, as these areas are subject to the highest stresses. Any signs of significant wear or damage should prompt replacement to prevent potential system failure. If the clevis pin joint is intended to be a moving articulation point, periodic lubrication of the clevis pin and its mating surfaces may be necessary, depending on the clevis pin material and the presence of any bushings, to reduce friction and wear. Following these best practices will ensure the robust performance and extended service life of the adjustable yoke end.

In summary, the Adjustable Yoke End with its 5/8-18 NF Thread and 1/2 Inch Diameter Thru-Hole is a product of sophisticated engineering and robust manufacturing. Its foundation in machine-forged steel ensures superior strength, durability, and resistance to the rigors of industrial applications. The precision of the 5/8-18 NF thread offers exceptional holding power and resistance to vibrational loosening, critical for reliable operation. The accurately bored 1/2 inch clevis pin hole guarantees a tight, low-play articulation point, preserving the integrity and responsiveness of the mechanical linkage. Furthermore, its distinctive 20-degree curve is not merely an aesthetic feature but a functional design element that facilitates complex linkage routing around obstacles, enhancing overall system design flexibility. Coupled with a "spread" type configuration and meticulously detailed dimensions—from the neck length and diameter to the inner arm spacing and the base-to-hole center measurement—this yoke end provides engineers with a comprehensive, high-performance solution. Whether deployed in heavy machinery, automotive systems, industrial automation, or custom mechanical assemblies, this component stands as a testament to reliability, adjustability, and enduring performance in the most demanding operational contexts.
