B27096A - 1/2 x 2-1/2 Inch Plain Yoke End

Yoke Ends from Buyers Products meet SAE standards and are available in five sizes to work for any linkage needs.

Specifications

Advanced Technical Overview: 1/2 x 2-1/2 Inch Plain Yoke End by Buyers Products

This document provides a comprehensive technical analysis of the 1/2 x 2-1/2 Inch Plain Yoke End from Buyers Products, a critical component engineered for robust mechanical linkage applications. Designed and manufactured to meet stringent SAE standards, this particular yoke end exemplifies precision engineering, material integrity, and operational reliability essential for demanding industrial and commercial environments. The product's designation, "Plain Yoke End," signifies its non-threaded neck configuration, distinguishing it for applications where a welded, bolted, or similarly secured connection to a rod or shaft is preferred over a threaded one. This detailed exposition will delve into its material properties, dimensional specifications, manufacturing processes, application versatility, and adherence to industry standards, providing a thorough understanding for engineers, procurement specialists, and maintenance professionals.

Material Selection and Engineering Rationale: Forged Steel

The selection of forged steel as the primary material for this yoke end is a deliberate engineering decision rooted in its superior mechanical properties compared to cast or machined alternatives. Forging is a manufacturing process that involves shaping metal through localized compressive forces, typically performed hot. This process refines the grain structure of the steel, eliminating internal voids and porosity, which are common weaknesses in cast parts. The result is a component with significantly enhanced tensile strength, yield strength, fatigue resistance, and impact toughness.

• Tensile Strength: Forged steel exhibits a higher ultimate tensile strength, meaning it can withstand greater pulling forces before fracture. This is crucial for linkage components that frequently experience tension loads.
• Yield Strength: The yield strength of forged steel is also superior, indicating its ability to resist permanent deformation under load. This ensures the yoke end maintains its original geometry and functional integrity even after prolonged stress cycling.
• Fatigue Resistance: In dynamic applications, components are subjected to repetitive loading and unloading. Forged steel's refined grain structure and absence of internal defects provide exceptional resistance to fatigue crack initiation and propagation, extending the service life of the component.
• Impact Toughness: Forging imparts excellent toughness, making the yoke end less susceptible to brittle fracture under sudden impacts or shock loads. This is particularly important in environments where machinery may experience unexpected forces.
• Grain Flow: The forging process manipulates the grain flow of the steel to align with the part's contour. This optimized grain flow enhances the material's strength and resistance to stress concentrators in critical areas, such as the radii between the yoke arms and the neck.

Given these advantages, forged steel ensures that the 1/2 x 2-1/2 Inch Plain Yoke End can withstand the rigorous demands of heavy-duty applications, minimizing the risk of failure and contributing to the overall reliability and safety of the connected system.

Dimensional Specifications and Their Functional Implications

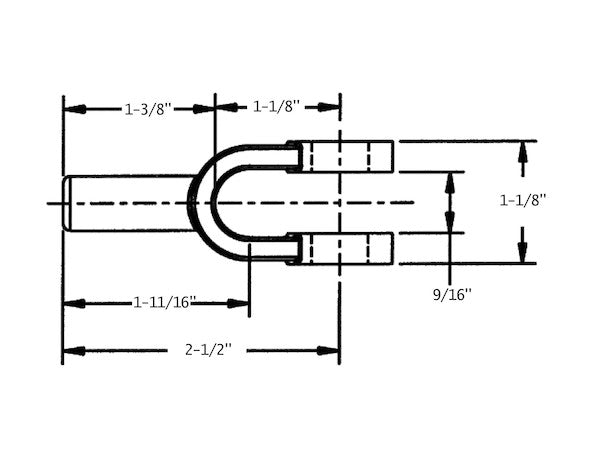

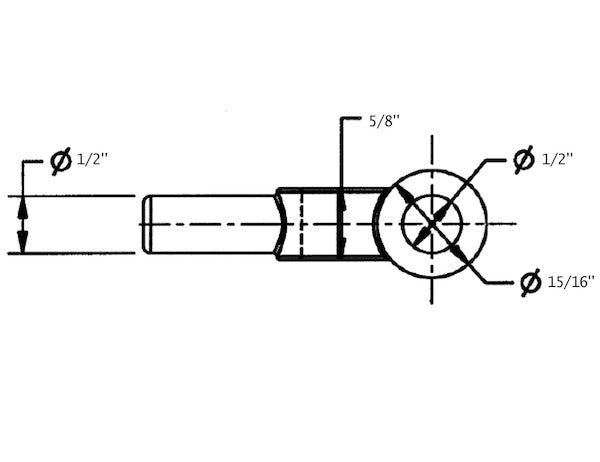

A precise understanding of the dimensional specifications is paramount for proper integration and optimal performance. The provided specifications offer a detailed blueprint of the yoke end's geometry:

• Inner Arm to Arm (in.): .563" (14.30 mm): This critical dimension defines the internal clearance between the two arms of the yoke. It dictates the maximum width of the mating component (e.g., a clevis or rod end) that can be accommodated. An allowance for proper fit and minimal lateral play is essential for smooth articulation and to prevent binding. The .563" measurement suggests a design optimized for a .500" (1/2 inch) clevis pin or mating component with appropriate operational clearance.
• Yoke Height: 0.625" (15.875 mm): This dimension refers to the vertical height of the yoke arms. It influences the bearing surface area for the clevis pin and, consequently, the load distribution across the pin. A sufficient yoke height is vital for preventing excessive wear on the pin and the internal surfaces of the yoke arms, especially under high shear loads.
• Neck Dia. (in.): .500" (12.70 mm): The neck diameter is a fundamental dimension for attaching the yoke end to a corresponding shaft, rod, or structural element. Since this is a "Plain" yoke end, this diameter is designed for welding, press-fitting, or mechanical fastening (e.g., set screws, taper pins) to a rod of matching or slightly larger diameter, allowing for precise concentric alignment.
• Type: Standard: This classification indicates that the yoke end conforms to commonly accepted industry geometries and functional characteristics for such components. It implies a design that is widely compatible with standard clevis pins and mounting arrangements.
• Base to Hole Center (in.): 2.500" (63.50 mm): This measurement, often referred to as the effective length or working length, is the distance from the base of the neck to the center of the clevis pin hole. It is crucial for determining the overall length of the linkage assembly and for calculating angular displacement and mechanical advantage in articulated systems.
• Thread Size (in.): - : The absence of a thread size confirms this is a "Plain" yoke end, explicitly designed for non-threaded attachment methods, typically welding. This design choice offers advantages in applications requiring permanent attachment, high structural integrity, or where space constraints preclude traditional threaded connections.
• Hole Dia. (in.): .500" (12.70 mm): This is the diameter of the clevis pin hole. A precise .500" hole ensures proper fitment with a 1/2 inch clevis pin. The tolerance on this hole is critical for minimizing play while allowing for free rotation of the pin, which is essential for smooth articulation and preventing premature wear.
• Center Hole to Neck (in.): 1.125" (28.575 mm): This dimension defines the distance from the center of the clevis pin hole to the point where the yoke arms transition into the neck. It is important for understanding stress distribution within the yoke arms and for calculating clearances during angular movement.
• Finish: Plain: A "Plain" finish typically means the component is supplied without any additional surface coating like zinc plating, galvanization, or paint. This is often preferred when the part is intended for welding, as a clean, untreated surface ensures optimal weld penetration and strength. Post-welding, users may apply their own protective coatings tailored to the specific operating environment.
• Clevis Pin Incl. (y/n): No: This indicates that the clevis pin is not supplied with the yoke end. This allows users to select a clevis pin of the appropriate material, length, and locking mechanism (e.g., cotter pin, quick-release pin) that best suits their specific application requirements.
• Neck Length (in.): 1.375" (34.925 mm): The length of the plain neck provides ample surface area for welding or other mechanical attachment methods, ensuring a strong and stable connection to the rod or shaft. A longer neck can distribute stress over a greater area, enhancing the fatigue life of the joint.
• Width (in.): 1.125" (28.575 mm): This refers to the overall maximum width of the yoke end, typically measured across the outer edges of the yoke arms. This dimension is crucial for ensuring proper clearance within confined spaces and for preventing interference with surrounding components in an assembly.

Manufacturing Process and Quality Assurance

Buyers Products' commitment to meeting SAE standards underscores a rigorous manufacturing process. Forging ensures not only material strength but also dimensional accuracy and consistency across production batches. Post-forging, critical dimensions are likely machined to achieve the specified tolerances, particularly for the clevis pin hole and the neck diameter, ensuring precise fitment and smooth operation. Quality control measures would typically include:

• Material Certification: Verification of raw steel composition to ensure it meets metallurgical requirements for forging.
• Dimensional Inspection: Use of precision gauges, calipers, and coordinate measuring machines (CMMs) to verify all critical dimensions, especially hole diameter, arm-to-arm spacing, and base-to-hole center.
• Surface Finish Inspection: Checking for defects such as cracks, inclusions, or excessive surface roughness that could compromise performance or fatigue life.
• Non-Destructive Testing (NDT): Depending on the application, methods like magnetic particle inspection or ultrasonic testing might be employed to detect subsurface defects in the forged material.

Adherence to SAE Standards

The explicit statement that these Yoke Ends meet SAE standards is a critical differentiator. SAE International (formerly Society of Automotive Engineers) develops and maintains technical standards for a wide range of industries, including automotive, aerospace, and commercial vehicles. For mechanical components like yoke ends, SAE standards typically define:

• Dimensional Interchangeability: Ensuring that components from different manufacturers can be interchanged if they adhere to the same standard.
• Material Specifications: Prescribing minimum mechanical properties and chemical compositions for materials.
• Performance Requirements: Defining load capacities, fatigue life, and other operational parameters.
• Testing Procedures: Outlining standardized methods for verifying compliance.

Adherence to SAE standards provides confidence in the product's quality, performance, and compatibility, simplifying design and procurement processes for engineers and reducing the risk of component failure in critical applications.

Application Versatility and Integration

The 1/2 x 2-1/2 Inch Plain Yoke End is a foundational component in numerous mechanical linkages across diverse industries:

• Agricultural Machinery: Used in steering linkages, control arms for implements, and hydraulic cylinder connections.
• Construction Equipment: Essential for articulating joints in excavators, loaders, dozers, and material handling equipment.
• Truck and Trailer Industry: Found in brake linkages, suspension components, steering systems, and various accessory attachments.
• Industrial Machinery: Utilized in automated systems, conveyors, presses, and specialized manufacturing equipment where robust linear motion and articulation are required.
• Marine Applications: In non-corrosive environments or with appropriate post-treatment, can be used in rudder linkages, throttle controls, and other mechanical systems on boats and marine equipment.

The "Plain" neck design offers significant flexibility for integration:

• Welding: The most common method for permanent attachment, providing a high-strength, monolithic connection to a rod or shaft. The plain finish is ideal for optimal weld quality.
• Press-Fitting: For applications requiring a very tight, interference fit, the neck can be press-fitted into a bored hole, often followed by a retaining pin or welding for added security.
• Mechanical Fasteners: While less common for "Plain" necks, attachment via set screws or taper pins can be used in certain scenarios where welding is not feasible or disassemblability is required, though this may require additional machining of the neck.

Maintenance and Longevity Considerations

While the forged steel construction and adherence to SAE standards ensure inherent durability, proper maintenance practices are crucial for maximizing the longevity of the yoke end and the entire linkage system:

• Lubrication: Although the clevis pin is not included, it is imperative to ensure that the chosen pin and the internal surfaces of the yoke arms are adequately lubricated, especially in high-cycle or high-load applications. This minimizes friction, reduces wear, and prevents premature failure.
• Inspection: Regular visual inspections for signs of wear, deformation, cracking, or corrosion are recommended. Pay particular attention to the clevis pin hole, the inner surfaces of the arms, and the weld joint (if applicable).
• Environmental Protection: As the yoke end comes with a "Plain" finish, it is susceptible to corrosion in harsh environments. If used outdoors or in areas exposed to moisture and chemicals, applying an appropriate protective coating (e.g., paint, powder coat, or galvanization) after welding is strongly advised to prevent rust and extend service life.
• Proper Pin Selection: Using a clevis pin of the correct diameter, length, and material, along with an appropriate retaining mechanism, is paramount. An undersized or poor-quality pin can lead to excessive play, accelerated wear, and potential failure.

Conclusion

The 1/2 x 2-1/2 Inch Plain Yoke End from Buyers Products represents a high-quality, technically sound component designed for reliable performance in demanding mechanical linkage applications. Its construction from forged steel provides superior strength and durability, while its precise dimensional specifications ensure accurate fitment and functionality. Adherence to SAE standards guarantees a product that meets industry benchmarks for quality and interchangeability. The "Plain" finish and non-threaded neck offer versatile integration options, predominantly through welding, making it an ideal choice for permanent and robust connections. Engineers and system integrators can confidently specify this yoke end for applications requiring a dependable, long-lasting solution in critical motion transfer and control systems, ensuring the integrity and efficiency of their overall assemblies.
