B27097A - 5/8 x 4-3/4 Inch Plain Yoke End

Yoke Ends from Buyers Products meet SAE standards and are available in five sizes to work for any linkage needs.

Specifications

Advanced Engineering of the 5/8 x 4-3/4 Inch Plain Yoke End: A Technical Deep Dive

The 5/8 x 4-3/4 Inch Plain Yoke End from Buyers Products represents a critical component in mechanical linkage systems, engineered for demanding industrial, agricultural, and commercial applications. This detailed exposition delves into the material science, precision manufacturing, functional specifications, and versatile applications of this robust Yoke End, underscoring its adherence to stringent SAE standards and its role in ensuring system integrity and operational efficiency.

Engineering Excellence: The Forged Steel Advantage

At the core of this Yoke End's exceptional strength and durability is its construction from Forged Steel. Forging is a metalworking process that involves shaping metal using localized compressive forces, typically performed by hammering, pressing, or rolling. Unlike casting, which involves pouring molten metal into a mold, or machining from raw bar stock, forging induces a unique grain flow within the material that follows the contour of the part. This optimized grain structure significantly enhances the mechanical properties of the steel, resulting in a product that far surpasses the performance of components made through alternative manufacturing methods.

The benefits derived from forging are multifaceted. Firstly, forged steel exhibits superior tensile strength and yield strength, meaning it can withstand greater pulling and deforming forces before permanent deformation or fracture occurs. This is paramount in linkage applications where components are frequently subjected to high cyclical loads. Secondly, the forging process refines the grain structure, eliminating internal voids, porosity, and other defects common in castings. This reduction in metallurgical imperfections translates into enhanced fatigue resistance, allowing the Yoke End to endure millions of stress cycles without succumbing to fatigue cracks, a critical consideration for dynamic systems. Furthermore, forged components possess excellent impact toughness, demonstrating a higher resistance to sudden shock loads and brittle fracture, which is vital in harsh operating environments where unforeseen impacts can occur. The compressive forces applied during forging also lead to increased density and a more uniform microstructure, contributing to enhanced wear resistance and overall longevity. By selecting forged steel for this Yoke End, Buyers Products ensures a component capable of performing reliably under extreme conditions, offering a significant advantage in terms of operational safety and extended service life compared to fabricated or cast alternatives. This commitment to superior material selection is a cornerstone of the product's value proposition.

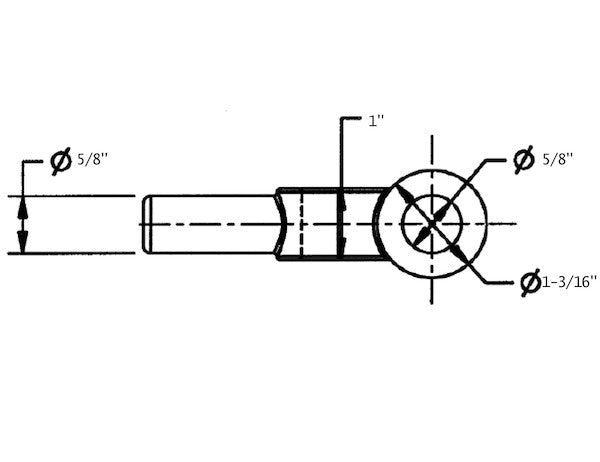

Precision in Design: Decoding the Yoke End Dimensions

Each dimension of the 5/8 x 4-3/4 Inch Plain Yoke End is meticulously engineered to ensure optimal performance, compatibility, and structural integrity within complex mechanical assemblies. Understanding these specifications is crucial for designers and engineers integrating this component into their systems.

• Inner Arm to Arm (.688 in.): This dimension specifies the precise internal clearance between the two arms of the yoke. At 0.688 inches, it dictates the maximum width of the mating component, typically a clevis pin or the eye of another linkage element, that can be accommodated within the yoke. Accurate adherence to this tolerance is vital for preventing excessive play, which can lead to premature wear and vibrational issues, while also ensuring smooth articulation without binding.
• Type: Standard: Classifying this Yoke End as "Standard" indicates a design that conforms to widely accepted industry practices and dimensional guidelines. This ensures broad interoperability with other standard mechanical components and simplifies replacement or integration into existing systems without requiring custom fabrication or specialized tooling. It denotes a reliable, proven design readily understood and applied across various engineering disciplines.
• Center Hole to Neck (1.438 in.): This measurement defines the distance from the center of the clevis pin hole to the beginning of the cylindrical neck portion of the yoke. This dimension is critical for determining the lever arm length in certain kinematic arrangements and for calculating the moment forces acting on the neck during operation. It also directly influences the overall geometry and spatial requirements of the linkage assembly.
• Finish: Plain: The "Plain" finish signifies that the Yoke End is supplied as raw, uncoated forged steel. This is a deliberate choice offering several practical advantages. Primarily, it provides an ideal surface for welding, allowing for strong, uncompromised metallurgical bonds without the need to remove plating or other coatings that could interfere with weld quality. While plain steel is susceptible to corrosion in aggressive environments, it offers end-users the flexibility to apply their preferred protective coating—be it paint, powder coat, or plating—tailored to the specific environmental conditions of their application. This eliminates the cost and potential incompatibility of factory-applied finishes that might not suit every end-use scenario.
• Width (1.375 in.): This refers to the maximum overall external width of the yoke structure. This dimension is important for envelope clearance within tight mechanical spaces and for ensuring proper fitment within other structural components or housings. It also provides an indication of the robust cross-sectional area of the yoke arms, contributing to the component's shear and bending strength.
• Yoke Height (1.000 in.): The Yoke Height represents the vertical dimension of the yoke arms from their base to their uppermost point. This measurement is crucial for understanding the structural depth of the arms, which directly correlates with their ability to withstand bending loads and evenly distribute forces exerted by the clevis pin, minimizing stress concentrations around the pin hole.
• Neck Dia. (0.625 in. or 5/8 in.): The neck diameter of 0.625 inches is a critical interface dimension. This cylindrical section is designed to be welded or otherwise mechanically attached to a connecting rod, shaft, or other structural element. A precise diameter ensures a robust and concentric connection, vital for transmitting axial loads efficiently and maintaining alignment within the linkage system. This dimension directly corresponds to the "5/8 Inch" often used in the product's title, indicating the size of the shaft or rod it is intended to connect to.
• Neck Length (3.250 in.): With a length of 3.250 inches, the neck provides ample surface area for secure attachment, particularly for welding. A generous neck length ensures sufficient material for a strong, load-bearing weld joint, allowing for proper heat dissipation during the welding process and minimizing the risk of localized weakening. It also offers flexibility in trimming the length to fit specific application requirements.
• Thread Size (in.): - (Not Threaded): The absence of a thread on the neck is a key characteristic indicating that this Yoke End is primarily designed for permanent attachment, typically through welding. This eliminates potential points of failure associated with threaded connections in high-vibration or high-stress environments where loosening could occur. The solid, unthreaded neck maximizes material strength at the connection point.
• Clevis Pin Incl. (y/n): No: The explicit notation that a clevis pin is not included serves as a clear instruction to the end-user. This allows engineers to select the appropriate clevis pin material, style, and retaining mechanism (e.g., cotter pin, hairpin clip, quick-release pin) that best suits their specific load requirements, environmental conditions, and maintenance protocols, offering maximum flexibility in system design.
• Base to Hole Center (4.625 in.): This dimension, approximately 4-5/8 inches, represents the overall effective length of the Yoke End from the base of its neck to the center of the clevis pin hole. It is a fundamental dimension for calculating the total length of a linkage assembly and for ensuring proper spatial relationships within the machinery. This length is a primary factor in the "4-3/4 Inch" designation in the product title, indicating its overall functional length.
• Hole Dia. (0.625 in. or 5/8 in.): The 0.625-inch hole diameter corresponds to the clevis pin size this yoke end is designed to accommodate. This precise dimension, often referred to as 5/8 inch, is crucial for establishing a snug yet articulate fit with the clevis pin, minimizing radial play and ensuring efficient transfer of forces. Accurate hole sizing is essential for preventing accelerated wear on both the pin and the yoke arms.

Adherence to SAE Standards: A Benchmark for Reliability

The declaration that Buyers Products' Yoke Ends meet SAE standards is a significant indicator of quality, performance, and interchangeability. The Society of Automotive Engineers (SAE International) develops and publishes technical standards for engineering professionals in various industries, including aerospace, automotive, and commercial vehicles. For mechanical linkage components like yoke ends, SAE standards typically encompass several critical aspects:

Firstly, they define material specifications, ensuring that the forged steel used possesses the necessary chemical composition and mechanical properties (e.g., hardness, strength, ductility) to withstand anticipated loads and environmental conditions. This guarantees a consistent level of quality in the raw materials. Secondly, SAE standards often prescribe dimensional tolerances, ensuring that key measurements like hole diameter, arm-to-arm spacing, and neck dimensions are maintained within strict limits. This precision is paramount for guaranteeing interchangeability between parts from different manufacturers and for facilitating smooth assembly without the need for custom fitting. Thirdly, these standards may include performance testing protocols, subjecting components to rigorous evaluations such as static load tests, fatigue tests, and impact tests to verify their load-bearing capacity and durability under operational stresses. Compliance with these testing criteria assures that the component will perform reliably throughout its service life.

By meeting SAE standards, Buyers Products demonstrates a commitment to manufacturing excellence and customer safety. It provides engineers with the confidence that the Yoke End will integrate seamlessly into existing systems, operate predictably, and contribute to the overall reliability and safety of the final application. This adherence simplifies the design and procurement process, as components conforming to recognized standards inherently reduce risks associated with performance variability and compatibility issues, ultimately leading to more robust and long-lasting mechanical systems.

Versatile Applications Across Industries

The inherent strength, precision, and standardized design of the 5/8 x 4-3/4 Inch Plain Forged Steel Yoke End make it an indispensable component across a multitude of industries and applications. Its robustness allows for integration into systems where reliable force transmission and articulation are paramount.

• Agricultural Equipment: In the demanding world of agriculture, this yoke end finds extensive use in tractor linkages, three-point hitch systems, hydraulic cylinder connections for implements (e.g., plows, cultivators, loaders), and control rods for various farm machinery. Its forged steel construction ensures resilience against heavy loads, continuous vibration, and exposure to harsh outdoor elements.
• Construction Machinery: From smaller excavators and skid steers to concrete mixers and site dumpers, these yoke ends are vital in control linkages, steering mechanisms, and hydraulic cylinder mounts. They withstand the rigorous conditions of construction sites, including shock loads, abrasive dust, and temperature extremes, ensuring precise control and operational safety for critical functions.
• Automotive and Transportation (Non-Critical): While not typically used in primary structural components of passenger vehicles, these yoke ends are prevalent in commercial vehicle applications and auxiliary systems. Examples include auxiliary steering linkages, throttle and clutch control rods in heavy-duty trucks, trailer braking systems, and various implements attached to utility vehicles.
• Industrial Automation and Robotics: In automated manufacturing processes, precision and reliability are key. Yoke ends are integrated into robotic end effectors, jig and fixture actuation, conveyor belt tensioning systems, and custom machinery where linear or rotary motion needs to be precisely controlled and transmitted. The robust material and standard dimensions facilitate integration into complex automated systems.
• Material Handling Equipment: Lift trucks, stackers, pallet jacks, and overhead cranes utilize these components in their steering linkages, braking systems, and various control mechanisms. The strength of forged steel ensures that these critical handling systems operate safely and efficiently under continuous heavy loads.
• Off-Highway and Specialty Vehicles: All-terrain vehicles (ATVs), utility task vehicles (UTVs), and other specialized off-highway vehicles rely on such yoke ends in suspension components, steering linkages, and accessory attachment points, where durability and resistance to off-road stresses are crucial.
• General Industrial Fabrication: Beyond specific machinery, this yoke end is a versatile component for custom fabrication projects, prototyping, and repairs in general industrial settings. Its plain finish makes it highly adaptable for welding into bespoke linkages or structural assemblies.

Installation, Integration, and Performance Considerations

The successful integration and long-term performance of the 5/8 x 4-3/4 Inch Plain Yoke End hinge on proper installation techniques and consideration of its inherent design characteristics.

The non-threaded neck design explicitly points to welding as the primary method of attachment to a connecting rod or shaft. Achieving a strong, reliable weld joint is paramount. This requires careful attention to material compatibility (typically low-carbon or medium-carbon steel for the mating shaft), proper joint preparation, selection of appropriate welding consumables, and adherence to established welding procedures. For applications demanding maximum strength and fatigue life, post-weld heat treatment may be considered to relieve residual stresses and restore material properties. The substantial 3.250-inch neck length provides an ample welding surface, allowing for robust fillet or butt welds that can effectively transfer the full range of tensile, compressive, and torsional loads.

Since the clevis pin is not included, end-users must select a pin that matches the 0.625-inch hole diameter and possesses the requisite shear strength for the application. Furthermore, a suitable retaining mechanism (e.g., cotter pin, hairpin clip, or quick-release pin) must be chosen to prevent the clevis pin from dislodging during operation. Proper lubrication of the clevis pin and yoke eye can reduce friction and wear, extending the life of the articulation point.

From a performance standpoint, the forged steel construction provides excellent resistance to tensile, compressive, and shear loads typical in linkage systems. However, engineers must account for dynamic loading conditions, including vibration, impact, and cyclical stresses, particularly in applications where the yoke end is subjected to repeated motion. The design minimizes stress concentrations, but excessive or improperly applied loads can still lead to premature failure. Regular inspection for signs of wear, deformation, or cracking in demanding applications is recommended to ensure continued operational safety and reliability.

Buyers Products: Commitment to Quality and Durability

Buyers Products has a long-standing reputation for manufacturing high-quality, durable components for various industrial sectors. Their commitment to engineering excellence is evident in the precise specifications and material selection for this 5/8 x 4-3/4 Inch Plain Yoke End. By integrating stringent quality control measures throughout their manufacturing processes and adhering to recognized standards like SAE, Buyers Products ensures that each Yoke End delivered meets the rigorous demands of real-world applications. This dedication to robust design and reliable performance ultimately translates into greater operational efficiency and reduced downtime for end-users, solidifying Buyers Products as a trusted supplier of critical mechanical components.

Conclusion

The 5/8 x 4-3/4 Inch Plain Yoke End is more than just a simple connector; it is a meticulously engineered component designed to be the robust backbone of numerous mechanical linkage systems. Its forged steel construction, precise dimensional adherence, and compliance with SAE standards collectively ensure unparalleled strength, fatigue resistance, and overall longevity. From heavy machinery to intricate automation, this yoke end provides the reliability and performance required for demanding industrial applications. Its plain finish offers flexibility for tailored corrosion protection, while its non-threaded neck provides a secure, permanent welding interface. For engineers seeking a dependable, high-performance linkage component that withstands the test of time and severe operating conditions, this Yoke End from Buyers Products stands as an exemplary choice.
