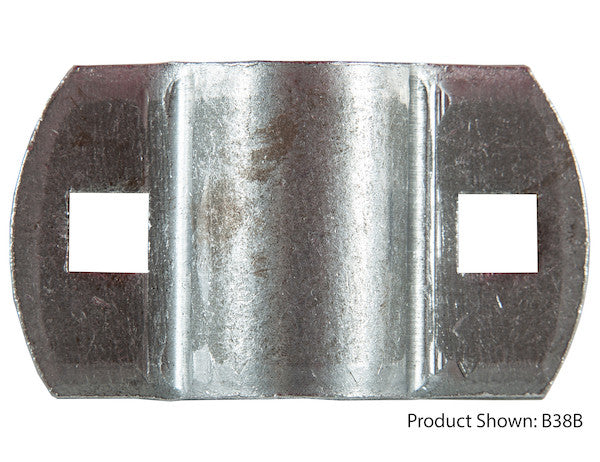

B38B - Bolt-On Bracket for B38 D-Rings

Bracket for B38 D-Rings. Available in bolt-on or weld-on styles.

Specifications

The Bolt-On Bracket for B38 D-Rings represents a critical component in advanced cargo securement systems, designed to provide a robust, reliable, and easily installable anchor point. This bracket is meticulously engineered to integrate seamlessly with B38 series D-rings, forming a secure tie-down point essential for maintaining load integrity during transit or storage. Its bolt-on configuration offers distinct advantages in terms of installation flexibility, ease of replacement, and the absence of specialized welding equipment, making it an optimal choice for a wide array of industrial, commercial, and recreational applications.

At its core, the function of this bracket is to provide a solid, structural interface between a B38 D-ring and the mounting surface of a vehicle, trailer, or equipment. The D-ring, a universally recognized component in load securement, requires a bracket that can withstand the dynamic forces exerted upon it. The "B38" designation typically refers to a specific series or classification of D-rings, indicating particular dimensions, material specifications, and load capacities. This bolt-on bracket is precisely dimensioned to accept the corresponding clevis or tang of a B38 D-ring, ensuring a snug fit that minimizes play and maximizes load transfer efficiency.

Precision Engineering and Material Selection

The structural integrity of any load securement component begins with material selection and manufacturing precision. This bolt-on bracket is typically fabricated from high-strength alloy steel, a material chosen for its superior tensile strength, yield strength, and resistance to impact and fatigue. The typical thickness of 0.25 inches (1/4 inch) is not arbitrary; it represents a careful balance between material economy, weight considerations, and the structural rigidity required to safely manage significant dynamic loads. This quarter-inch steel provides substantial cross-sectional area to distribute stress effectively, mitigating localized stress concentrations that could lead to premature failure.

The manufacturing process often involves precision stamping, forming, or laser cutting, followed by deburring and finishing operations. These processes ensure dimensional accuracy, critical for proper fitment with the D-ring and the mounting surface. The overall dimensions, with a bracket length of 1.75 inches and a width of 3 inches, are optimized to provide a compact footprint while offering ample material for secure fastening and load distribution. This specific sizing allows for installation in areas where space might be at a premium, without compromising the structural integrity required for heavy-duty applications.

Corrosion Resistance and Durability

Given the diverse and often harsh environments in which cargo securement systems operate, resistance to environmental degradation, particularly corrosion, is paramount. While not explicitly stated, such high-quality brackets are invariably treated with a protective finish. Common treatments include zinc plating (electrozinc or hot-dip galvanized) or a durable powder coating. Zinc plating provides sacrificial cathodic protection, effectively preventing the underlying steel from corroding, even if the coating is scratched. Powder coating, on the other hand, offers a robust, chip-resistant barrier with excellent aesthetic qualities and UV stability. These finishes extend the operational lifespan of the bracket, ensuring its continued reliability and safety over many years of service in conditions ranging from road salt exposure to marine environments.

Mounting System: Two-Hole, Square Bore Precision

The specified "2-Hole" mounting type is a deliberate design choice that offers a balance of secure attachment and ease of installation. A two-bolt pattern provides sufficient redundancy and load distribution for the anticipated forces, preventing rotation and excessive movement under load. The choice of two mounting points allows the load to be shared, reducing the stress on individual fasteners and the immediate substrate. The precise spacing of these holes, though not explicitly detailed, is critical to ensure proper alignment and prevent induced stresses during installation.

A distinctive feature of this bracket is its "Mounting Hole Shape" being square, with a "Mounting Hole Diameter" of 0.375 inches (3/8 inch). This specific square hole design is primarily intended for use with carriage bolts. Carriage bolts are characterized by their smooth, dome-shaped heads and a square shoulder directly beneath the head. When inserted into a corresponding square hole, the square shoulder seats firmly into the bracket, preventing the bolt from rotating during tightening. This feature is particularly advantageous in scenarios where access to the bolt head for counter-torque is restricted or impossible, allowing for single-tool installation from the nut side. The 3/8-inch diameter (0.375 inches) indicates compatibility with standard 3/8-inch carriage bolts, which are common for medium to heavy-duty fastening applications, offering a substantial shear strength and tensile capacity when paired with appropriate nuts and washers.

Load Characteristics and Safety Margins

While the "Min Break Strength (lbs.)" and "W.L.L. (lbs.)" are indicated as "-", it is crucial to understand the principles governing these metrics for any load-bearing component. The Working Load Limit (WLL) is the maximum load that a component or system should ever be subjected to, ensuring a substantial safety factor. The Minimum Break Strength (MBS) is the load at which a new, undamaged component is expected to fail. Typically, a safety factor (e.g., 3:1, 4:1, or 5:1) is applied, meaning the MBS is a multiple of the WLL. For instance, a 4:1 safety factor implies the MBS is four times the WLL.

For this bolt-on bracket, its actual WLL and MBS would be derived from rigorous testing and engineering analysis, considering the material properties, geometry, thickness, and the chosen fasteners. It is paramount that the bracket's load capacity is at least equal to, and ideally exceeds, the WLL of the B38 D-ring it supports. The strength of the entire securement system is only as strong as its weakest link. Therefore, proper selection of high-grade fasteners (e.g., Grade 8 bolts for high-strength applications) and correct torque specifications are vital to achieve the bracket's full-rated capacity. The 0.25-inch thickness provides a robust foundation, allowing for a substantial load transfer from the D-ring through the bracket to the mounting surface, without excessive deformation or plastic yield under specified loads.

Installation Procedures and Best Practices

The "bolt-on" nature of this bracket simplifies installation significantly compared to weld-on alternatives, yet proper installation remains critical for optimal performance and safety. The general procedure involves:

1. **Surface Preparation:** The mounting surface must be clean, flat, and free of rust, paint, or debris to ensure proper seating and load distribution.
2. **Hole Drilling:** Accurate drilling of two 3/8-inch pilot holes, precisely spaced, is required on the mounting substrate. For optimal results, use a template or mark the holes carefully to ensure alignment.
3. **Fastener Selection:** Utilizing high-quality 3/8-inch carriage bolts, flat washers, and lock nuts (or self-locking nuts) is essential. For demanding applications, specifying SAE Grade 8 fasteners is recommended due to their superior strength characteristics.
4. **Tightening:** Bolts should be torqued to the manufacturer's specified values. Over-tightening can strip threads or deform components, while under-tightening can lead to loosening under vibration and dynamic loads. The square shoulder of the carriage bolt, seating into the square hole, facilitates single-wrench tightening from the nut side, ensuring a flush mounting profile on the bolt head side.
5. **Inspection:** Post-installation, all fasteners should be checked for proper tightness, and the bracket should be visually inspected for any signs of misalignment or stress.

Unlike weld-on brackets, which require specialized welding equipment and certified welders, bolt-on brackets can be installed with common hand tools, making them a more accessible and flexible solution for field installations or modifications.

Versatile Applications

The Bolt-On Bracket for B38 D-Rings finds extensive application across a spectrum of industries and vehicle types due to its robust design and adaptable mounting mechanism:

• **Commercial Trucking and Logistics:** Essential for securing heavy freight on flatbed trailers, enclosed trailers, and cargo vans, preventing load shift during long-haul transport.
• **Utility and Equipment Trailers:** Provides reliable tie-down points for tractors, ATVs, construction equipment, and landscaping machinery.
• **Industrial and Manufacturing Environments:** Used as permanent or semi-permanent anchor points on shop floors, assembly lines, or custom fixtures for securing workpieces or equipment.
• **Recreational Vehicles (RVs) and Marine:** Can be integrated into RV cargo areas or boat trailers to secure gear, motorcycles, or watercraft, ensuring safety during travel.
• **Emergency Services and Military:** Used in specialized vehicles and tactical equipment for securing critical supplies and operational gear.

Its ease of installation also makes it suitable for retrofitting existing vehicles or structures that require additional or upgraded tie-down capabilities without extensive fabrication.

Maintenance and Longevity

While designed for durability, regular inspection and minimal maintenance contribute significantly to the longevity and continued safety of the bolt-on bracket. Periodically, operators should:

• **Visual Inspection:** Check for any signs of wear, deformation, cracks, or severe corrosion.
• **Fastener Check:** Ensure all mounting bolts remain tightly secured. Vibration and continuous loading can sometimes loosen fasteners over time.
• **Protective Coating Integrity:** If the protective finish (zinc plating, powder coat) shows significant damage, consider touch-ups to prevent steel exposure and subsequent corrosion.
• **D-Ring Interface:** Confirm the B38 D-ring still articulates freely within the bracket and that there is no excessive wear on the pivot point or the bracket's inner surfaces that engage the D-ring.

Adhering to a routine maintenance schedule ensures that the bracket maintains its structural integrity and performs reliably throughout its service life, safeguarding cargo and personnel.

Conclusion

The Bolt-On Bracket for B38 D-Rings stands as a testament to thoughtful engineering in the field of cargo securement. Its robust 0.25-inch thick alloy steel construction, precise dimensions (1.75 in. length, 3 in. width), and specific 2-hole square 0.375-inch mounting pattern for carriage bolts are all meticulously designed to deliver superior strength and ease of installation. This bracket provides a critically important, dependable, and durable anchor point for B38 D-rings, crucial for the safe and compliant transport of goods. By facilitating secure, stable, and accessible tie-down points, it significantly enhances operational safety, minimizes potential damage to cargo, and extends the utility of trailers, trucks, and various industrial equipment. Its bolt-on nature not only simplifies initial setup but also allows for flexible configuration and future modifications, solidifying its position as an indispensable component in comprehensive load securement strategies.
