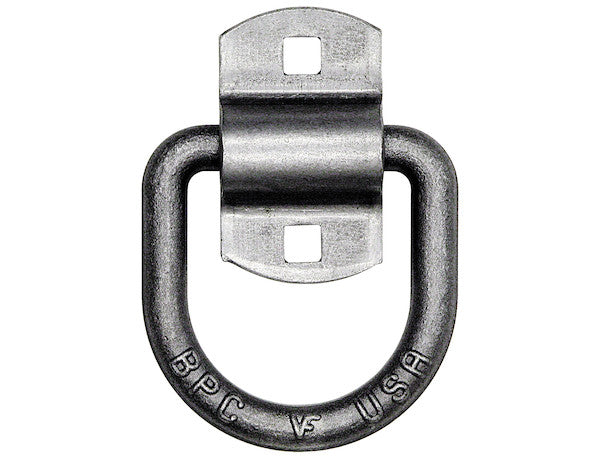

B38I - 1/2 Inch Forged D-Ring With 2-Hole Mounting Bracket

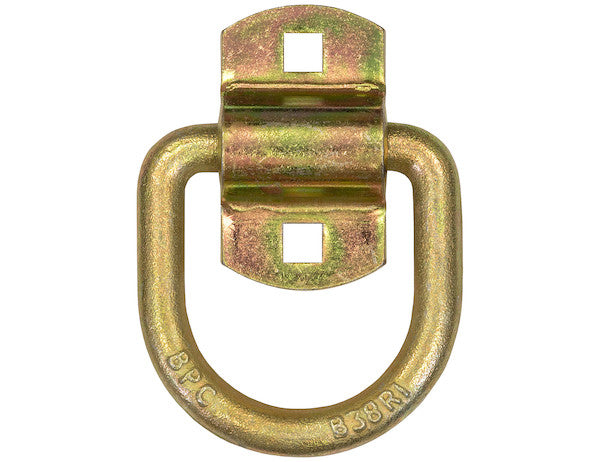

Secure your load with confidence using Bolt-On 1/2 Inch Forged D-Rings from Buyers Products. The D-rings feature C-1045 forged steel construction and a working load limit of 4,080 lb. Choose finish options to meet your needs. D-rings are not approved for overhead use.

Specifications

The 1/2 Inch Forged D-Ring with 2-Hole Mounting Bracket: An Essential Component for Advanced Cargo Securement

In the demanding environments of commercial transport, industrial operations, and heavy-duty logistics, the integrity of cargo securement systems is paramount. The 1/2 Inch Forged D-Ring with 2-Hole Mounting Bracket stands as a foundational element within these systems, engineered to provide uncompromising strength, reliability, and safety. This detailed technical description aims to illuminate the advanced characteristics, material science, design principles, and operational benefits of this indispensable component, ensuring users can confidently integrate it into their most critical load securement applications.

Precision Engineering and Material Excellence: C-1045 Forged Steel

At the core of this D-ring's exceptional performance is its construction from C-1045 forged steel. The choice of C-1045 steel is not coincidental; it represents a deliberate engineering decision based on its superior mechanical properties. C-1045 is a medium-carbon steel known for its good tensile strength, yield strength, and hardness, particularly after appropriate heat treatment. Its chemical composition, typically comprising 0.43-0.50% Carbon, 0.60-0.90% Manganese, and trace amounts of Silicon, Sulfur, and Phosphorus, is optimized for applications requiring a balance of strength and toughness.

The forging process further elevates the material's inherent advantages. Unlike casting or machining from plate, forging involves plastically deforming the steel while it is in a solid state, typically through compressive forces. This process refines the grain structure, eliminating internal voids and porosity, and aligning the grain flow with the contour of the D-ring. The resulting anisotropic grain structure enhances the steel's directional strength, impact resistance, and fatigue life. This is particularly critical for components subjected to dynamic loads, vibrations, and cyclical stresses inherent in cargo securement. Forged components exhibit superior resistance to fracture and deformation under extreme conditions compared to their cast or machined counterparts, providing a significant safety margin.

Uncompromising Strength: Working Load Limit (WLL) and Minimum Break Strength (MBS)

The strength specifications of the 1/2 Inch Forged D-Ring are central to its utility and safety. With a Working Load Limit (WLL) of 4,080 lb and a Minimum Break Strength (MBS) of 12,240 lb, this D-ring is designed to manage substantial forces. The WLL is the maximum load that should be applied to the D-ring under normal operating conditions, ensuring a substantial safety margin. This margin is typically defined by a safety factor, which for cargo securement hardware like D-rings, is commonly 3:1. This means the WLL is one-third of the MBS, providing a critical buffer against unforeseen dynamic forces, shock loads, and slight overloads that can occur during transit.

The Minimum Break Strength (MBS) represents the absolute minimum force at which the D-ring is expected to fail. This metric is determined through rigorous testing protocols, ensuring that the component will not yield or fracture below this threshold. The 3:1 safety factor between WLL and MBS is a fundamental safety principle in rigging and securement. It accounts for potential variables such as material imperfections, manufacturing tolerances, environmental degradation, and the complexities of real-world load distribution and dynamic forces. Users can have high confidence that loads within the specified WLL will be securely maintained, minimizing the risk of cargo shifting, damage, or catastrophic failure.

Optimized Design and Dimensional Specifications

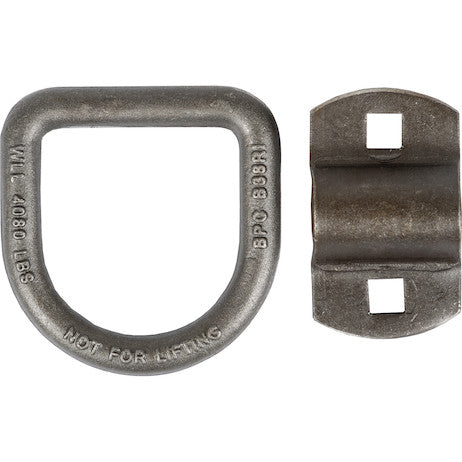

Every dimension and design feature of this D-ring assembly has been meticulously engineered for optimal performance, ease of integration, and longevity. The combination of the D-ring and its integrated 2-hole mounting bracket creates a comprehensive tie-down solution.

D-Ring Specifics:

• Ring Diameter (1/2 in.): The 1/2 inch (0.50 inch) diameter of the D-ring itself is a critical parameter. This robust cross-section contributes significantly to the ring's overall strength and rigidity, directly correlating with its WLL and MBS. It is precisely sized to accommodate a wide array of cargo securement devices, including various widths of tie-down straps (e.g., ratchet straps, cam buckle straps), chains, ropes, and hooks (e.g., J-hooks, S-hooks, grab hooks, clevis hooks) commonly used in heavy-duty applications.
• Inner Height (2.50 in.) and Inner Width (2.375 in.): These internal dimensions define the usable space within the D-ring. An inner height of 2.50 inches provides ample vertical clearance, allowing for the easy attachment and articulation of even bulkier hooks or multiple strap layers without binding. The inner width of 2.375 inches ensures sufficient lateral space, preventing undue compression or wear on the attached securement device. This optimized internal geometry facilitates quick and efficient securement, reducing setup time and enhancing operational fluidity.

Mounting Bracket Specifics:

• Bracket Included (Yes): The inclusion of an integrated mounting bracket streamlines installation. It signifies that the D-ring is supplied as a complete assembly, ready for direct bolt-on application, eliminating the need for sourcing or fabricating a separate bracket. This ensures a consistent, engineered interface between the D-ring and the mounting surface.
• Bracket Length (3.00 in.) and Width (1.75 in.): The physical dimensions of the bracket are crucial for stability and load distribution. A length of 3.00 inches and a width of 1.75 inches provide a substantial footprint, distributing the securement forces over a larger area of the mounting surface. This minimizes localized stress concentrations on the vehicle frame or trailer bed, reducing the risk of material fatigue or deformation of the substrate.
• Bracket Thickness (0.25 in.): The 0.25-inch (1/4 inch) thickness of the bracket is integral to its structural integrity. This substantial gauge material is engineered to resist bending, twisting, and shearing forces, ensuring that the bracket itself acts as a robust anchor point without deforming under the specified working load. It effectively transfers the load from the D-ring to the mounting structure.
• Bracket Mounting Type (2-Hole): The 2-hole mounting configuration offers superior stability and load distribution compared to a single-hole design. By distributing forces across two distinct attachment points, it minimizes rotational stresses and enhances the resistance to pull-out or shear failure. This two-point securement methodology is a hallmark of robust engineering in heavy-duty applications.
• Mounting Hole Diameter (0.375 in.): The 0.375-inch (3/8 inch) diameter of the mounting holes is designed for compatibility with standard 3/8-inch bolts, a common fastener size in automotive, trailer, and industrial applications. This standardization simplifies hardware procurement and ensures consistent, reliable connections.
• Mounting Hole Shape (Square): The square shape of the mounting holes is a deliberate design choice, specifically engineered to accommodate carriage bolts. Carriage bolts feature a square neck directly under the rounded head. When inserted into a square hole, the square neck locks into place, preventing the bolt from rotating as the nut is tightened. This "one-wrench" installation capability simplifies the securement process, especially in tight or difficult-to-access locations, and ensures that the fastener remains securely torqued under dynamic loads.

Finish Options: The Plain Finish Advantage

The specified "Plain" finish for this D-ring offers distinct advantages, particularly for end-users who require specific surface treatments or welding capabilities. A plain finish, also known as black steel or bare metal, means the steel has not undergone any additional coating or plating processes. While it will naturally develop a surface rust if exposed to moisture without protection, this finish is ideal for:

• Welding: For applications where the bracket needs to be directly welded to a steel frame or structure, the plain finish allows for superior weld penetration and adhesion without the need to grind off existing coatings. This ensures a stronger, more reliable welded joint.
• Custom Finishing: Users can apply their own preferred corrosion protection, such as industrial-grade paints, powder coatings, or specialized epoxies, to match specific vehicle aesthetics or extreme environmental requirements. This customization option offers flexibility not found with pre-finished D-rings.
• Cost-Effectiveness: By omitting additional finishing processes, the plain finish can contribute to a more economical product, providing significant value for high-volume installations or budget-conscious projects.

For applications where a plain finish is not suitable due to high corrosion exposure without further treatment, users must plan for post-installation painting or other protective measures to ensure long-term durability and aesthetic preservation.

Installation Best Practices and Operational Considerations

The bolt-on nature of this D-ring assembly emphasizes the importance of correct installation to achieve its full performance potential. Proper installation ensures both the safety of the cargo and the longevity of the D-ring and its mounting structure.

• Mounting Surface Selection: Always mount D-rings to structural components of the vehicle or trailer frame. This includes main frame rails, cross members, or reinforced sections of the trailer bed. The mounting surface must be capable of withstanding the full WLL of the D-ring without deformation or failure. It is crucial to assess the material thickness and strength of the substrate.
• Hardware Selection: While the D-ring itself is robust, the fasteners used for installation are equally critical. It is highly recommended to use high-grade bolts, such as Grade 5 or Grade 8, along with appropriate washers and nuts. These fasteners should have a tensile strength that meets or exceeds the D-ring's WLL, ensuring the entire assembly acts as a cohesive, strong unit. Using locking washers or self-locking nuts is advisable to prevent loosening due to vibration during transit.
• Torque Specifications: Fasteners must be tightened to the manufacturer's recommended torque specifications for the chosen bolt size and grade. Under-tightening can lead to premature loosening and potential failure, while over-tightening can strip threads or weaken the fasteners.
• Placement and Angles: Position D-rings strategically to allow for optimal tie-down angles. For maximum effectiveness, tie-down straps or chains should be as close to horizontal as possible, and symmetrical loading across multiple D-rings should be prioritized to distribute forces evenly. Avoid sharp edges on cargo that could damage straps or chains.
• Regular Inspection: Implement a routine inspection schedule for all D-rings and their mounting hardware. Check for signs of wear, deformation, cracks, corrosion, or loose fasteners. Any D-ring exhibiting significant damage or wear should be immediately taken out of service and replaced.

Broad Spectrum of Applications

The robust design and significant load capacity of the 1/2 Inch Forged D-Ring with 2-Hole Mounting Bracket make it suitable for an extensive range of applications across various industries:

• Commercial and Heavy-Duty Transport: Indispensable for flatbed trailers, utility trailers, enclosed cargo trailers, car haulers, and pickup truck beds. It provides secure attachment points for excavators, forklifts, agricultural equipment, construction materials, and other heavy machinery.
• Industrial and Manufacturing: Used within industrial facilities for securing machinery to dollies or transport platforms, anchoring equipment during maintenance, or creating temporary securement points for large components.
• Agricultural Sector: Essential for securing tractors, plows, cultivators, and harvested goods onto transport trailers, ensuring safe transit between fields and storage facilities.
• Recreational Vehicles (RVs) and Powersports: While primarily heavy-duty, smaller versions or strategically placed units can be used for securing motorcycles, ATVs, UTVs, and snowmobiles within toy haulers or open trailers.
• Marine Transport: Critical for boat trailers to secure vessels during road transport, preventing shifting and damage.
• Emergency Services and Military: Employed in specialized vehicles and equipment for securing mission-critical gear, tactical equipment, and emergency supplies, where reliability under extreme conditions is non-negotiable.

Critical Safety Precaution: Not Approved for Overhead Use

A vital safety directive clearly states: "D-rings are not approved for overhead use." This is an unequivocal instruction that underscores a fundamental distinction in material handling equipment. D-rings designed for cargo securement, while incredibly strong in tension and shear, are engineered specifically for tie-down applications, where forces are primarily exerted horizontally or at angles to prevent movement.

Lifting applications, on the other hand, involve complex vertical tensile and dynamic forces, often with inherent risks of swing, shock loads, and varying load distribution during movement. Lifting hardware (e.g., hoist rings, eye bolts rated for lifting, shackles with specific lifting certifications) is designed and tested to much more stringent standards, typically with higher safety factors (often 4:1 or 5:1) and under specific regulatory frameworks such as ASME B30.20 (Below-the-Hook Lifting Devices) or ASME B30.26 (Rigging Hardware). These standards dictate specific design criteria, material specifications, proof testing, and marking requirements for components intended for overhead lifting.

Misusing a tie-down D-ring for overhead lifting can lead to catastrophic failure, resulting in severe injury, fatality, and extensive property damage. The forging process and C-1045 steel provide strength for tie-down forces, but the design geometry, attachment mechanism, and testing protocols are not suitable for the unique stresses associated with overhead lifting. Adhering to this critical safety warning is paramount for operational safety and compliance.

Conclusion

The 1/2 Inch Forged D-Ring with 2-Hole Mounting Bracket from Buyers Products embodies robust engineering and practical functionality. Its C-1045 forged steel construction provides a superior foundation of strength, durability, and resistance to fatigue. With a formidable Working Load Limit of 4,080 lb and a Minimum Break Strength of 12,240 lb, supported by a 3:1 safety factor, this component offers exceptional reliability for demanding cargo securement tasks. The meticulously designed dimensions of both the D-ring and its 2-hole square-mount bracket facilitate secure, stable, and versatile attachment. The plain finish allows for customization, ensuring adaptability to diverse operational needs and environmental conditions.

While engineered for resilience and performance across a broad spectrum of heavy-duty applications, it is crucial to observe the explicit safety guidance against overhead use. This product serves as an indispensable anchor point for professionals in transport, construction, agriculture, and industrial sectors, providing the confidence that loads will remain securely fastened. By understanding its technical merits and adhering to proper installation and usage protocols, the 1/2 Inch Forged D-Ring with 2-Hole Mounting Bracket stands as a cornerstone of safe and efficient cargo management operations.
