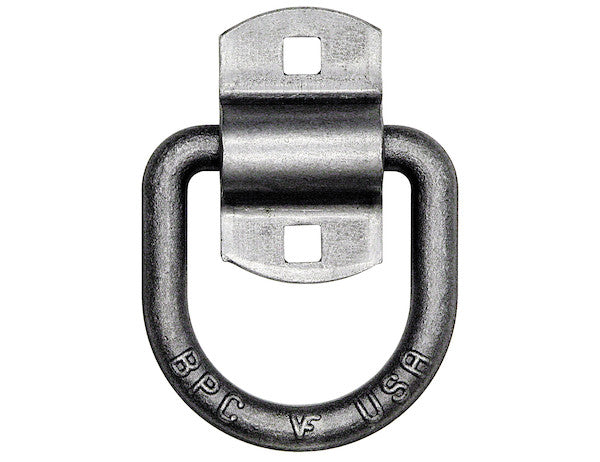

Secure your load with confidence using Bolt-On 1/2 Inch Forged D-Rings from Buyers Products. The D-rings feature C-1045 forged steel construction and a working load limit of 4,080 lb. Choose finish options to meet your needs. D-rings are not approved for overhead use.
Specifications
| Bracket Included (y/n) | Yes |
|---|---|
| Bracket Length (in.) | 3.00 |
| Bracket Mounting Type | 2-Hole |
| Bracket Thickness | 0.25 |
| Bracket Width (in.) | 1.75 |
| Finish | Zinc White |
| Inner Height (in.) | 2.50 |
| Inner Width (in.) | 2.375 |
| Made in USA | No |
| Min Break Strength (lbs.) | 12,240 |
| Mounting Hole Diameter | 0.375 |
| Mounting Hole Shape | Square |
| Ring Dia.(in.) | 1/2 |
| W.L.L. (lbs.) | 4,080 |

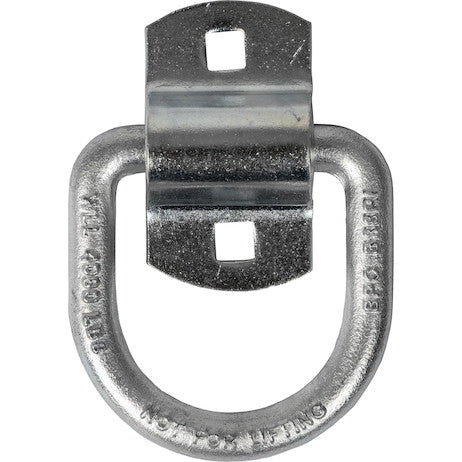

Advanced Technical Overview: 1/2 Inch Forged D-Ring with 2-Hole Mounting Bracket – White Zinc Plated
The 1/2 Inch Forged D-Ring with 2-Hole Mounting Bracket, featuring a White Zinc Plated finish, offers a robust and reliable solution for diverse cargo securement. Engineered by Buyers Products, this tie-down component provides superior load retention, ensuring transported goods' safety and stability. Constructed from C-1045 forged steel, with a precisely engineered bracket and advanced corrosion-resistant finish, it is an indispensable asset for commercial and recreational users. With a Working Load Limit (WLL) of 4,080 lbs and a Minimum Break Strength (MBS) of 12,240 lbs, this D-ring system is designed for demanding environments where secure, compliant load management is paramount. This detailed technical overview explores its material science, design principles, performance specifications, and operational advantages.
Material Science: C-1045 Forged Steel Foundation
The D-ring's strength and longevity stem from its C-1045 forged steel construction. C-1045 is a medium-carbon steel, renowned for its optimal balance of strength, hardness, and wear resistance, ideal for components under significant stress. Its composition (0.43-0.50% carbon, 0.60-0.90% manganese) imparts superior mechanical properties.
Forging is pivotal. It shapes metal via compressive forces, refining the steel's grain structure by aligning grains with stress direction. This enhances fatigue strength, impact resistance, and structural integrity. Forging eliminates internal voids, yielding a denser, homogeneous material, and improves ductility and toughness, allowing plastic deformation before catastrophic failure—a vital safety feature. The D-ring's seamless, forged construction ensures maximum strength continuity, eliminating weak points of welded rings. This meticulous material and manufacturing guarantee the D-ring's integrity under rigorous operational conditions.
Precision Engineering: D-Ring Component Design
The D-ring is engineered to optimize load distribution and accommodate various securement devices. Its 1/2 inch (0.50 inch) ring diameter ensures robust compatibility with hooks, straps, chains, and binders. Internal dimensions (2.50 inches inner height, 2.375 inches inner width) provide ample clearance for hooks, minimizing abrasive wear and allowing free articulation. This optimized geometry prevents premature wear on both the D-ring and securing device. The D-ring's rounded profile minimizes stress concentrations, distributing forces evenly. Its seamless, forged construction ensures uniform strength, allowing it to perform as a single, homogenous load-bearing element.

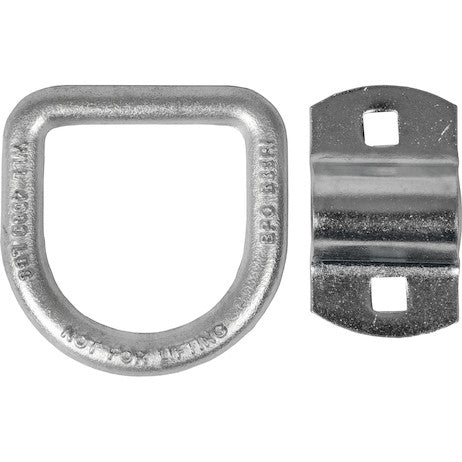

Integrated Securement: The 2-Hole Mounting Bracket System

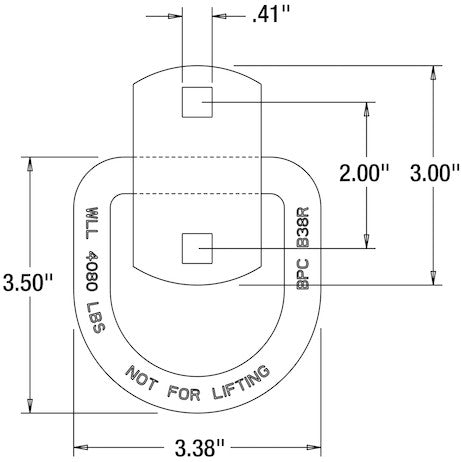

Integral to this securement solution is its robust 2-hole mounting bracket, fabricated from 0.25-inch (1/4 inch) thick steel for heavy-duty, secure attachment. Measuring 3.00 inches in length and 1.75 inches in width, it provides a substantial footprint for stable installation. The 2-hole configuration offers superior stability and load distribution by spreading forces across two points, reducing localized stress on the mounting surface. This mitigates material fatigue or substrate deformation.
The mounting holes (0.375-inch/3/8 inch diameter, square-shaped) accommodate standard carriage bolts. Carriage bolts, with their square shoulder, prevent rotation during tightening, facilitating single-tool installation from the nut side—ideal in confined spaces. The square shoulder also provides a larger bearing surface, contributing to a robust, shear-resistant connection. The 3/8 inch diameter fits common high-grade fasteners, ensuring the attachment system matches the D-ring's load capacity. Proper selection and tightening of Grade 8 fasteners are crucial for achieving the assembly's specified WLL.
Durability Enhancement: White Zinc Plating for Corrosion Protection
For extended operational life, the D-Ring and bracket feature a White Zinc Plated finish. Zinc plating is an electrochemical process applying a thin zinc coating. This acts as a sacrificial anode, corroding preferentially to the underlying steel, protecting it from rust and oxidation. The "white" designation indicates a bright, silvery appearance and often a clear or blue chromate conversion coating, enhancing corrosion resistance and aesthetics.
Benefits include:
- Sacrificial Protection: Prevents rust on steel, extending lifespan in outdoor/industrial settings.
- Barrier Protection: Creates a physical barrier against corrosive elements (water, road salts).
- Aesthetic Appeal: Professional, clean look for visible components.
- Cost-Effectiveness: Excellent balance of performance and economy.
Safety and Performance: WLL and MBS Specifications
Understanding performance specifications is critical for safe operation. This D-Ring system features a Working Load Limit (WLL) of 4,080 lbs and a Minimum Break Strength (MBS) of 12,240 lbs.
Working Load Limit (WLL): The maximum load a component should experience during normal operation. A conservative rating accounting for fatigue, shock loading, and environmental conditions, it's derived using a safety factor (3:1 for cargo securement). Strict adherence prevents equipment failure, cargo shifting, and accidents. Exceeding WLL can cause permanent deformation, material fatigue, and catastrophic failure.
Minimum Break Strength (MBS): The absolute minimum force at which a new component is expected to fail under direct, gradually increasing load. 12,240 lbs signifies inherent robustness. The 3:1 safety factor (MBS to WLL) provides a critical safety margin, allowing the D-ring to withstand unforeseen shock loads without immediate failure.
Critical Disclaimer: "D-rings are not approved for overhead use." This emphasizes the product's design for cargo securement—preventing movement on transport platforms. It is NOT rated for overhead lifting, which involves distinct dynamic forces and safety requirements. Misusing this D-ring for lifting voids warranties and creates extreme hazards. Users must distinguish tie-down anchor points from dedicated lifting points.
Regulatory Alignment: Compliance and Industry Standards
While explicit compliance with specific industry standards (e.g., FMCSA, CVSA, WSTDA) isn't stated, this D-ring system's robust specifications align with general principles for safe cargo securement. The high WLL and safety factor reflect a design meeting or exceeding heavy-duty tie-down performance expectations. Users are advised to consult relevant local, national, and international regulations for their applications, ensuring the entire securement system meets all applicable standards.
Broad Utility: Versatile Applications Across Industries
The 1/2 Inch Forged D-Ring with 2-Hole Mounting Bracket offers broad versatility for securing cargo:
- Transportation & Logistics: Essential for flatbed, enclosed, and utility trailers; tow trucks, securing construction materials, equipment, vehicles, and freight. Also for ATVs, motorcycles, and snowmobiles on recreational trailers.
- Commercial Fleets: Integrated into truck beds, service bodies, and specialty vehicles for securing tools, machinery, and equipment.
- Agricultural Sector: Used on farm trailers and implements for various loads.
- Marine & Recreational: Suitable for securing boats to trailers or gear on freshwater vessels. Note: For corrosive saltwater, specialized marine-grade components might be considered for other parts of a system.
- Industrial & Construction: Provides tie-down points in workshops, warehouses, and construction sites for anchoring equipment or managing material.
Its compact design allows installation on steel frames and wood decking (with backing plates), making it highly adaptable.
Optimized Installation: Best Practices Guide
Proper installation is crucial for achieving the stated WLL. Best practices:
- Location Selection: Mount on a structurally sound surface (frame rails, reinforced sections). Avoid thin sheet metal without adequate backing.
- Fastener Selection: Use Grade 8 bolts (3/8 inch diameter) with hardened flat washers and lock washers/self-locking nuts for superior strength.
- Drilling: For new installations, mark and drill pilot holes, then enlarge to 3/8-inch square. Ensure clean holes.
- Backing Plates (Recommended): For optimal load distribution and pull-through prevention (especially on wood), install a heavy-duty steel backing plate (e.g., 1/4 inch thick) underneath.
- Torque Specifications: Tighten fasteners to manufacturer's recommended torque for Grade 8 hardware (e.g., 35-45 ft-lbs for 3/8-inch bolts). Consult bolt guidelines.
- Inspection: After installation and before each use, inspect for loosening, deformation, corrosion, or damage.
Ensuring Durability: Maintenance and Longevity Protocol
Periodic inspection and minimal maintenance are vital for maximizing safety and longevity.
- Regular Visual Inspection: Before each use, inspect for wear, cracks, bending, stretching, or severe corrosion. Check bracket for deformation and fastener tightness.
- Corrosion Monitoring: Damage to zinc coating can expose base steel (red rust). Light "white rust" on zinc is usually superficial but monitor.
- Cleaning: Periodically clean D-rings to remove dirt, mud, road salt. Wash with soap/water, then dry.
- Replacement: Immediately replace any D-ring/bracket showing permanent deformation, deep cracks, excessive wear, or severe pitting corrosion. Never attempt to repair by welding, heating, or bending, as this compromises material properties.
Conclusion: Unwavering Securement Confidence
The 1/2 Inch Forged D-Ring with 2-Hole Mounting Bracket and White Zinc Plated finish from Buyers Products exemplifies a robust cargo securement solution. Its C-1045 forged steel ensures superior strength, fatigue resistance, and impact toughness. The engineered D-ring dimensions and integrated 2-hole bracket with square mounting holes prioritize performance and convenience. White zinc plating provides critical sacrificial corrosion protection, ensuring longevity and aesthetic integrity. With a WLL of 4,080 lbs and a 3:1 safety factor (12,240 lbs MBS), this system offers unwavering reliability. Always respect the "not approved for overhead use" directive, utilizing this anchor exclusively for robust cargo tie-down. Combining advanced material science, precision engineering, and comprehensive corrosion defense, this D-ring assembly delivers unparalleled confidence and safety for securing valuable assets, making it an indispensable component for professionals.
