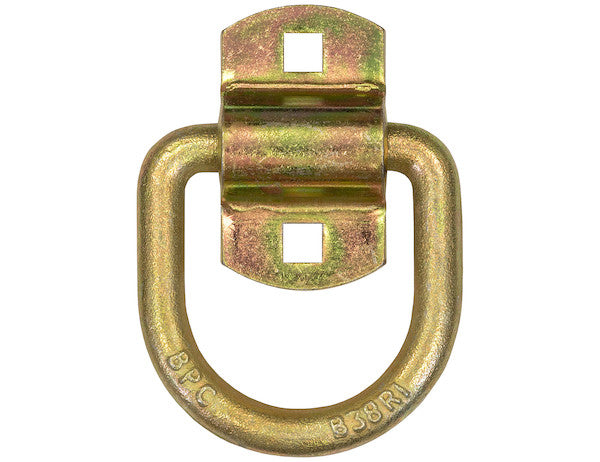

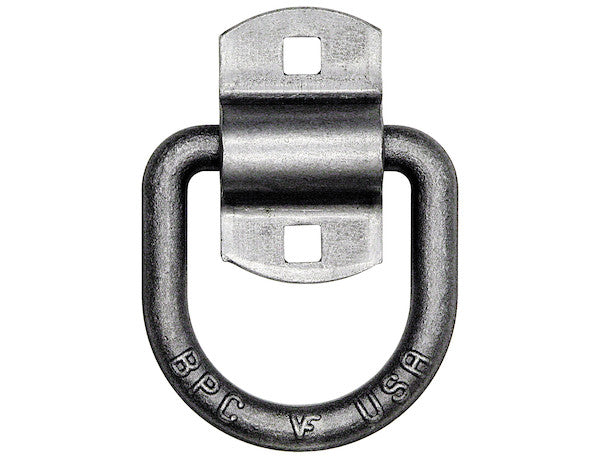

Secure your load with confidence using Bolt-On 1/2 Inch Forged D-Rings from Buyers Products. The D-rings feature C-1045 forged steel construction and a working load limit of 4,080 lb. Choose finish options to meet your needs. D-rings are not approved for overhead use.
Specifications
| Bracket Included (y/n) | Yes |
|---|---|
| Bracket Length (in.) | 3.00 |
| Bracket Mounting Type | 2-Hole |
| Bracket Thickness | 0.25 |
| Bracket Width (in.) | 1.75 |
| Finish | Zinc White |
| Inner Height (in.) | 2.50 |
| Inner Width (in.) | 2.375 |
| Made in USA | No |
| Min Break Strength (lbs.) | 12,240 |
| Mounting Hole Diameter | 0.375 |
| Mounting Hole Shape | Square |
| Ring Dia.(in.) | 1/2 |
| W.L.L. (lbs.) | 4,080 |
Technical Overview: 1/2 Inch Forged D-Ring with 2-Hole Mounting Bracket, White Zinc Plated
The 1/2 Inch Forged D-Ring with a 2-Hole Mounting Bracket, finished with a White Zinc Pl Plating, represents a robust and indispensable component for a multitude of load securement applications. Engineered for superior performance and longevity, this D-ring assembly is meticulously designed to provide reliable tie-down points on trailers, truck beds, flatbeds, and various industrial equipment. Its construction from C-1045 forged steel, combined with precise dimensional specifications and a protective finish, positions it as an exemplary solution for demanding environments where secure cargo transport is paramount. This detailed exposition will delve into the material science, engineering design, performance characteristics, corrosion resistance, installation considerations, and diverse applications of this high-capacity tie-down anchor.
Material Science: C-1045 Forged Steel Construction
The cornerstone of this D-ring's exceptional strength and durability lies in its C-1045 forged steel construction. C-1045 is a medium-carbon steel renowned for its balanced properties, offering a desirable combination of high tensile strength, good hardness, and adequate ductility. The nominal chemical composition of C-1045 typically includes approximately 0.43-0.50% carbon, 0.60-0.90% manganese, along with trace amounts of silicon, sulfur, and phosphorus. This carbon content is critical, as it significantly contributes to the steel's ability to resist deformation under heavy loads and maintain structural integrity. Unlike lower carbon steels (e.g., C-1018) which prioritize ductility, or higher carbon steels (e.g., C-1095) which are harder but more brittle, C-1045 strikes an optimal balance for components subjected to substantial tensile and shear forces, such as D-rings.
The choice of "forged" steel is equally significant. Forging is a manufacturing process that involves shaping metal by localized compressive forces using hammers or presses. This process, particularly hot forging typically used for D-rings, refines the internal grain structure of the steel. During forging, the metal's grain flows to conform to the shape of the component, resulting in a continuous grain flow that enhances the material's strength, impact resistance, and fatigue life. This contrasts sharply with cast components, which can harbor internal voids, porosity, and an inconsistent grain structure, making them more susceptible to brittle fracture. Machining from plate stock, while producing a consistent material, often interrupts the grain flow, potentially creating weak points compared to a forged part where the grain is oriented to withstand the primary stresses. The forging process virtually eliminates internal defects, leading to a component with superior mechanical properties and a significantly higher safety margin, which is critical for a part with a stated Working Load Limit (WLL) of 4,080 lbs and a Minimum Break Strength (MBS) of 12,240 lbs.

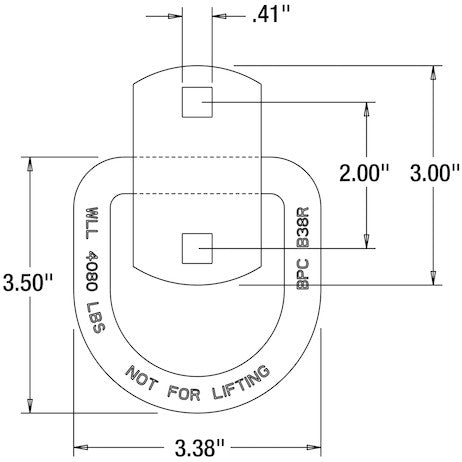

Engineering Design: D-Ring and Mounting Bracket Precision
The design of this 1/2 Inch Forged D-Ring and its integrated 2-Hole Mounting Bracket is a testament to functional engineering. The D-ring itself boasts a 1/2-inch nominal ring diameter, which refers to the material thickness of the D-ring loop. This substantial thickness provides inherent rigidity and strength, making it compatible with a wide array of load securement devices, including straps, chains, and cables, without concern for localized deformation or shearing under load.
The internal dimensions of the D-ring, measuring 2.50 inches in height and 2.375 inches in width, are strategically proportioned to offer ample clearance for hooks and hardware commonly used in cargo securing. This generous internal space ensures that attachment points can be quickly and easily connected, reducing installation time and increasing operational efficiency, even when wearing gloves or working in confined spaces. The curvature of the D-ring is optimized to distribute stress evenly across the contact area with the securing device, preventing premature wear on straps or localized stress concentrations on the D-ring itself.
The accompanying mounting bracket is integral to the D-ring's performance. With a length of 3.00 inches, a width of 1.75 inches, and a robust thickness of 0.25 inches, this bracket is engineered to effectively transfer the D-ring's load to the underlying mounting surface. The 0.25-inch thickness is particularly crucial, providing the necessary rigidity to prevent bending or distortion of the bracket under the full 4,080 lb WLL. The 2-hole mounting type offers superior stability compared to single-hole designs, preventing rotation and ensuring a secure, fixed anchor point. Each mounting hole has a diameter of 0.375 inches and features a square shape. This square hole design is specifically intended for use with carriage bolts (often referred to as square neck bolts). When a carriage bolt is inserted, its square neck locks into the square hole, preventing the bolt from rotating during tightening, which greatly simplifies installation and ensures a consistently tight fastening. The 0.375-inch diameter accommodates standard Grade 8 or equivalent high-strength fasteners, crucial for matching the D-ring's impressive load capacity.
Performance Specifications and Safety Protocols
Understanding the performance specifications of the 1/2 Inch Forged D-Ring is critical for safe and effective operation. The stated Working Load Limit (WLL) of 4,080 lbs (approximately 1,850 kg) represents the maximum static load that can be safely applied to the D-ring in a controlled environment. The WLL is a fundamental safety parameter, ensuring that the component operates well within its elastic limits, minimizing the risk of permanent deformation or failure under normal operating conditions. It is imperative that users never exceed the WLL of any tie-down component, as doing so can lead to catastrophic failure, cargo loss, and potential injury.
Complementing the WLL is the Minimum Break Strength (MBS) of 12,240 lbs (approximately 5,552 kg). The MBS signifies the average force at which the D-ring assembly is expected to fail under controlled testing conditions. The ratio between the MBS and WLL defines the design safety factor. In this instance, the safety factor is 12,240 lbs / 4,080 lbs = 3:1. A 3:1 safety factor is an industry-standard benchmark for general tie-down hardware, providing a significant buffer against unforeseen dynamic loads, shock, or minor material inconsistencies, thus reinforcing the reliability and safety of the product.
A crucial safety caveat for this product, clearly stated, is that "D-rings are not approved for overhead use." This distinction is paramount. Components designed for overhead lifting (e.g., hoist rings, eye bolts for lifting) are engineered to different standards, incorporating larger safety factors (often 4:1 or 5:1), specific certifications, and design considerations for dynamic, fatigue, and shock loads inherent in overhead lifting operations. The 1/2 Inch Forged D-Ring is intended for static or semi-static load securement, where forces are primarily exerted horizontally or at acute angles to the mounting surface, ensuring cargo stability during transport. Misusing this D-ring for overhead lifting applications could lead to unpredictable failure and severe consequences.
Corrosion Protection: White Zinc Plated Finish

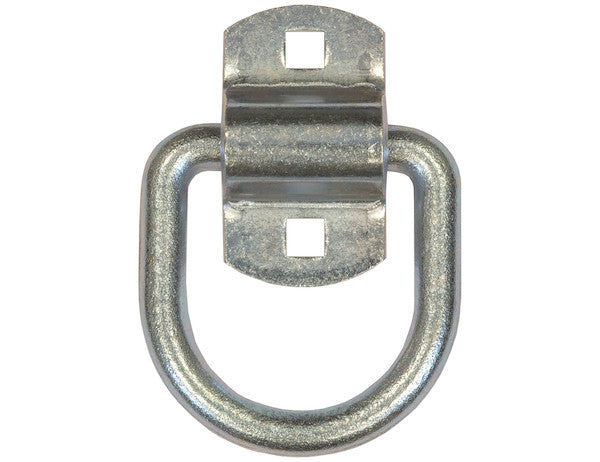

The longevity and consistent performance of any outdoor or transport-related hardware are heavily dependent on its corrosion resistance. This 1/2 Inch Forged D-Ring benefits from a White Zinc Plated finish, a highly effective and widely utilized method for protecting steel components from environmental degradation. Zinc plating, or electrogalvanization, involves depositing a thin layer of zinc onto the steel surface through an electrolytic process. This coating acts as a sacrificial anode. In the presence of moisture and oxygen, zinc preferentially corrodes before the underlying steel, thereby protecting the base metal. Even if the zinc coating is scratched, the surrounding zinc will continue to provide cathodic protection to the exposed steel, preventing rust propagation.
"White Zinc" or "Clear Zinc" typically refers to the passivation process applied after zinc plating. This involves treating the plated part with a chromate conversion coating, which enhances the corrosion resistance of the zinc layer itself and provides the bright, silvery-white appearance. This passivation layer offers an additional barrier against oxidation and environmental attack, significantly extending the service life of the D-ring assembly, especially in challenging conditions such as exposure to road salts, moisture, humidity, and general outdoor weathering. While not as thick or durable as hot-dip galvanization for extremely harsh industrial marine environments, white zinc plating provides excellent, cost-effective protection for typical vehicle and trailer applications, maintaining both the structural integrity and aesthetic appeal of the hardware over time.
Installation and Maintenance Guidelines
Proper installation is paramount to leveraging the full strength and safety features of the 1/2 Inch Forged D-Ring. The 2-hole mounting bracket necessitates a sturdy, reinforced mounting surface capable of distributing and withstanding the D-ring's WLL. Ideal mounting locations include structural crossmembers, frame rails, or reinforced steel plates on trailer beds, truck floors, or vehicle chassis. It is crucial to ensure that the mounting surface itself is robust enough to prevent localized deformation or pull-through under maximum load.
For securing the bracket, it is highly recommended to use Grade 8 or equivalent high-tensile strength bolts, preferably with square necks to mate perfectly with the 0.375-inch square mounting holes. Using appropriate locking hardware, such as nylon insert locknuts or heavy-duty lock washers, is essential to prevent loosening due to vibration during transport. All fasteners should be torqued to the manufacturer's specified values to ensure optimal clamping force without over-stressing the components. Periodically re-torquing fasteners is a good maintenance practice to counteract any potential settlement or vibration-induced loosening.
Regular inspection of the D-rings and their mounting points is also a critical aspect of ongoing safety. Before each use, and certainly on a routine basis, operators should visually inspect all D-rings for any signs of wear, damage, or corrosion. Key indicators to look for include:
- Deformation: Any bending, stretching, or flattening of the D-ring or bracket.
- Cracks: Hairline fractures or visible cracks in the steel, particularly around welds (if applicable) or mounting holes.
- Corrosion: Significant rust or pitting that compromises the structural integrity of the steel.
- Loose Fasteners: Ensure all bolts are tight and that the bracket is firmly affixed to the mounting surface.
- Wear: Any significant wear on the D-ring where straps or chains make contact, indicating material loss.
Any D-ring showing signs of damage, deformation, or excessive wear should be immediately taken out of service and replaced to prevent potential failure during load securement.
Versatile Applications
The robust design and high load capacity of the 1/2 Inch Forged D-Ring with a 2-Hole Mounting Bracket make it incredibly versatile across numerous industries and applications:
- Utility Trailers and Enclosed Trailers: Providing secure tie-down points for equipment, tools, furniture, and recreational vehicles.
- Flatbed Trailers and Car Haulers: Essential for securing vehicles, machinery, and oversized cargo, distributing forces effectively.
- Truck Beds and Service Vehicles: Converting standard pickup truck beds or service body compartments into efficient cargo hauling platforms.
- Marine Applications (Non-Submerged): Ideal for securing equipment on boat trailers or within marine vessels (above the waterline), benefiting from the zinc plating's corrosion resistance against spray and humid air.
- Industrial and Commercial Use: Creating custom tie-down points on specialized equipment, mobile workshops, or for material handling in warehouses (e.g., securing loads on dollies or carts).
- Recreational Vehicles: Securing ATVs, motorcycles, UTVs, snowmobiles, or lawn and garden equipment during transport.
- Custom Fabrication: Integrating into custom-built racks, platforms, or storage solutions where reliable tie-down anchors are needed.
In every application, the D-ring facilitates compliance with various federal, state, and local cargo securement regulations, such as those set forth by the Federal Motor Carrier Safety Administration (FMCSA), by providing certified and tested anchor points for tie-down straps and chains.
Conclusion
The 1/2 Inch Forged D-Ring with a 2-Hole Mounting Bracket and White Zinc Plated finish stands as a superior solution for virtually all ground-level load securement requirements. Its foundation in C-1045 forged steel ensures unparalleled strength, impact resistance, and fatigue life, critical attributes for safety-critical components. The precise engineering of both the D-ring and its mounting bracket, including the square mounting holes for secure bolt seating, underscores a commitment to both performance and ease of installation. With a substantial Working Load Limit of 4,080 lbs and an impressive 3:1 safety factor, users can confidently secure heavy loads, assured of the component's integrity. The protective white zinc plating provides robust corrosion resistance, extending the product's operational lifespan in diverse environmental conditions. By adhering to proper installation and maintenance protocols, and respecting its explicit limitation against overhead lifting, this D-ring assembly delivers exceptional reliability, enhancing cargo security and operational safety across a broad spectrum of commercial, industrial, and recreational applications. It represents a sound investment in dependable and long-lasting cargo management infrastructure.
