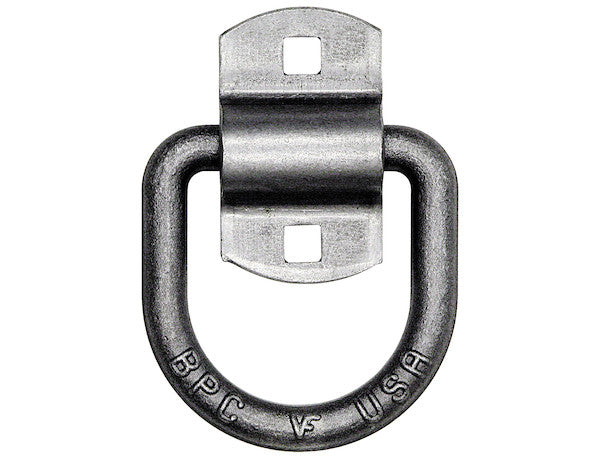

Secure your load with confidence using Bolt-On 1/2 Inch Forged D-Rings from Buyers Products. The D-rings feature C-1045 forged steel construction and a working load limit of 4,080 lb. Choose finish options to meet your needs. D-rings are not approved for overhead use.
Specifications
| Bracket Included (y/n) | Yes |
|---|---|
| Bracket Length (in.) | 3.00 |
| Bracket Mounting Type | 2-Hole |
| Bracket Thickness | 0.25 |
| Bracket Width (in.) | 1.75 |
| Finish | Zinc Yellow |
| Inner Height (in.) | 2.50 |
| Inner Width (in.) | 2.375 |
| Made in USA | No |
| Min Break Strength (lbs.) | 12,240 |
| Mounting Hole Diameter | 0.375 |
| Mounting Hole Shape | Square |
| Ring Dia.(in.) | 1/2 |
| W.L.L. (lbs.) | 4,080 |
Advanced Technical Overview: 1/2 Inch Forged D-Ring with 2-Hole Mounting Bracket and Yellow Zinc Plating
The 1/2 Inch Forged D-Ring with 2-Hole Mounting Bracket, featuring a Yellow Zinc Plated finish, represents a pinnacle of engineering designed for secure load restraint in a multitude of demanding applications. This component is meticulously crafted to offer unparalleled strength, durability, and corrosion resistance, essential attributes for safety-critical operations. Developed by Buyers Products, this D-ring assembly is more than just a tie-down point; it is a precisely engineered solution reflecting a deep understanding of mechanical stress, material science, and environmental resilience.
Engineering Excellence: The C-1045 Forged Steel Foundation
At the core of this D-ring's robust performance is its construction from C-1045 forged steel. C-1045 is a medium-carbon steel, renowned for its excellent balance of strength, hardness, and toughness. Its chemical composition typically includes 0.43-0.50% carbon, 0.60-0.90% manganese, with lesser amounts of silicon, sulfur, and phosphorus. This specific alloy selection is crucial as it provides the necessary tensile strength and yield strength for high-load applications, far exceeding the capabilities of lower-carbon steels or cast iron alternatives.
The manufacturing process of forging further elevates the material's inherent properties. Forging involves shaping the steel through localized compressive forces, typically at elevated temperatures. This process refines the grain structure of the metal, aligning the grain flow with the shape of the D-ring. Unlike casting, which can leave internal voids or inconsistencies, forging eliminates porosity, enhances the steel's internal soundness, and significantly improves its fatigue strength, impact resistance, and overall mechanical integrity. The result is a D-ring that exhibits superior resistance to shock loads and cyclic stresses, making it exceptionally reliable under dynamic conditions.

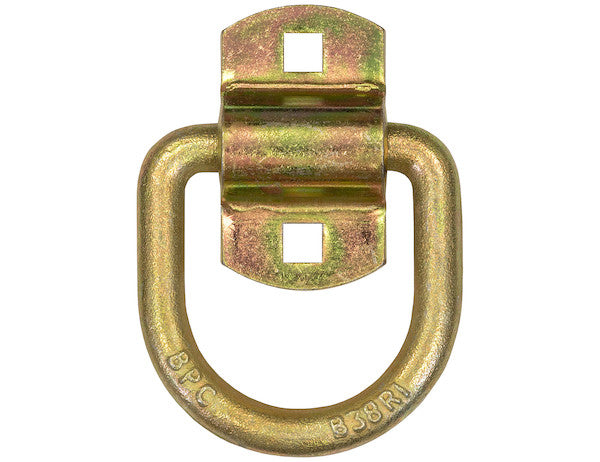

Superior Corrosion Protection: Yellow Zinc Plating
The external finish of this D-ring assembly is a Yellow Zinc Plating, a critical feature for extending its service life and maintaining performance in harsh environments. Zinc plating, a form of electroplating, applies a thin coating of zinc onto the steel surface. Zinc acts as a sacrificial layer; in the presence of moisture or corrosive agents, the zinc corrodes preferentially to the underlying steel, thereby protecting the D-ring from rust and oxidation. This galvanic protection is highly effective, particularly in environments exposed to road salts, humidity, and mild industrial chemicals.
The "Yellow" aspect refers to a subsequent chromate conversion coating applied over the zinc layer. This chromate treatment significantly enhances the corrosion resistance of the zinc coating itself, increasing its durability against white rust (zinc corrosion) and red rust (steel corrosion). Furthermore, the chromate coating provides an attractive yellow or iridescent finish, which also offers a degree of abrasion resistance and acts as a visual indicator of the protective treatment. This multi-layered approach to corrosion protection ensures that the D-ring maintains its structural integrity and aesthetic appearance over extended periods of outdoor exposure and rigorous use, thereby reducing maintenance requirements and replacement costs.
Precision Design of the D-Ring Component
The D-ring itself, with a 1/2-inch nominal diameter, is precisely engineered for optimal functionality and compatibility with standard tie-down straps, chains, and hooks. The inner dimensions, measuring 2.50 inches in height and 2.375 inches in width, provide ample clearance for secure attachment without binding or undue stress on the connected restraint equipment. This generous inner space accommodates various sizes of hooks and strap ends, ensuring versatility across different load securement setups. The D-shape design is purposeful, allowing for freedom of movement of the attached restraint while minimizing wear points and concentrating forces effectively along the ring's arc. The forged construction ensures uniform strength distribution throughout the ring, eliminating weak spots that could arise from welded or bent designs.
Robust Mounting Solution: The 2-Hole Bracket System

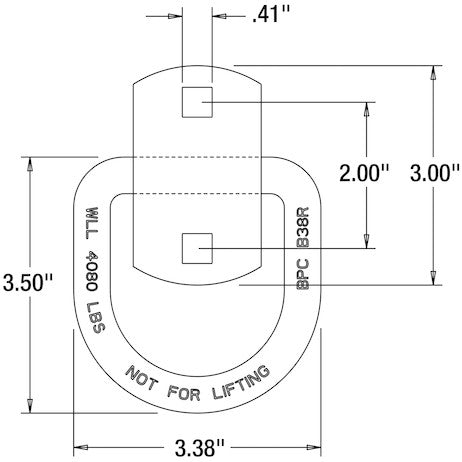

Integral to the D-ring's securement capability is its accompanying 2-hole mounting bracket. Fabricated from robust material with a thickness of 0.25 inches, this bracket is engineered to withstand the significant forces generated by a securely restrained load. The bracket dimensions—3.00 inches in length and 1.75 inches in width—are optimized to provide a stable footprint for attachment to the vehicle's frame, trailer bed, or other structural components. The 2-hole configuration is strategically chosen to offer superior rotational stability and load distribution compared to single-hole designs. By distributing the shear and tensile forces across two points, the bracket reduces localized stress concentrations on the mounting surface, enhancing the overall integrity of the tie-down point.
Each mounting hole has a diameter of 0.375 inches and features a square shape. The square hole design is specifically engineered to accommodate carriage bolts, which are characterized by a square neck directly beneath the round head. When a carriage bolt is inserted through a square hole, the square neck locks into place, preventing the bolt from rotating as the nut is tightened. This feature greatly simplifies installation, allowing for single-wrench tightening and ensuring a consistently secure connection. The specified mounting hole diameter of 0.375 inches is critical for ensuring compatibility with appropriately sized fasteners, which must be selected to match the D-ring's Working Load Limit and the structural capacity of the mounting substrate. Proper installation, including the use of high-grade fasteners and correct torque specifications, is paramount to achieving the advertised load-bearing capabilities of the assembly.
Uncompromising Performance: Working Load Limit (WLL) and Minimum Break Strength (MBS)
This 1/2 Inch Forged D-Ring is rated with a Working Load Limit (WLL) of 4,080 lbs. The WLL is the maximum load that should be applied to the D-ring in a given application to ensure safety and prevent failure. It is a critical safety parameter derived from the Minimum Break Strength (MBS), which for this product is an impressive 12,240 lbs. The ratio between the MBS and WLL defines the design factor or safety factor, which in this case is 3:1 (12,240 lbs / 4,080 lbs = 3). A 3:1 safety factor is a widely accepted industry standard for load securement devices, providing a significant margin of safety against unforeseen stresses, dynamic loading, and potential material degradation over time. It is imperative that users never exceed the stated WLL to prevent structural fatigue, deformation, or catastrophic failure, which could lead to severe injury or property damage.
It is critically important to reiterate that these D-rings are explicitly not approved for overhead use. The design, material properties, and safety factors are optimized for horizontal or angular load securement applications, such as cargo tie-downs, and are not engineered to meet the stringent requirements for overhead lifting operations where sudden load drops or personnel safety under a suspended load are primary concerns. Overhead lifting applications require specific hardware engineered with much higher safety factors (typically 4:1 or 5:1) and subjected to different testing protocols. Adherence to this restriction is not merely a recommendation but a fundamental safety directive.
Versatile Applications Across Industries
The robust design and high load capacity of this 1/2 Inch Forged D-Ring make it an indispensable component across a diverse range of industrial and commercial sectors. In the transportation industry, it serves as a reliable tie-down point on flatbed trailers, utility trailers, enclosed cargo trailers, and tow trucks, ensuring secure transit of equipment, vehicles, and goods. For construction and heavy equipment transport, these D-rings provide steadfast anchor points for securing excavators, bulldozers, and other machinery during transport to and from job sites. The agricultural sector benefits from their durability on farm trailers, implements, and utility vehicles for hauling feed, machinery, and various supplies. Beyond these, their applications extend to marine environments for securing boats on trailers (though specific marine-grade coatings may be preferred for continuous saltwater exposure), recreational vehicles, and custom fabrication projects where robust and reliable tie-down points are required. Their versatility also makes them suitable for OEM integration into custom trailer designs, work truck bodies, and specialized equipment.
Quality Assurance and Compliance
The production of such a critical safety component necessitates strict adherence to quality assurance protocols. While not explicitly stated as "Made in USA," the product is manufactured to meet demanding performance specifications. This implies a rigorous manufacturing process that includes material verification, dimensional accuracy checks, and mechanical property testing to ensure that each D-ring assembly consistently meets or exceeds the advertised WLL and MBS. Adherence to industry best practices for cargo securement, such as those outlined by the Department of Transportation (DOT) and various national and international standards organizations, is paramount. Users are encouraged to ensure that their overall load securement system, including straps, chains, and other hardware, also complies with relevant safety standards and that the cumulative WLL of all components meets or exceeds the weight of the cargo being secured.
Installation and Operational Best Practices
Proper installation and ongoing maintenance are crucial for maximizing the lifespan and safe operational capacity of the 1/2 Inch Forged D-Ring. Before installation, it is essential to identify a suitable mounting surface with sufficient structural integrity to support the anticipated loads. This typically involves reinforced steel frames or crossmembers. Fasteners (not included) should be high-grade, such as Grade 8 bolts, and matched to the 0.375-inch square mounting holes. Washers and lock nuts are recommended to prevent loosening due to vibration. All fasteners must be tightened to the manufacturer's specified torque settings.
During operation, regularly inspect the D-ring and its mounting bracket for any signs of wear, deformation, cracks, corrosion, or loosened fasteners. Any component showing damage should be immediately removed from service and replaced. Overloading the D-ring beyond its WLL, applying sharp or jerky loads, or subjecting it to environments beyond its protective plating's capacity can compromise its integrity. Adhering to these operational best practices ensures the D-ring assembly provides reliable and long-lasting performance, safeguarding cargo and personnel.
Long-Term Value and Return on Investment
Investing in a high-quality D-ring, such as this 1/2 Inch Forged D-Ring with Yellow Zinc Plating, delivers significant long-term value. Its superior material composition, advanced forging process, and robust corrosion protection translate into extended service life and reduced frequency of replacement. This durability minimizes downtime, enhances operational efficiency, and contributes to a safer working environment by ensuring consistent load securement integrity. The initial investment is quickly recouped through avoided repair costs, reduced risk of cargo damage, and increased confidence in transportation and handling operations.
Conclusion
The 1/2 Inch Forged D-Ring with 2-Hole Mounting Bracket and Yellow Zinc Plating from Buyers Products stands as a testament to engineering excellence in load securement hardware. Its C-1045 forged steel construction provides a foundation of immense strength and durability, further enhanced by the multi-layered corrosion protection of the yellow zinc plating. Designed with a precise Working Load Limit of 4,080 lbs and an MBS of 12,240 lbs, it offers a substantial safety margin for all appropriate applications, strictly excluding overhead lifting. This D-ring assembly is a reliable, high-performance solution for professionals demanding the utmost in safety and longevity for their cargo securement needs across various demanding industries.
