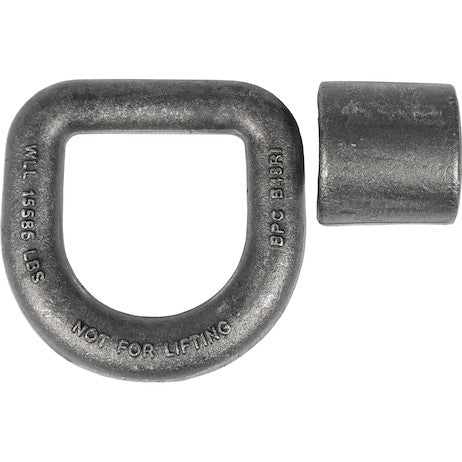

B48I - 1 Inch Forged D-Ring with Weld-On Mounting Bracket

Secure your load with confidence using the sturdy 1 Inch Forged D-Ring from Buyers Products. The ring has a working load limit of 15,586 lb. A forged 3/8 in. thick weld-on mounting bracket is included. D-rings are not approved for overhead use.

Specifications

The 1 Inch Forged D-Ring with Weld-On Mounting Bracket from Buyers Products represents a critical component in advanced cargo securement systems, designed to meet the rigorous demands of heavy-duty applications across various industries. This product is engineered for maximum strength, durability, and reliability, providing a secure anchor point for a multitude of tie-down scenarios. Its robust construction and meticulously defined specifications underscore its utility for professionals who require uncompromising safety and performance.

Advanced Material Science and Forging Process

The cornerstone of this D-ring's superior performance lies in its manufacturing process: forging. Unlike casting or machining from rolled plate, forging is a metalworking process that involves shaping metal through localized compressive forces. This process, typically performed at elevated temperatures (hot forging), compels the metal's internal grain structure to align with the shape of the D-ring, creating a continuous grain flow that follows the contours of the component. This alignment eliminates internal voids, porosity, and structural weaknesses often found in cast parts, and enhances the inherent strength and toughness beyond what can be achieved by simple machining.

Specifically, the 1-inch diameter of the D-ring refers to the cross-sectional thickness of the steel bar from which it is formed. This substantial dimension, combined with the forging process, yields exceptional mechanical properties. The steel utilized is typically a high-strength carbon or alloy steel, selected for its optimal balance of tensile strength, yield strength, and ductility. Common choices might include grades like 1045, 4140, or similar steels known for their excellent response to forging and subsequent heat treatment. The precise composition allows for the material to withstand significant stress without permanent deformation or catastrophic failure, making it ideal for high-load applications.

Post-forging, the D-ring undergoes precise heat treatment processes. These typically include normalizing, quenching, and tempering. Normalizing refines the grain structure, making the steel more homogeneous. Quenching involves rapidly cooling the heated steel to harden it, transforming its microstructure into martensite, a very hard and brittle phase. Finally, tempering involves reheating the quenched steel to a lower temperature and then slowly cooling it. This process relieves internal stresses, improves ductility and toughness, and adjusts the hardness to achieve the desired balance of strength and resilience, crucial for components subjected to dynamic loads and potential impacts. The result is a D-ring that is not only incredibly strong but also resistant to fatigue and brittle fracture under extreme conditions.

D-Ring Design and Functional Geometry

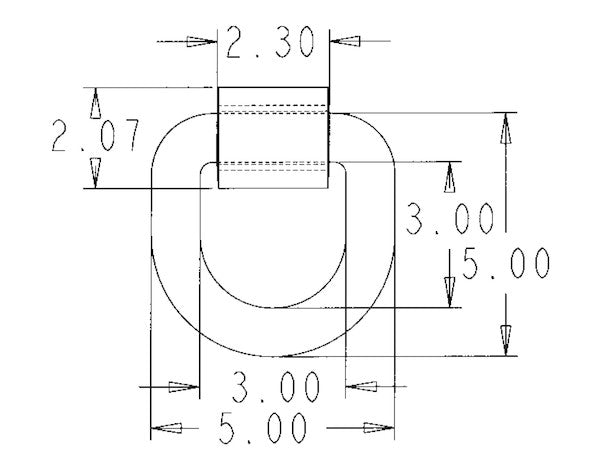

The geometric design of the D-ring, with its 1.00-inch ring diameter, is specifically optimized for heavy-duty cargo securement. The inner dimensions, measuring 3.00 inches in height and 3.00 inches in width, provide ample clearance for a wide range of securement devices. This generous internal area accommodates various sizes of hooks, such as J-hooks, S-hooks, or grab hooks, as well as synthetic straps, chains, and wire ropes commonly used in transport and rigging operations. The D-shape itself is not arbitrary; it is engineered to distribute tension efficiently across the ring's surface when a strap or chain is properly engaged. Unlike a purely circular ring, the straight segment of the "D" provides a more stable bearing surface for webbing or chain links, reducing the tendency for the tie-down to slip or bunch, thereby maintaining secure engagement throughout transit. The 1.00-inch material thickness provides a substantial cross-sectional area, directly contributing to the D-ring’s impressive strength and resistance to bending or shearing forces.

The design ensures that when a load is applied, the stresses are primarily tensile and shear, distributed effectively across the forged steel. This robust profile minimises localized stress concentrations, which are common failure points in lesser-engineered components. The smooth, radiused curves of the D-ring are also vital in preventing premature wear and tear on the attached tie-down equipment, such as abrasive damage to synthetic straps or deformation of chain links, thereby extending the lifespan of the entire securement system.

Integrated Weld-On Mounting Bracket: Engineering for Permanent Securement

The inclusion of a robust, forged weld-on mounting bracket is a defining feature of this product, ensuring a permanent and incredibly strong attachment point to the vehicle or structure. The bracket itself is specified with a thickness of 0.50 inches (equivalent to 1/2 inch), a length of 2.125 inches, and a width of 2.25 inches. These dimensions are critical for establishing a secure and structurally sound weld joint. The 0.50-inch thickness provides a substantial base for the welding bead, allowing for a deep penetration weld that effectively fuses the bracket to the underlying chassis or frame component.

The forging process applied to the bracket, similar to the D-ring, imbues it with superior material integrity and mechanical properties compared to fabricated or cast alternatives. This ensures that the bracket itself possesses the strength to match the high load capacity of the D-ring, preventing the bracket from becoming a weak link in the securement assembly. The tight dimensional tolerances of the forged bracket also ensure consistent fit-up for welding, simplifying installation and promoting high-quality welds.

Critical Aspects of Weld-On Installation

Installation of a weld-on D-ring system is a critical procedure that demands professional expertise and adherence to stringent welding standards. The success of the entire cargo securement system is highly dependent on the quality of the weld joint. Prior to welding, the mounting surface on the vehicle's frame or chassis must be meticulously prepared. This includes thorough cleaning to remove any paint, rust, grease, or contaminants that could compromise weld integrity. Depending on the base material and thickness, edge preparation such as beveling may be necessary to achieve full penetration welds, particularly in critical load-bearing applications.

Proper welding techniques, such as Shielded Metal Arc Welding (SMAW), Gas Metal Arc Welding (GMAW), or Flux-Cored Arc Welding (FCAW), should be employed by certified welders in accordance with recognized industry codes, such as AWS D1.1 (Structural Welding Code – Steel). Preheating the base metal might be required, especially for thicker sections or high-strength steels, to prevent hydrogen-induced cracking and ensure proper fusion. The selection of appropriate filler material (welding rod or wire) is paramount, chosen to match the mechanical properties of the D-ring bracket and the base material of the vehicle frame, thus ensuring the weld metal is as strong as or stronger than the parent materials.

Post-welding inspection is equally crucial. Visual inspection for weld bead consistency, absence of undercut, overlap, porosity, and cracks is a primary step. For applications requiring higher assurance, non-destructive testing (NDT) methods like magnetic particle inspection (MPI) or ultrasonic testing (UT) may be utilized to detect subsurface defects. The completed weld creates a monolithic structure, effectively integrating the D-ring and bracket into the vehicle's chassis, providing an anchor point whose strength is commensurate with the structural integrity of the vehicle itself.

Load Capacity, Safety Factors, and Performance Metrics

The performance of this 1 Inch Forged D-Ring is quantified by two critical metrics: the Working Load Limit (WLL) and the Minimum Break Strength (MBS). The WLL of 15,586 lb (approximately 7.79 tons) represents the maximum static load that the D-ring is designed to safely support under normal operating conditions when properly installed and used. This figure incorporates a safety factor, which is a crucial engineering parameter designed to account for unpredictable forces, material imperfections, environmental factors, and variations in loading conditions.

The Minimum Break Strength (MBS) is specified as 46,758 lb. This value represents the average ultimate load at which the product is expected to fail. By comparing the MBS to the WLL, we derive the safety factor: MBS / WLL = 46,758 lb / 15,586 lb ≈ 3.00. This 3:1 safety factor is a robust industry standard for cargo securement devices, providing a substantial margin of safety beyond the typical operational loads. This means the D-ring is designed to withstand three times its rated working load before catastrophic failure, offering significant protection against unforeseen dynamic forces, shock loads, or slight overloads that can occur during transport.

It is imperative to understand the distinction between static and dynamic loading. The WLL is primarily applicable to static or slowly applied loads. Dynamic loads, such as those caused by sudden braking, acceleration, turning, or rough terrain, can generate forces many times greater than the static weight of the cargo. The inherent toughness of the forged steel, combined with the 3:1 safety factor, provides resilience against these dynamic stresses, minimizing the risk of D-ring failure during demanding transport conditions. However, users must always account for dynamic forces and never exceed the WLL under any circumstances.

Furthermore, fatigue resistance is an essential aspect of component longevity. Even loads below the WLL, if applied repeatedly over extended periods, can eventually lead to material fatigue and failure. The continuous grain structure achieved through forging, coupled with proper heat treatment, significantly enhances the D-ring's resistance to fatigue crack initiation and propagation, ensuring a longer service life under repetitive stress cycles.

Applications and Industry Relevance

The 1 Inch Forged D-Ring with Weld-On Mounting Bracket is an indispensable component across a broad spectrum of industries requiring heavy-duty cargo securement. Its high WLL and robust construction make it perfectly suited for:

• **Heavy-Duty Trucking and Logistics**: Essential for flatbed trailers, low-boys, and specialized transport vehicles carrying construction equipment, industrial machinery, oversized loads, and vehicles.
• **Construction Equipment**: Integrated into excavators, bulldozers, loaders, and other heavy machinery as securement points for transport or lifting (within non-overhead parameters).
• **Agricultural Machinery**: Provides reliable tie-down points for tractors, implements, and other farm equipment during road transport.
• **Marine and Offshore Applications**: Used on workboats, barges, and offshore platforms for securing equipment, supplies, and temporary structures, provided it is suitable for the marine environment (e.g., proper coating or material selection if continuously exposed to corrosive elements).
• **Industrial Fabrication and Manufacturing**: Incorporated into custom fixtures, jigs, and material handling solutions where robust anchor points are required.
• **Utility and Municipal Vehicles**: Utilized on service trucks, tow trucks, and emergency vehicles for securing specialized gear or disabled equipment.

The weld-on design ensures a permanent and tamper-proof attachment, offering peace of mind that the anchor point will not loosen or detach under extreme vibrational or dynamic conditions encountered during transport.

Crucial Safety Guideline: Prohibition of Overhead Use

A critical safety directive for this product is explicitly stated: "D-rings are not approved for overhead use." This is not merely a recommendation but a fundamental safety principle rooted in engineering design and liability considerations. D-rings of this type, despite their high WLL and robust construction, are primarily designed for horizontal or angular tensioning forces, characteristic of cargo securement applications where the load is pulled horizontally across a surface. Overhead lifting, conversely, involves suspending a load vertically, which introduces a different set of forces, safety factors, and potential failure modes that these D-rings are not engineered or certified to handle.

Reasons for this prohibition include:

• **Design Intent**: The geometry and attachment method (weld-on bracket) are optimized for resisting pull forces along the plane of the mounting surface. Overhead lifting subjects components to complex shear, bending, and torsional stresses, especially if the load is not perfectly vertical or experiences swinging motions.
• **Load Application**: In overhead lifting, the entire weight of the load is concentrated on the lifting points. Failure of a single D-ring could result in catastrophic consequences, including severe injury or fatality.
• **Regulatory Compliance**: Overhead lifting equipment is subject to much stricter regulatory standards (e.g., ASME B30 standards, OSHA regulations) that govern design, manufacturing, testing, inspection, and usage. These standards typically require specific types of lifting eyes, shackles, or hoist rings that are designed with higher safety factors and specific features (e.g., shoulders to prevent side loading on bolts) for overhead applications. This D-ring, while strong, does not meet the specific design criteria for certified overhead lifting.
• **Fatigue and Shock Loading**: Overhead lifting operations frequently involve dynamic shock loading when loads are started or stopped, or when subjected to sudden movements. While the D-ring has a good safety factor for cargo securement, it is insufficient for the vastly increased risks associated with overhead lifting.

Strict adherence to this safety warning is paramount to prevent accidents, property damage, and severe personal injury. Users requiring overhead lifting solutions must utilize equipment specifically designed, rated, and certified for such applications.

Maintenance, Inspection, and Regulatory Considerations

To ensure the continued safe operation and longevity of the 1 Inch Forged D-Ring, regular inspection and proper maintenance are essential. Before each use, a thorough visual inspection should be performed. Key areas to check include:

• **D-Ring Integrity**: Look for any signs of deformation, bending, elongation, twisting, nicks, gouges, cracks, or excessive wear on the D-ring itself. Any visible damage warrants immediate removal from service.
• **Weld Joint Integrity**: Inspect the weld around the mounting bracket for any cracks, corrosion, or signs of separation from the base material. The weld should appear solid and continuous without any visible flaws.
• **Corrosion**: While forged steel is robust, prolonged exposure to harsh environmental conditions without protection can lead to corrosion. Inspect for significant rust or pitting that could compromise the material's integrity.

Any D-ring showing signs of damage, deformation exceeding manufacturer specifications, or compromised weld integrity must be retired from service immediately to prevent potential failure during use. Users should also ensure that the D-ring's WLL is always appropriate for the maximum anticipated load, considering dynamic forces, and that it is compatible with the tie-down straps, chains, or cables being used.

Although the product is indicated as "Made in USA: No," it is designed and specified to meet general performance expectations for cargo securement devices. In the United States, cargo securement practices are largely governed by federal regulations, specifically those issued by the Federal Motor Carrier Safety Administration (FMCSA), which are based on National Cargo Securement Standards. These regulations mandate that tie-down assemblies, including anchor points like D-rings, must have a WLL equal to or greater than the forces they are subjected to. Adhering to these regulations is crucial for compliance, safety, and operational efficiency.

Conclusion

The 1 Inch Forged D-Ring with Weld-On Mounting Bracket from Buyers Products is an exemplary solution for robust and reliable cargo securement. Its design integrates advanced material science, precision forging, and intelligent engineering to deliver a component with an impressive 15,586 lb Working Load Limit and a 3:1 safety factor. The meticulously crafted forged D-ring and the sturdy 0.50-inch thick weld-on bracket ensure a permanent and structurally sound anchor point, capable of withstanding the most demanding transportation environments. By understanding its technical specifications, adhering to professional installation guidelines, respecting its operational limitations – particularly the prohibition of overhead use – and conducting regular inspections, users can leverage this D-ring to achieve superior cargo securement, enhance operational safety, and protect valuable assets during transit.
