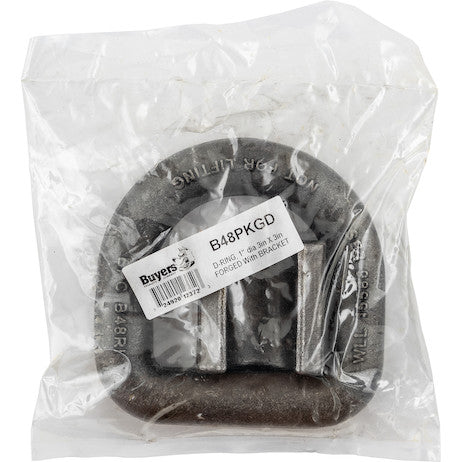

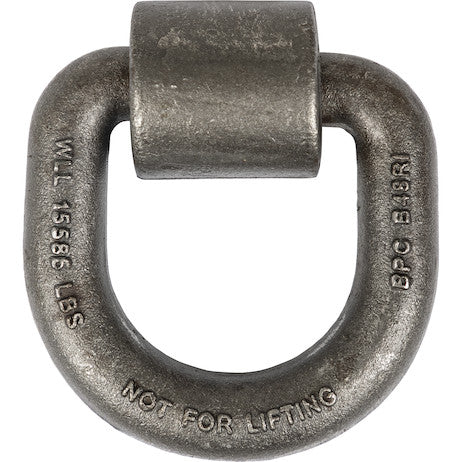

B48PKGD - 1 Inch D-Ring with Weld-On Mounting Bracket, Packaged

Secure your load with confidence using the sturdy 1 Inch Forged D-Ring from Buyers Products. The ring has a working load limit of 15,586 lb. A forged 3/8 in. thick weld-on mounting bracket is included. D-rings are not approved for overhead use.

Specifications

Advanced Technical Overview: 1 Inch Forged D-Ring with Weld-On Mounting Bracket for Heavy-Duty Cargo Securement

In the demanding environments of commercial transportation, heavy equipment operation, and industrial applications, the integrity of cargo securement devices is paramount. The 1 Inch Forged D-Ring with Weld-On Mounting Bracket from Buyers Products represents a meticulously engineered solution designed to provide superior strength, reliability, and security for critical tie-down applications. This detailed exposition delves into the technical specifications, material science, operational considerations, and safety protocols associated with this robust component, offering insights invaluable to fleet managers, fabrication engineers, and safety professionals.

Material Science and Forging Excellence: The Foundation of Strength

At the core of this product's exceptional performance is its construction from high-grade steel, subjected to a rigorous forging process. Forging is a manufacturing method that involves shaping metal through localized compressive forces using hammers or dies. Unlike casting or machining, forging reorganizes the metal's grain structure, aligning it with the contours of the D-ring and bracket. This metallurgical transformation eliminates internal voids, porosity, and imperfections inherent in other manufacturing techniques, resulting in a product with significantly enhanced mechanical properties.

The benefits of forged steel are manifold and directly contribute to the D-ring's impressive load ratings. Specifically, forging:

• Increases Tensile Strength: The ability of the material to resist breaking under tension is substantially improved.
• Enhances Fatigue Resistance: Forged components are better equipped to withstand repeated stress cycles without failure, crucial for dynamic cargo securement where loads can shift and impose varying forces.
• Improves Impact Resistance: The material becomes more resilient to sudden shocks and impacts, a common occurrence in transport and heavy-duty operations.
• Creates a Favorable Grain Structure: The controlled grain flow provides directional strength, optimizing the component's load-bearing capacity along its primary stress axes.
• Reduces the Likelihood of Defects: The high pressure during forging effectively consolidates the metal, reducing the presence of microscopic flaws that could propagate into cracks under stress.

The 1-inch diameter of the D-ring, specified as "Ring Dia.(in.)", is a critical dimension that dictates its cross-sectional area and, consequently, its load-bearing capability. This substantial diameter ensures that the D-ring can interface effectively with a wide range of securement devices, including heavy-duty chains, straps, and binders, without compromising its structural integrity under significant loads.

Understanding Load Capacities: W.L.L. and Minimum Break Strength

The safety and efficacy of any cargo securement device hinge on a clear understanding of its load capacities. This D-ring boasts a Working Load Limit (W.L.L.) of 15,586 lb and a Minimum Break Strength (MBS) of 46,758 lb. These figures are not arbitrarily determined but are derived from stringent testing and adherence to industry safety factors.

• Working Load Limit (W.L.L.): The W.L.L. is the maximum force that a component is designed to safely support under normal operating conditions. For cargo securement devices, the W.L.L. typically incorporates a safety factor, often 3:1 or 4:1, applied to the Minimum Break Strength. In this case, with an MBS of 46,758 lb and a W.L.L. of 15,586 lb, the implied safety factor is approximately 3:1 (46,758 / 15,586 ≈ 3.00), which is a standard and robust safety margin for tie-down applications. This means the D-ring is engineered to perform reliably at 15,586 lb, providing a substantial buffer before reaching its ultimate failure point. Adhering strictly to the W.L.L. is crucial to prevent premature failure, property damage, and potential injury.
• Minimum Break Strength (MBS): Also known as Ultimate Break Strength or Minimum Breaking Load (MBL), the MBS represents the minimum force at which a new component, when tested to destruction, will yield or fracture. The stated MBS of 46,758 lb provides a critical data point for engineers and safety professionals, indicating the absolute maximum load the D-ring can withstand before catastrophic failure. This value is typically determined through destructive testing of representative samples.

The clear distinction between W.L.L. and MBS is fundamental to safe operation. The W.L.L. is the practical limit for day-to-day use, while the MBS is a theoretical maximum under ideal conditions. Overloading a D-ring beyond its W.L.L. significantly compromises the safety factor and dramatically increases the risk of failure, especially under dynamic loading conditions such as road shock, braking, or cornering forces during transport.

For compliance with regulations such as those stipulated by the Federal Motor Carrier Safety Administration (FMCSA) in the United States, and similar bodies internationally, the W.L.L. of tie-down components is a critical metric. When securing cargo, the aggregate W.L.L. of all tie-downs must meet or exceed a specified percentage of the cargo's weight (e.g., 50% for direct tie-downs under FMCSA regulations). The high W.L.L. of 15,586 lb per D-ring makes this product suitable for securing very substantial loads with fewer tie-down points, optimizing efficiency while maintaining regulatory compliance.

The Weld-On Mounting Bracket: A Permanent and Robust Integration

The included weld-on mounting bracket is a key differentiator for this D-ring, offering a permanent and exceptionally strong attachment point. The bracket is specified as "Forged 3/8 in. thick," reinforcing the commitment to material integrity and strength. The dimensions of the bracket – Length (in.) 2.125, Thickness (in.) 0.50, and Width (in.) 2.25 – are carefully chosen to provide an optimal surface area for welding while maintaining a compact footprint.

• Forged Construction: Similar to the D-ring itself, the bracket benefits from the forging process, ensuring it possesses superior mechanical properties to withstand the immense forces exerted during cargo securement. The 0.50-inch (1/2 inch) bracket thickness, as indicated by "Bracket Thickness 0.50", suggests an even more robust construction than the initial description's "3/8 in." reference, providing an additional margin of safety and durability for the critical interface with the mounting surface.
• Weld-On Advantage: Weld-on brackets offer several distinct advantages over bolt-on or track-based systems, particularly in applications demanding maximum strength and permanence:
  • Unparalleled Strength: A properly executed weld creates a monolithic bond between the bracket and the receiving structure (e.g., trailer frame, truck bed, equipment chassis). This fusion eliminates potential points of failure associated with fasteners, such as shear forces on bolts or loosening over time.
  • Custom Integration: Weld-on brackets allow for highly customized placement, enabling users to strategically position tie-down points precisely where they are needed for optimal load distribution and securement geometry.
  • Reduced Profile: Once welded, the bracket is flush with the mounting surface (or minimally protruding), reducing snag hazards and creating a cleaner aesthetic.
  • Corrosion Resistance at Interface: A complete weld seal prevents moisture and contaminants from infiltrating between the bracket and the mounting surface, reducing the potential for crevice corrosion that can occur with bolted connections.
• Welding Considerations: The installation of weld-on D-rings requires specialized skills and equipment. It is imperative that welding is performed by a certified welder experienced in structural welding, adhering to applicable welding codes and standards (e.g., AWS D1.1 for structural steel welding). Proper surface preparation, selection of appropriate filler material, preheating (if necessary for thicker base metals), and post-weld inspection are crucial to ensure the integrity of the weld. The strength of the D-ring and bracket assembly is only as good as the weld that secures it to the structure. Insufficient or improperly executed welds can be the weakest link in the entire securement system, potentially leading to catastrophic failure.

Dimensional Compatibility and Application Versatility

The precise dimensions of the D-ring are crucial for its functional compatibility with various securement hardware. With an "Inner Height (in.)" of 3.00 inches and an "Inner Width (in.)" of 3.00 inches, this D-ring provides a generously sized aperture. This 3x3-inch clear opening ensures ample space for:

• Heavy-Duty Straps: Accommodating wide webbing straps, including those with protective sleeves or reinforced ends, up to 3 inches in width.
• Chains and Binders: Allowing for the easy attachment of substantial transport chains (e.g., Grade 70 chains with various clevis hooks) and their corresponding chain binders.
• Custom Fittings: Providing flexibility for specialized hooks, shackles, or other custom securement fittings that might be required for unique cargo profiles.

This dimensional versatility enhances the D-ring's utility across a broad spectrum of industries, including:

• Transportation & Logistics: For securing heavy machinery, industrial components, construction materials, and other oversized or heavy cargo on flatbed trailers, lowboy trailers, and specialized transport vehicles.
• Agriculture: Integrating tie-down points onto farm implements, custom trailers, or utility vehicles for safely transporting equipment, hay bales, and other agricultural products.
• Construction: Outfitting job site trailers, mobile workshops, or custom fabricating equipment with robust anchor points for tools, materials, and machinery.
• Marine & Offshore: Creating securement points on workboats, barges, or dockside equipment, though it is important to note the specific "not approved for overhead use" restriction.
• Industrial Fabrication: Customizing machinery bases, assembly fixtures, or storage racks with permanent, high-strength tie-down capabilities.

Critical Safety Information: Not Approved for Overhead Use

A critical safety caveat explicitly stated for this product is: "D-rings are not approved for overhead use." This statement is paramount and underscores a fundamental distinction between cargo securement hardware and overhead lifting hardware. While the D-ring possesses an impressive W.L.L. and MBS, it is engineered and tested specifically for tensile and shear forces encountered in tie-down applications, where the primary objective is to restrain cargo against movement on a horizontal plane.

Overhead lifting applications involve a different set of dynamics and significantly higher safety factors, typically 5:1 or greater, along with specialized design considerations for fatigue, impact, and dynamic shock loads during lifting and repositioning. Components designed for overhead lifting, such as shackles, hoist rings, or eye bolts, are manufactured to meet stringent industry standards (e.g., ASME B30.26) that govern their design, testing, inspection, and usage. Attempting to use this D-ring for overhead lifting would constitute a severe misuse of the product and could lead to catastrophic failure, resulting in severe injury or fatality, and significant property damage. Users must always select lifting hardware specifically rated and designed for overhead lifting tasks.

Quality Assurance and Domestic Manufacturing: Made in USA

The designation "Made in USA" is a significant indicator of the product's quality, reliability, and adherence to rigorous manufacturing standards. This often implies:

• Higher Quality Control: Manufacturing facilities in the USA typically operate under strict quality management systems (e.g., ISO 9001 certified), ensuring consistent material quality, precision in forging, and thorough inspection processes at various stages of production.
• Superior Materials: Access to high-grade domestic steel and alloys, often with certified material traceability, contributes to the overall strength and durability of the finished product.
• Compliance with Standards: Products manufactured in the USA are typically designed and tested to meet or exceed relevant domestic industry standards (e.g., SAE, ASTM, FMCSA regulations where applicable for tie-downs), providing assurance of performance and safety.
• Reduced Supply Chain Risk: Domestic manufacturing offers greater supply chain stability and responsiveness, which can be critical for businesses relying on timely access to essential components.
• Support for Domestic Economy: Investing in American-made products supports local industries, jobs, and economic growth.

Buyers Products' commitment to domestic manufacturing for critical components like this D-ring reinforces its reputation for delivering robust, dependable solutions engineered for the most demanding professional applications.

Maintenance and Inspection Protocol

Even the most robust tie-down components require regular inspection and proper maintenance to ensure their continued safe operation. While D-rings themselves are relatively low-maintenance, the entire securement system, including the D-ring, requires attention:

• Visual Inspection: Before each use, visually inspect the D-ring and its weld for any signs of damage, deformation, cracks, excessive wear, corrosion, or pitting. Specifically, check for elongation of the D-ring, distortion in its shape, or any indications of stress in the weld area or the base material.
• Weld Integrity: Periodically, and after any impact or severe loading, the weld joint should be inspected by a qualified individual for cracks, undercut, porosity, or other weld discontinuities that could compromise its strength.
• Cleanliness: Keep the D-ring free of excessive dirt, mud, paint, or rust that could obscure visual inspection or reduce the effective grip of attached straps/chains.
• Avoid Overloading: Never exceed the stated W.L.L. This is the single most important factor in preventing premature failure.
• Proper Securement Practices: Ensure that straps, chains, and binders are correctly routed, tensioned, and protected from sharp edges to prevent damage to the securement device and the D-ring itself.

Any D-ring showing signs of damage or excessive wear should be immediately taken out of service and replaced to prevent potential failure during operation.

Conclusion

The 1 Inch Forged D-Ring with Weld-On Mounting Bracket from Buyers Products is a testament to precision engineering, superior material selection, and rigorous manufacturing. With its exceptional 15,586 lb Working Load Limit, derived from a 46,758 lb Minimum Break Strength, and the unyielding strength imparted by its forged construction, this D-ring provides an indispensable anchor point for heavy-duty cargo securement. The weld-on bracket ensures permanent, high-strength integration with any suitable steel structure, offering unparalleled stability for demanding applications. The explicit exclusion from overhead lifting underscores its specialized purpose as a premium tie-down component. Manufactured in the USA, this product embodies reliability and durability, making it an essential investment for professionals who prioritize safety and efficiency in their cargo transport and industrial operations. Its robust design and high load capacity position it as a critical component in ensuring the safe and compliant transportation of valuable assets across various challenging environments.
