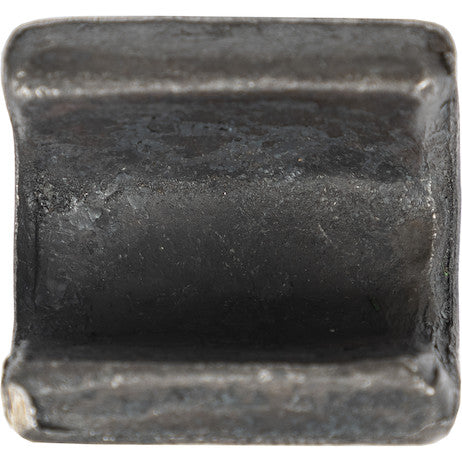

B50BF - Forged Bracket to Fit 1 Inch D-Ring

Forged Bracket to Fit 1 Inch D-Ring

Specifications

Technical Overview: Precision Engineered Forged Bracket for 1-Inch D-Ring Integration

This document provides an in-depth technical exposition of the Forged Bracket, precisely engineered to accommodate a 1-inch D-Ring. Designed for demanding applications requiring superior strength, durability, and reliable securement, this component stands as a critical interface for various rigging, lifting, and cargo tie-down systems. Its attributes, derived from a meticulous manufacturing process and robust material selection, ensure optimal performance in the most challenging industrial and commercial environments.

The Engineering Superiority of Forging in Load-Bearing Components

The selection of forging as the primary manufacturing method for this bracket is a deliberate engineering decision driven by its unparalleled advantages in producing high-strength, high-integrity metallic components. Unlike casting or machining from plate, the forging process imparts distinct microstructural benefits essential for load-bearing applications.

Grain Structure Optimization

During forging, the metal is subjected to compressive forces, which plasticize it and refine its internal grain structure. This refinement results in a continuous, directional grain flow that conforms to the shape of the part, rather than cutting across it as occurs in machining. This unbroken grain flow significantly enhances the material's mechanical properties, particularly:

• Increased Tensile Strength: The aligned grain structure offers superior resistance to stretching and fracture under tension.
• Improved Fatigue Resistance: Components manufactured via forging exhibit a much higher resistance to crack initiation and propagation under cyclic loading, extending their operational lifespan in dynamic applications.
• Enhanced Impact Toughness: Forged parts are less susceptible to brittle fracture when subjected to sudden shock loads, a critical factor in safety-critical applications.
• Reduced Internal Defects: The high pressures involved in forging effectively eliminate internal voids, porosity, and other defects commonly found in cast components, leading to a consistently denser and more homogeneous material.

Material Selection and Properties

For load-bearing components like this bracket, the choice of material is paramount. Typically, low to medium carbon alloy steels (e.g., AISI 1045, 4140, or equivalent high-strength low-alloy steels) are employed. These materials are chosen for their excellent balance of strength, toughness, and weldability. Key mechanical properties include:

• Yield Strength: The stress at which the material begins to deform plastically. Forged components typically offer superior yield strength compared to their cast counterparts.
• Ultimate Tensile Strength: The maximum stress the material can withstand before fracture.
• Hardness: Resistance to indentation and abrasion, often correlated with tensile strength.
• Elongation and Reduction of Area: Measures of ductility, indicating the material's ability to deform plastically before fracturing, providing a safety margin against sudden brittle failure.

Post-forging heat treatments, such as normalizing, quenching, and tempering, are often applied to further refine the grain structure, relieve residual stresses, and achieve precise combinations of hardness, strength, and toughness tailored for the application's specific requirements. For instance, tempering enhances ductility and impact resistance while reducing brittleness.

Precision Design for 1-Inch D-Ring Integration

The explicit specification "Ring Dia. (in.) 1.00" highlights the precision engineering inherent in this bracket's design. This dimension refers to the diameter of the pin or shackle material of the D-ring it is designed to secure. The bracket's internal geometry is meticulously configured to provide a secure, low-tolerance fit for such a D-ring, which is crucial for maximizing load transfer efficiency and minimizing wear and tear.

Dimensional Specifications and Their Functional Significance

• Bracket Length (in.): 1.625 – This dimension contributes to the overall surface area available for welding and provides sufficient structural depth to distribute loads effectively into the base material. It also ensures adequate clearance for the D-ring’s articulation.
• Bracket Width (in.): 2.25 – The width dictates the footprint of the bracket on the mounting surface and influences its resistance to rotational forces and lateral stresses. A wider base provides greater stability and an increased weld contact area.
• Bracket Thickness: 0.50 – This substantial thickness is critical for the bracket's load-bearing capacity. At half an inch, it provides significant cross-sectional area to withstand high tensile, shear, and compressive forces, preventing localized deformation or failure under extreme loads. The thickness also ensures rigidity, minimizing flex and stress concentration.
• Ring Dia. (in.): 1.00 – The precise fit for a 1-inch D-ring minimizes play, which is vital for preventing dynamic shock loading, reducing abrasive wear between the components, and ensuring predictable load transfer. An oversized fit would introduce undesirable slop, potentially leading to premature fatigue failure of both the bracket and the D-ring under cyclic or impact loads. The bracket's internal dimensions, therefore, would be slightly larger than 1.00 inch, likely around 1.01-1.03 inches, to allow for manufacturing tolerances and ease of D-ring insertion while maintaining a snug fit.

The integrated design considers stress distribution pathways. The curved profiles and generous radii often found in forged components like this bracket are engineered to minimize stress concentration points, which are common failure sites in sharp-angled or poorly designed interfaces. Finite Element Analysis (FEA) techniques are routinely employed during the design phase to simulate various load conditions and optimize the bracket's geometry for maximum strength-to-weight ratio and fatigue life.

Weld-On Mounting: A Permanent, High-Strength Solution

The "Weld-On" mounting type signifies a permanent, monolithic connection between the bracket and the host structure. This method is preferred for applications where the highest possible structural integrity and load transfer capabilities are required, surpassing the strength limitations often associated with bolted or riveted connections.

Advantages of Weld-On Attachments

• Superior Load Transfer: A properly executed weld creates a metallurgical bond, effectively making the bracket an integral part of the base structure, ensuring direct and efficient transfer of forces.
• Elimination of Fastener Failure: Weld-on designs eliminate concerns related to bolt shear, loosening, or fatigue failure of threaded connections.
• Compact Profile: Without protruding bolt heads or nuts, weld-on components often offer a cleaner, more compact profile, which can be advantageous in space-constrained applications or to reduce snagging hazards.
• Corrosion Resistance: When correctly welded and treated, a weld-on attachment can offer improved corrosion resistance compared to bolted joints where crevices can trap moisture and accelerate corrosion.

Criticality of Proper Welding Procedure

The integrity of a weld-on bracket is directly dependent on the quality of the welding process. Adherence to established welding standards and best practices is paramount:

• Joint Preparation: The surfaces to be welded must be meticulously cleaned of rust, paint, oil, and other contaminants. For thick sections like the 0.50-inch bracket, appropriate joint geometries (e.g., bevels or V-grooves) may be required to ensure full penetration and adequate weld throat thickness.
• Pre-Heat Requirements: Depending on the base material's thickness and carbon equivalent, and the ambient temperature, pre-heating may be necessary. Pre-heating reduces the cooling rate of the weld, minimizing hydrogen embrittlement and preventing excessive hardness in the heat-affected zone (HAZ), which can lead to cracking.
• Welding Process Selection: Common industrial welding processes suitable for this application include Shielded Metal Arc Welding (SMAW), Gas Metal Arc Welding (GMAW/MIG), Flux-Cored Arc Welding (FCAW), and Gas Tungsten Arc Welding (GTAW/TIG). The choice depends on factors such as base material, required deposition rate, desired aesthetics, and environmental conditions.
• Filler Material Selection: The welding electrode or wire must be carefully selected to match or slightly overmatch the mechanical properties (tensile strength, yield strength) of both the bracket and the base material, ensuring a strong and ductile weld joint.
• Qualified Welders and Procedures: All welding operations should be performed by certified welders operating under a qualified Welding Procedure Specification (WPS), typically adhering to standards such as AWS D1.1 (Structural Welding Code – Steel). This ensures consistency, repeatability, and adherence to structural integrity requirements.
• Post-Weld Cooling and Treatment: Controlled cooling after welding can further enhance weld quality. For certain critical applications or materials, post-weld heat treatment (e.g., stress relieving) may be employed to reduce residual stresses and optimize the mechanical properties of the weld and HAZ.

Applications Across Diverse Industries

The robust design and high performance of this forged weld-on bracket make it indispensable across a multitude of heavy-duty applications:

• Transportation & Logistics: Widely utilized on commercial trailers (flatbeds, low-boys, step-decks), truck chassis, intermodal containers, and railcars for securing heavy cargo. They serve as critical tie-down points for chains, straps, and binders, ensuring compliance with Department of Transportation (DOT) and Federal Motor Carrier Safety Administration (FMCSA) cargo securement regulations.
• Heavy Equipment & Machinery: Integrated into construction equipment (excavators, bulldozers, cranes), agricultural machinery, and mining equipment. These brackets function as robust lifting points, anchor points for specialized attachments, or securement locations during transportation or maintenance.
• Industrial Manufacturing & Material Handling: Employed in manufacturing facilities for jigs, fixtures, and production line equipment as permanent lifting or tethering points. They also find use in warehouses for specialized racking systems or material handling apparatus.
• Marine & Offshore: In marine environments, subject to appropriate corrosion protection (e.g., galvanization or specialized coatings), these brackets can be used on boat trailers, workboats, or offshore platforms for mooring, securing equipment, or as recovery points.
• Off-Road & Recreational Vehicles: Increasingly popular in the off-road vehicle community for creating strong, reliable recovery points on bumpers, frames, and rock sliders, enabling safe vehicle extraction and winching operations.

Performance, Safety, and Compliance Considerations

In critical load-bearing applications, performance, safety, and adherence to regulatory standards are paramount. This forged bracket is designed with these considerations at its core.

Load Ratings and Safety Factors

While specific Working Load Limits (WLL) and Ultimate Breaking Strengths (UBS) are determined by the D-ring it mates with and the quality of the weld, the bracket itself is engineered to exceed the typical breaking strength of a 1-inch D-ring, ensuring the D-ring remains the "fuse" in the system. Industry standards for rigging and lifting typically mandate safety factors of 3:1, 4:1, or even 5:1 (UBS to WLL). A component of this caliber is designed to contribute robustly to achieving these safety margins.

Fatigue Resistance

Many applications involve dynamic or cyclic loading, where components are repeatedly subjected to stress. The superior fatigue resistance inherent to forged materials ensures a longer service life, reducing the risk of unexpected failure and associated hazards and downtime. This is particularly crucial in transportation and heavy machinery applications where vibration and fluctuating loads are constant.

Corrosion Resistance

In environments exposed to moisture, chemicals, or salt, corrosion can significantly degrade mechanical properties. While the base material is typically steel, the bracket is designed to be compatible with various post-manufacturing treatments such as:

• Painting/Powder Coating: Provides a barrier against atmospheric corrosion.
• Hot-Dip Galvanizing: Offers a robust zinc coating for superior sacrificial corrosion protection, ideal for outdoor and marine applications.
• Specialized Coatings: Epoxy, urethane, or ceramic coatings for specific chemical resistance or extreme wear protection.

Proper surface preparation and application of these coatings are essential to maintain the bracket's long-term integrity.

Adherence to Standards

While a component, this bracket's design and material properties facilitate compliance with various industry and safety standards, which users must consider in their overall system design:

• ASME B30.26: Safety Standard for Detachable Lifting Devices (when integrated into a lifting assembly).
• OSHA Regulations: Pertaining to rigging and lifting equipment, ensuring workplace safety.
• FMCSA Cargo Securement Regulations: For commercial vehicle applications, ensuring tie-down points meet minimum strength requirements.
• ASTM International Standards: For material specifications and mechanical testing.

Quality Assurance and Manufacturing Excellence

The production of a high-performance forged bracket requires stringent quality control at every stage.

• Material Certification: Raw materials are sourced from reputable suppliers with Mill Test Reports (MTRs) confirming chemical composition and mechanical properties, ensuring consistency and traceability to the steel mill heat number.
• Forging Process Control: Close monitoring of forging temperatures, die pressures, and cooling rates ensures optimal grain flow and defect prevention.
• Dimensional Accuracy: Utilizing advanced machining and inspection equipment, precise dimensional tolerances (e.g., ±0.010 inch or tighter) are maintained, particularly for critical features like the D-ring opening and mounting surfaces.
• Non-Destructive Testing (NDT):
  • Visual Inspection: Performed to identify surface discontinuities, cracks, laps, or folds.
  • Magnetic Particle Inspection (MPI): Used to detect surface and near-surface flaws that are not visible to the naked eye.
  • Ultrasonic Testing (UT): For critical applications, UT can be employed to detect internal flaws, voids, or inclusions within the forged material.
• Mechanical Property Verification: Periodic destructive testing of samples (e.g., tensile tests, impact tests, hardness tests) validates that the forging and heat treatment processes have achieved the specified mechanical properties.
• Traceability: Each production batch is typically marked or accompanied by documentation allowing full traceability from the finished product back to the raw material heat, processing parameters, and inspection records.

Installation, Integration, and Maintenance Best Practices

To realize the full potential of this forged bracket, proper installation and ongoing maintenance are crucial.

Pre-Installation

Before welding, the host structure's material must be verified for compatibility with the bracket's material and the chosen welding process. The mounting surface should be clean, dry, and free from any coatings or contaminants that could compromise weld quality. The bracket should be visually inspected for any shipping damage or manufacturing defects.

Welding Procedure

As previously emphasized, welding must be performed by certified personnel in accordance with a qualified Welding Procedure Specification (WPS) relevant to the materials being joined. Parameters such as current, voltage, travel speed, shielding gas, and pre/post-heat cycles must be strictly adhered to. The weld joint should be designed to achieve adequate throat thickness and penetration to support the anticipated loads, typically utilizing fillet welds or full penetration groove welds depending on the structural requirements.

Post-Installation Inspection

After welding and cooling, the weldment should undergo thorough inspection. Visual inspection is a minimum requirement, checking for proper bead profile, absence of undercut, overlap, porosity, or cracking. For critical applications, NDT methods like MPI or UT of the finished weld can provide further assurance of weld integrity.

In-Service Inspection and Maintenance

Regular inspection of the installed bracket and D-ring system is essential to ensure continued safe operation. Inspections should look for:

• Deformation: Any bending, twisting, or localized yielding of the bracket or surrounding structure.
• Cracks: Especially in weld zones, heat-affected zones, or high-stress areas of the bracket.
• Wear: Abrasive wear on the D-ring pin contact surfaces or in the bracket's eye.
• Corrosion: Degradation of the protective coating or base metal.
• Weld Integrity: Evidence of weld cracking, detachment, or fatigue.

Any components showing signs of significant wear, deformation, or cracking should be immediately removed from service and replaced. Adherence to manufacturer guidelines and applicable industry standards for inspection frequency and retirement criteria is imperative.

Conclusion

The Forged Bracket to Fit a 1-Inch D-Ring represents a meticulously engineered and robust solution for demanding securement, lifting, and rigging applications. Its fundamental strength is derived from the forging process, which imparts a superior grain structure and mechanical properties unsurpassed by other manufacturing methods. Coupled with precise dimensional control, an optimal weld-on mounting design, and adherence to rigorous quality standards, this component offers unparalleled reliability and longevity. From heavy haulage and construction machinery to industrial fabrication and off-road recovery, this bracket provides the foundational strength required to perform critical load-bearing tasks safely and efficiently, thereby enhancing operational integrity and safeguarding personnel and assets.
