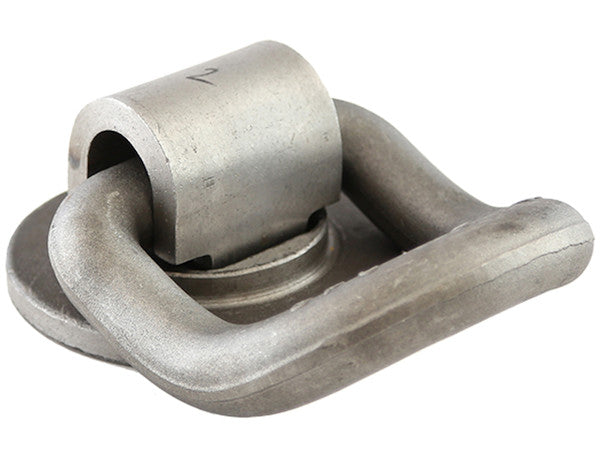

B52 - 1 Inch Forged 360?? Rotating 55?? Angled D-Ring With Weld-On Mounting Bracket

Secure your load with confidence using the Rotating Angled 1 Inch Forged D-Ring from Buyers Products. This D-ring includes a mounting bracket and rotates easily to give you a variety of optimum strapping angles. It has a 55?? bend that makes it easier to attach a strap in various applications. The D-ring features C-1045 forged steel construction and a working load limit of up to 15,586 lb. D-rings are not approved for overhead use.

Specifications

Advanced Technical Overview: 1 Inch Forged 360° Rotating 55° Angled D-Ring with Weld-On Mounting Bracket

The 1 Inch Forged 360° Rotating 55° Angled D-Ring with Weld-On Mounting Bracket, offered by Buyers Products, represents a pinnacle in cargo securement technology, engineered for unparalleled reliability and operational versatility in demanding industrial and commercial applications. This comprehensive accessory is meticulously designed to provide superior load securement, featuring advanced material science, precision forging, and innovative mechanical design elements to ensure maximum safety and efficiency for transporting heavy and oversized equipment. Its unique combination of rotational capability and a strategic angular bend significantly enhances the functionality of traditional tie-down points, optimizing strap alignment and minimizing wear, thereby extending the service life of both the D-ring and the securement straps. This product is an indispensable component for professionals requiring robust and adaptable tie-down solutions for trailers, flatbeds, and other transport vehicles.

Material Science and Engineering: The Strength of C-1045 Forged Steel

The fundamental integrity of this D-ring originates from its construction with C-1045 forged steel. C-1045 is a medium-carbon steel renowned for its excellent balance of strength, hardness, and toughness, making it an optimal choice for high-stress applications such as cargo securement. This alloy typically contains 0.43-0.50% carbon, 0.60-0.90% manganese, and trace elements that contribute to its mechanical properties. Its chemical composition allows for heat treatment processes to further enhance its performance characteristics, achieving a desirable combination of high tensile strength and impact resistance.

The forging process, in contrast to casting or machining from plate, is critical to the superior performance of this D-ring. Forging involves shaping metal through localized compressive forces using hammers or presses. This process refines the grain structure of the C-1045 steel, creating a directional grain flow that conforms to the shape of the D-ring. This optimized grain flow dramatically increases the material's strength, particularly its fatigue resistance and impact toughness, in the directions aligned with anticipated load paths. Furthermore, forging eliminates internal voids, porosity, and other material defects commonly found in cast components, ensuring a more homogeneous and structurally sound product. The result is a D-ring with enhanced resistance to dynamic stresses, shock loads, and cyclic loading, which are inherent in cargo transportation environments. The formidable Minimum Break Strength (MBS) of 46,758 lbs is a direct testament to the metallurgical excellence and structural integrity imparted by the C-1045 forged steel construction.

Innovative Design and Functional Mechanics

1-Inch Ring Diameter and Inner Dimensions

The D-ring features a substantial 1.00-inch ring diameter, providing ample cross-sectional area to distribute stress effectively and accommodate heavy-duty straps and chains typically utilized for securing loads up to its impressive Working Load Limit (WLL). This dimension is meticulously selected to ensure compatibility with a wide array of industry-standard tie-down straps, including webbing and chain assemblies, ensuring a secure and positive connection. The inner dimensions of the D-ring, measuring 3.50 inches in height and 3.00 inches in width, further enhance its utility. These generous dimensions allow for easy attachment and detachment of hooks and hardware, even when wearing gloves, and provide sufficient clearance for strap articulation without binding or premature wear.

360° Rotation Capability

A cornerstone of this product's advanced design is its full 360-degree rotational capability. This feature allows the D-ring to pivot freely around its central axis, providing an unparalleled degree of flexibility in strap angle management. In dynamic cargo securement scenarios, the ideal strap angle is often elusive with fixed tie-down points. The 360° rotation enables the operator to adjust the D-ring to align precisely with the strap's direction of pull, thereby eliminating side-loading forces that can compromise strap integrity and reduce the effective WLL of fixed anchor points. This optimized alignment ensures that tension is distributed uniformly across the strap and anchor, maximizing securement efficiency and significantly reducing the risk of strap abrasion, twisting, or premature failure due to improper load distribution. This adaptability is particularly beneficial when securing irregularly shaped cargo or when working in confined spaces where optimal strap angles are challenging to achieve.

55° Angled Bend for Enhanced Ergonomics and Functionality

Complementing its rotational feature, the D-ring incorporates a carefully engineered 55-degree bend. This specific angle is not arbitrary; it is a critical design element that provides significant operational advantages. The 55° bend serves several key purposes: firstly, it facilitates easier attachment of hooks, especially when the D-ring is located in a position with restricted access or when securing bulky cargo. The angle creates a natural lead-in for strap hardware, reducing fumbling and improving efficiency during the securement process. Secondly, it elevates the attachment point, providing critical clearance for straps to clear vehicle edges, cargo contours, and other potential abrasive surfaces. This elevated position mitigates chafing and wear on the straps, thereby extending their service life and ensuring consistent tension. Thirdly, the angle can help to optimize the vertical component of the securing force, enhancing the downward pressure on the cargo to resist shifting and movement more effectively. This strategic angling, combined with 360° rotation, delivers a highly adaptable and user-friendly tie-down point that significantly outperforms conventional, static D-rings.

Integrated Weld-On Mounting Bracket: Permanent and Robust Attachment

The D-ring is supplied with a robust weld-on mounting bracket, designed for permanent and high-strength integration with structural components of trailers, truck beds, or other equipment. The bracket itself measures 4.60 inches in length, 4.60 inches in width, and 0.80 inches in thickness, providing a substantial base for weld attachment. This generous footprint ensures excellent load distribution into the parent material, minimizing localized stress concentrations and maximizing the structural integrity of the complete anchor system. The mounting bracket is specified as "Weld-Thru," indicating a design that facilitates full penetration welding for maximum strength. This involves preparing the mounting surface and the bracket edges to allow the weld filler metal to fully fuse through the thickness of the bracket into the underlying structure, creating a monolithic connection that can withstand extreme tensile and shear forces.

Installation Considerations for Weld-On Brackets

Proper installation of weld-on D-rings is paramount for achieving their rated performance and ensuring safety. This process requires skilled personnel with appropriate welding certifications and adherence to recognized welding procedures (e.g., AWS D1.1 for structural steel). Key considerations include:

• Surface Preparation: The mounting surface must be thoroughly cleaned, free from rust, paint, oil, and other contaminants that could compromise weld quality.
• Welding Process and Consumables: Selection of appropriate welding process (e.g., GMAW, SMAW, FCAW) and filler metals compatible with both the C-1045 bracket and the parent material (typically high-strength low-alloy steel for trailer frames) is crucial.
• Penetration and Bead Profile: Ensuring adequate weld penetration and a smooth, consistent bead profile without excessive undercut or overlap is essential for load-bearing capacity. Full penetration welds are recommended for maximum strength.
• Post-Weld Inspection: Visual inspection for defects such as cracks, porosity, and incomplete fusion is standard. For critical applications, non-destructive testing (NDT) methods like ultrasonic testing or magnetic particle inspection may be employed to verify weld integrity.
• Heat Input Control: Managing heat input during welding is important to prevent excessive distortion of the bracket or weakening of the parent material's heat-affected zone (HAZ).

When installed correctly, the weld-on bracket provides a virtually indestructible anchor point, becoming an integral part of the vehicle's load-bearing structure, capable of transferring immense forces efficiently and safely.

Load Rating and Safety Specifications

This 1 Inch Forged D-Ring is engineered to exceptionally high standards, featuring a Working Load Limit (WLL) of 15,586 lbs and a Minimum Break Strength (MBS) of 46,758 lbs. Understanding these specifications is critical for safe operation.

• Working Load Limit (WLL): The WLL is the maximum load that the D-ring is designed to safely support under normal operating conditions. It accounts for a safety factor and represents the highest force that should be exerted on the tie-down point during cargo securement. Adhering strictly to the WLL is essential to prevent structural fatigue and catastrophic failure.
• Minimum Break Strength (MBS): The MBS represents the minimum force at which a new D-ring, when tested under controlled laboratory conditions, will fail. It is a critical metric for establishing the product's ultimate strength.

The relationship between WLL and MBS defines the product's safety factor. In this case, the safety factor is calculated as MBS / WLL = 46,758 lbs / 15,586 lbs ≈ 3.00. A safety factor of 3:1 is a common and robust industry standard for cargo tie-down devices, providing a significant margin of safety above the intended operational loads. This factor accounts for potential variables such as dynamic forces encountered during transit, minor material imperfections, and potential wear over time, ensuring that the D-ring maintains a substantial reserve of strength even under challenging conditions.

Crucial Safety Disclaimer: "Not Approved for Overhead Use"

The explicit disclaimer that "D-rings are not approved for overhead use" is a fundamental safety directive that must be rigorously observed. This distinction highlights the difference between cargo securement hardware and lifting hardware. Devices designed for overhead lifting operations (e.g., hoist rings, eye bolts for lifting) are engineered to different specifications, often with higher safety factors (typically 4:1 or 5:1), and are subjected to more stringent testing and certification protocols to account for the catastrophic risks associated with dropped loads and potential injury or fatality. Cargo tie-down D-rings are designed to resist forces in a predominantly horizontal or angled plane, keeping cargo secured against movement on a transport surface. Their design and safety factors are optimized for this specific application. Using them for overhead lifting introduces unacceptable risks, as they may not possess the necessary strength, fatigue resistance, or safety margin for dynamic lifting loads, potentially leading to catastrophic failure. Adherence to this directive is paramount for operational safety.

Applications and Versatility

The robust construction and innovative design of this 1 Inch Forged D-Ring make it an ideal securement solution across a diverse range of heavy-duty applications. Its ability to manage substantial loads with an exceptional safety factor makes it indispensable in sectors such as:

• Heavy Equipment Transport: Securing excavators, bulldozers, agricultural machinery, and other large construction equipment on flatbed trailers.
• Commercial Trucking: Providing reliable tie-down points for various types of cargo, from industrial components to palletized goods, on commercial semi-trailers.
• Utility and Service Vehicles: Enhancing securement capabilities on utility trucks, service body vehicles, and municipal fleet vehicles for tools, machinery, and specialty equipment.
• Marine and Offshore: Offering robust tie-down points for securing equipment on barges, workboats, and offshore platforms, where resistance to corrosion and dynamic forces is critical.
• Military and Defense Logistics: Providing dependable anchor points for securing military vehicles, containers, and specialized equipment during transport.
• Custom Fabrication: Being easily integrated into custom-built trailers, truck bodies, and industrial platforms where permanent, high-strength tie-down points are required.

The 360° rotation and 55° angle offer a significant advantage in these varied applications by accommodating a multitude of cargo shapes and sizes, optimizing strap routing, and adapting to different securement strategies without compromising integrity or efficiency.

Maintenance and Inspection for Longevity and Safety

To ensure the prolonged operational life and consistent safety performance of the 1 Inch Forged D-Ring, regular inspection and proper maintenance are essential. While forged steel offers inherent durability, environmental factors and operational stresses can lead to wear over time. Key maintenance and inspection practices include:

• Pre-Use Visual Inspection: Before each use, conduct a thorough visual inspection of the D-ring and its weld attachment. Look for any signs of deformation (bending, twisting, elongation), cracks in the D-ring or bracket, significant corrosion, pitting, nicks, or gouges that could compromise its strength. Pay particular attention to the integrity of the weld joint, checking for any signs of cracking, separation, or rust around the weld.
• Freedom of Movement: Verify that the D-ring rotates freely 360 degrees. Any binding or excessive stiffness could indicate internal damage or accumulated debris.
• Cleanliness: Keep the D-ring and bracket clean from dirt, debris, mud, and corrosive substances that can obscure defects or accelerate material degradation.
• Avoid Overloading: Never exceed the stated Working Load Limit (WLL). Overloading is the primary cause of D-ring failure and will permanently deform the material, compromising its safety factor.
• Environmental Exposure: While C-1045 steel is robust, prolonged exposure to harsh corrosive environments without protective coatings can lead to surface rust. Regular cleaning and, if necessary, touch-up with appropriate industrial-grade paint or coatings can extend life.
• Replacement Criteria: Any D-ring exhibiting signs of damage, deformation, or structural compromise, or a compromised weld, must be immediately removed from service and replaced. Do not attempt to repair damaged D-rings.

Adhering to these inspection and maintenance protocols will ensure that the D-ring continues to provide reliable and safe cargo securement over many years of demanding use.

Conclusion

The 1 Inch Forged 360° Rotating 55° Angled D-Ring with Weld-On Mounting Bracket from Buyers Products is a meticulously engineered, high-performance solution for professionals demanding the utmost in cargo securement strength, flexibility, and safety. Its construction from C-1045 forged steel ensures exceptional mechanical properties, while the innovative 360° rotational capability and 55° angled bend provide unparalleled adaptability for optimized strap alignment and ease of use. With an impressive Working Load Limit of 15,586 lbs and a robust 3:1 safety factor, this D-ring offers reliable performance in the most challenging transport environments. When properly installed via its integral weld-on bracket, this product delivers a permanent, high-strength tie-down point, enhancing operational efficiency and significantly mitigating the risks associated with cargo shifting. This D-ring embodies a commitment to superior quality and user safety, establishing itself as an essential component for secure and compliant cargo transportation.
