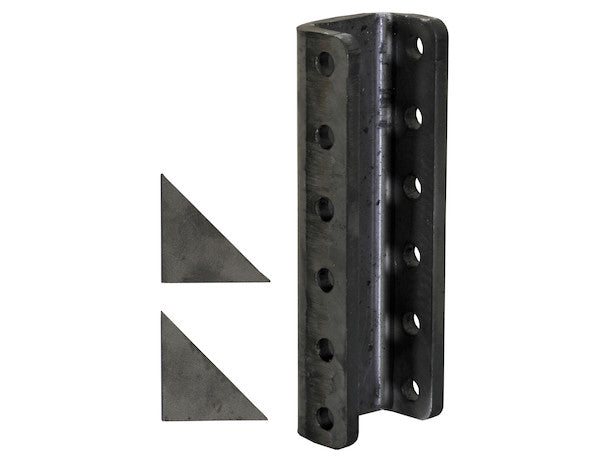

Heavy Duty 3 and 5 Position Channels from Buyers Products connect your trailer's coupler or tow eye at the correct height for level towing. The towing components simply bolt onto the channel at the height that meets your need. Each channel is built of strong, 1/2 in. thick formed steel. It is welded to your trailer tongue. The 5 position channel can also be ordered with weld-on gussets for extra support. A bolt and nut kit is available and is ordered separately.
Specifications
| Eye Inner Diameter (in.) | - |
|---|---|
| Finish | Plain |
| Gussets | 2 |
| M.G.T.W. (lbs.) | - |
| M.V.L. (lbs.) | - |
| Material | Carbon Steel |
| Mounting Hole Diameter (in.) | 0.656 |
| Position | 5 Position |
| Vertical Hole Spacing (in.) | 2.0 |
Advanced Engineering and Performance Analysis of the 5-Position Heavy-Duty Channel with Gussets
The 5-Position Heavy-Duty Channel with Gussets, specifically designed for seamless integration with high-capacity towing components such as the B16137 and B20135, represents a critical component in ensuring optimal towing dynamics, safety, and operational longevity across a diverse range of heavy-duty trailer applications. This product transcends the function of a simple bracket, embodying a sophisticated blend of material science, structural engineering, and practical functionality tailored for demanding environments.
At its core, the primary objective of this heavy-duty channel is to facilitate the precise vertical alignment of a trailer's coupler or tow eye with the hitch receiver or pintle hook of the tow vehicle. This seemingly straightforward task is, in fact, paramount for maintaining a level towing configuration, which is foundational to safe and efficient transport. Deviations from a level stance, whether nose-high or nose-low, introduce a cascade of detrimental effects on both the tow vehicle and the trailer. A nose-high trailer can lead to reduced weight on the tow vehicle's front axle, compromising steering control and braking efficiency. Conversely, a nose-low configuration can exert excessive downward force on the tow vehicle's rear suspension, potentially overloading it, reducing ground clearance, and negatively impacting headlight aim, thereby impairing visibility. Furthermore, improper leveling can induce uneven tire wear, accelerate wear on suspension components, and increase the likelihood of trailer sway, particularly at highway speeds or in challenging wind conditions. The 5-position adjustability, with its finely spaced vertical increments of 2.0 inches, provides the granular control necessary to achieve this critical level orientation across a multitude of tow vehicle heights and trailer designs.
The structural integrity of the channel is predicated on its robust construction. Fabricated from 1/2-inch thick formed carbon steel, the material selection is a deliberate choice for applications requiring exceptional strength and durability. Carbon steel, known for its high tensile strength and excellent ductility, offers superior resistance to deformation and fracture under the significant static and dynamic loads encountered during heavy-duty towing. The "formed" steel designation indicates a manufacturing process where sheet or plate steel is bent or pressed into a specific shape, in this case, a channel profile. This forming process enhances the material's structural rigidity and load-bearing capacity compared to flat plate, distributing stress more effectively across the section. The 1/2-inch thickness is not arbitrary; it is engineered to withstand the substantial vertical and horizontal forces, including braking and acceleration stresses, torsional forces during turns, and impact loads, without yielding or experiencing premature fatigue. The plain finish, as specified, is ideal for welded assemblies, as it eliminates the need for removal of pre-existing coatings, ensuring optimal weld penetration and adhesion, which are critical for the structural integrity of the final trailer tongue assembly.
A distinguishing feature of this particular model is the inclusion of two weld-on gussets. Gussets are triangular or trapezoidal plates added to structural joints to provide additional support and reinforcement, primarily against bending and shear stresses. In the context of a heavy-duty towing channel, gussets strategically positioned at the points where the channel meets the trailer tongue, or at critical stress points within the channel itself, serve to significantly increase the localized stiffness and load-carrying capacity. By increasing the cross-sectional area and moment of inertia at these critical junctures, the gussets effectively distribute concentrated stresses over a larger surface area, mitigating stress concentrations that could otherwise lead to fatigue cracking or structural failure under repetitive or extreme loading conditions. This design feature is paramount for heavy-duty applications where the channel is subjected to considerable lever arm forces from the coupler or tow eye, particularly when accommodating the substantial gross trailer weights and vertical tongue loads associated with the B16137 and B20135 components. The "weld-on" nature of these gussets implies a permanent and integral enhancement to the channel's structural performance, creating a monolithic connection with the trailer tongue.
Compatibility is a key consideration in any towing system. The channel is precisely engineered with a mounting hole diameter of 0.656 inches and a vertical hole spacing of 2.0 inches. These dimensions are industry standards, ensuring broad compatibility with a wide array of heavy-duty couplers, pintle hooks, and tow eyes, including specific components like the B16137 and B20135. The precision of these holes is crucial for achieving a secure, vibration-free bolted connection, which is essential for transmitting longitudinal and vertical forces effectively and safely. The separate availability of a bolt and nut kit underscores the importance of using appropriately specified fasteners—typically high-strength, grade 8 bolts—that match the channel's robust design and the anticipated load requirements. The correct torqueing of these fasteners is equally vital, preventing loosening under dynamic loads and maintaining the structural integrity of the connection over time.
The installation process for this heavy-duty channel involves welding it directly to the trailer tongue. This method of attachment provides a significantly stronger and more durable connection compared to bolted or clamp-on alternatives, which may be prone to loosening or fatigue under severe operating conditions. Professional welding is imperative, utilizing appropriate welding procedures (e.g., GMAW, SMAW) and qualified welders to ensure full penetration welds with sufficient strength and ductility. Proper surface preparation, including cleaning and preheating where necessary, is essential to achieve optimal weld quality and to prevent defects such as porosity, lack of fusion, or cracking. The robust nature of the 1/2-inch carbon steel requires careful attention to welding parameters to ensure a structurally sound and long-lasting connection that integrates seamlessly with the trailer's frame. Post-weld inspection, including visual and potentially non-destructive testing, is recommended to verify the integrity of the welded joints.
The operational performance implications of a properly integrated 5-position heavy-duty channel are profound. By allowing for precise height adjustment, the channel ensures that the trailer tracks efficiently behind the tow vehicle, minimizing aerodynamic drag and improving fuel economy. More critically, it optimizes weight distribution across the axles of both the tow vehicle and the trailer, which is fundamental to maintaining stability and control. This balanced weight distribution enhances traction, braking performance, and maneuverability, especially when navigating turns or encountering sudden obstacles. In heavy-duty applications, where gross vehicle weights can be substantial, maintaining proper load transfer is not just a matter of convenience, but a critical safety factor that directly impacts accident avoidance capabilities. The robust design, coupled with the gusseted reinforcement, ensures that the channel itself becomes an integral, unyielding part of the trailer's structural load path, capable of transmitting the full range of forces without compromise.
The versatile nature of this heavy-duty channel extends its utility across a broad spectrum of industries. In construction, it is indispensable for connecting excavators, skid steers, and other heavy equipment trailers to powerful vocational trucks, ensuring that precious cargo arrives safely and efficiently. Agricultural applications benefit from its strength and adjustability when towing implements such as planters, cultivators, or harvesting equipment. Utility and municipal fleets rely on such components for trailers carrying generators, compressors, and specialized maintenance equipment. Even in certain commercial hauling scenarios, where customized trailer configurations are common, the flexibility offered by a 5-position channel proves invaluable. The capacity to adapt to varying coupler types, drawbar eyes, and receiver heights makes it a universal solution for fleet operators managing diverse equipment inventories and towing requirements.
From an engineering perspective, the design of this channel addresses fundamental principles of mechanics of materials and structural design. The use of a thick, formed carbon steel section minimizes deflection under load, maintaining the critical alignment necessary for effective towing. The multiple positions introduce a level of kinematic adjustability, allowing the system to adapt to different vehicle dynamics. The gussets are an application of stress concentration mitigation techniques, common in high-stress components, which prolong the fatigue life of the entire assembly. The choice of a plain finish signifies a product intended for integration into a larger manufactured system, where final protective coatings (e.g., primer, paint, galvanization) would be applied after welding, ensuring complete and continuous corrosion protection for the entire trailer tongue structure.
Long-term maintenance considerations are also integral to the product's design. While the plain finish requires post-installation coating for corrosion protection, this approach offers maximum flexibility for end-users to integrate the channel into their trailer's existing finishing system, whether it be a specific paint color, powder coat, or galvanization. Regular inspection of the welded joints and the bolted connections is recommended as part of a routine trailer maintenance schedule to ensure continued integrity. This includes checking for any signs of cracking, deformation, or loosening of fasteners, which could indicate operational stresses exceeding design limits or improper installation. By adhering to these practices, the 5-Position Heavy-Duty Channel with Gussets is designed to provide years of reliable, high-performance service, making it an essential investment for any operation demanding robust and adaptable towing solutions.
In conclusion, the 5-Position Heavy-Duty Channel with Gussets from Buyers Products is more than just a mounting accessory; it is a meticulously engineered, high-strength structural component designed to optimize the performance and safety of heavy-duty towing operations. Its 1/2-inch thick formed carbon steel construction, precision-engineered bolt patterns, and integral weld-on gussets combine to offer unparalleled durability and load-bearing capability. The multi-position adjustability ensures precise leveling for diverse towing scenarios, mitigating risks associated with improper height. When integrated with compatible components like the B16137 and B20135, and installed according to best practices, this channel provides a foundational element for secure, stable, and efficient transport of heavy loads, reinforcing Buyers Products' commitment to quality and functional excellence in the heavy-duty equipment market.
