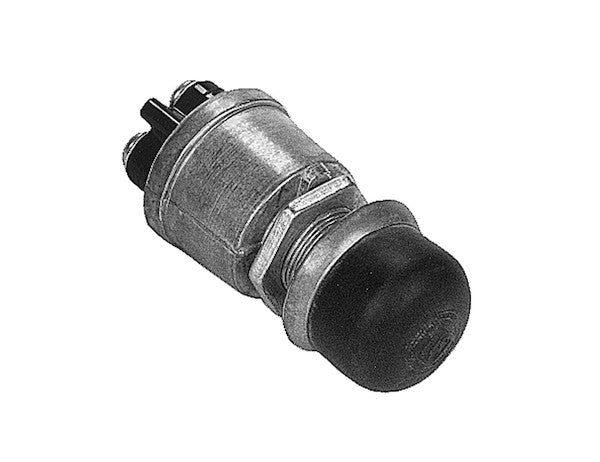

BSW90030 - Panel Mount Momentary Push Button Switch

Buyers Products Panel Mount Momentary Push Button Switch is a heavy duty single pole, single throw switch. It stays on while pushed and disengages when not. The switch has a 35A maximum rating. The weatherproof and dustproof switch features a rubber boot, mounting nut assembly, and two screw terminals with locking washers.

Specifications

The Panel Mount Momentary Push Button Switch: An Engineered Solution for Critical Control

In industrial, commercial, and automotive applications, the precise and reliable control of electrical circuits is paramount. The Buyers Products Panel Mount Momentary Push Button Switch stands as a testament to robust engineering, designed to offer dependable single-pole, single-throw (SPST) momentary operation. This detailed technical description aims to elucidate the sophisticated design, superior material selection, electrical characteristics, environmental resilience, and broad applicability of this critical component, emphasizing its role in demanding operational environments.

Fundamental Operational Principle: Momentary SPST Action

The core functionality of this switch is defined by its momentary, single-pole, single-throw (SPST) characteristic. A momentary switch maintains its actuated state only while an external force is applied, returning to its quiescent state immediately upon the cessation of that force. In the context of an SPST configuration, this means the switch acts as a simple on/off gate for a single electrical circuit. When the button is depressed, the internal contacts close, completing the circuit and allowing current flow. Release of the button causes the contacts to open, breaking the circuit. This mechanism is crucial for applications requiring transient activation, such as jogging motors, signaling, horn activation, or initiating a specific function that requires continuous user interaction for its duration. The simplicity of the SPST arrangement, coupled with the momentary action, provides an intuitive and safe control interface, preventing accidental prolonged activation of systems and ensuring that operations cease promptly when supervision is removed.

Robust Engineering for Heavy-Duty Applications

Designated as a "heavy duty" switch, this product is constructed to withstand rigorous use and provide prolonged operational life in challenging conditions. The term "heavy duty" implies more than just physical robustness; it encompasses the switch's capacity to reliably handle significant electrical loads and endure mechanical stress over extended periods. The primary material for the switch body is specified as "Plastic," which, in a heavy-duty context, typically refers to engineered thermoplastics such as high-strength polyamide (nylon), polycarbonate, or ABS. These materials are chosen for their excellent balance of mechanical strength, impact resistance, dielectric properties, and often, resistance to common industrial chemicals and solvents. The "Plain" finish indicates a functional, unadorned surface designed for utility rather than aesthetics, further underscoring its industrial focus. The internal mechanism features robust spring elements, typically made from high-grade stainless steel or phosphor bronze, ensuring consistent tactile feedback and reliable return-to-off functionality across its operational lifespan. Every aspect of its physical construction is optimized to minimize wear and tear, resist deformation, and maintain electrical integrity under adverse conditions, making it an ideal candidate for critical control functions where failure is not an option.

Electrical Performance Specifications and Considerations

A critical specification of the Buyers Products Panel Mount Momentary Push Button Switch is its 35A maximum rating. This high current capacity is indicative of its suitability for directly switching substantial electrical loads, often bypassing the need for intermediary relays in certain applications, thereby simplifying circuit design and reducing component count. While specific voltage ratings are not explicitly stated, a 35A switch of this type is commonly rated for 12V DC or 24V DC systems, prevalent in automotive, marine, and light industrial machinery. The "maximum rating" refers to the peak current the switch contacts can safely carry without significant degradation or premature failure. Designers must consider both continuous current and surge current characteristics. Although "Continuous Current Rating" and "Surge Current Rating" are marked with a dash in the specifications, for a 35A maximum rated heavy-duty switch, it implies a robust design capable of handling high continuous current flows that approach this maximum, and possessing a certain tolerance for brief surge currents inherent in inductive loads (e.g., motor starting). Electrical contact materials are fundamental to achieving such ratings. Typically, these switches employ silver alloy contacts (e.g., silver cadmium oxide, silver nickel) known for their excellent conductivity, arc erosion resistance, and ability to dissipate heat effectively. The two screw terminals, complemented by locking washers, ensure secure and low-resistance electrical connections, critical for high-current applications where loose connections can lead to increased resistance, heat generation, and potential failure. The robust design minimizes contact bounce, which is essential for signal integrity and prolonging contact life, especially when switching inductive loads.

Environmental Resilience: Weatherproof and Dustproof Design

The operational reliability of electrical components in outdoor or harsh indoor environments heavily relies on their resistance to environmental ingress. The Buyers Products Panel Mount Momentary Push Button Switch is explicitly designed to be "weatherproof and dustproof," a crucial attribute for applications exposed to elements. This level of protection is typically achieved through sealing mechanisms that prevent the intrusion of solid particles (dust, dirt) and liquids (rain, splashes, jets of water). The inclusion of a "rubber boot" is a primary component of this environmental sealing strategy. This boot, often molded from highly durable elastomers such as EPDM (ethylene propylene diene monomer) or silicone rubber, encases the actuating mechanism, creating a barrier against contaminants. These materials are selected for their excellent resistance to UV radiation, ozone, extreme temperatures, and various chemicals, ensuring the seal remains effective over time. The design likely adheres to or exceeds common Ingress Protection (IP) ratings, such as IP65 or IP67, indicating comprehensive protection against dust and resistance to water jets (IP65) or even temporary immersion (IP67). This makes the switch suitable for a wide array of demanding environments, including off-road vehicles, marine vessels, construction equipment, agricultural machinery, and outdoor control panels, where exposure to moisture, dirt, and debris is a constant challenge. The sealing extends the operational life of the switch by preventing corrosive elements from reaching the internal electrical contacts and mechanical components.

Seamless Integration: Panel Mounting and Terminal Design

The "Panel Mount" style of this switch signifies its intended method of installation: it is designed to be securely fastened through a cutout in a control panel, dashboard, or equipment housing. This mounting approach offers several advantages: it provides a stable, ergonomic interface for the operator, protects the bulk of the switch mechanism behind the panel, and presents a clean, integrated appearance. The "mounting nut assembly" is central to this installation, allowing the switch to be tightly secured to panels of varying thicknesses. Precision in panel cutout dimensions is crucial for both secure mounting and maintaining the environmental seal. The two screw terminals are a key feature for electrical connectivity, offering a robust and reliable method for wiring compared to quick-connect tabs or solder terminals, especially in high-vibration environments or high-current applications. The inclusion of "locking washers" with the screw terminals is a critical engineering detail. These washers, typically split lock washers or star washers, are designed to prevent the screws from loosening due to vibration, thermal cycling, or repeated mechanical stress. This ensures that the electrical connection remains tight and stable, minimizing contact resistance and preventing intermittent operation or complete circuit failure. This deliberate design choice enhances both electrical reliability and mechanical durability, reinforcing the switch's heavy-duty classification.

Material Science: Enhancing Durability and Performance

The selection of materials plays a pivotal role in the overall performance and longevity of the Panel Mount Momentary Push Button Switch. As mentioned, the "Plastic" body is likely engineered thermoplastic, chosen for a specific combination of properties: high tensile strength, impact resistance, and rigidity to withstand mechanical stresses during operation and installation. These plastics also exhibit excellent dielectric strength, providing electrical insulation for the internal components and ensuring user safety. The rubber boot, as a primary sealing element, demands a material like EPDM or silicone. EPDM offers superior resistance to weathering, UV radiation, and ozone, making it ideal for outdoor exposure. Silicone, while typically more expensive, boasts an even wider temperature range and excellent flexibility. Internally, the contact materials are crucial. For a 35A rating, contacts are typically silver alloys due to their high electrical conductivity, resistance to oxidation, and ability to withstand arcing during switching operations, which is common with inductive loads. The spring mechanisms are often made of heat-treated stainless steel or phosphor bronze for their excellent fatigue resistance, ensuring consistent actuation force and reliable return over millions of cycles. Fasteners and terminals are usually brass or nickel-plated brass for good conductivity and corrosion resistance. The careful consideration and specification of these materials contribute directly to the switch's "heavy duty" designation, its "weatherproof and dustproof" characteristics, and its overall reliability and extended operational lifespan.

Diverse Applications Across Critical Industries

The technical specifications and robust design of the Panel Mount Momentary Push Button Switch make it indispensable across a multitude of industries where reliable, transient control is required. Its 35A rating and heavy-duty construction are particularly well-suited for:

• Automotive and Heavy Equipment: Ideal for vehicle horns, starter solenoids, auxiliary lighting control, power take-off (PTO) engagement, winch controls, and other high-current accessory circuits in trucks, buses, off-road vehicles, agricultural machinery, and construction equipment. The weatherproof design ensures functionality in dirty, wet, and vibrating environments.
• Marine Applications: Suitable for bilge pump activation, horn systems, trim tab control, anchor winches, and auxiliary equipment on boats and marine vessels, where exposure to saltwater spray and humidity demands exceptional corrosion and ingress protection.
• Industrial Machinery: Utilized in manufacturing plants for momentary control of conveyor belts, machine jogging, emergency stops (when used in conjunction with appropriate safety circuits), material handling equipment, and pneumatic or hydraulic valve actuation.
• HVAC Systems: For temporary override functions, fan speed adjustments, or diagnostic test modes in commercial and industrial heating, ventilation, and air conditioning units.
• Power Distribution and Control Panels: Incorporated into electrical switchgear, test benches, and control panels for momentary circuit activation, system resets, or diagnostic functions where robust and reliable user interface is critical.

The "Number of Functions: 1" highlights its straightforward single-action capability, making it easy to integrate into existing control logic without complex wiring or programming.

Advantages of Momentary Switching in Control Systems

The inherent advantages of a momentary switch are fundamental to its widespread adoption in various control applications. Unlike latched switches that maintain their state until actuated again, a momentary switch provides a precise, time-limited control input. This is critical for safety and operational efficiency in several ways:

• Enhanced Safety: In applications like machinery jogging or emergency signaling, a momentary switch ensures that the action ceases immediately if the operator releases the button, preventing unintended prolonged operation or potential hazards.
• Precise Control: For tasks requiring fine adjustments or intermittent activation, such as controlling an electric hoist in short bursts, momentary action allows for greater precision and responsiveness.
• Preventing Accidental Continuous Operation: By requiring continuous user input, the switch prevents systems from being left in an "on" state inadvertently, reducing energy consumption and potential component wear.
• Feedback and Engagement: The tactile feedback and the need for continuous engagement ensure the operator is actively involved in the control process, improving attention and reducing errors.

The design choice to make this a "Push Button" style further enhances its ergonomic appeal and intuitive operation, making it easily distinguishable from other switch types and minimizing user training requirements.

Ensuring Longevity and Reliability Through Design

The longevity and reliability of an electrical switch are direct outcomes of its design philosophy and manufacturing precision. For the Buyers Products Panel Mount Momentary Push Button Switch, several features contribute to an extended operational lifespan:

• High Mechanical Life: While not explicitly stated, heavy-duty switches are engineered for hundreds of thousands, if not millions, of actuation cycles. This is achieved through robust internal mechanisms, wear-resistant materials, and optimized spring design.
• Arc Suppression: The selection of contact materials and the speed of contact separation minimize arcing, which is a primary cause of contact degradation and premature failure, especially when switching inductive loads.
• Vibration and Shock Resistance: The solid panel mount, locking washers on terminals, and compact, robust housing ensure the switch can endure significant mechanical vibration and shock, common in mobile and industrial settings, without compromising electrical integrity or mechanical function.
• Temperature Stability: The chosen plastic and rubber materials are designed to maintain their properties over a wide operating temperature range, preventing material degradation or loss of sealing effectiveness in extreme heat or cold.

The absence of "Pre-fused" or "Pre-Wired" indicates a component designed for maximum flexibility in custom installations, allowing engineers to integrate it into a wide array of existing or new electrical systems with application-specific fusing and wiring harnesses.

Compliance, Quality Assurance, and Industry Standards

While specific certifications are not listed, a product of this caliber and for heavy-duty applications is typically manufactured under stringent quality control protocols, often adhering to internationally recognized standards. These may include aspects of ISO 9001 for quality management systems, and compliance with relevant electrical safety standards pertinent to the regions of sale (e.g., CE marking for European markets, UL recognition for North America, or standards set by SAE for automotive applications). Environmental compliance, such as RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals), is also increasingly important, ensuring that the materials used are environmentally responsible and safe. Rigorous testing for electrical parameters, mechanical life, and environmental resilience (temperature cycling, humidity exposure, salt spray, vibration) is integral to validating the switch's performance claims and ensuring its reliability in the field. This commitment to quality and compliance provides users with confidence in the switch's performance and safety.

The Comprehensive Solution for Demanding Environments

In conclusion, the Buyers Products Panel Mount Momentary Push Button Switch is more than just a simple electrical component; it is a meticulously engineered control interface designed for demanding industrial, commercial, and mobile applications. Its heavy-duty classification, coupled with a significant 35A maximum rating, ensures its capability to manage substantial electrical loads reliably. The weatherproof and dustproof design, facilitated by a protective rubber boot and robust construction, guarantees consistent performance in harsh environmental conditions. With its secure panel mounting via a nut assembly and reliable electrical connections offered by two screw terminals with locking washers, this switch provides a stable, long-lasting, and easily integrated solution for critical control functions. Its single-pole, single-throw momentary action offers intuitive and safe operation, making it an indispensable component for systems requiring precise, transient control. By integrating superior material science, thoughtful design, and an unwavering focus on durability, this switch stands as an exemplary product for engineers and system integrators seeking a high-performance, long-lasting solution for their control requirements.
