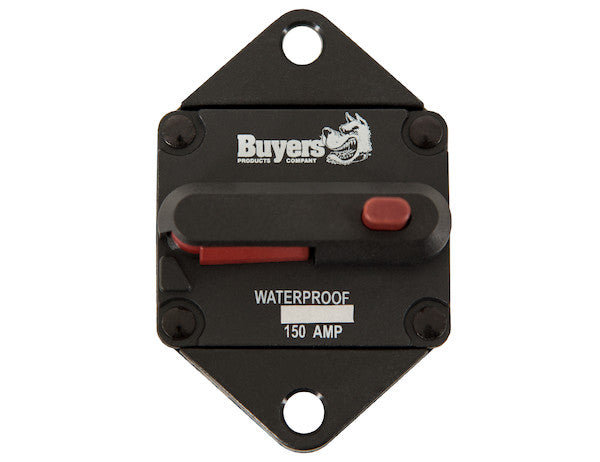

Buyers Products Hi-Amp Panel Mount Circuit Breaker is ideal for switch and power distribution panels. It can be switched with a manual push-button trip. The unit is waterproof to protect against shorts and IP67 rated for dust resistance.
Specifications
| Depth | 2.090 |
|---|---|
| Length | 1.91 |
| Material | Plastic |
| Max Volts | 42.0 |
| Reset | Manual |
| Studs Material | Brass |
| Trip Current | 150 |
| Waterproof (y/n) | Y |
| Width | 2.92 |
Advanced Technical Overview: The 150 Amp Push-to-Trip Circuit Breaker for Demanding DC Applications
The Buyers Products Hi-Amp Panel Mount Circuit Breaker, rated at a robust 150 Amperes, represents a critical component in the design and implementation of sophisticated direct current (DC) electrical systems. Engineered for precision overcurrent protection and manual control, this device is specifically tailored for integration into switch and power distribution panels where reliability, accessibility, and environmental resilience are paramount. Its design emphasizes user control through a manual push-button trip mechanism, while its IP67 rating ensures superior protection against environmental ingress, making it an indispensable asset for a wide array of high-demand applications.
Foundational Principles of Circuit Protection
Electrical circuits, irrespective of their voltage or current characteristics, necessitate effective protection against anomalous current conditions, primarily overcurrents. An overcurrent event, which encompasses both overloads and short circuits, can lead to severe consequences, including wire insulation degradation, component failure, thermal runaway, and potential fire hazards. The circuit breaker serves as a self-actuating safety device, designed to interrupt current flow when it exceeds a predetermined safe threshold, thereby safeguarding both the electrical infrastructure and associated equipment.
Unlike traditional fuses, which are single-use sacrificial devices, circuit breakers offer the significant advantage of being resettable. Upon actuation due to an overcurrent, a circuit breaker can typically be reset manually or automatically once the fault condition has been cleared. This resettable functionality contributes to operational efficiency, reduces maintenance costs, and minimizes downtime in critical systems. The 150 Amp Push-to-Trip Circuit Breaker employs a thermal tripping mechanism, which relies on the heat generated by excessive current flow through a bimetallic strip. When the current exceeds the rated value for a sustained period, the bimetallic strip heats up and deforms, triggering a mechanical latch that opens the electrical contacts and interrupts the circuit. This intrinsic thermal response characteristic provides reliable protection against sustained overloads, crucial for applications where sudden high current draws can occur without immediate short-circuit conditions.
Understanding the 150 Ampere Rating
The 150 Ampere (A) trip current rating signifies the maximum continuous current the breaker is designed to safely conduct without tripping under normal operating conditions. This substantial current capacity positions the breaker for high-power DC applications where significant electrical loads are present. In DC systems, current ratings are particularly critical because the absence of a zero-crossing point, unlike AC systems, makes arc suppression more challenging during circuit interruption. A 150A rating necessitates careful consideration of the entire electrical circuit, including wire gauges, terminal connections, and downstream components, all of which must be rated to safely handle or exceed this current capacity. Over-sizing wiring is a fundamental safety practice to prevent conductor overheating and voltage drop, ensuring efficient and safe power delivery to demanding loads such as large inverters, high-current motor controllers, auxiliary battery charging systems, powerful audio amplifiers, or heavy-duty winches.
The selection of a circuit breaker with an appropriate trip current is paramount for system integrity. A breaker rated too low would result in nuisance tripping, interrupting normal operation, while one rated too high would fail to provide adequate protection, potentially leading to equipment damage or fire. The 150A rating of this particular unit is indicative of its suitability for main circuit protection in extensive auxiliary systems or as branch circuit protection for individual high-power loads within a larger DC distribution network. This capacity ensures that the upstream power source and downstream loads are effectively isolated in the event of an electrical fault, preventing catastrophic failures and maintaining the operational safety of the entire electrical architecture.
Mechanism and Utility of Push-to-Trip Functionality
The "Push-to-Trip" feature of this circuit breaker offers a significant operational advantage by providing a manual override capability. While circuit breakers are primarily designed for automatic fault detection and interruption, the ability to manually trip the breaker introduces a layer of deliberate control for maintenance, diagnostics, and emergency situations. In scenarios requiring the isolation of a particular circuit or component for inspection, repair, or replacement, the user can intentionally depress the push-button, thereby opening the circuit contacts and de-energizing the protected load without needing to disconnect the power source or interfere with other circuits. This deliberate manual intervention enhances safety protocols, minimizing the risk of accidental power delivery during service operations.
Furthermore, the manual reset capability, explicitly stated in the specifications, means that once a fault condition has been resolved, the breaker must be manually reset by the operator to restore power. This differs from automatic reset breakers, which re-engage power immediately after a fault clears. While automatic reset breakers can be convenient in certain non-critical applications, they can pose a safety risk if the underlying fault persists, potentially leading to repetitive cycling and further damage or hazards. A manual reset ensures that an operator acknowledges the fault, has taken corrective action, and makes a conscious decision to re-energize the circuit, thereby promoting safer operational practices and preventing inadvertent re-engagement of a compromised system. This design choice is particularly valuable in critical marine, automotive, and industrial environments where comprehensive fault resolution is prioritized over automatic resumption of power, allowing for thorough investigation and mitigation of the electrical anomaly.
Optimized Panel Mount Design and System Integration
The designation "Panel Mount" indicates that this circuit breaker is designed for flush or surface integration into existing control panels, switchboards, or power distribution units. This mounting style offers numerous advantages in terms of aesthetics, accessibility, and robust installation. Panel mounting ensures that the breaker is securely fixed, resisting vibrations and mechanical stresses common in mobile or industrial applications. The compact dimensions (Length: 1.91 inches, Width: 2.92 inches, Depth: 2.090 inches) are carefully calibrated to allow for efficient utilization of panel space, enabling designers to integrate multiple protective devices or other control elements within a confined area without compromising accessibility for operation or maintenance. The precise physical dimensions are critical for pre-drilling and precise fitment, ensuring a professional and secure installation that meets stringent industrial and aesthetic standards.
Moreover, the panel mount configuration positions the manual push-button and connection terminals in an accessible manner, facilitating straightforward wiring and operational engagement. This type of mounting provides a clean, organized appearance within the panel, contributing to easier identification of protected circuits and streamlined troubleshooting. In complex DC systems, where numerous circuits and protective devices may be present, a well-organized panel layout is essential for operational clarity and safety. The robust plastic housing of the breaker, combined with its panel-mount design, ensures that the device can withstand the mechanical demands of installation and ongoing use, maintaining its structural integrity and protective function over its operational lifespan. The design implicitly supports professional electrical installations, providing a dependable interface for circuit control and protection directly at the point of distribution.
Environmental Fortification: Waterproof and IP67 Rated
A standout feature of this 150 Amp circuit breaker is its exceptional environmental resilience, characterized by its waterproof design and an IP67 ingress protection rating. The IP (Ingress Protection) code is an international standard (IEC 60529) that classifies and rates the degree of protection provided by mechanical casings and electrical enclosures against intrusion from solid objects (dust, dirt) and liquids (water). An IP67 rating signifies a highly robust enclosure: the first digit, '6', denotes complete protection against dust ingress, meaning no ingress of dust; the second digit, '7', indicates protection against the effects of temporary immersion in water, specifically up to 1 meter (3.3 feet) of depth for 30 minutes. This level of protection is crucial for applications exposed to harsh environmental conditions where moisture, dust, and corrosive elements are prevalent.
For marine vessels, off-road vehicles, agricultural machinery, construction equipment, and outdoor power systems, the ability of a circuit breaker to withstand direct water spray, rain, washdowns, or even temporary submersion without compromising its electrical integrity is indispensable. Water ingress into electrical components can lead to short circuits, corrosion of internal mechanisms, and ultimately, device failure, posing significant safety hazards. The comprehensive sealing and robust construction that enable this IP67 rating ensure that critical internal components, such as the bimetallic strip and contact assembly, remain protected from environmental contaminants. This extended durability translates into greater system reliability, reduced maintenance requirements, and an extended operational lifespan in the most challenging operational environments, directly safeguarding against shorts and ensuring consistent performance even under adverse weather conditions or in high-humidity settings.
Material Science and Construction Integrity
The choice of materials in the construction of this circuit breaker is integral to its performance and longevity. The primary enclosure is fabricated from a high-grade plastic, which offers several distinct advantages in circuit breaker applications. Plastic materials provide excellent electrical insulation properties, preventing current leakage and ensuring user safety. They are also lightweight, which is beneficial in weight-sensitive applications such as automotive and marine installations. Modern engineering plastics are selected for their durability, impact resistance, and ability to withstand a wide range of temperatures, from extreme cold to high heat, without significant degradation. Furthermore, plastic enclosures are inherently resistant to corrosion from common environmental elements like salt spray, chemicals, and UV radiation, making them superior to metallic alternatives in many outdoor or marine contexts.
The electrical studs, which serve as the primary connection points for the circuit conductors, are constructed from brass. Brass is an alloy primarily composed of copper and zinc, renowned for its excellent electrical conductivity, approaching that of pure copper, while offering superior mechanical strength and machinability. Crucially, brass exhibits excellent corrosion resistance, especially in marine and damp environments, making it an ideal choice for ensuring reliable, low-resistance electrical connections over time. The inherent properties of brass help prevent the buildup of resistive oxides and sulfates, which can lead to increased heat, voltage drop, and potential failure points. The combination of a durable, insulating plastic housing with highly conductive and corrosion-resistant brass studs ensures a robust, reliable, and safe electrical connection interface that can withstand the rigors of high-current DC applications in harsh environments.
Voltage Rating and DC System Compatibility
With a maximum voltage rating of 42.0 Volts DC, this circuit breaker is precisely engineered for integration into common low-voltage direct current (DC) electrical systems. This specification makes it perfectly suited for 12V, 24V, 36V, and 48V nominal DC systems, which are ubiquitous across a diverse range of applications. These include automotive electrical systems, recreational vehicle (RV) power distribution, marine auxiliary power, heavy-duty truck and construction equipment wiring, and various off-grid or solar-powered installations. The 42V maximum rating provides an adequate safety margin for typical battery charging voltages, which can momentarily exceed the nominal system voltage (e.g., a 12V system charging at 14.4V). The precise voltage rating is critical, as using a breaker in a system exceeding its specified voltage can compromise its ability to safely interrupt an arc during a fault, leading to persistent arcing, component damage, and potential fire hazards. This specialized DC rating underscores its dedicated design for environments where alternating current (AC) is not the primary power source, ensuring optimal performance and safety within its intended operational envelope. It is imperative to note that this breaker is not designed for AC mains voltage applications.
Diverse Applications and Strategic Markets
The technical attributes of the 150 Amp Push-to-Trip Circuit Breaker—its high current rating, manual trip capability, panel mount design, and IP67 environmental protection—make it exceptionally versatile across numerous critical sectors.
- Marine & Offshore: Essential for protecting main distribution circuits, anchor winches, bow thrusters, high-power inverters, and large navigation electronics on boats, yachts, and commercial vessels, where exposure to saltwater spray and humidity is constant.
- Recreational Vehicles (RVs) & Campers: Ideal for managing power distribution to auxiliary battery banks, high-wattage inverters, solar charge controllers, and large appliance circuits, ensuring safety during travel and stationary use.
- Commercial Trucks & Heavy Equipment: Used in main and auxiliary electrical systems for dump trucks, excavators, forklifts, and utility vehicles, protecting critical circuits for lighting, hydraulic pumps, and onboard electronics in rugged, often dirty, environments.
- Off-Grid & Renewable Energy Systems: A vital component in solar power systems for protecting DC output from solar charge controllers to battery banks, or from battery banks to high-power DC loads or inverters, providing reliable fault isolation.
- Custom Automotive Installations: Indispensable for high-performance audio systems, auxiliary lighting, electric winches, and dual-battery setups, where significant current draws necessitate robust protection.
- Industrial DC Control Panels: Applicable in industrial settings for protecting DC motor controls, process automation equipment, and auxiliary power supplies in environments demanding high reliability and resistance to dust and moisture.
Installation Best Practices and Maintenance Considerations
Proper installation is paramount to leveraging the full protective capabilities of the 150 Amp Push-to-Trip Circuit Breaker. Installation should always be performed by qualified personnel, adhering strictly to local electrical codes and manufacturer guidelines. Prior to installation, all power to the circuit must be disconnected to prevent electrical shock or damage. The panel cutout must precisely match the breaker's dimensions (Length: 1.91", Width: 2.92", Depth: 2.090") to ensure a snug, secure fit for effective sealing and stability. The brass studs require appropriate ring terminals and should be torqued to the manufacturer's specified value to ensure optimal electrical contact and prevent thermal hot spots. It is critical to use wire gauges appropriate for a 150 Amp circuit and the specific circuit length, complying with applicable NEC (National Electrical Code) or ABYC (American Boat and Yacht Council) standards, to prevent conductor overheating and ensure the breaker can effectively protect the circuit without being compromised by undersized wiring.
Routine maintenance, although minimal for such a robust component, can further enhance its longevity and reliability. Periodic visual inspections should be conducted to check for any signs of physical damage, corrosion on the terminals, or loose connections. In harsh environments, cleaning external surfaces to remove accumulated dirt or salt residues can help maintain the integrity of the IP67 seal. Testing the manual push-to-trip function periodically (when safe to do so, by disconnecting the load first or operating on a test bench) can confirm the mechanical functionality. The manual reset mechanism is inherently simple and robust, but ensuring clear access to the push-button for both tripping and resetting is important for operational readiness. By following these installation and maintenance best practices, the 150 Amp Push-to-Trip Circuit Breaker will reliably perform its essential function of overcurrent protection and circuit control throughout its operational life.
Conclusion
The Buyers Products 150 Amp Push-to-Trip Circuit Breaker is a professionally engineered solution for overcurrent protection in demanding DC environments. Its high current capacity, deliberate manual trip and reset functionality, panel-mount form factor, and unparalleled IP67 environmental sealing collectively position it as a superior choice for protecting critical electrical systems. From marine vessels battling corrosive salt spray to off-road vehicles navigating dusty trails, and industrial panels requiring precise control, this breaker offers an optimal balance of robust protection, operational flexibility, and enduring reliability. It represents a strategic investment in the safety and longevity of high-current DC applications, ensuring that power distribution remains secure and manageable under the most challenging conditions.
