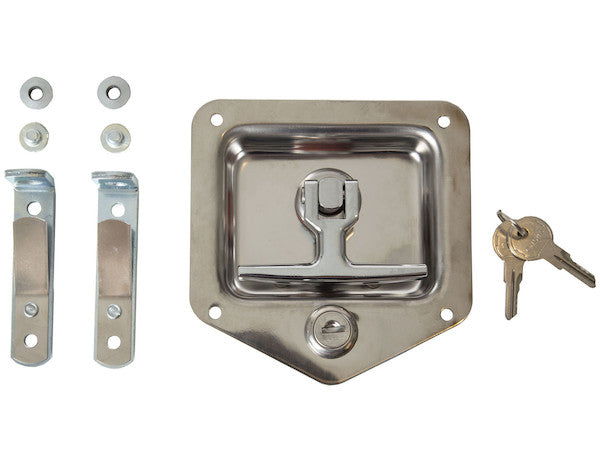

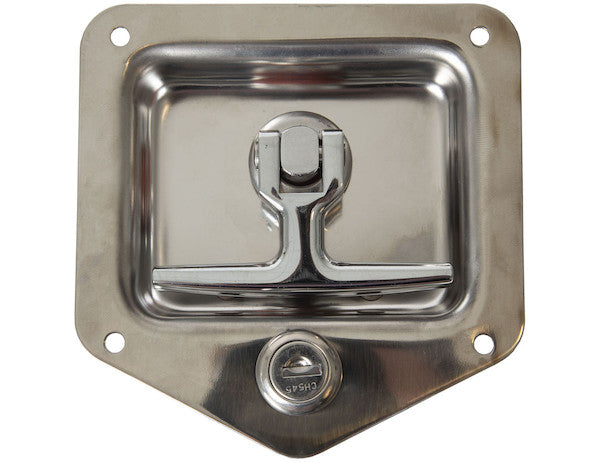

Stainless Steel 3-Point T-Handle Latch (latch only, no rods)
Specifications
| ForQuickOrderPad | True |
|---|
The Stainless Steel 3-Point T-Handle Latch represents a robust and highly secure locking mechanism engineered for a broad spectrum of industrial and commercial applications. This product description aims to provide a comprehensive technical overview, delving into its material properties, design philosophy, functional mechanics, installation considerations, and a detailed exploration of its typical and specialized use cases. This particular offering focuses solely on the latch mechanism itself, explicitly excluding the associated rods, allowing for customization and integration with existing or separately sourced rod systems.
Material Science and Corrosion Resistance:
At the core of this product's durability and reliability is its construction from high-grade stainless steel. The choice of stainless steel, typically AISI 304 or 316, is paramount for applications demanding exceptional resistance to corrosion, oxidation, and chemical degradation. AISI 304 stainless steel, an austenitic alloy, offers excellent resistance to a wide range of atmospheric, fresh water, and mild chemical environments. It contains approximately 18% chromium and 8% nickel, forming a passive layer of chromium oxide on its surface that self-heals in the presence of oxygen, providing superior corrosion protection. For more aggressive environments, such as marine applications, chemical processing, or areas with high salinity or exposure to corrosive acids, AISI 316 stainless steel would be the preferred material, offering enhanced pitting and crevice corrosion resistance due to the addition of molybdenum (typically 2-3%). This material specification ensures the latch's operational integrity and aesthetic appearance are maintained over extended periods, even under harsh operating conditions, minimizing maintenance requirements and maximizing service life. The intrinsic hardness and tensile strength of stainless steel also contribute to the latch's resistance to physical tampering and deformation, reinforcing its security attributes.
Design Philosophy and Mechanical Engineering:
The T-handle design is a classic choice for industrial latches, prized for its ergonomic grip and ease of operation, even when wearing gloves. The "3-point" designation refers to the locking mechanism's ability to engage with three separate points on an enclosure's frame or door, significantly enhancing security and sealing integrity compared to single-point latches. This multi-point engagement distributes clamping force more evenly, which is critical for preventing warping of larger doors, reducing vibration, and creating a tighter seal against dust, water, and other environmental contaminants. The internal mechanism of the latch typically comprises a cam or rotary system that translates the rotational motion of the T-handle into linear or rotational movement of the associated rods (which are not included with this specific product). Precision engineering is applied to ensure smooth operation, minimal backlash, and a positive locking action. Key design considerations include the choice of robust internal components, often hardened steel or cast stainless steel, to withstand repeated cycles of engagement and disengagement without premature wear. The housing of the latch is designed for flush mounting or minimal protrusion, reducing snag hazards and contributing to a clean, professional aesthetic. Drainage features may also be integrated into the design to prevent water accumulation within the mechanism, further enhancing its longevity in outdoor or washdown environments.
Functional Mechanics and Operation:
Operation of the Stainless Steel 3-Point T-Handle Latch is intuitive. A quarter-turn or half-turn rotation of the T-handle activates the internal cam mechanism. This mechanism, in turn, drives the (separately provided) locking rods to extend or retract into corresponding strike plates or receivers mounted on the door frame. When the T-handle is turned to the locked position, the rods extend, securely engaging at three distinct points, effectively securing the door or panel. To unlock, the T-handle is rotated back to its original position, retracting the rods and releasing the door. The ergonomic design of the T-handle facilitates comfortable and forceful engagement, ensuring a secure closure even when tension is required to compress gaskets or seals. Depending on the specific variant, some T-handle latches incorporate a key-locking cylinder, providing an additional layer of security and controlled access. This key-locking feature typically uses a robust cylinder, often made from brass or stainless steel, with a high number of key combinations to resist picking and unauthorized entry. Non-locking versions are also common, suitable for applications where security is managed through other means or where quick, unhindered access is prioritized. The tactile feedback during operation is often engineered to be crisp and reassuring, indicating positive engagement and disengagement of the locking points.
Installation Considerations and Versatility:
This product, being the "latch only," offers significant flexibility in installation. It is designed to be integrated into a wide variety of enclosure types, including electrical cabinets, industrial machinery access panels, utility boxes, storage compartments, and HVAC units. Installation typically involves preparing a cutout in the door or panel to accommodate the latch body, followed by securing it with fasteners (e.g., screws, bolts, or weld studs) from the interior side to maintain a clean exterior. The precise dimensions of the cutout and mounting hole patterns are critical and would be detailed in the product's technical drawing. Given that the rods are not included, users have the freedom to select or fabricate rods of appropriate length and configuration (straight, bent, with specific end fittings) to match the dimensions and sealing requirements of their specific application. This allows for bespoke solutions, accommodating various door heights, widths, and structural reinforcements. The latch mechanism is designed to be compatible with standard rod diameters and coupling methods, simplifying the integration process. Proper alignment of the latch with the rod guides and strike plates is crucial for smooth operation and effective multi-point engagement. Adjustability features, such as slotted mounting holes or adjustable cam throw, are often incorporated to facilitate precise alignment and accommodate minor manufacturing tolerances in the enclosure itself.
Typical Applications and Industry Use Cases:
The Stainless Steel 3-Point T-Handle Latch finds extensive application across numerous industries due to its combination of security, durability, and corrosion resistance. In the Electrical and Electronics Industry, it is commonly used on control panels, switchgear enclosures, and telecom cabinets, where it provides secure access while protecting sensitive components from environmental elements. For the HVAC-R Sector, these latches are ideal for air handling units, refrigeration units, and environmental chambers, ensuring airtight seals to maintain thermal efficiency and prevent refrigerant leaks. In Industrial Machinery and Equipment, they secure access panels on processing equipment, machine guards, and manufacturing lines, providing operator safety and preventing unauthorized tampering. The Transportation Industry utilizes these latches on utility vehicles, railway rolling stock, marine vessels, and specialty trailers, where resistance to vibration, shock, and harsh weather is paramount. The Food and Beverage Processing Industry benefits significantly from stainless steel's hygienic properties and ease of cleaning, making these latches suitable for equipment access panels that require frequent washdowns and strict sanitation standards. Similarly, in the Pharmaceutical and Medical Device Manufacturing sectors, the cleanability and corrosion resistance of stainless steel are critical for maintaining sterile environments. Other applications include outdoor kiosks, public utility access points, and custom fabrication projects requiring a robust, secure, and aesthetically pleasing closure solution. The inherent versatility of a "latch only" product means it can be adapted to both standard and highly specialized custom enclosure designs, offering engineers and manufacturers a reliable component for their locking system needs.
Advanced Features and Customization Potential:
While this product description focuses on the core "latch only" component, it is important to note the potential for advanced features and customization that can be integrated. Depending on the manufacturer and specific model, features such as padlockable options can be included, allowing for supplementary security measures through the addition of a padlock. Gasket compression mechanisms are often designed into these latches, providing a positive pull-up action that compresses door gaskets, creating an IP (Ingress Protection) rated seal against dust and water. The IP rating, such as IP65 or IP66, indicates the level of protection against solids and liquids, making the latch suitable for demanding outdoor or washdown applications. Materials for internal components can be varied; for instance, certain high-wear parts might utilize self-lubricating polymers or specially treated metals to enhance longevity and reduce operational noise. Finishes can also be customized, although stainless steel typically retains its natural passivated finish, electropolishing or specialized coatings could be applied for enhanced aesthetics or chemical resistance in niche applications. The "latch only" specification implies that the end-user or integrator has the flexibility to select appropriate rod material (e.g., stainless steel, galvanized steel, aluminum) and rod end configurations (e.g., straight, bent, with rollers or hooks) to optimize the security and sealing performance for their specific enclosure. This level of component-level provision empowers designers to engineer precise and highly effective locking solutions tailored to unique environmental and operational demands, reinforcing the latch's role as a critical and adaptable element within a comprehensive access control system.
