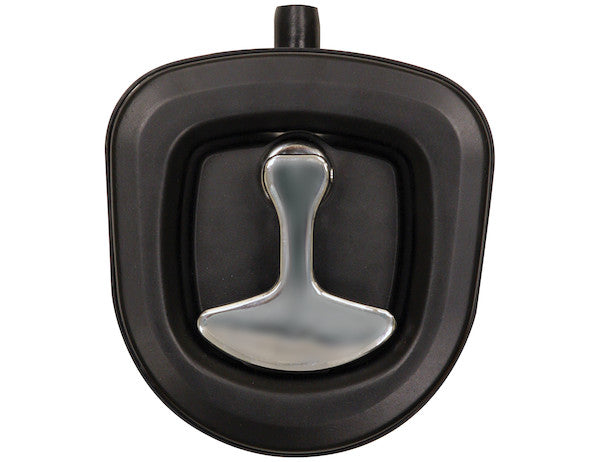

The Buyers Products Heavy-Duty Flush Mount Die-Cast Compression Latch is the perfect choice for applications that require a high-quality and reliable locking latch.These heavy-duty latches are designed for work trucks and trailers, truck tool boxes, cabinets, and storage chests. Their rugged design and construction will withstand the harshest job sites and daily use. Each latch assembly includes a lock cylinder, key set, and gasket. The latch is constructed with a polished chrome T-handle and a black powder-coated housing. Both finishes are durable and corrosion-resistant. Mounting studs allow for a flush-mounted design. The latch cam is adjustable from 0.85-in. to 1.30-in. to suit a variety of panel depths. The compression cam roller rotates closed and pulls the plunger against the compartment body, creating a securely closed panel or door. The overall latch assembly measures 5.88 inches wide by 6.00 inches tall. This heavy-duty compression latch is used in the production of Buyers Products Truck Tool Boxes, and can also be used as a universal aftermarket part to replace broken or damaged latches on a variety of applications like cabinets, chests, trucks, trailers, and RVs.
Specifications
| Gasket Thickness | 0.10 |
|---|---|
| Handle Finish | Chrome |
| Handle Material | Die Cast |
| Height (in.) | 6.00 |
| Housing Color | Black |
| Housing Finish | Powder-Coat |
| Housing Material | Die Cast |
| Latch Style | Die Cast Compression Latch |
| Locking | Yes |
| Maximum Cam Size | 1.32 |
| Minimum Cam Size | 0.85 |
| Mount Height (in.) | 3.94 |
| Mount Type | Stud |
| Mount Width (in.) | 3.88 |
| Width (in.) | 5.88 |
The Die-Cast Flush-Mount Compression Latch: An Engineering Overview of Robust Security and Sealing Solutions
In the realm of industrial and heavy-duty applications, the integrity of enclosures and access panels is paramount. The Buyers Products Heavy-Duty Flush Mount Die-Cast Compression Latch represents a pinnacle of engineering designed to meet these stringent demands. This comprehensive overview delves into the technical specifications, design philosophy, and operational benefits that position this compression latch as an indispensable component for securing vital equipment and contents across a diverse range of environments.
Precision Engineering and Material Selection: The Die-Cast Advantage
At the core of this latch's exceptional durability and performance lies its die-cast construction. Both the handle and housing are meticulously crafted from high-grade die-cast alloys, a process renowned for producing components with superior strength-to-weight ratios, excellent dimensional stability, and intricate geometries. Die-casting involves forcing molten metal into a mold cavity under high pressure, resulting in a dense, non-porous material structure that is inherently resistant to impact, abrasion, and fatigue. This manufacturing method ensures that the latch components can withstand the rigorous mechanical stresses and vibrational forces frequently encountered in heavy-duty operational contexts, such as those associated with commercial vehicles, construction equipment, and industrial machinery.
The selection of die-cast material for both the handle and housing is a deliberate choice to achieve optimal structural integrity throughout the entire assembly. This homogeneity in material composition minimizes differential expansion and contraction, contributing to the latch's consistent performance across varying thermal conditions. Furthermore, the robust nature of die-cast parts provides a solid foundation for the subsequent protective finishes, enhancing their adhesion and overall lifespan.
Advanced Surface Treatments: Chrome and Powder Coating for Extreme Environments
Corrosion resistance and aesthetic longevity are critical factors for components exposed to the elements or demanding operational environments. The Die-Cast Flush-Mount Compression Latch addresses these challenges through a dual-finish strategy: a polished chrome T-handle and a black powder-coated housing.
The T-handle benefits from a highly durable chrome plating. Chromium electroplating creates a hard, lustrous, and inert layer that provides exceptional resistance to oxidation, tarnish, and chemical degradation. This polished chrome finish is not only visually appealing but also offers a low coefficient of friction, ensuring smooth operation of the handle mechanism over its lifespan. Moreover, the inherent hardness of chrome enhances scratch resistance, maintaining the latch's professional appearance even with frequent use and exposure to abrasive particles common in industrial settings.
Complementing the chrome handle, the latch housing features a robust black powder-coat finish. Powder coating is a dry finishing process where finely ground particles of pigment and resin are electrostatically charged and sprayed onto an electrically grounded surface. The charged powder particles adhere to the housing until melted and fused into a smooth, even coating in a curing oven. This process creates a finish that is significantly thicker and more durable than conventional liquid coatings. The black powder coat provides excellent resistance against chipping, scratching, fading, and corrosive agents such as road salts, chemicals, and UV radiation. The selection of black as the housing color offers a discreet and professional aesthetic that integrates seamlessly with a wide array of equipment designs, while its matte or semi-gloss texture effectively camouflages minor scuffs, further contributing to its sustained visual integrity in challenging environments.
The Flush-Mount Advantage: Integration and Aerodynamics
A distinctive feature of this product is its flush-mounted design, facilitated by precision-engineered mounting studs. This design philosophy is more than just an aesthetic choice; it offers significant practical benefits. A flush profile means that the latch does not protrude excessively from the surface of the door or panel when closed, minimizing snag hazards for personnel or equipment. In applications involving vehicles or trailers, the flush design contributes to improved aerodynamics, reducing air resistance and potentially enhancing fuel efficiency, albeit incrementally. More importantly, it provides a sleek, integrated appearance that speaks to the overall quality and professional finish of the host equipment. The mounting studs ensure a secure and stable installation, distributing fastening forces evenly across the panel, which is crucial for maintaining structural integrity under dynamic loads.
The mounting dimensions of 3.88 inches width by 3.94 inches height for the stud pattern provide a standard yet robust footprint for installation, ensuring broad compatibility with pre-existing panel cutouts or facilitating straightforward integration into new designs. This standardized approach simplifies installation procedures and reduces manufacturing complexity for OEMs and aftermarket installers alike.
The Compression Mechanism: Superior Sealing and Vibration Dampening
The core functionality of this latch lies in its advanced compression mechanism. Unlike simple rotary latches, a compression latch exerts positive pressure against the door or panel, drawing it tightly against its frame. This is achieved through a precisely engineered cam roller system. As the T-handle is rotated to the closed position, the eccentric profile of the cam roller engages with a fixed plunger or strike plate. This engagement does not merely rotate the cam into position; it actively pulls the door panel inward, compressing the integrated gasket against the door frame.
The benefits of this compression action are multifaceted:
- Superior Sealing: The most prominent advantage is the creation of a tight, weather-resistant seal. By compressing the gasket, the latch forms a barrier against ingress of water, dust, dirt, and other environmental contaminants. This is particularly vital for toolboxes, electrical enclosures, and storage compartments where contents must be protected from the elements.
- Vibration Resistance: The positive engagement and compression action significantly reduce vibration between the door and frame. This not only minimizes rattling and operational noise but also prolongs the lifespan of both the latch and the surrounding paneling by dampening stress and preventing fatigue failures.
- Sound Dampening: A tightly sealed and compressed panel contributes to reduced noise transmission, improving the acoustic performance of the enclosure.
- Enhanced Security: The compressed state adds an extra layer of security, making it more difficult to pry open the panel compared to non-compression latch types.
Adjustable Cam for Versatile Panel Depths
A critical engineering feature enhancing the versatility of this compression latch is its adjustable cam. The latch cam is designed to be adjustable over a significant range, from a minimum cam size of 0.85 inches to a maximum cam size of 1.32 inches. This broad adjustment range accommodates a variety of panel depths, ensuring optimal compression across different material thicknesses and frame configurations. The ability to fine-tune the cam engagement allows installers to achieve the ideal compression force, balancing secure closure with ease of operation. This adaptability makes the latch suitable for a wide array of applications, from thin-gauge sheet metal panels to thicker composite or insulated doors, without requiring specialized tools or additional hardware modifications.
Integrated Security: Lock Cylinder and Key Set
Security is a paramount concern for many applications, and this Die-Cast Flush-Mount Compression Latch addresses it directly with an integrated lock cylinder and a corresponding key set. The inclusion of a robust locking mechanism within the latch assembly provides immediate, key-controlled access denial. This feature is indispensable for protecting valuable tools, equipment, and sensitive documents stored within truck toolboxes, utility cabinets, and industrial enclosures. The integrated design ensures that the locking function is seamless and tamper-resistant, maintaining the overall sleek profile of the flush-mounted unit. Each latch is supplied with a key set, providing immediate functionality upon installation and simplifying inventory management for large-scale deployments.
The Role of the Gasket: Sealing, Protection, and Performance
Integral to the compression latch's performance in sealing and environmental protection is the included gasket. With a specified thickness of 0.10 inches, this gasket is strategically positioned to create a robust seal between the latch housing and the mounting surface of the door or panel. The material properties of the gasket are crucial; typically, these are made from resilient elastomers like EPDM or neoprene, chosen for their excellent resistance to weathering, UV exposure, ozone, and temperature extremes. The gasket serves multiple critical functions:
- Environmental Sealing: It acts as the primary barrier against water, dust, and airborne contaminants, crucial for maintaining the integrity of enclosed compartments.
- Vibration Isolation: The elastic nature of the gasket absorbs and dampens vibrations, preventing metal-on-metal contact and reducing wear on both the latch and the panel. This also contributes to quieter operation.
- Load Distribution: It helps to distribute the compression force evenly around the perimeter of the latch, preventing localized stress points and potential deformation of the panel material over time.
- Thermal Insulation: In certain applications, the gasket can offer a degree of thermal insulation, contributing to temperature stability within the enclosure.
Dimensional Precision and Universal Compatibility
The overall dimensions of the latch assembly are precisely engineered to be 5.88 inches wide by 6.00 inches tall. These dimensions, combined with the detailed mounting width of 3.88 inches and mounting height of 3.94 inches, ensure that the latch is compatible with a wide array of standard panel sizes and existing cutouts. This precise dimensional control facilitates ease of integration into new designs and allows for straightforward aftermarket replacement of damaged or worn latches across various equipment types. The design emphasizes a balance between a robust, easy-to-grip handle and a compact footprint, ensuring it performs optimally without impeding other functionalities or aesthetic requirements.
Extensive Application Spectrum
The robust construction and thoughtful design of this die-cast flush-mount compression latch make it exceptionally well-suited for a broad range of demanding applications:
- Work Trucks and Trailers: Essential for securing toolboxes, side compartments, and service body doors where durability and weather resistance are critical.
- Truck Tool Boxes: Used extensively in the production of Buyers Products Truck Tool Boxes, attesting to its proven reliability in this demanding sector.
- Cabinets and Storage Chests: Provides secure and sealed access for industrial cabinets, outdoor storage units, and utility chests, protecting contents from theft and environmental damage.
- Recreational Vehicles (RVs): Offers reliable closure and security for exterior storage compartments and access panels, vital for protecting sensitive equipment and personal belongings during travel and extended outdoor exposure.
- Industrial Enclosures: Ideal for securing access panels on machinery, control cabinets, and environmental enclosures where environmental sealing and vibration resistance are paramount.
- Marine Applications: The corrosion-resistant finishes (chrome and powder coat) make it suitable for boats and other marine environments where exposure to saltwater and harsh weather is common.
- Emergency Vehicles: Provides dependable security and access for compartments on fire trucks, ambulances, and other service vehicles.
Reliability and Longevity: Engineered for Performance
Every aspect of the Die-Cast Flush-Mount Compression Latch, from its material composition to its finishing processes and mechanical design, is engineered for maximum reliability and an extended operational lifespan. The combination of die-cast strength, advanced protective coatings, a precise compression mechanism, and integrated sealing components ensures consistent performance even under continuous heavy use and exposure to adverse conditions. This commitment to durability translates into reduced maintenance, fewer replacements, and ultimately, a lower total cost of ownership for operators and manufacturers. The precision manufacturing and stringent quality control employed in its production guarantee that each latch meets the highest standards of functionality and resilience.
Conclusion
The Buyers Products Heavy-Duty Flush Mount Die-Cast Compression Latch is more than just a locking mechanism; it is a meticulously engineered solution for critical applications requiring superior security, environmental sealing, and robust performance. Its die-cast construction, corrosion-resistant finishes, innovative compression action, and adjustable cam system collectively deliver an unparalleled level of reliability and versatility. Whether integrated into new equipment designs or deployed as a high-performance aftermarket replacement, this latch stands as a testament to advanced industrial hardware design, ensuring that valuable contents and vital systems remain secure and protected in the most demanding operational environments. Its comprehensive features and adherence to exacting standards establish it as the preferred choice for professionals seeking uncompromising quality and enduring performance.
