Specifications
| Gasket Included | YES |
|---|---|
| Gasket Thickness | 0.10 |
| Handle Finish | Chrome |
| Handle Material | Die Cast |
| Height (in.) | 6.00 |
| Housing Color | Black |
| Housing Finish | Powder-Coat |
| Housing Material | Die Cast |
| Latch Style | 3 Point Compression Latch |
| Locking | Yes |
| Maximum Cam Size | 1.32 |
| Minimum Cam Size | 0.85 |
| Mount Height (in.) | 3.94 |
| Mount Type | Stud |
| Mount Width (in.) | 3.88 |
| Width (in.) | 5.88 |

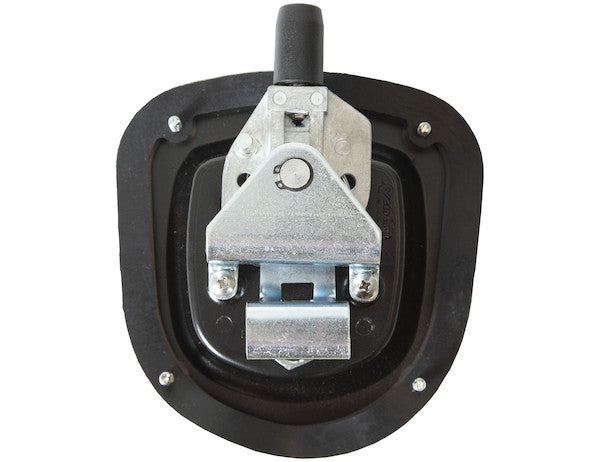

Precision Engineering: An In-Depth Analysis of the 3-Point Die-Cast Flush Mount Compression Latch
The Buyers Products 3-Point Die-Cast Flush Mount Compression Latch represents a pinnacle of mechanical engineering tailored for demanding industrial, commercial, and recreational applications. This heavy-duty locking mechanism is meticulously designed to provide unparalleled security, robust sealing, and long-term reliability in environments where conventional latches may falter. Its comprehensive design integrates advanced material science, precision manufacturing, and intuitive functionality to deliver a superior access control solution.
Advanced Die-Cast Construction for Enduring Strength
At the core of this latch's exceptional durability is its die-cast construction. Both the T-handle and the housing are fabricated using a high-pressure die-casting process. This method involves injecting molten alloy under significant pressure into a steel mold, resulting in components with superior strength-to-weight ratios, excellent dimensional accuracy, and remarkably smooth surface finishes. The inherent advantages of die casting include the creation of complex geometries with tight tolerances, minimizing the need for extensive post-processing machining.
For the handle, typically a zinc alloy is utilized due to its excellent castability, high ductility, and receptiveness to decorative and protective finishes like polished chrome. Zinc alloys also exhibit good corrosion resistance, particularly when plated, and possess mechanical properties suitable for frequent manual operation. The housing, often crafted from a robust zinc or aluminum alloy, benefits from die casting by achieving the structural integrity required to withstand impact, vibration, and torsional stresses prevalent in mobile and industrial settings. The uniform grain structure imparted by the die-casting process enhances the overall mechanical strength, making these components resistant to deformation and fatigue, ensuring a long operational life even under continuous heavy use. This manufacturing choice directly addresses the need for a "rugged design and construction" capable of withstanding "harshest job sites and daily use," as outlined in the initial product brief.
Seamless Integration: The Flush Mount Design Paradigm
The flush mount design of this compression latch is a critical feature that offers both aesthetic and functional advantages. By integrating seamlessly with the surface of a panel, door, or compartment, the latch eliminates protruding elements that could snag clothing, equipment, or cause injury. This streamlined profile is particularly beneficial in applications such as work trucks, trailers, and RVs, where minimizing external protrusions can improve aerodynamics, enhance safety during loading and unloading, and contribute to a cleaner, more professional appearance. The installation is facilitated by robust mounting studs, ensuring a secure and stable attachment that resists loosening due to vibration or shock.
Beyond aesthetics, the flush mount configuration inherently protects the latch mechanism from direct impact and environmental exposure, contributing to its longevity. Its compact form factor (overall dimensions: 5.88 inches wide by 6.00 inches tall; mount dimensions: 3.88 inches wide by 3.94 inches high) ensures it occupies minimal external space while providing a substantial internal anchoring system. This design consideration allows for versatility in placement on various panel sizes and configurations without compromising structural integrity or visual continuity.
The Mechanical Advantage: 3-Point Latching System
The designation "3-Point" signifies a sophisticated latching mechanism that engages a panel or door at three distinct points simultaneously. While the latch itself includes two additional mounting studs for attaching rods, which are purchased separately, this design fundamentally supports the creation of a multi-point closure system. In a fully implemented 3-point configuration, a central rotating hub, actuated by the T-handle, simultaneously extends or retracts three connecting rods. These rods terminate in cams or plungers that engage strikes located at the top, bottom, and side (or two sides) of the door frame or panel opening.
The primary benefit of a 3-point system is the superior distribution of clamping force across the entire perimeter of the access point. This even pressure significantly enhances sealing effectiveness, preventing ingress of dust, moisture, and debris, which is crucial for protecting sensitive contents within truck toolboxes, cabinets, and storage chests. Furthermore, multi-point engagement drastically improves the security profile of the enclosure. By distributing the locking force, it becomes significantly more difficult for unauthorized individuals to pry open the door or panel, as leverage must be applied simultaneously at multiple points. This inherent resistance to forced entry provides a higher level of protection for valuable tools, equipment, and personal belongings. The 3-point system also mitigates panel distortion or warping, common issues with single-point latches on larger doors, ensuring a tight, rattle-free closure even in high-vibration environments.
Precision Sealing and Vibration Control: The Compression Latch Principle
The "Compression Latch" functionality is arguably the most critical engineering aspect of this product. Unlike standard latches that merely hold a door closed, a compression latch actively pulls the door or panel into the frame, compressing a gasket and creating a tight, pre-loaded seal. This mechanism is achieved through a precisely engineered cam roller system.
When the T-handle is actuated to the closed position, the internal cam rotates. This rotation drives a plunger-style mechanism, effectively drawing the door or panel inward against the compartment body. The resulting compressive force acts directly upon the integrated 0.10-inch thick gasket, generating a continuous, resilient seal. This active compression offers several profound advantages:
- Superior Environmental Sealing: The constant pressure on the gasket ensures a highly effective barrier against water, dust, and other airborne particulates. This capability is vital for applications exposed to harsh weather conditions or dusty work environments, maintaining the integrity of enclosed contents.
- Vibration Dampening and Noise Reduction: By establishing a pre-load on the door, the compression latch eliminates any slack or play between the door and its frame. This eradicates rattling and minimizes structural noise caused by vehicle movement or machinery operation, enhancing user comfort and prolonging the lifespan of both the latch and the enclosure.
- Enhanced Security Against Accidental Opening: The compressive force actively resists forces that might otherwise cause a conventional latch to disengage, such as severe vibrations, sudden jolts, or pressure differentials. This ensures that valuable contents remain securely enclosed during transit or operation.
- Panel Rigidity and Longevity: The distributed and continuous pressure from the compression mechanism contributes to the structural rigidity of the panel itself, reducing flex and preventing fatigue over time, particularly for larger doors or those made from lighter materials.
A key feature enhancing this compression capability is the adjustable latch cam. With a range from 0.85 inches (minimum cam size) to 1.30 inches (maximum cam size), this adjustability allows the latch to accommodate a wide variety of panel depths and gasket thicknesses. This flexibility ensures that optimal compression can be achieved regardless of the specific panel configuration, allowing installers to fine-tune the clamping force for maximum sealing effectiveness and security. This adaptability underscores its suitability as a "universal aftermarket part" for diverse applications.
Material Finishes: A Synthesis of Aesthetics and Durability
The exterior presentation and long-term resilience of the latch are significantly influenced by its chosen finishes. The T-handle features a polished chrome finish, renowned for its brilliant aesthetic appeal, exceptional hardness, and outstanding corrosion resistance. Chrome plating involves electroplating a thin layer of chromium onto a base metal, creating a surface that is highly resistant to scratching, tarnishing, and chemical degradation. This ensures that the handle retains its lustrous appearance and tactile quality even after years of exposure to various environmental elements and frequent handling.
In contrast, the housing is protected with a black powder-coated finish. Powder coating is an advanced dry finishing process where finely ground particles of pigment and resin are electrostatically charged and sprayed onto the electrically grounded housing. The charged powder particles adhere to the housing until melted and fused into a smooth, uniform coating in a curing oven. This process yields a finish that is significantly tougher and more durable than conventional liquid paint. Key benefits of powder coating include:
- Superior Corrosion Resistance: Provides an excellent barrier against moisture, salt spray, and chemicals, crucial for outdoor and industrial applications.
- Impact and Abrasion Resistance: Highly resistant to chipping, scratching, and general wear and tear, maintaining the housing's protective layer.
- UV Stability: The black powder coat resists fading and degradation from prolonged exposure to ultraviolet radiation, ensuring color retention over time.
- Environmental Friendliness: Powder coating produces fewer volatile organic compounds (VOCs) compared to traditional liquid paints.
The combination of polished chrome on the T-handle and black powder coating on the housing not only creates a visually appealing contrast but, more importantly, provides a synergistic protective system. These finishes are engineered to withstand the demanding conditions encountered on job sites, trailers, and recreational vehicles, maintaining both functionality and aesthetic integrity.
Integrated Security: Lock Cylinder and Key Set
Security is a paramount concern for many applications where this latch is utilized. To address this, each latch assembly is supplied complete with a robust lock cylinder and a corresponding key set. The integrated lock cylinder provides a reliable mechanism for restricting unauthorized access to enclosed compartments. Typically, these are pin tumbler lock cylinders, offering a reasonable level of security against common forms of manipulation.
The inclusion of the key set ensures immediate operational readiness, eliminating the need for separate procurement. For fleets or applications requiring multiple identical latches, keying options such as "keyed alike" (where one key opens all latches) or "keyed different" (each latch has a unique key) may be available, enhancing operational efficiency and security management. This complete security package underlines the product's value as a ready-to-install solution for safeguarding valuable contents in diverse environments, from truck toolboxes to utility cabinets.
Comprehensive Sealing: The Indispensable Gasket
The provision of a dedicated gasket is fundamental to the compression latch's performance in environmental sealing. The included gasket, with a precise thickness of 0.10 inches, is designed to be seated between the latch housing and the mounting surface of the door or panel. This component is typically made from resilient elastomers such as EPDM (ethylene propylene diene monomer) or Neoprene, chosen for their excellent resistance to weathering, UV radiation, ozone, chemicals, and extreme temperatures.
When the compression latch mechanism is engaged, the gasket is compressed, filling any irregularities between the mating surfaces and creating a continuous, watertight, and dust-proof seal. This prevents the ingress of moisture, which can lead to corrosion of enclosed components or damage to contents, and also blocks fine dust and dirt, crucial for maintaining the cleanliness and functionality of tools and equipment. Beyond environmental protection, the gasket also contributes to acoustic dampening, reducing noise transmission, and provides an additional layer of vibration isolation, further enhancing the operational integrity of the entire assembly.
Versatile Applications and Performance in Diverse Environments
The inherent durability, security, and sealing capabilities of the 3-Point Die-Cast Flush Mount Compression Latch make it exceptionally versatile across a broad spectrum of demanding applications:
- Work Trucks and Trailers: Essential for securing equipment compartments, cargo doors, and utility boxes, protecting valuable tools and gear from theft, weather, and road grime. The rugged construction withstands constant vibration and impact.
- Truck Tool Boxes: Widely used in the production of Buyers Products Truck Tool Boxes, this latch ensures maximum security and weather protection for professional-grade storage solutions.
- Cabinets and Storage Chests: Ideal for industrial cabinets, storage lockers, and heavy-duty chests where contents require robust protection against environmental factors and unauthorized access.
- Recreational Vehicles (RVs): Provides secure and weather-tight access to exterior storage compartments, protecting personal belongings and RV systems from the elements and ensuring a rattle-free journey.
- Emergency Vehicles: Critical for securing compartments on fire trucks, ambulances, and other service vehicles, ensuring equipment readiness and protection.
- Marine Applications: Suitable for boat compartments and dock boxes where corrosion resistance and watertight sealing are paramount.
Its designation as a "universal aftermarket part" underscores its adaptability for replacing broken or damaged latches on a wide variety of existing applications, offering a significant upgrade in terms of security, durability, and sealing performance. The standardized dimensions and stud-mount configuration facilitate straightforward installation into pre-existing cutouts or new constructions.
Conclusion: A Benchmark in Latch Technology
The Buyers Products 3-Point Die-Cast Flush Mount Compression Latch with lock cylinder, key set, and gasket stands as a testament to advanced engineering and manufacturing excellence. From its robust die-cast construction and precision-machined components to its highly effective compression sealing and multi-point locking potential, every aspect of this latch is designed for optimal performance in the most challenging environments. Its flush mount design offers both aesthetic integration and practical safety, while the superior material finishes ensure long-term resistance to corrosion and wear. This comprehensive solution delivers unparalleled security, environmental protection, and operational longevity, making it an indispensable component for any application requiring reliable and heavy-duty access control.
