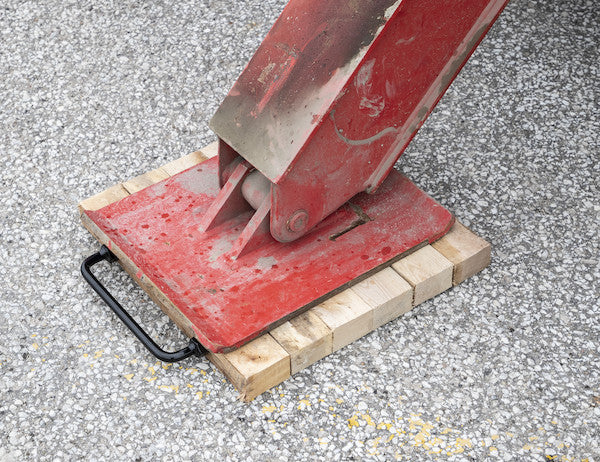

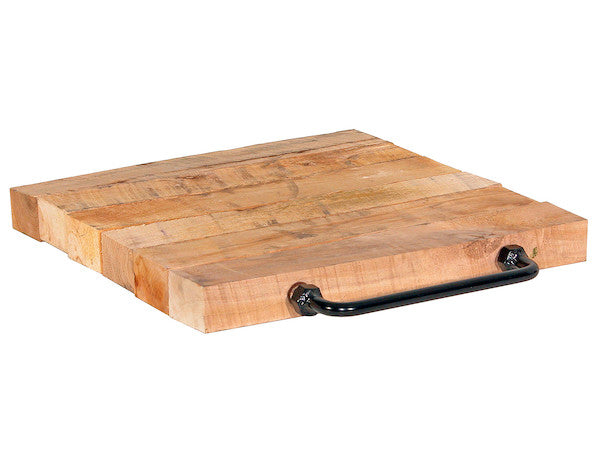

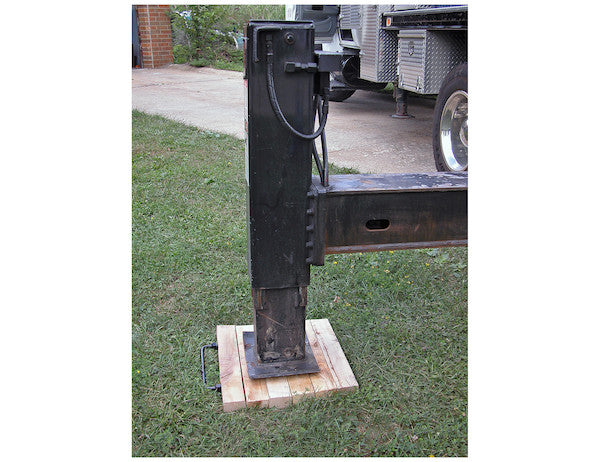

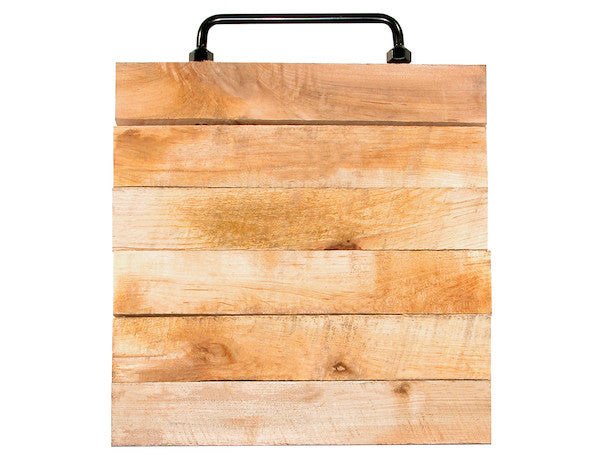

The Hardwood Outrigger Pad from Buyers Products protects concrete, paved, and other surfaces. It is ideal for utility trucks, tree trimmers, cranes, fire trucks, and and other heavy equipment vehicles. The pad is constructed of natural hardwood in a floating design that helps avoid cracking and breaking under pressure. Measuring 18 in. by 18 in., the pad is a full 2 in. thick and features a generously sized handle for gloved hands. Pads sold individually.
Specifications
| Color | Brown |
|---|---|
| Finish | Plain |
| Length (in.) | 18.00 |
| Material | Wood |
| Thickness (in.) | 2.00 |
| Width (in.) | 18.00 |
Advanced Technical Overview: Hardwood Outrigger Pad 18 x 18 x 2 Inch
In the demanding environments where heavy equipment operates, the stability and safety of machinery are paramount. The Hardwood Outrigger Pad, measuring 18 x 18 x 2 inches, represents a critical component in ensuring operational integrity, mitigating risks, and protecting valuable infrastructure. This detailed technical description elaborates on the engineering principles, material science, design considerations, and diverse applications that make this outrigger pad an indispensable asset for various industries.
The Imperative of Outrigger Stabilization: Engineering Principles
Heavy equipment, such as cranes, boom lifts, utility trucks, and concrete pumpers, relies on outriggers to establish a stable base and prevent tipping during operation. The concentrated load exerted by an outrigger foot on the ground surface can be substantial, often exceeding the bearing capacity of many common surfaces. Without proper load distribution, this concentrated pressure can lead to several critical issues: ground deformation, surface damage (cracking asphalt, concrete, or pavers), and, most dangerously, equipment instability or tipping due to inadequate foundation support.
The fundamental principle behind outrigger pads is the reduction of ground bearing pressure. The force exerted by an outrigger foot (F) is distributed over a larger area (A) by the pad, resulting in a significantly reduced pressure (P = F/A). For instance, if an outrigger foot with an area of 1 square foot exerts 10,000 lbs of force, the ground pressure is 10,000 psi. By placing an 18 x 18 inch (2.25 square feet) pad underneath, the pressure is reduced to approximately 4,444 psi, assuming uniform load distribution. In reality, the load is rarely perfectly uniform, making the pad's ability to resist deformation and distribute stress internally crucial. The Hardwood Outrigger Pad is engineered to effectively manage these forces, transforming high-point loads into a more diffuse pressure distribution across its 18x18 inch footprint, thereby safeguarding both the equipment and the underlying surface.
Material Science: The Efficacy of Natural Hardwood
The selection of natural hardwood as the primary material for this outrigger pad is based on its inherent mechanical properties that are highly advantageous for this application. Hardwoods are renowned for their exceptional strength-to-weight ratio, high compressive strength, excellent impact resistance, and inherent durability. Unlike some synthetic materials, natural hardwood possesses a unique cellular structure that allows it to absorb and distribute shock effectively, resisting sudden impacts and sustained static loads without brittle failure.
While specific hardwood species are not detailed, typical choices for such applications include dense varieties like oak, maple, or ash, which offer superior resistance to compression and shear forces. These woods are naturally resistant to certain environmental factors, providing a robust and reliable foundation. The material's fibrous nature also contributes to its "floating design" characteristic; rather than fracturing catastrophically under uneven loads, hardwood can exhibit a degree of controlled deformation and internal stress redistribution, helping to prevent immediate cracking or breaking. This contrasts with materials like concrete, which are excellent in compression but highly susceptible to tensile and shear forces, making them prone to cracking under uneven or dynamic loading.
Compared to other common outrigger pad materials:
- UHMW Polyethylene (Ultra-High Molecular Weight Polyethylene): While excellent for non-marking surfaces and often lighter, UHMW can exhibit significant flex under heavy loads, potentially leading to increased ground deformation or uneven load distribution. Hardwood offers superior rigidity at equivalent thicknesses for many applications.
- Composite Materials: Some composite pads offer good performance, but their cost can be significantly higher, and their failure modes can be less predictable than natural wood under extreme conditions.
- Steel Pads: While extremely strong, steel pads are exceptionally heavy, difficult to handle, prone to rust, and can cause significant damage to sensitive surfaces due to their hardness and tendency to localize pressure if not perfectly flat.
Precision Engineering: Design and Construction of the 18 x 18 x 2 Inch Pad
Every dimension and design feature of this Hardwood Outrigger Pad is meticulously considered to deliver maximum performance and longevity.
Dimensions: The 18 x 18 Inch Footprint
The 18 x 18 inch (45.72 cm x 45.72 cm) square footprint provides a generous surface area for load distribution. This size is carefully chosen to offer an effective balance between maximizing load-bearing capacity and maintaining portability. A larger pad would offer greater pressure reduction but would become unwieldy to transport and position. Conversely, a smaller pad would offer less protection and potentially insufficient load distribution for many heavy equipment applications. The 18x18 inch dimension is a recognized industry standard for versatility, suitable for a broad spectrum of utility, construction, and emergency service vehicles.
Thickness: The Critical 2-Inch Profile
The 2-inch (5.08 cm) thickness is a critical design parameter that significantly influences the pad's structural integrity and load-bearing performance. This thickness provides the necessary rigidity and resistance to bending and shear forces. A thinner pad, while lighter, would be more susceptible to deflection and potential fracture under the concentrated point loads of an outrigger foot, especially on uneven terrain or over soft spots. The 2-inch profile ensures that the pad remains stable and resists deformation, maintaining its effective load-spreading capability even under substantial pressure. This robust thickness also contributes to the pad's longevity, allowing it to withstand repeated cycles of compression and release without compromising its structural integrity. It effectively bridges minor voids or irregularities in the ground surface, preventing the outrigger foot from sinking or becoming unstable.
"Floating Design" for Enhanced Durability
The description highlights a "floating design that helps avoid cracking and breaking under pressure." This refers to a combination of material properties and structural integrity. For a hardwood pad, this typically implies a construction or inherent characteristic that allows the pad to:
- Distribute Internal Stress: Hardwood's fibrous nature allows it to better distribute internal stresses generated by non-uniform loading. Instead of a rigid, brittle failure, the wood fibers can stretch and compress, allowing for a more gradual and controlled stress dissipation within the pad itself.
- Conform to Uneven Surfaces: While a solid hardwood pad won't "flex" dramatically like some plastics, its inherent material characteristics enable it to settle and conform slightly to minor irregularities in the ground. This minimizes localized stress points that can occur when a perfectly rigid object meets an uneven surface, which would otherwise lead to premature cracking or splintering.
- Prevent Stress Concentration: By preventing the direct, highly localized pressure of the outrigger foot from immediately transferring to a small, unsupported point on the ground, the pad effectively "floats" the load over a larger, more forgiving area. This protective mechanism is crucial for preventing damage to the pad itself and the underlying surface.

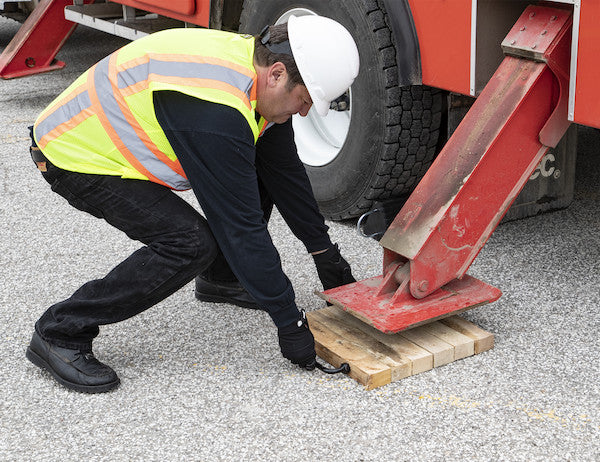

Integrated Handle for Operational Efficiency and Safety
The inclusion of a generously sized handle is a pragmatic design feature aimed at enhancing operational efficiency and operator safety. Manual handling of outrigger pads is a routine task, and a well-designed handle facilitates easy deployment, positioning, and retrieval. The "generously sized" aspect ensures that operators can maintain a secure grip, even when wearing heavy-duty work gloves, which are standard personal protective equipment (PPE) in most heavy equipment environments. This reduces the risk of dropped pads, pinched fingers, and other common handling injuries, streamlining the setup and teardown process.
Diverse Applications: Enhancing Stability Across Industries
The Hardwood Outrigger Pad 18 x 18 x 2 Inch is engineered for versatility, making it an essential accessory across a spectrum of industries that rely on heavy equipment requiring stabilization.
- Utility Trucks: Lineworkers, telecommunications technicians, and other utility personnel frequently operate bucket trucks and digger derricks on varying terrains, from paved city streets to unpaved easements. These pads provide crucial stability for boom operation, protect asphalt and concrete from damage, and prevent sinking into softer ground, ensuring the safety of workers and the integrity of infrastructure.
- Tree Trimmers & Arborists: Operating chippers and aerial lift equipment in residential and commercial landscapes demands careful consideration for property protection. These pads prevent ruts in lawns, cracking of driveways, and damage to sidewalks, while simultaneously providing a stable base for lifts on uneven or soft soil, critical for precise and safe tree work.
- Cranes: From mobile cranes on construction sites to smaller hydraulic cranes used for specialized lifts, stable footing is non-negotiable. These pads are deployed to distribute immense loads, preventing soil liquefaction, subgrade failure, and damage to finished surfaces. They are vital for maintaining the crane's load chart capacity and preventing catastrophic tipping incidents.
- Fire Trucks & Emergency Vehicles: Aerial ladder trucks and heavy rescue vehicles often deploy outriggers on diverse surfaces during emergency operations. The ability to rapidly deploy these pads helps protect critical urban infrastructure (e.g., sidewalks, curbs, parking lots) and ensures the swift and safe stabilization of equipment in high-pressure situations, allowing firefighters to focus on their primary mission.
- Other Heavy Equipment Vehicles: This category encompasses a broad range of machinery, including concrete pump trucks, telehandlers, excavators with stabilization feet, boom lifts, and scissor lifts. Any equipment designed to operate with outriggers or stabilization pads benefits from the enhanced ground pressure distribution and surface protection offered by these hardwood pads. They are particularly valuable when operating on sensitive surfaces like exhibition hall floors, historical paving, or newly laid asphalt.
Safety, Compliance, and Longevity
The use of appropriate outrigger pads is not merely a matter of convenience; it is a fundamental aspect of operational safety and regulatory compliance. Organizations like OSHA (Occupational Safety and Health Administration) emphasize the critical importance of stabilizing heavy equipment to prevent accidents, injuries, and fatalities. Proper load distribution through outrigger pads directly contributes to meeting these safety standards by:
- Preventing Tipping: Ensuring the equipment maintains its center of gravity within its stable operating envelope.
- Protecting Personnel: Minimizing the risk of equipment failure that could endanger operators and surrounding workers.
- Mitigating Property Damage: Avoiding costly repairs to surfaces, which translates to significant economic savings.
Economic and Environmental Value Proposition
Investing in the Hardwood Outrigger Pad 18 x 18 x 2 Inch offers a compelling economic and environmental value proposition. From an economic standpoint, the cost of replacing damaged paved surfaces, repairing cracked concrete, or compensating for damaged landscaping far outweighs the initial investment in high-quality outrigger pads. Furthermore, by providing a stable base, these pads reduce stress on equipment components, potentially extending the lifespan of the machinery itself and reducing maintenance costs associated with operating on unstable foundations. The ease of handling also contributes to operational efficiency, reducing setup and teardown times, which translates to labor cost savings over time.
Environmentally, hardwood is a renewable resource, especially when sourced responsibly. The durability and long lifespan of these pads minimize the frequency of replacement, reducing waste. Their plain finish avoids the use of synthetic coatings that might contain harmful chemicals, further underscoring an environmentally conscious design choice.
Conclusion
The Hardwood Outrigger Pad 18 x 18 x 2 Inch is more than just an accessory; it is a critical engineering component designed to enhance safety, protect infrastructure, and optimize the performance of heavy equipment across diverse industries. Its natural hardwood construction, precise dimensions, robust 2-inch thickness, and intelligent "floating design" combine to deliver unparalleled load distribution and resistance to wear. From utility operations to emergency response, construction, and arboriculture, this pad provides the foundational stability essential for safe and efficient heavy equipment deployment. Its technical specifications and design principles underscore its role as a vital investment for any organization prioritizing operational integrity, safety, and long-term cost-effectiveness.
