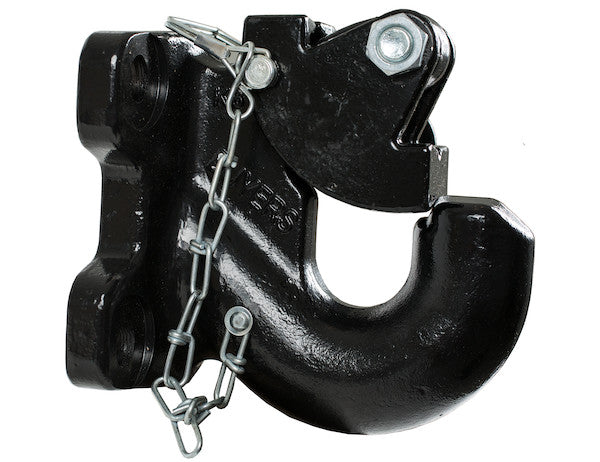

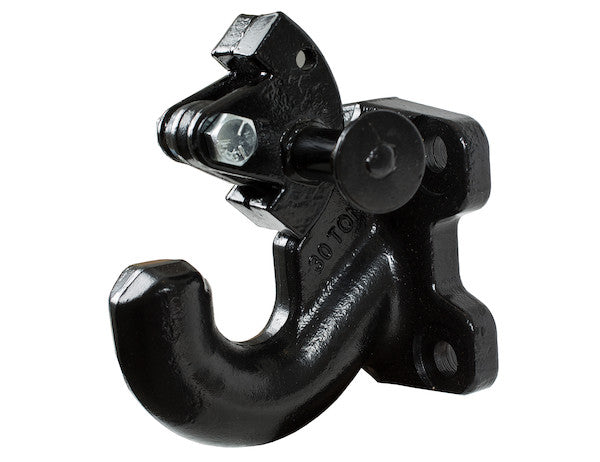

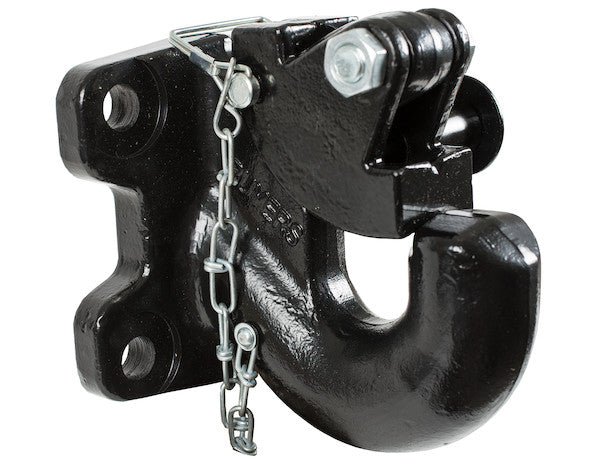

The bolt-on 30 Ton Pintle Hook from Buyers Products features tough, drop-forged steel construction and a black powder-coated finish for maximum durability and resistance to corrosion. Ideal for contractors and haulers of heavy equipment, the pintle hook will handle maximum gross towing weights of up to 60,000 lb. Each pintle hook includes mounting information, specs sheet, drilling template, and vehicle capacity decal. It is available with just the pintle hook or sold with a mounting kit.
Specifications
| Ball Diameter (in.) | - |
|---|---|
| Color | Black |
| Drawbar Eye Inner Dia. (in.) | 2.38-3.00 |
| Finish | Powder-Coat |
| Horizontal Hole Spacing (in.) | 4.50 |
| M.G.T.W. (lbs) | 60,000 |
| M.V.L. (lbs) | 15,000 |
| Material | Forged Steel |
| Mounting Hole Diameter (in.) | 0.781 |
| Pintle Hook Type | Standard |
| Vertical Hole Spacing (in.) | 4.50 |
Advanced Engineering and Performance Analysis of the 30 Ton Pintle Hook
The 30 Ton Pintle Hook, meticulously engineered by Buyers Products, represents the pinnacle of heavy-duty towing technology, designed for uncompromising reliability and performance in the most demanding operational environments. This detailed exposition delves into the technical specifications, material science, operational advantages, and application guidelines of this essential towing component, providing comprehensive insights for professionals involved in heavy equipment transportation, construction, and industrial logistics.
Unrivaled Material Science and Manufacturing Precision
At the core of this pintle hook's formidable strength and longevity is its construction from premium, drop-forged steel. The forging process is a critical element in achieving superior mechanical properties. Unlike cast or machined components, drop forging rearranges the steel's grain structure, aligning it with the contours of the part. This metallurgical phenomenon significantly enhances the material’s tensile strength, impact resistance, and fatigue life. The resulting component exhibits a continuous grain flow, eliminating internal voids and porosity, which are common weaknesses in other manufacturing methods. This makes the forged steel pintle hook exceptionally resilient to the dynamic stresses, shocks, and torsional forces inherent in heavy towing applications, ensuring a higher margin of safety and extended service life under continuous load cycles.
Complementing its robust internal structure, the pintle hook features a black powder-coated finish. This advanced coating technology provides a protective layer that is far superior to conventional liquid paints in terms of durability, corrosion resistance, and environmental impact. The powder coating process involves electrostatically applying a dry powder to the steel surface, which is then cured under heat. This curing process creates a tough, continuous film that is highly resistant to chipping, scratching, fading, and abrasion. More critically for outdoor and industrial applications, the powder coat forms an impenetrable barrier against moisture, road salts, chemicals, and UV radiation, effectively preventing rust and corrosion. This exceptional resistance preserves the structural integrity and aesthetic appeal of the pintle hook even when exposed to harsh weather conditions, abrasive road debris, and corrosive industrial environments, significantly reducing maintenance requirements and total cost of ownership over its operational lifespan.
Optimized Towing Capacities and Compatibility Standards
The 30 Ton Pintle Hook is engineered to manage substantial towing requirements, featuring a Maximum Gross Towing Weight (M.G.T.W.) of 60,000 lbs (30 short tons). This impressive capacity rating signifies its capability to safely articulate and haul trailers or equipment with a combined weight of up to 60,000 pounds. This rating is critical for ensuring compliance with industry safety standards such as SAE J847 and VESC V-5, which govern the performance criteria for coupling devices. Understanding and adhering to the M.G.T.W. is paramount for preventing overloading scenarios, which can lead to catastrophic equipment failure, loss of control, and severe safety hazards. The engineering behind this capacity involves meticulous design considerations, including material selection, stress distribution analysis, and rigorous testing under various load conditions, affirming its suitability for the heaviest loads typically encountered in construction, agricultural, and specialized transport sectors.
Equally vital is the Maximum Vertical Load (M.V.L.) rating of 15,000 lbs. The M.V.L., often referred to as tongue weight, represents the maximum downward force that the trailer's drawbar eye can exert on the pintle hook. Proper management of the M.V.L. is crucial for maintaining vehicle stability, steering control, and braking efficiency. An improperly distributed vertical load can lead to trailer sway, excessive wear on the towing vehicle's suspension and tires, and potential structural damage to both the pintle hook and the drawbar. The 15,000 lbs M.V.L. rating ensures that heavy trailers, especially those with concentrated forward loads, can be safely towed with optimal weight distribution, minimizing dynamic imbalances and maximizing operational safety.
Compatibility with trailer drawbar eyes is a fundamental aspect of secure coupling. This pintle hook is designed to accommodate drawbar eyes with an inner diameter ranging from 2.38 to 3.00 inches. This specific range is critical for establishing a secure connection that minimizes play and wear between the pintle hook's horn and the drawbar eye. A correctly matched drawbar eye ensures proper engagement of the pintle's locking mechanism, reducing articulation noise, preventing premature wear on both components, and enhancing the overall stability of the tow connection during transit. This wide range of compatibility caters to a broad spectrum of heavy-duty trailers and equipment, making the pintle hook a versatile solution for diverse fleets.
Classified as a "Standard" pintle hook, this product is designed for direct coupling with ring-type drawbar eyes, distinguishing it from combination hitches that integrate a ball hitch or other coupling mechanisms. The standard pintle hook excels in applications requiring robust, positive locking connections that can accommodate significant articulation over uneven terrain, a common requirement in off-road construction and mining operations. Its simplicity and strength contribute to its reliability, making it the preferred choice for heavy-duty, industrial-grade towing.
Precision Installation and Comprehensive Support
The 30 Ton Pintle Hook features a robust bolt-on design, which offers several distinct advantages over weld-on installations. A bolt-on mechanism simplifies installation and removal, allowing for easier maintenance, replacement, or transfer to another vehicle without requiring specialized welding equipment or skilled welding labor. This design ensures that the pintle hook can be securely affixed to a variety of frame structures or mounting plates, providing flexibility for fleet managers and equipment operators. The precision-engineered bolt pattern further ensures a strong, uniform connection to the towing vehicle's chassis, minimizing stress concentrations and enhancing overall structural integrity.
For optimal integration, the pintle hook specifies precise mounting hole dimensions: horizontal hole spacing of 4.50 inches and vertical hole spacing of 4.50 inches, with a mounting hole diameter of 0.781 inches. This standardized 4.50 x 4.50 inch bolt pattern is common in heavy-duty towing applications, ensuring compatibility with many existing vehicle frame configurations and mounting platforms. The 0.781-inch mounting hole diameter accommodates industry-standard high-strength bolts, which are essential for securing the hook and achieving the specified M.G.T.W. and M.V.L. ratings. Proper torque application for these bolts, as detailed in the included documentation, is crucial for maintaining the integrity of the connection and preventing loosening under vibrational loads.
Buyers Products is committed to facilitating seamless installation and ensuring operational safety, which is why each pintle hook package includes a comprehensive suite of resources. This includes detailed mounting information, a full specifications sheet, a precise drilling template, and a critical vehicle capacity decal. The mounting information provides step-by-step guidance for correct installation, ensuring adherence to best practices and manufacturer recommendations. The specifications sheet offers a complete overview of the product's technical data, invaluable for compliance checks and engineering assessments. The drilling template simplifies the creation of mounting holes on the vehicle frame, eliminating guesswork and promoting accuracy, which is essential for achieving proper alignment and load distribution. Finally, the vehicle capacity decal is a vital safety component, providing clear visual indication of the towing limits for the vehicle-pintle hook combination, ensuring that operators remain within safe parameters and comply with regulatory requirements. The option to purchase the pintle hook with or without a mounting kit further enhances convenience, allowing customers to select the configuration that best suits their immediate installation needs, whether integrating with existing hardware or requiring a complete, ready-to-install solution.
Diverse Applications and Industry Compliance
The robust design and significant towing capabilities of the 30 Ton Pintle Hook render it an indispensable tool across a wide array of heavy-duty applications. For contractors, it is the ideal coupling device for transporting large construction equipment such as excavators, bulldozers, wheel loaders, and concrete mixers between job sites. Its ability to manage substantial gross towing weights and vertical loads ensures stable and secure transport over varied terrain, from paved highways to unpaved construction routes. In the realm of heavy equipment hauling, specialized transport companies rely on its strength for moving oversized machinery, modular structures, and industrial components, where secure coupling is non-negotiable for both cargo safety and public road safety.
Beyond construction, this pintle hook serves critical roles in numerous other industrial sectors. Agricultural operations frequently utilize it for towing large farm implements, such as plows, cultivators, seeders, and specialized trailers that often exceed the capacity of conventional ball hitches. In the mining industry, it is employed for connecting heavy haulage trailers and service vehicles, where extreme loads and rugged terrain are the norm. Municipal and governmental fleets, including those involved in road maintenance, infrastructure projects, and utility services, benefit from its durability for towing equipment like asphalt pavers, material spreaders, and utility trailers. The consistent performance and robust construction of the pintle hook ensure reliable operation in these diverse and demanding environments, contributing to operational efficiency and safety.
Compliance with national and international towing regulations is a paramount concern for all operators. The 30 Ton Pintle Hook is designed and manufactured to meet or exceed relevant industry standards, ensuring that users can operate with confidence that their towing setup is legally compliant and safe. This includes adherence to standards for material strength, load ratings, and coupling mechanism integrity. Regular inspections, proper maintenance, and strict adherence to the stated M.G.T.W. and M.V.L. limits are crucial for maintaining this compliance and maximizing the safety performance of the towing system over its lifespan. The provision of a vehicle capacity decal further aids in this, making sure that critical information is readily available to operators at all times.
Longevity, Maintenance, and Value Proposition
The inherent durability derived from its drop-forged steel construction and powder-coated finish translates directly into an exceptionally long service life for the 30 Ton Pintle Hook. This longevity minimizes the frequency of replacements, reduces operational downtime, and significantly lowers long-term maintenance costs, providing substantial economic value to fleet owners and operators. The design's resistance to wear, fatigue, and environmental degradation ensures consistent performance even after years of strenuous use in challenging conditions.
To maximize the operational life and maintain the safety integrity of the pintle hook, a routine maintenance regimen is highly recommended. This typically includes periodic inspection for signs of wear, cracks, distortion, or damage to the forging and the locking mechanism. The engagement surfaces of the pintle hook and the drawbar eye should be regularly inspected for excessive wear, which could indicate a need for replacement or adjustment to prevent unsafe play in the connection. Proper lubrication of moving parts, such as the latch and pintle hook horn, is essential to ensure smooth operation and prevent corrosion, particularly in environments exposed to moisture and abrasive dust. Any signs of corrosion on the base metal, even if the powder coat is compromised, should be addressed promptly to prevent further degradation. Adherence to manufacturer-recommended inspection intervals and prompt attention to any observed issues will ensure the pintle hook continues to perform reliably at its rated capacities.
In summary, the 30 Ton Pintle Hook from Buyers Products represents a strategic investment for any operation requiring robust, reliable, and high-capacity towing solutions. Its superior engineering, evidenced by drop-forged steel construction and advanced powder coating, delivers unparalleled durability and resistance to environmental stressors. The meticulously calculated M.G.T.W. of 60,000 lbs and M.V.L. of 15,000 lbs, coupled with broad drawbar eye compatibility, ensures its suitability for a vast array of heavy equipment and industrial trailers. The provision of comprehensive mounting documentation and the option of a complete mounting kit underscore Buyers Products' commitment to ease of installation and operational excellence. This pintle hook stands as a testament to professional-grade equipment, designed not just to meet but to exceed the rigorous demands of heavy-duty towing, securing loads with unwavering confidence across all applications.
